Hayward XStream Filter Lower Body for CC1000 and CC1500 Filters (CCX1000B)
Hayward XStream Filter Lower Body for CC1000 and CC1500 Filters (CCX1000B)
37 in stock
Ships from: Memphis, TN | Tucson, AZ | Bloomfield, CT
Genuine OEM product, sold with full manufacturer warranty support.
- Next day Shipping Mon–Fri
- 30 days ReturnsPolicy
- 12 Months Warranty Manufacturer
Frequently Bought Together
Product Information
Description
- Genuine Hayward Part
- Fits CC1000 and CC1500
- 1-1/2 in NPT Ports
- Free Shipping
Hayward XStream Filter Lower Body for CC1000 and CC1500 Filters (CCX1000B)
One lower body for both XStream sizes.

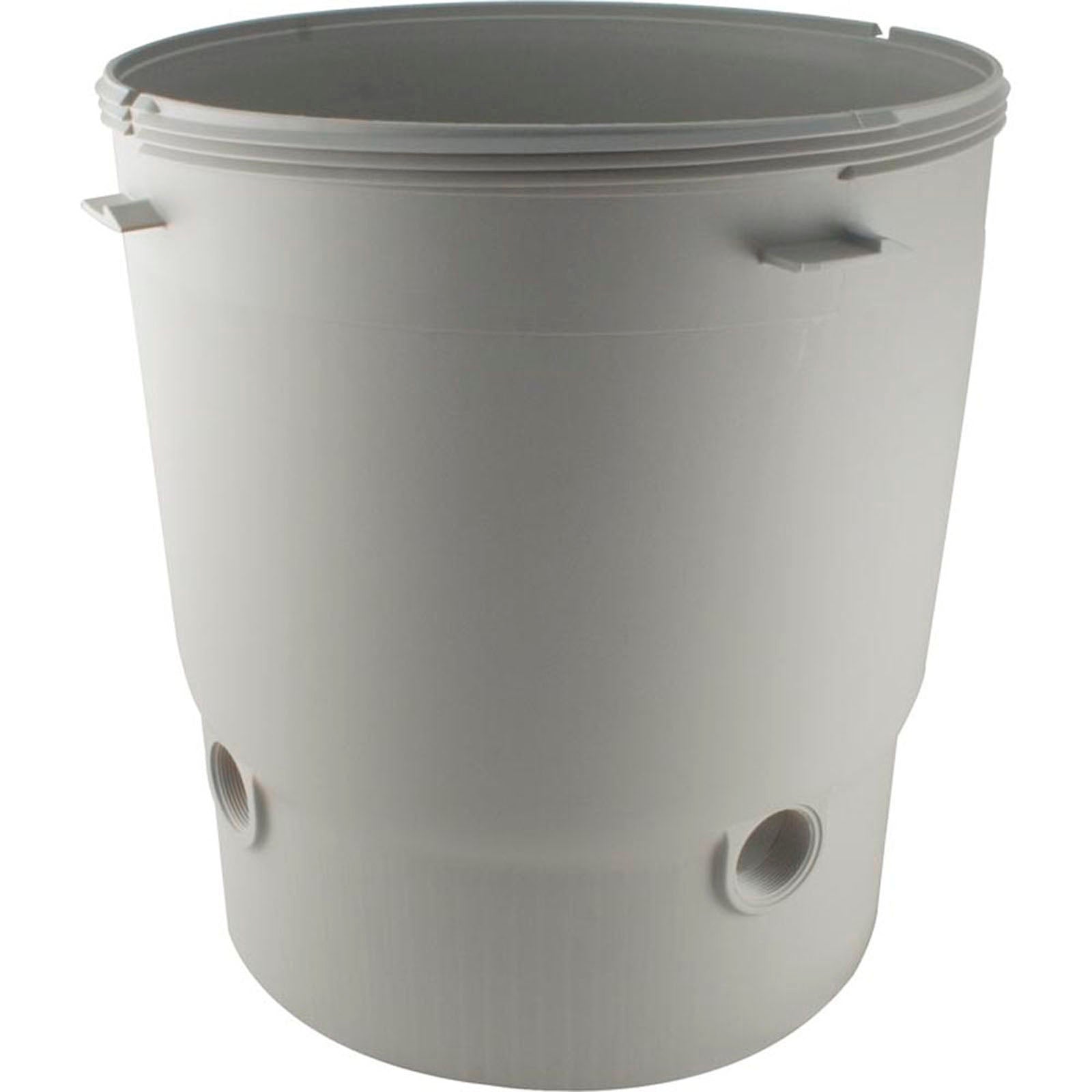

The Hayward CCX1000B filter lower body is the bottom of the XStream filter tank: the cartridge sits on the collector hub inside it, your pool return connects to its outlet port, and the drain plug sits at its base. Hayward's XStream parts list shows one lower body, part 9, for both the 100 sq ft CC1000 and the 150 sq ft CC1500, while the lids and cartridges come in two sizes. Hayward covers the CCX1000B with a 6-month replacement part warranty.
Why PST Customers Pick This
One Body, Two Sizes
Hayward's XStream parts list gives the CC1000 and CC1500 a single lower body, CCX1000B. The lid (CCX1000C or CCX1500C) and the cartridge (CCX1000RE or CCX1500RE) are the parts that change with filter size.
Outlet and Drain in the Base
Your pool return plumbing connects to the outlet port at the bottom of the filter body, and the drain plug (SP1022CBLK, with O-ring) sits at its base.
Glass-Reinforced Tank
Hayward describes the XStream filter tank as glass reinforced and non-corrosive. Its earlier manual names the tank material injection-molded PermaGlass XL.
Thread Ports With Teflon Tape
Hayward calls for Teflon tape on the 1-1/2 in NPT ports and warns that plumber's pipe dope may crack the plastic. Tighten hand-tight, then one more full turn with a wrench if needed.
Matching Hayward Parts
Hayward lists the body O-ring (CCX1000G), the standard base (CCX1000A) and the self-aligning union (SP1480BLK) as separate XStream parts.
Plan the Clearance
Hayward lists 18 in of required clearance at the side, and 24 in above the CC1000 or 30 in above the CC1500.
Pressure Warning
Hayward warns that filtration equipment operates under pressure and that a qualified pool professional must conduct all pressure tests. Never operate or test the filter above 30 PSI, and do not connect it to a high-pressure system such as a municipal water main. Confirm every clamp, bolt and cover is tightened to Hayward's recommendations before start-up.
Specifications
| Identification | |
|---|---|
| Manufacturer | Hayward |
| Hayward Part Number | CCX1000B |
| Hayward Description | Filter, lower body |
| GTIN / UPC | 610377845540 |
| SKU | PST-17-150-1290 |
| Part Type | Filter part |
| Fitment | |
| Filter Series | Hayward XStream Filtration Series |
| Filter Models | CC1000 (100 sq ft) and CC1500 (150 sq ft) |
| Parts List Reference | Ref. 9 |
| Pool Type | Permanently installed above-ground pools |
| Construction and Plumbing | |
| Tank Material | Glass reinforced, non-corrosive (PermaGlass XL in Hayward's earlier manual) |
| Plumbing Connections | 1-1/2 in NPT |
| Pool Return | Outlet port at the bottom of the filter body |
| Cartridge Seat | Collector hub in the bottom of the filter body |
| Drain | Drain plug at the base of the filter body |
| Filter Ratings | |
| Maximum Working Pressure | 30 PSI |
| Design Flow Rate | 80 GPM (CC1000), 100 GPM (CC1500) |
| Related Hayward Parts | |
| Drain Plug with O-Ring | SP1022CBLK |
| Body O-Ring | CCX1000G |
| Base, Standard | CCX1000A |
| Self-Aligning Union, Black | SP1480BLK |
| Warranty | |
| Replacement Part Warranty | 6 months (Hayward) |
Frequently Asked Questions
Does the CCX1000B fit both the XStream 100 and the XStream 150?
Hayward's XStream parts list, which covers the CC1000 and the CC1500, shows one lower body, CCX1000B. It lists separate 100 and 150 sq ft lids and cartridges.
Are the lid, base and O-ring part of this item?
Hayward lists them as separate parts: the lid with lock ring (CCX1000C for the 100, CCX1500C for the 150), the standard base (CCX1000A) and the body O-ring (CCX1000G).
What should I use on the threaded ports?
Hayward says to use Teflon tape and not plumber's pipe dope, which may crack the plastic. Apply three turns to the male threads, screw the fitting in hand-tight, then tighten one more full turn with a wrench if necessary.
What pressure is the XStream rated for?
Hayward lists a 30 PSI maximum working pressure for both the CC1000 and CC1500, and warns never to operate or test the filter above 30 PSI.
What warranty comes with it?
Hayward lists a 6-month warranty on this replacement part.
