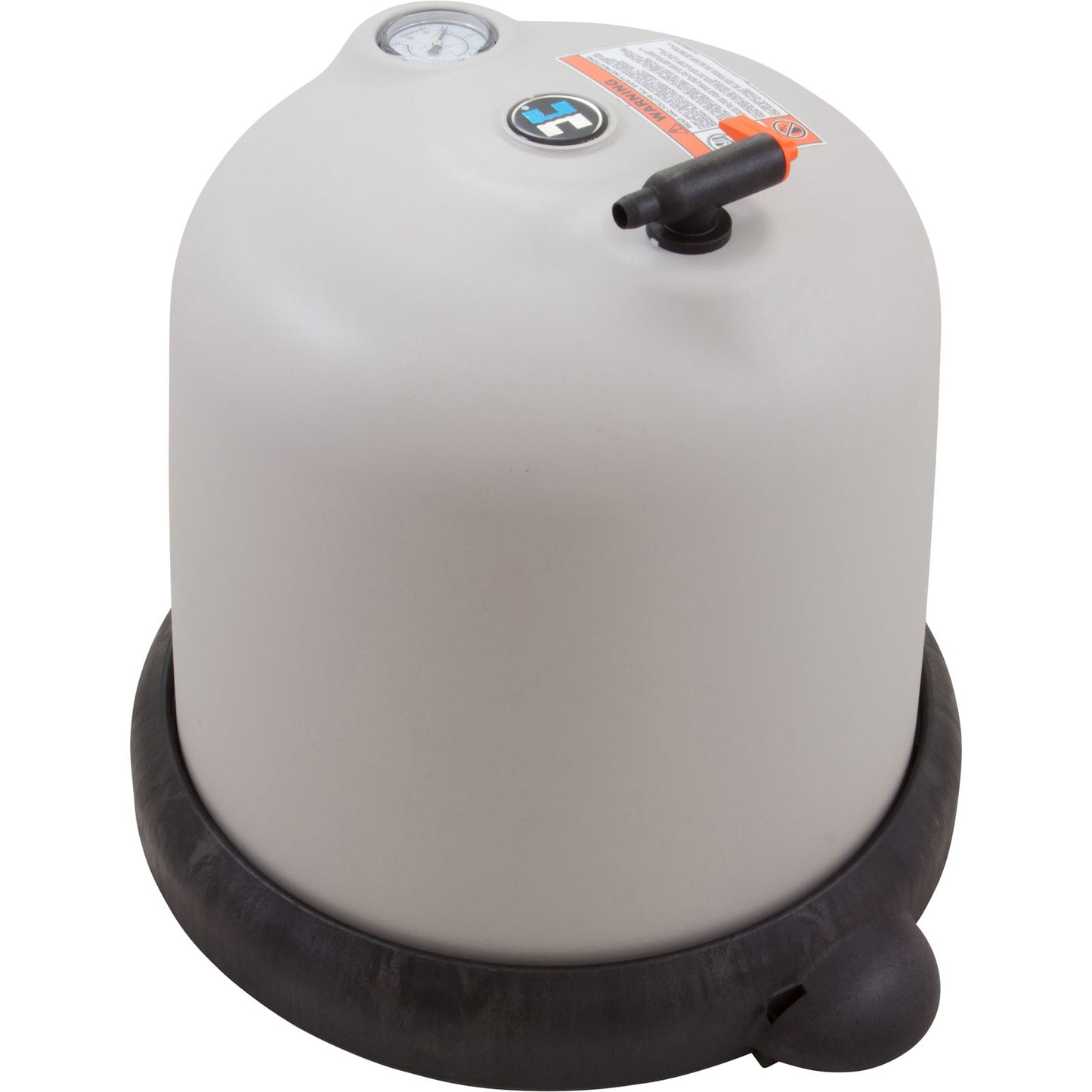

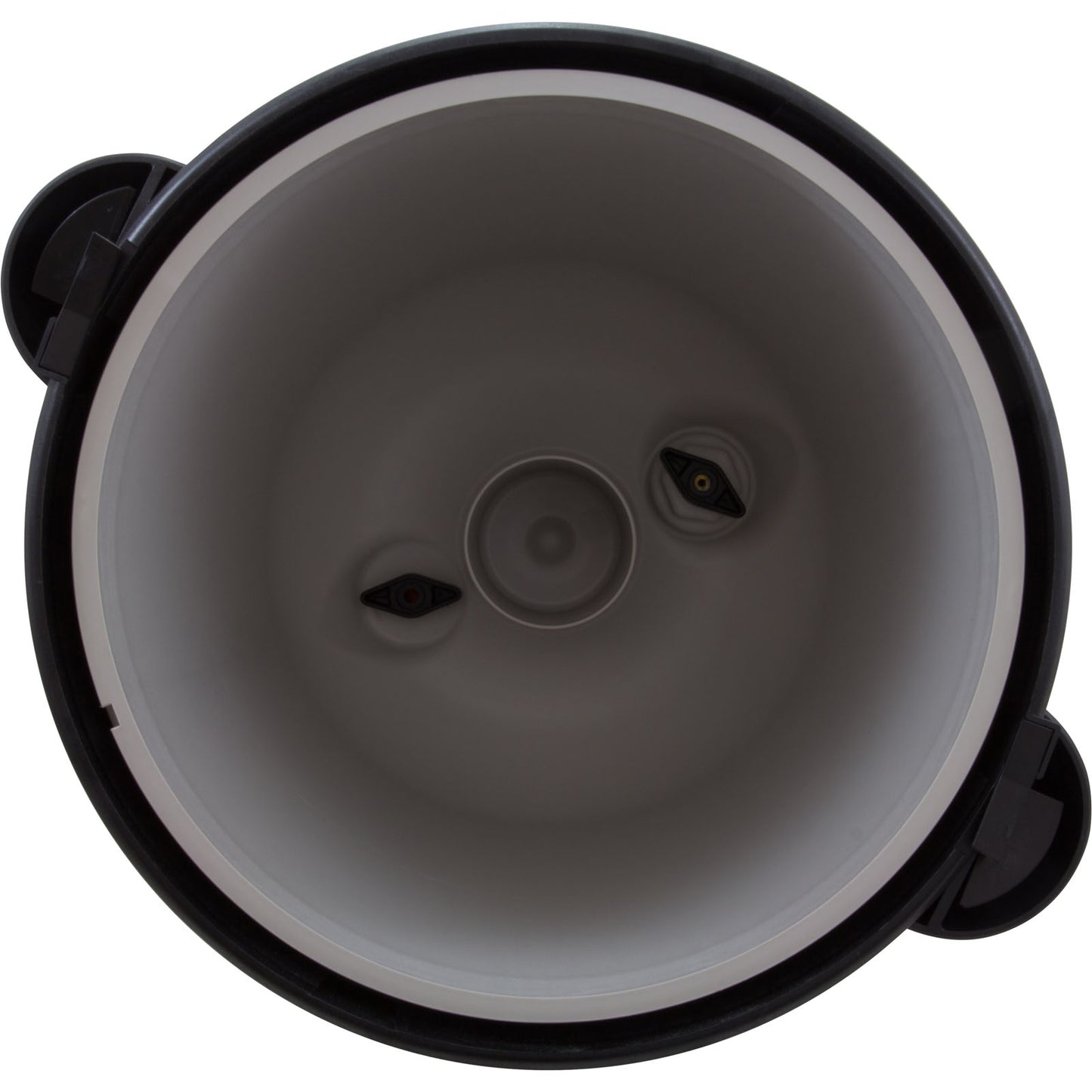

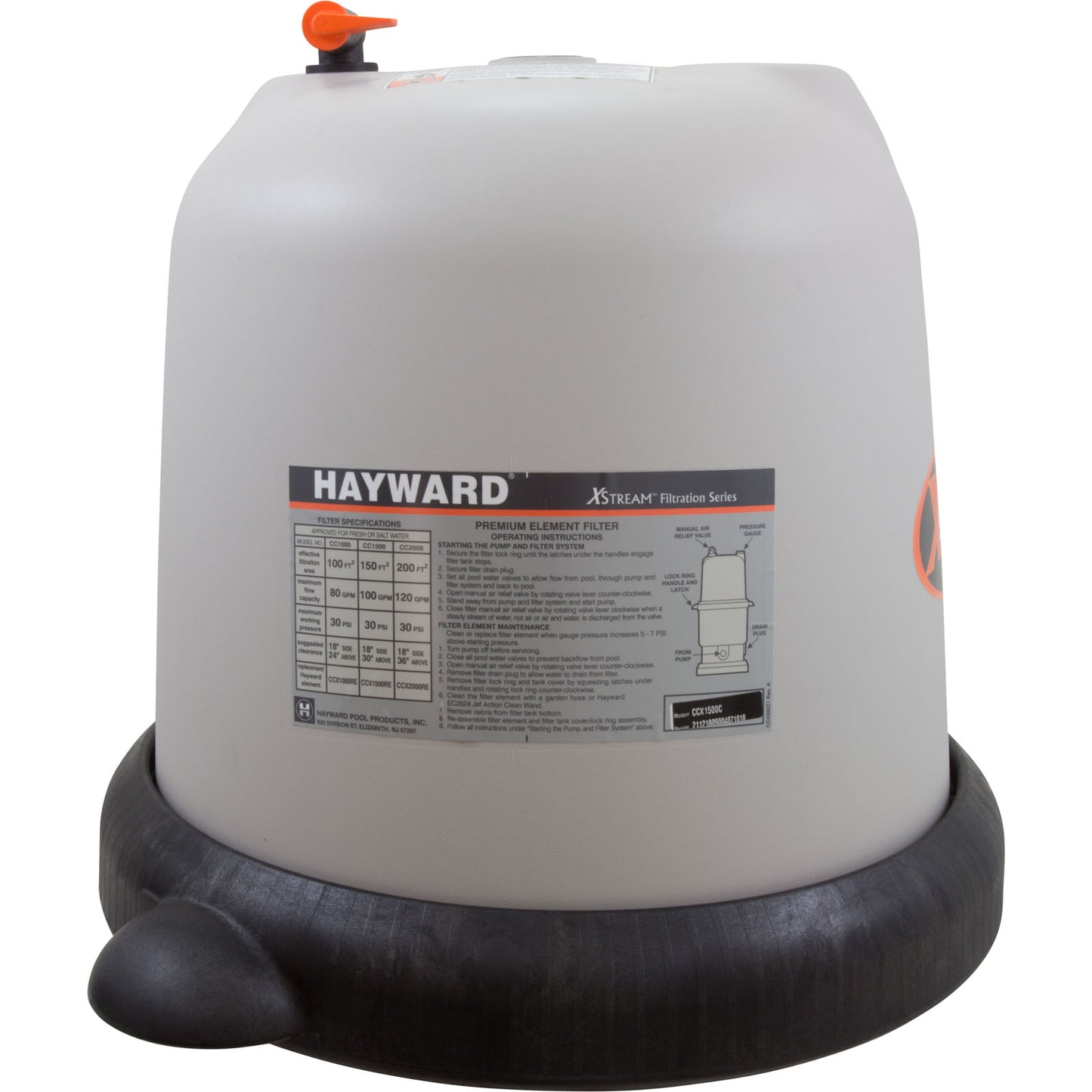

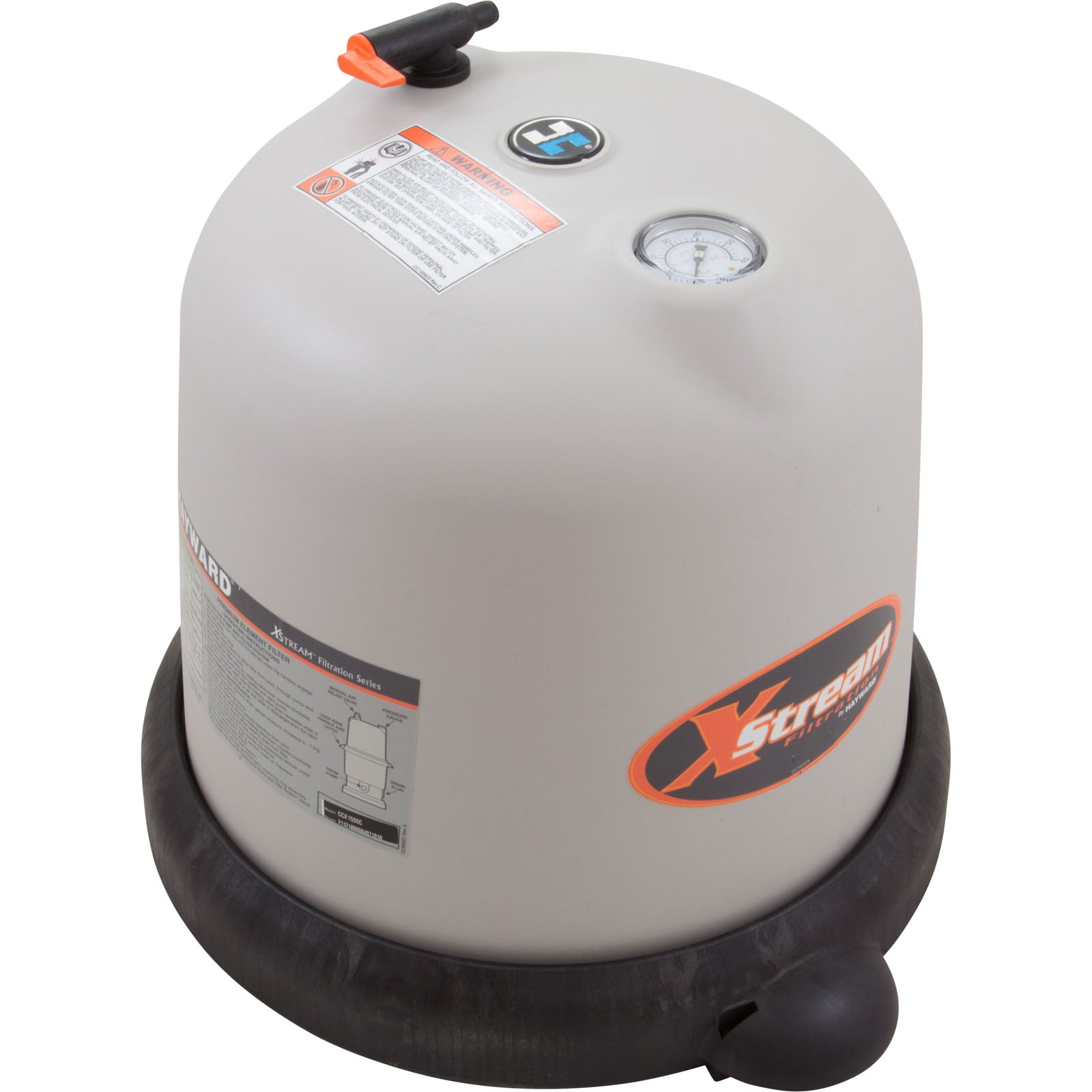

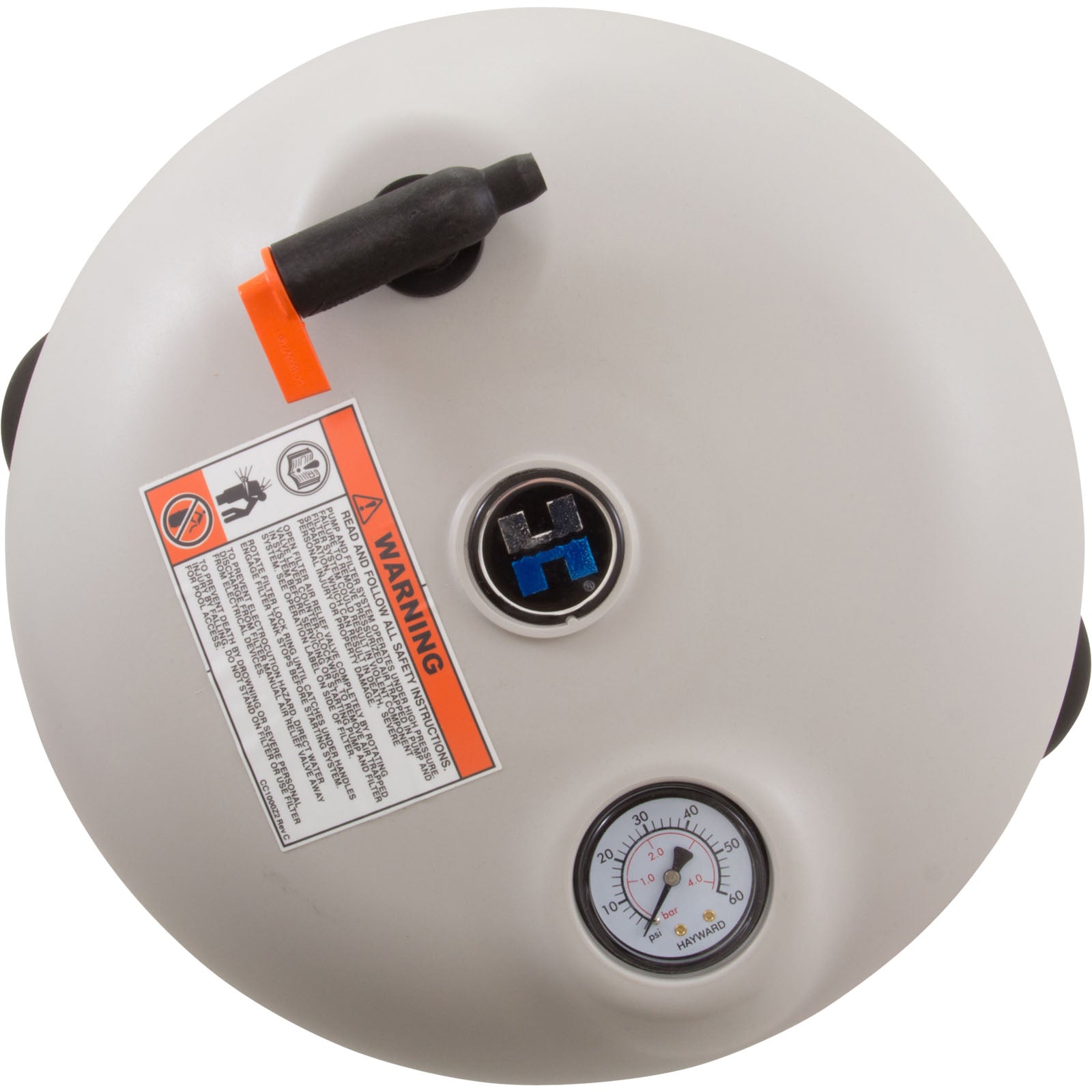

Hayward XStream Filter Lid with Lock Ring for CC1500, 150 Sq Ft (CCX1500C)
Hayward XStream Filter Lid with Lock Ring for CC1500, 150 Sq Ft (CCX1500C)
116 in stock
Ships from: Memphis, TN | Tucson, AZ | Bloomfield, CT
Genuine OEM product.
- Next day Shipping Mon–Fri
- 30 days ReturnsPolicy
Frequently Bought Together
Product Information
Description
- Genuine Hayward Part
- Lock Ring Included
- Easy-Lok Ring
- Free Shipping
Hayward XStream Filter Lid with Lock Ring for CC1500, 150 Sq Ft (CCX1500C)
The 150 sq ft XStream lid, ring included.
The Hayward CCX1500C filter lid with lock ring is the replacement top for the XStream CC1500, Hayward's 150 sq ft cartridge filter for permanently installed above-ground pools. Lid and Easy-Lok lock ring come together, the assembly Hayward lists as part 6b in the XStream parts list. Hayward covers the CCX1500C with a 6-month replacement part warranty.
Why PST Customers Pick This

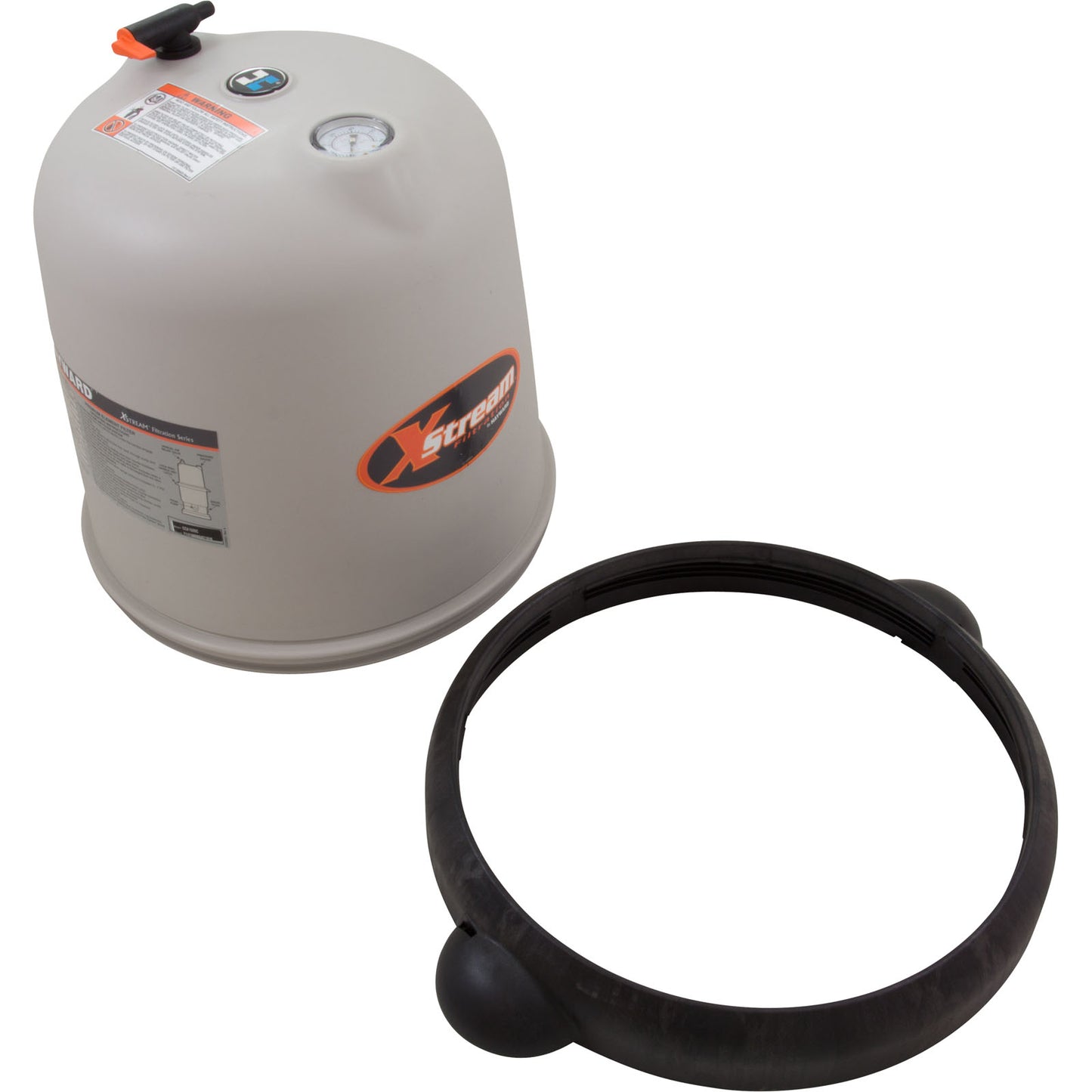

Lid and Lock Ring Together
Hayward sells the CCX1500C as the filter lid with its lock ring, part 6b for the 150 sq ft XStream. The ring assembly alone is CCX1000D, and the lock ring latches are CCX1000H, two per filter.
Easy-Lok Single-Turn Access
Hayward's Easy-Lok ring design gives quick access to all of the XStream's internal components in a single turn.
Safety Latches Hold It
Safety latches sit on the underside of the lock ring handles. You turn the ring clockwise until they engage, and Hayward says a safety catch prevents over-tightening of the lid.
Sized for the CC1500
This lid matches the 150 sq ft CC1500 and its CCX1500RE cartridge. The 100 sq ft CC1000 takes its own lid, CCX1000C.
Clearance Above the Filter
Hayward lists 30 in of required clearance above the CC1500 and 18 in at the side.
When to Open It
Hayward says to clean the cartridge when the pressure gauge reads 5 to 7 PSI above its normal pressure.
Pressure Warning
Hayward warns that filtration equipment operates under pressure and that a qualified pool professional must conduct all pressure tests. Never operate or test the filter above 30 PSI. Before opening the lid, Hayward's manual has you shut off the pump, open the air relief valve and open the drain plug.
Specifications
| Identification | |
|---|---|
| Manufacturer | Hayward |
| Hayward Part Number | CCX1500C |
| Hayward Description | Filter lid w/ lock ring (135-175) |
| GTIN / UPC | 610377845564 |
| SKU | PST-17-150-1292 |
| Part Type | Filter part |
| Fitment | |
| Filter Series | Hayward XStream Filtration Series |
| Filter Model | CC1500, 150 sq ft |
| Parts List Reference | Ref. 6b |
| Lid for the CC1000 | CCX1000C |
| Pool Type | Permanently installed above-ground pools |
| CC1500 Filter Specs | |
| Effective Filtration Area | 150 sq ft |
| Design Flow Rate | 100 GPM |
| Maximum Working Pressure | 30 PSI |
| Replacement Cartridge | CCX1500RE |
| Required Clearance | 30 in above, 18 in side |
| Fastening | Easy-Lok ring assembly |
| Related Hayward Parts | |
| Lock Ring Assembly Only | CCX1000D |
| Lock Ring Latch | CCX1000H (2 per filter) |
| Body O-Ring | CCX1000G |
| Warranty | |
| Replacement Part Warranty | 6 months (Hayward) |
Frequently Asked Questions
Does the CCX1500C include the lock ring?
Yes. Hayward lists the CCX1500C as the filter lid with lock ring for the 150 sq ft XStream. If only the ring or a latch is damaged, Hayward sells the lock ring assembly (CCX1000D) and the lock ring latch (CCX1000H) separately.
Will this lid fit an XStream 100?
No. Hayward's parts list gives the 150 sq ft CC1500 the CCX1500C lid and the 100 sq ft CC1000 the CCX1000C lid.
How do I take the lid off and put it back?
Hayward's steps: shut off the pump, close any suction and return valves, open the air relief valve and the drain plug, then press the safety latches under the lock ring handles and unscrew the ring counter-clockwise. To close, set the lid evenly on the filter body and turn the Easy-Lok ring clockwise until the safety latches engage.
How should I clean the cartridge while the lid is off?
Hayward's current manual says not to pressure wash. Wash the cartridge inside and out with Hayward's EC2024 cleaning wand or a garden hose, working from the top down.
What warranty comes with it?
Hayward lists a 6-month warranty on this replacement part.
Order the CCX1500C From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- 6-Month Hayward Warranty
- Authorized Hayward Dealer
