Hayward ColorLogic 4.0 LED Spa Light, 120V, 100' Cord, Stainless Steel (W3SP0535SLED100)
Hayward ColorLogic 4.0 LED Spa Light, 120V, 100' Cord, Stainless Steel (W3SP0535SLED100)
111 in stock
Ships from: Idaho Falls, ID | Memphis, TN | Tucson, AZ | Bloomfield, CT | Murray, UT
Frequently Bought Together
Fast Shipping
Order now to have your order shipped next business day.
Easy Returns
Enjoy peace of mind with a 30-day Return Policy.
Product Information
Description
Hayward ColorLogic 4.0 LED Spa Light, 120V, 100 ft Cord, Stainless Steel Trim
Five colors, seven shows, one spa.
The Hayward ColorLogic 4.0 LED Spa Light (MPN W3SP0535SLED100, PST SKU PST-56-150-1011E) is the 120V, 100 foot cord build with a stainless steel face rim, engineered for in-ground spas and small water features. It wires straight to a standard 120V spa light circuit with no low-voltage transformer, draws just 40W, and ships with 5 fixed colors and 7 color-changing shows built into the fixture. Tie it into Hayward ProLogic or OmniLogic automation and the same light opens up to 11 shows plus a full spectrum of 101 colors.
Why PST Customers Pick This
Five Colors, Seven Shows
You get 5 fixed colors and 7 color-changing shows built into the fixture itself, no controller required. Brightness dials from 20% to 100% and show speed has 9 settings.
120V, No Transformer
Runs off a standard 120V spa light circuit. There is no low-voltage transformer to size, mount, or troubleshoot, which keeps both the install and the failure points simple.

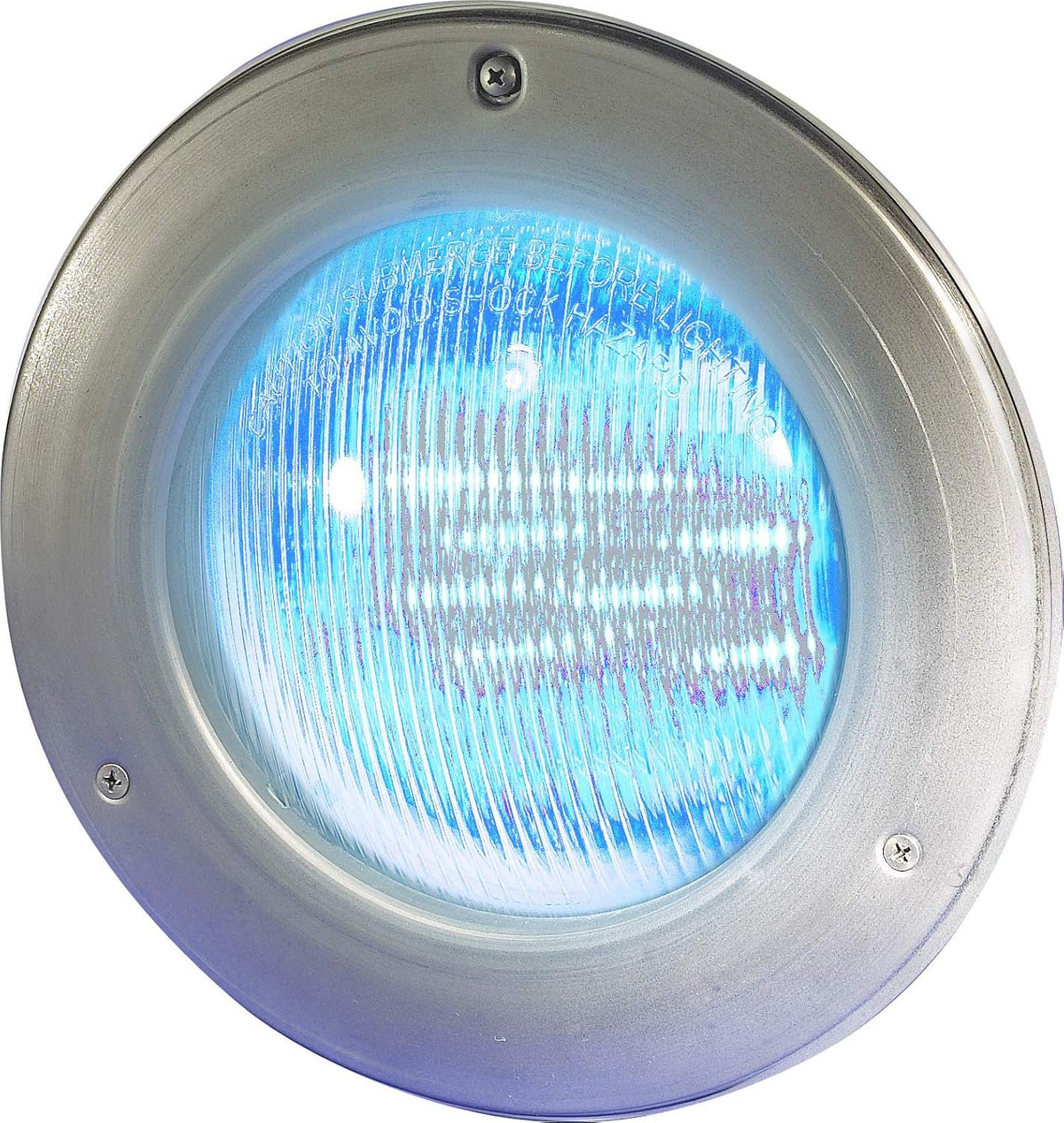

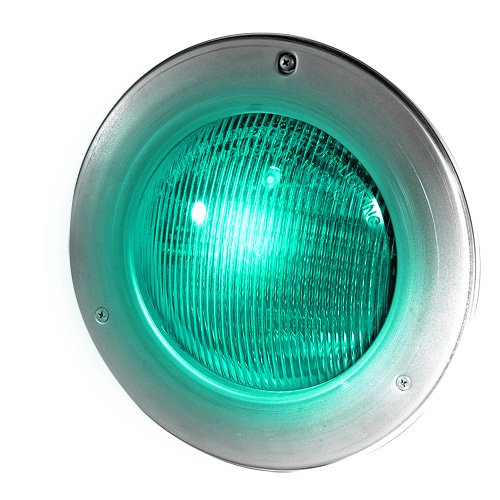

Stainless Steel Face Rim
The stainless face ring shrugs off spa water chemistry and the higher temperatures a spa runs at, holding its finish where a plastic trim ring chalks and yellows.
Power Line Communication
Every fixture talks over the existing power wiring, so single lights or whole groups stay in sync on the same color and show with no added relays or control wiring.
101 Colors With Automation
Pair it with Hayward ProLogic or OmniLogic and the count jumps to 11 shows and 101 colors. The fixture is OmniDirect compatible for direct control from the automation panel.

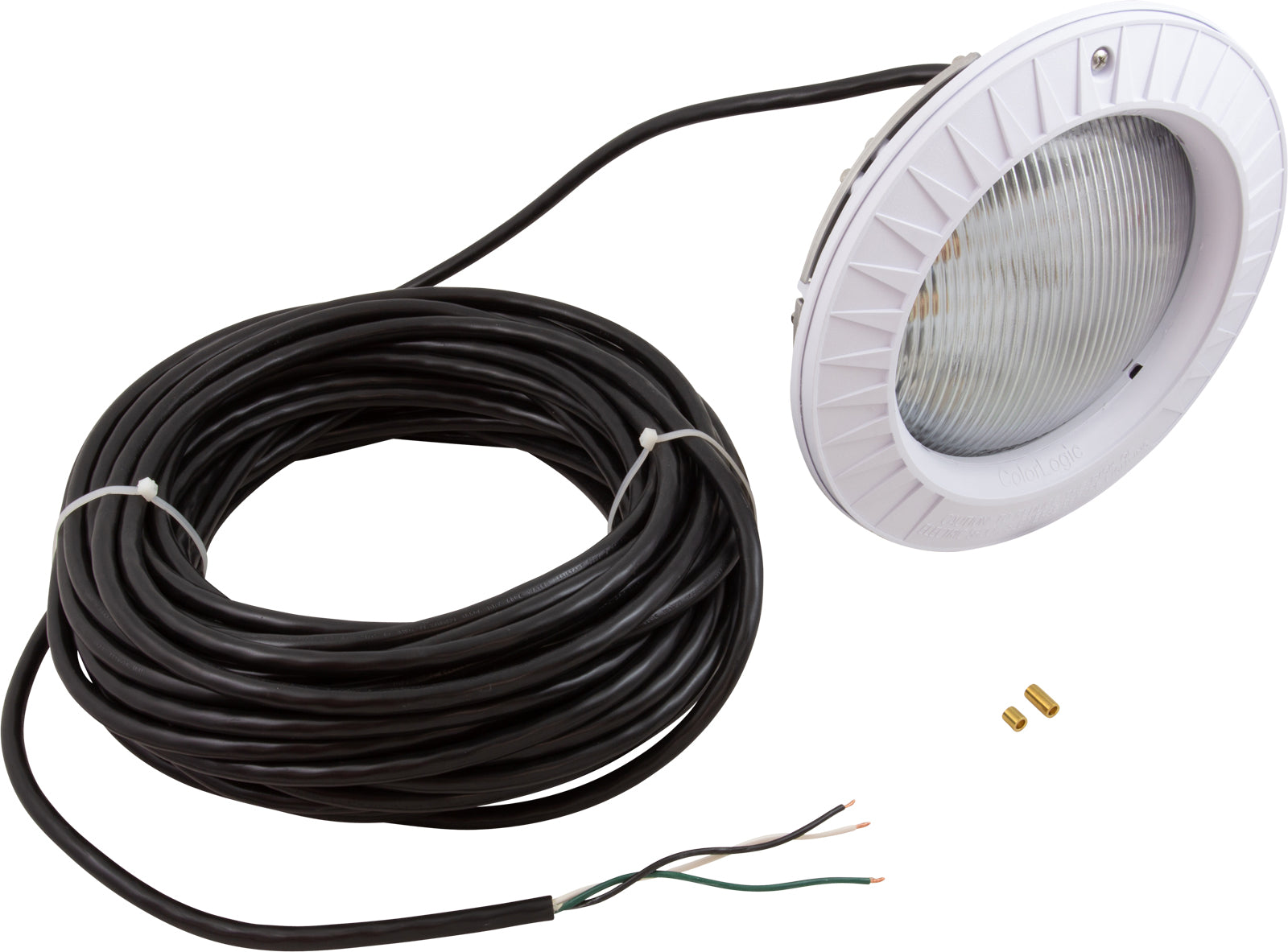

100 Foot Cord Reach
The 100 foot cord covers spas set well back from the junction box without splicing. Hayward does not recommend 120V runs beyond 150 feet.
Installation Notice
Spa light wiring falls under NEC 680 and belongs to a licensed pool electrician working on a properly bonded, GFCI protected circuit. Never energize the fixture out of the water, the LED assembly relies on surrounding water for cooling and will be damaged if it is run dry.
Specifications
Frequently Asked Questions
Is this a pool light or a spa light?
This is the ColorLogic 4.0 spa light, rated for in-ground spas and small water features at 275 lumens. If you are lighting a full size in-ground pool, you want the ColorLogic 4.0 pool light instead, part W3SP0527SLED100, which is the same 120V, 100 foot cord, stainless trim build in the higher output pool fixture.
Which ColorLogic 4.0 spa light version do I need?

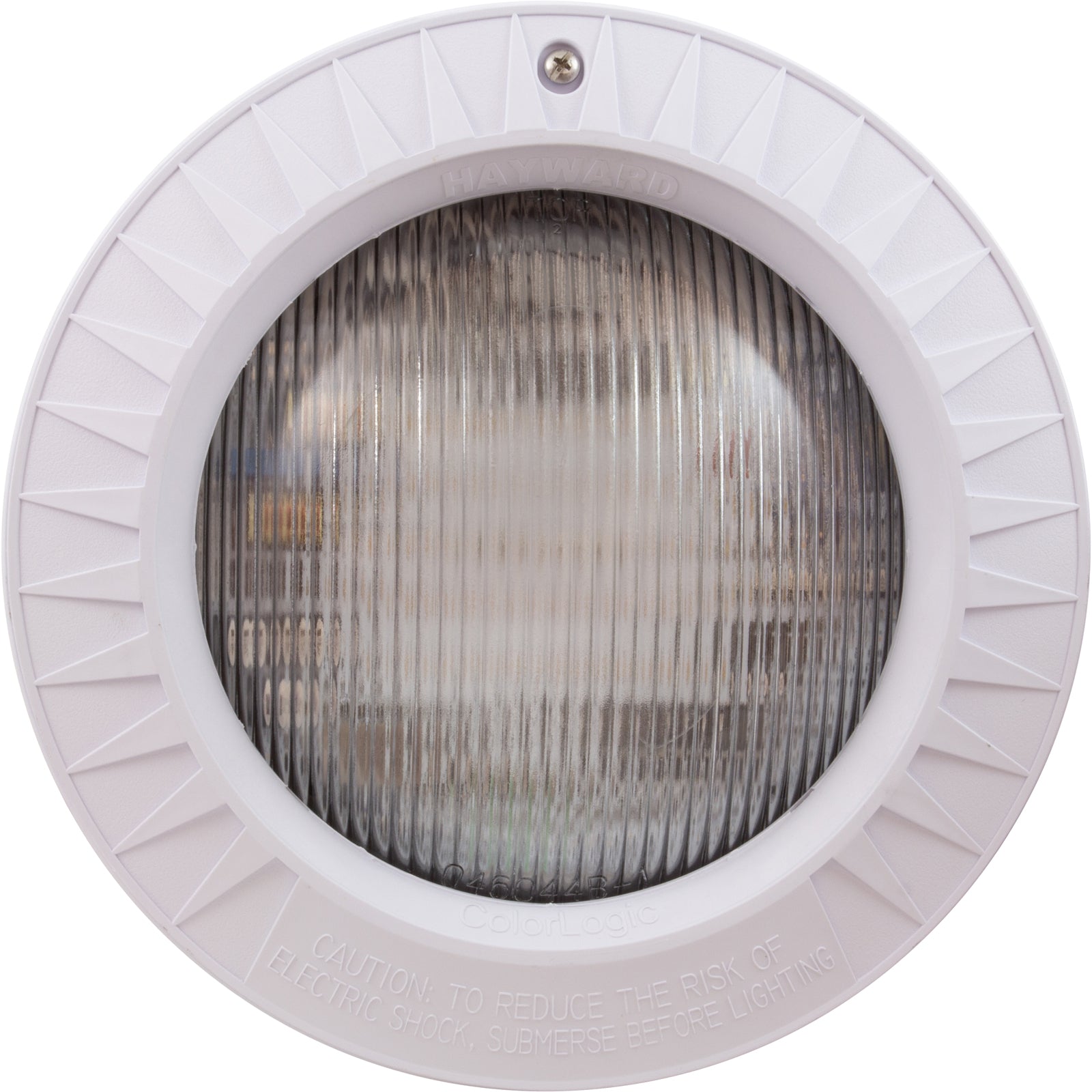

Three things separate them. Voltage: the SP0535 series is 120V, the SP0533 series is the 12V equivalent, so match whatever your existing spa light circuit runs. Cord length: this series ships in 30, 50, 100, and 150 foot cords, and you pick by the distance from the niche to the junction box. Trim: SLED in the part number is the stainless steel face rim you are looking at here, plain LED (W3SP0535LED100) is the plastic trim version of the same fixture.
What niche does this fit?
The SP0535 series is UL listed under file E39338 for use with Hayward SP0601, SP0608, SP0606C, or SP0610C fixture housings. It may physically seat in other niches, but that installation would not carry the UL approval, so check the part number stamped on your existing housing before you order.
Do I need Hayward automation to change colors?
No. The 5 fixed colors and 7 color-changing shows live in the fixture and step through by cycling power at the switch, so the light works on a plain on/off spa circuit. Automation is what unlocks the extra 4 shows for 11 total plus the 101 color spectrum, and lets you jump straight to a color instead of stepping through the sequence.
Can I install this myself?
Pulling the old fixture from the niche and feeding the new cord back to the deck box is straightforward homeowner work. The electrical side is not. Terminating in the junction box, bonding, and the GFCI protected circuit all fall under NEC 680 and belong to a licensed pool electrician. Leave enough cord coiled behind the fixture that it can be lifted onto the deck for future service.
Order the W3SP0535SLED100 From PST
Genuine Hayward ColorLogic 4.0 spa light, backed by the PST Pool Supplies service team.
Additional Info
| Category | Parts Spa Parts Spa Lights |
| SKU | PST-56-150-1011E |
| MPN | W3SP0535SLED100 |
| Replaces | 220931, 340113, 3550-68, 3550-92, HAY-30-6152 |
| Manufacturer | Hayward |
| Weight | 11.0 lb |
