Description

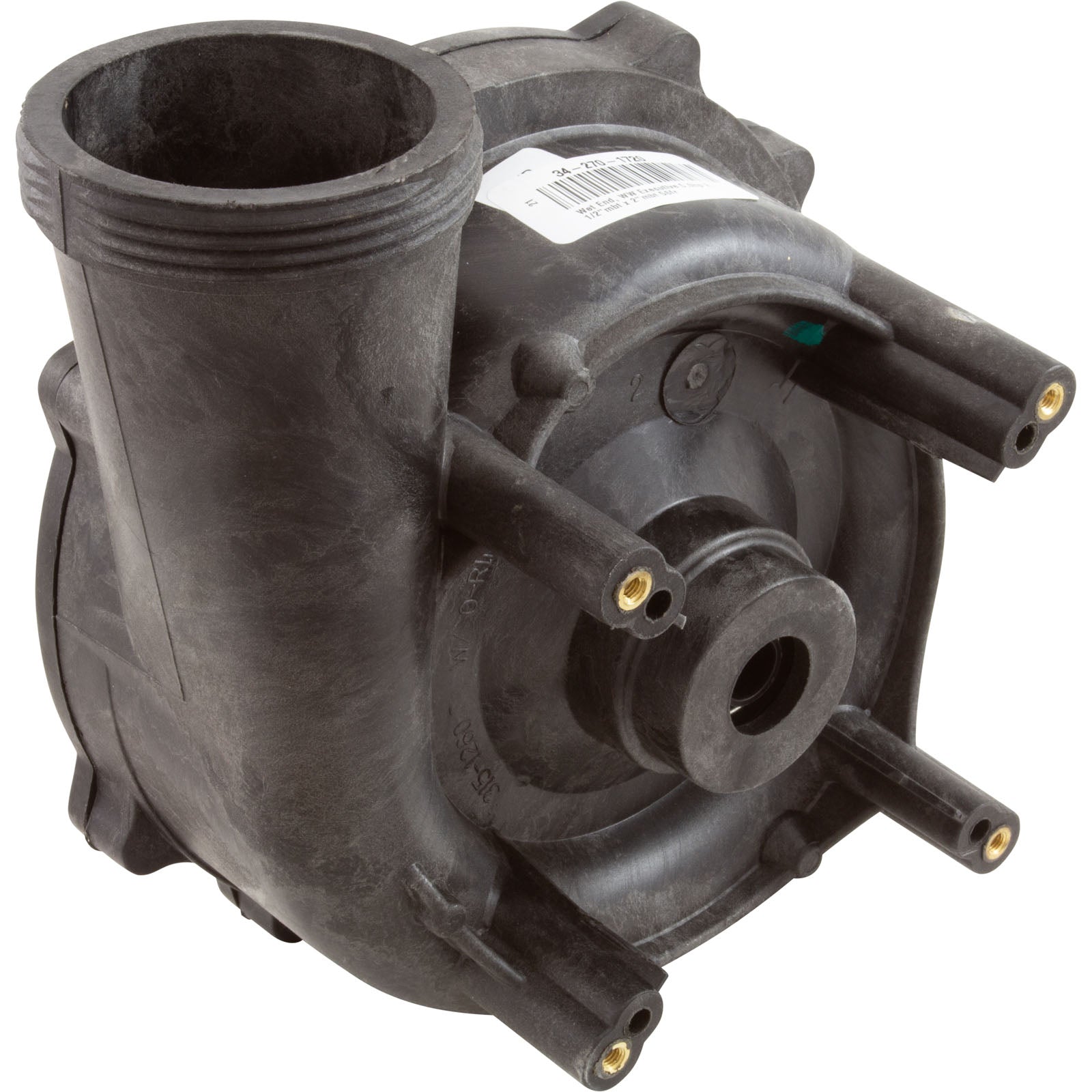

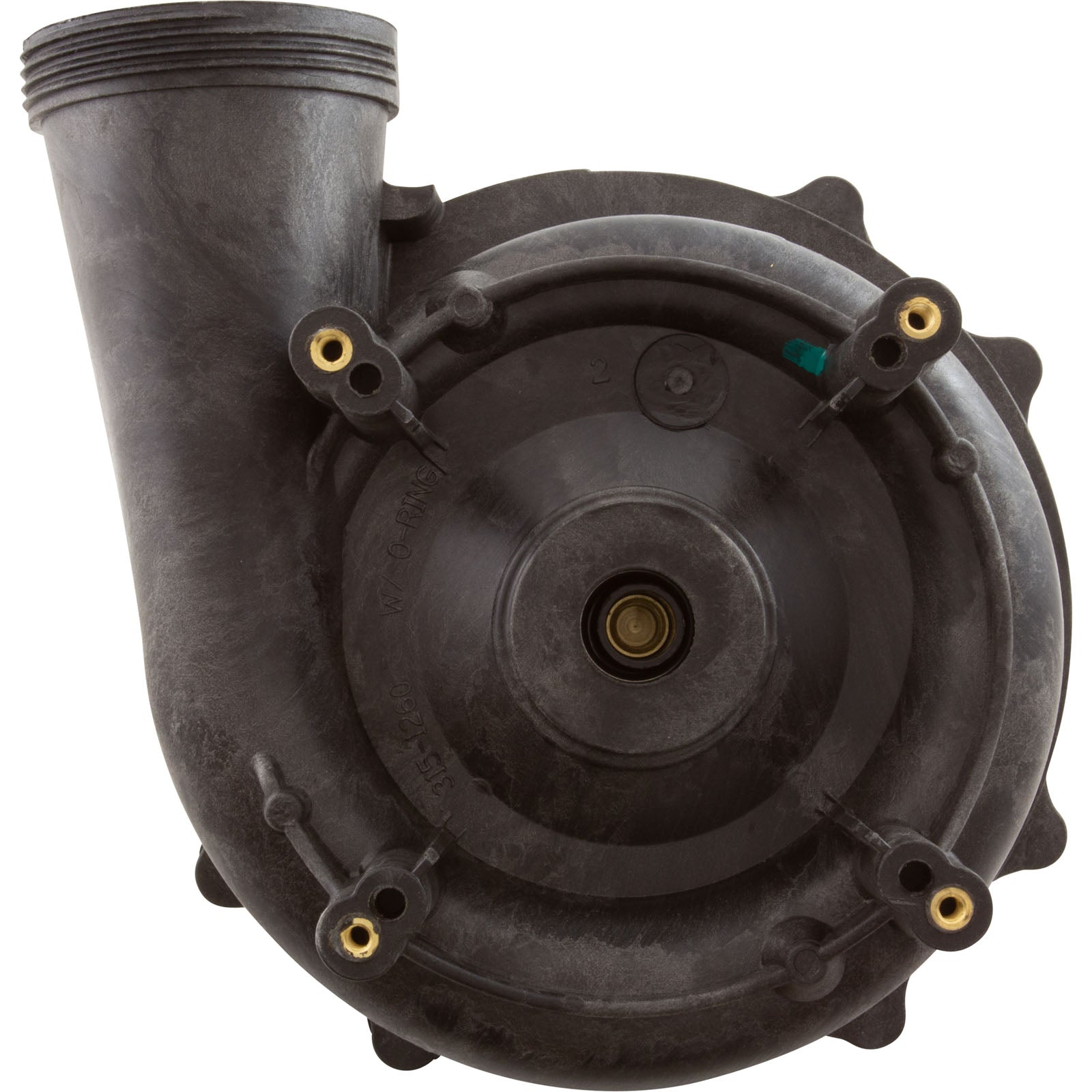

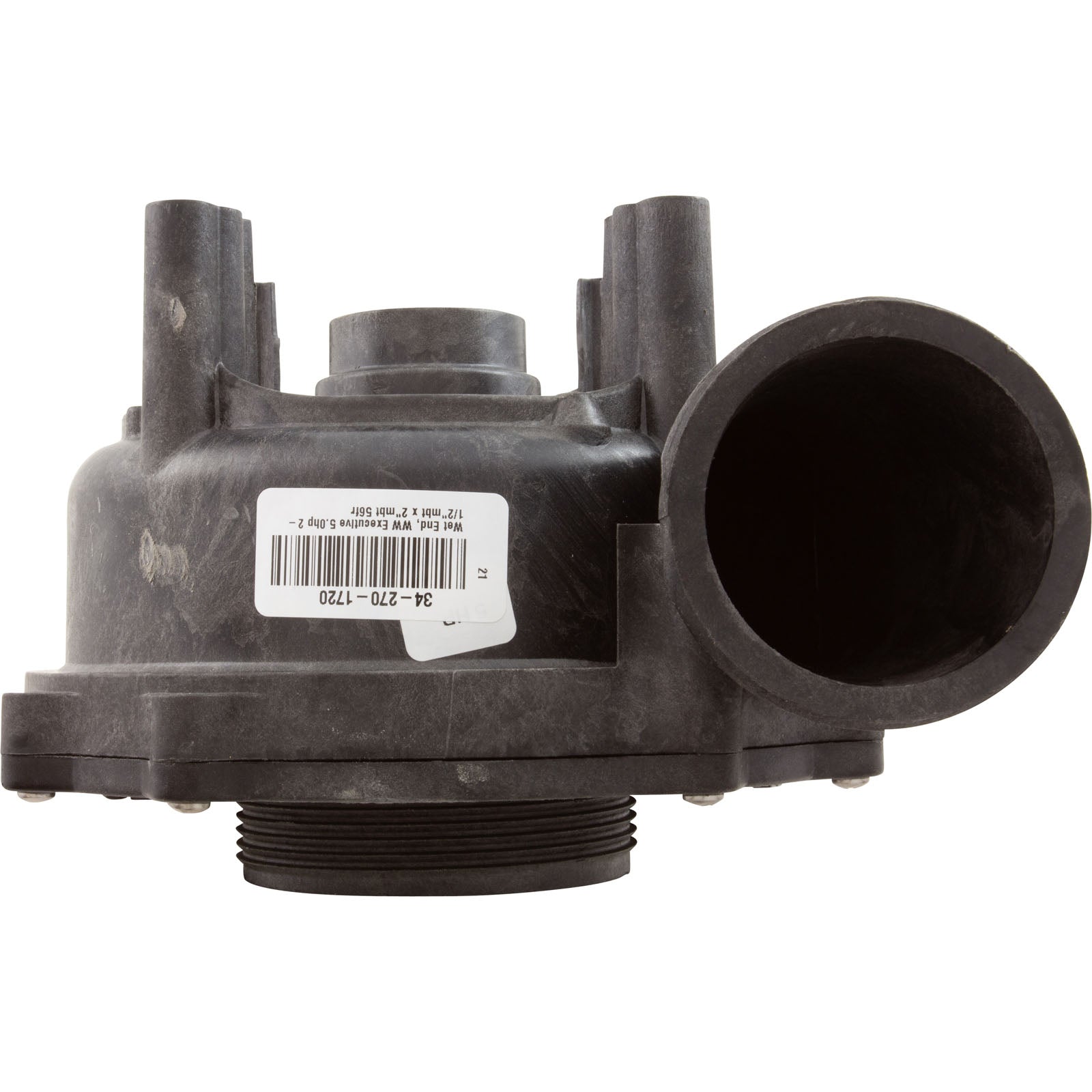

Waterway Executive Wet End

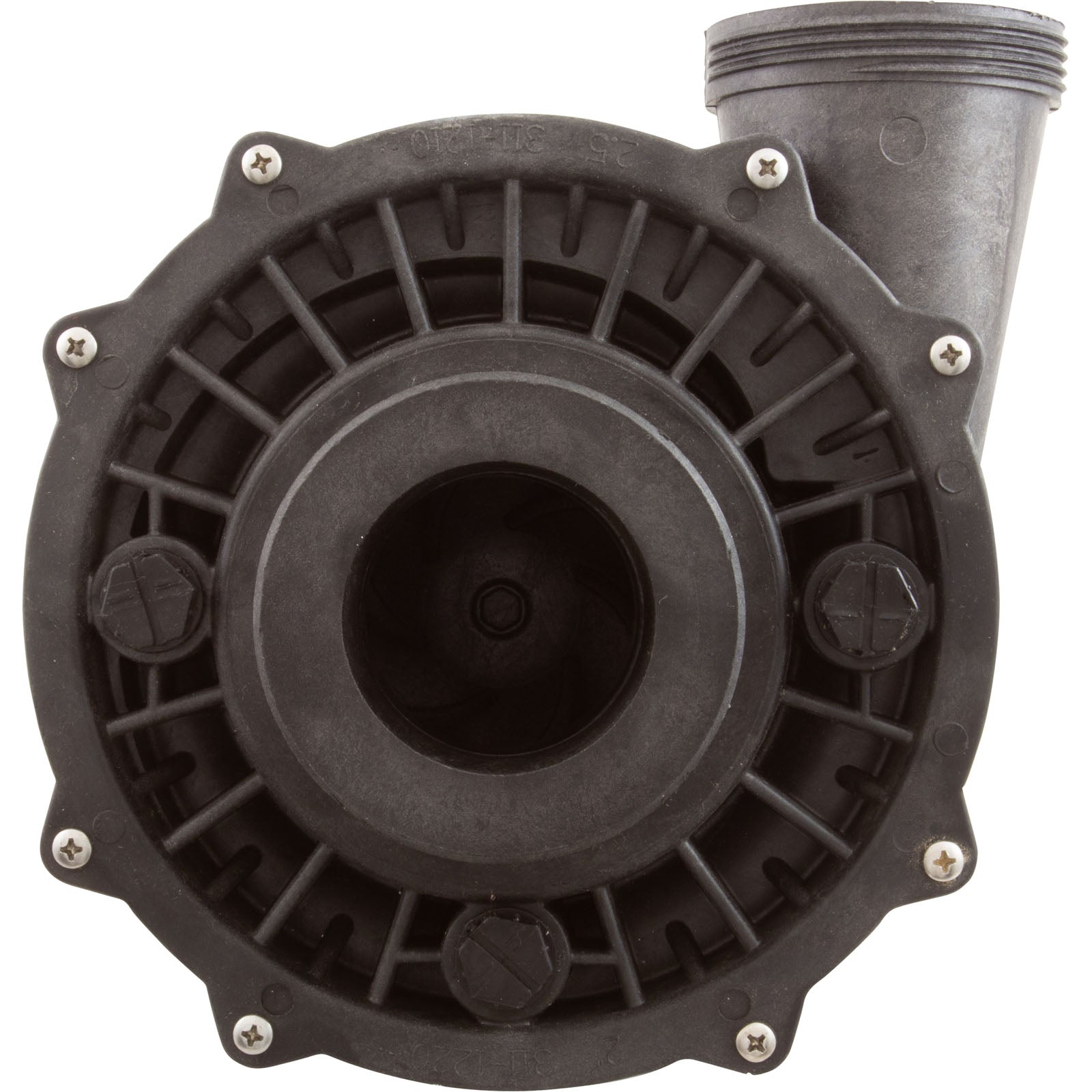

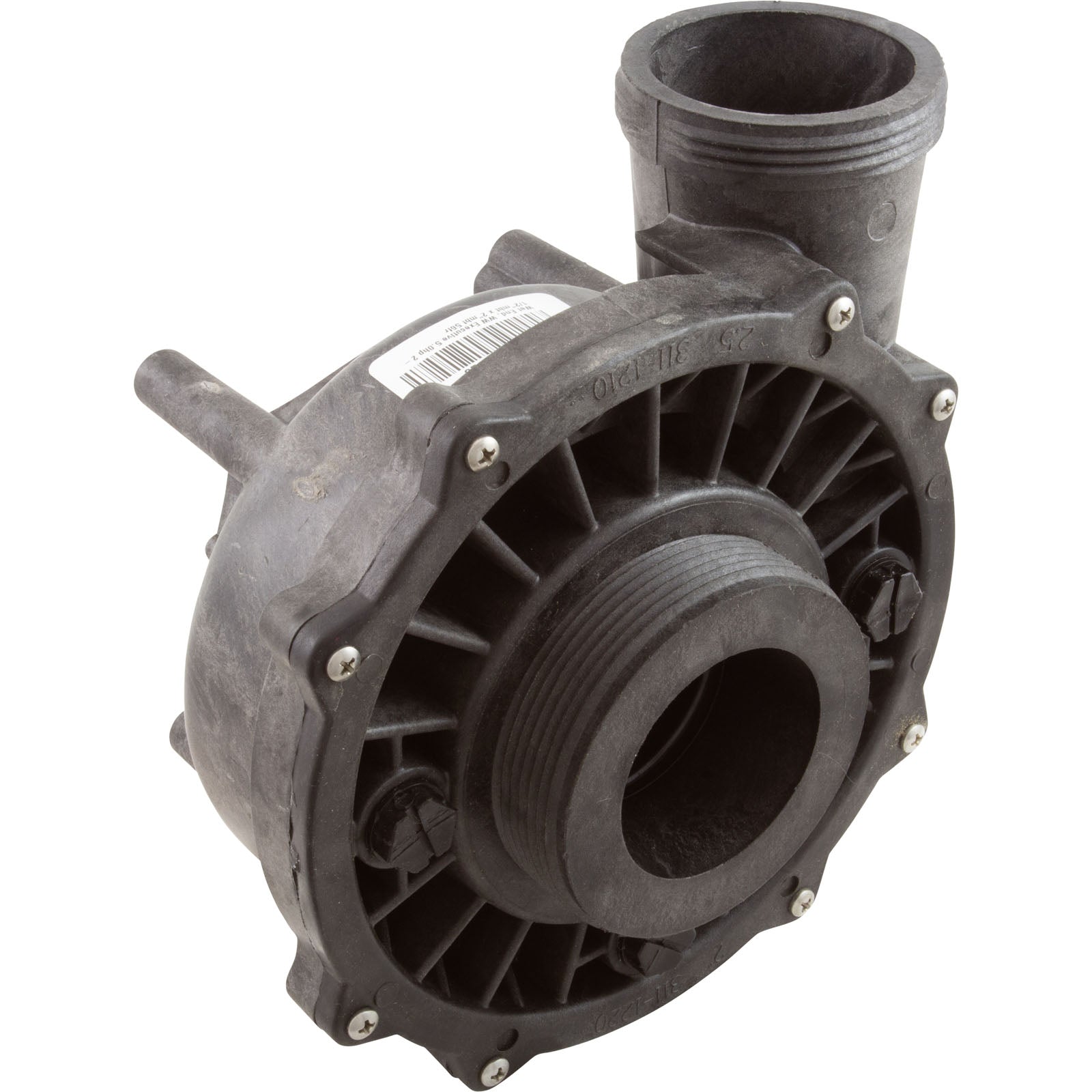

Side discharge, 2-1/2"mbt suction x 2"mbt discharge, 56 frame wet end for the Waterway Executive pump. This wet end is used with a 5.0hp, 56 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.
Motor and unions sold separately.
Product Specifications:
Pump to Motor Foot Types
4
Motor Frame
56 Frame Thru-Bolt
Drain Plug Location
3,6,9 o`clock
Suction Auxillary Port
None
Suction Style
Center
Suction Connection (Physical Dimension)
3-11/16"od
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2-1/2"
Discharge Auxilary Port
None

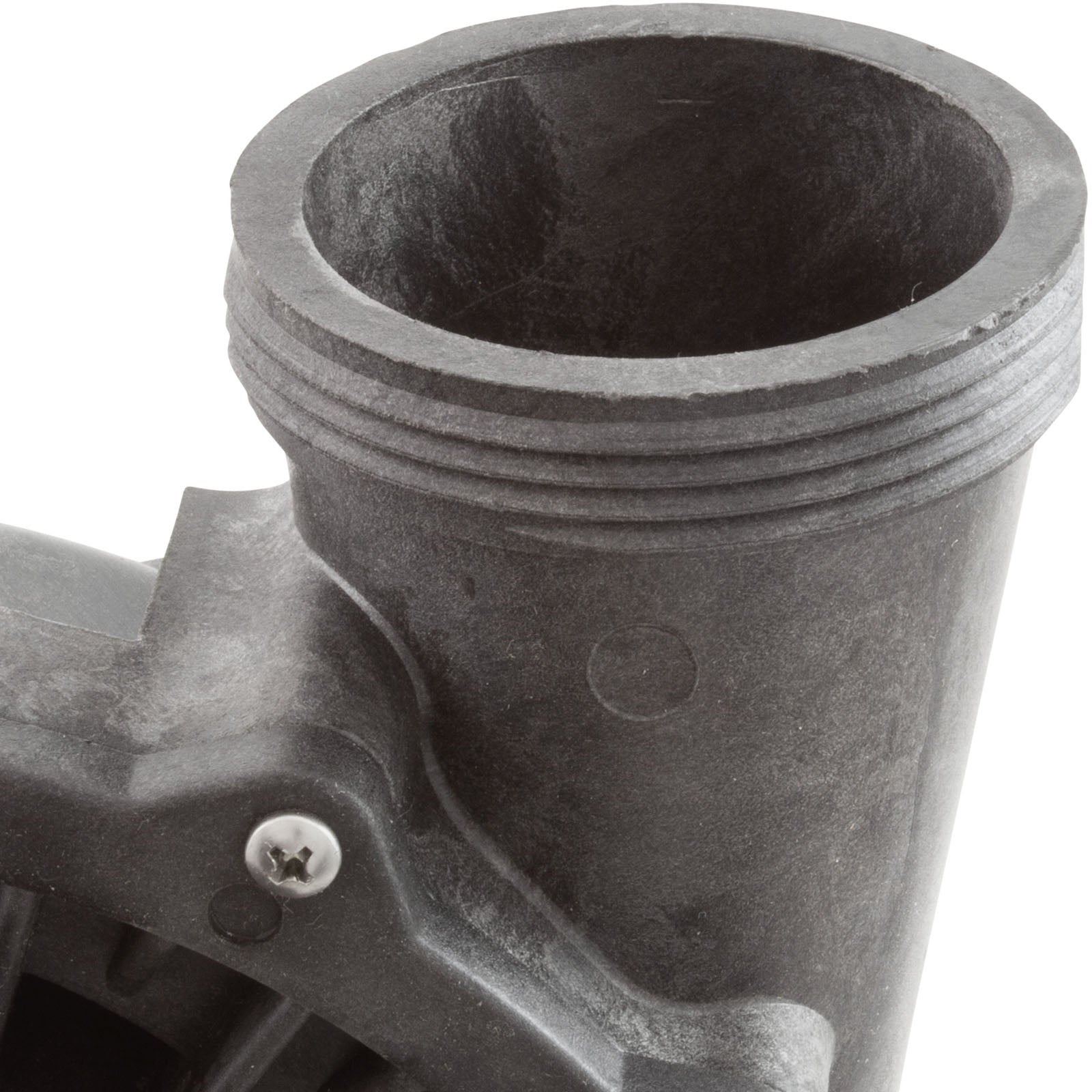

Discharge Style
Side
Discharge Connection (Physical Dimension)
3-1/16"od
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"
Horsepower
5.0hp
Manufacturer
Waterway
Pump Model
Executive
Manufacturer Impeller Number
310-4180
Volute Fastening Type
8 Screws
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-34-270-1720 |
| MPN | 310-1510 |
| Replaces | 233299, 310-1510, 310-1510B, 310-1517, 310-2860, 315-1220, 315-1220B, 5039E, 614311, 614316, 806105062338, 806105064875, WW3101510, WW3101510B, WWP-85-8909 |
| Manufacturer | Waterway Plastics |
| Weight | 2.89 lb |
