Product Information
Description

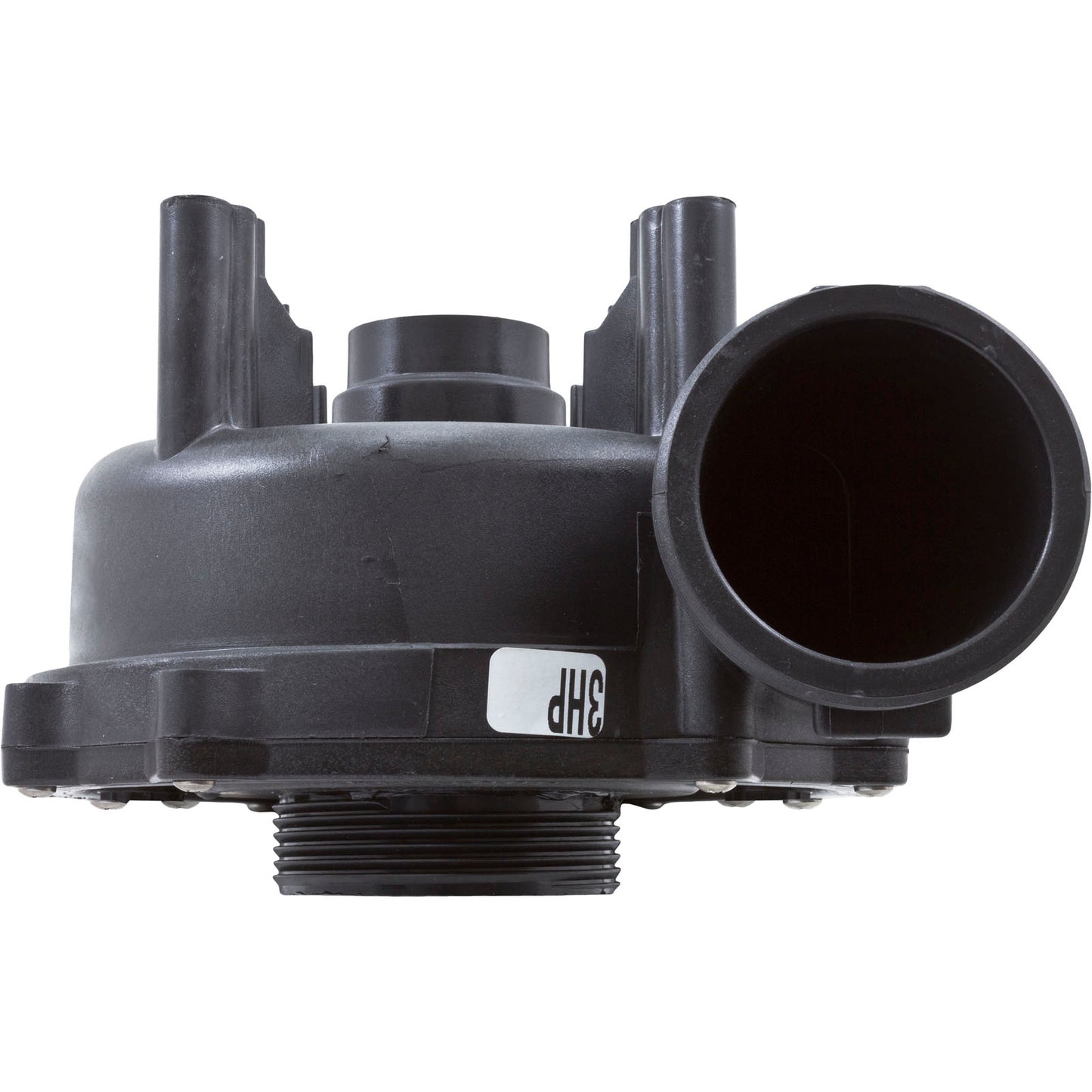

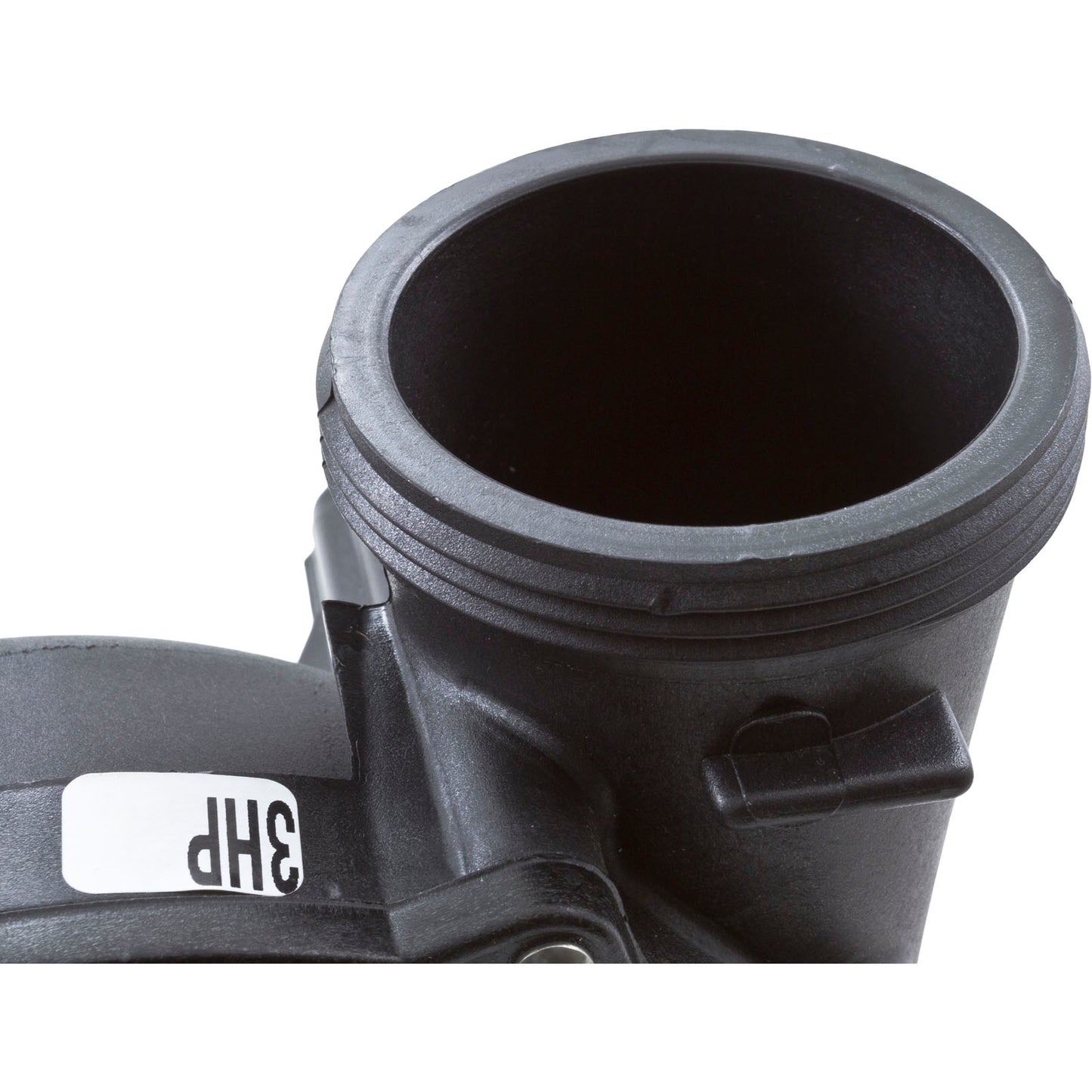

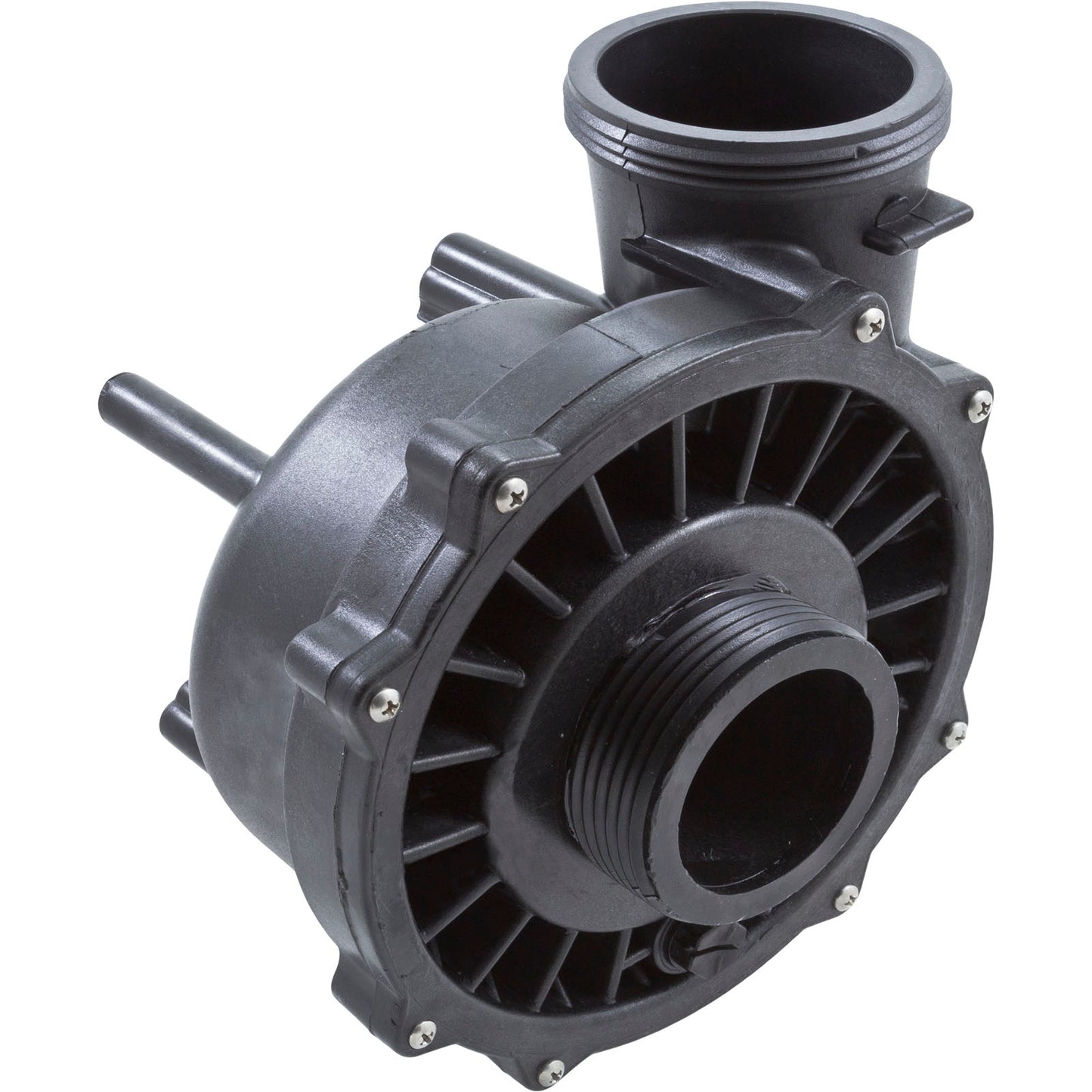

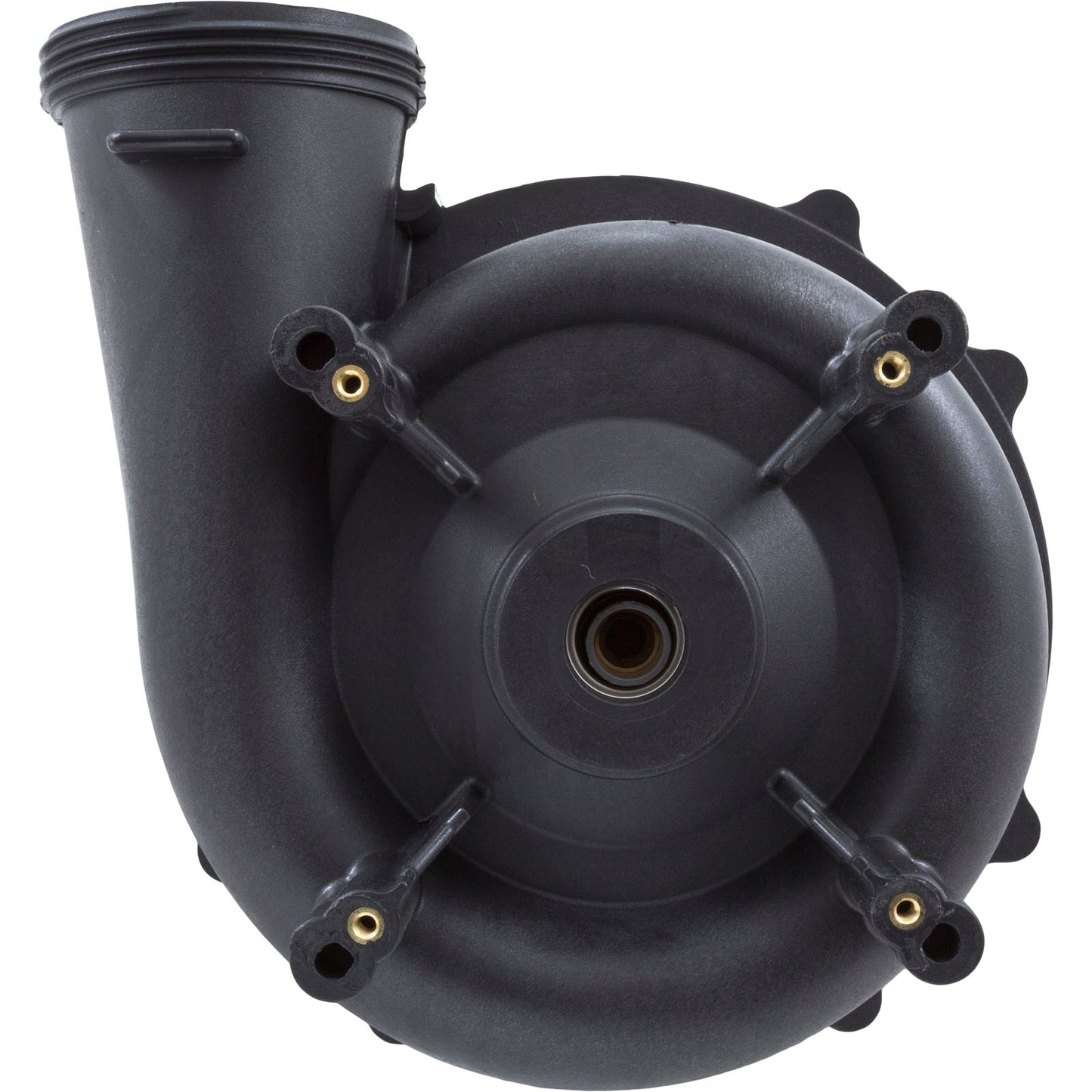

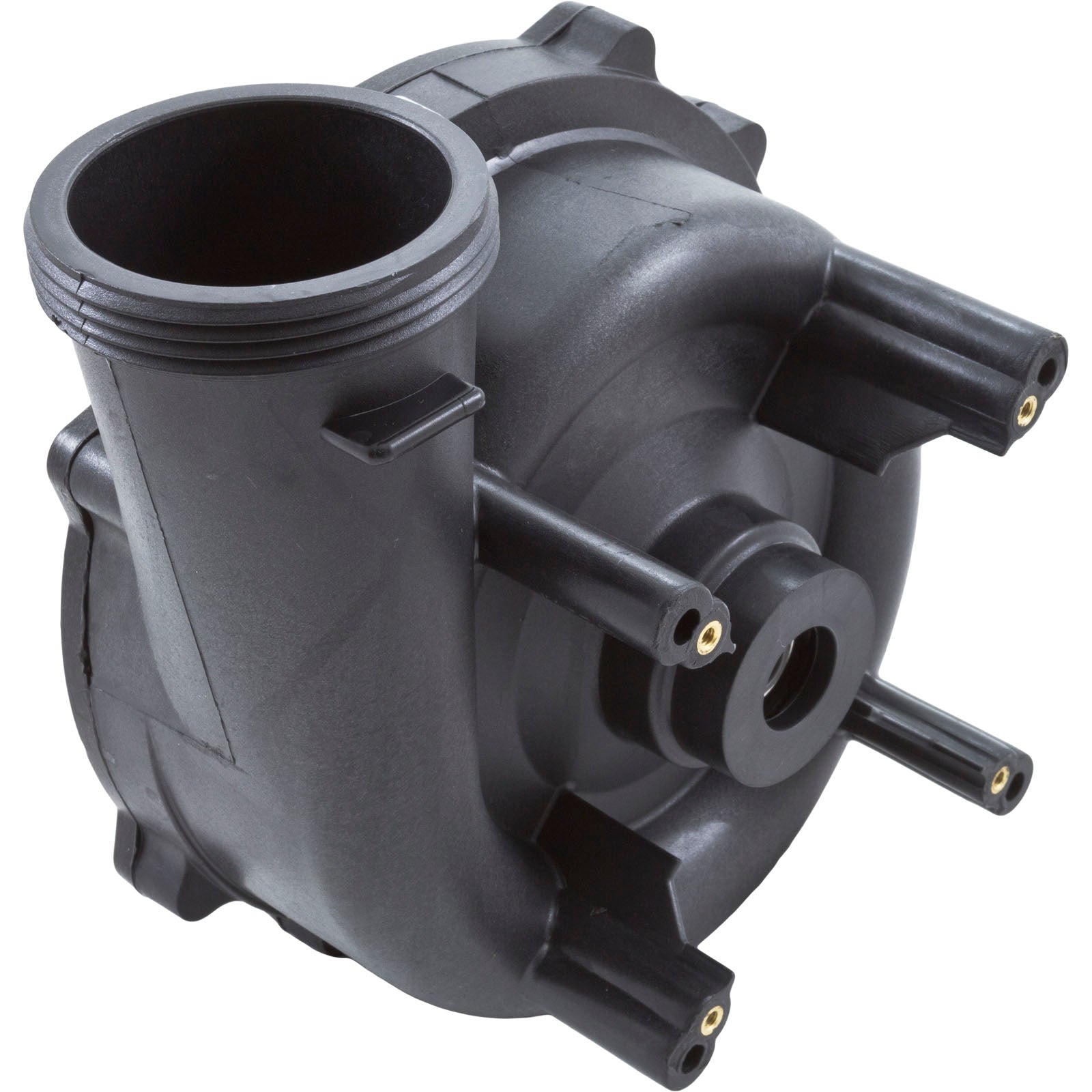

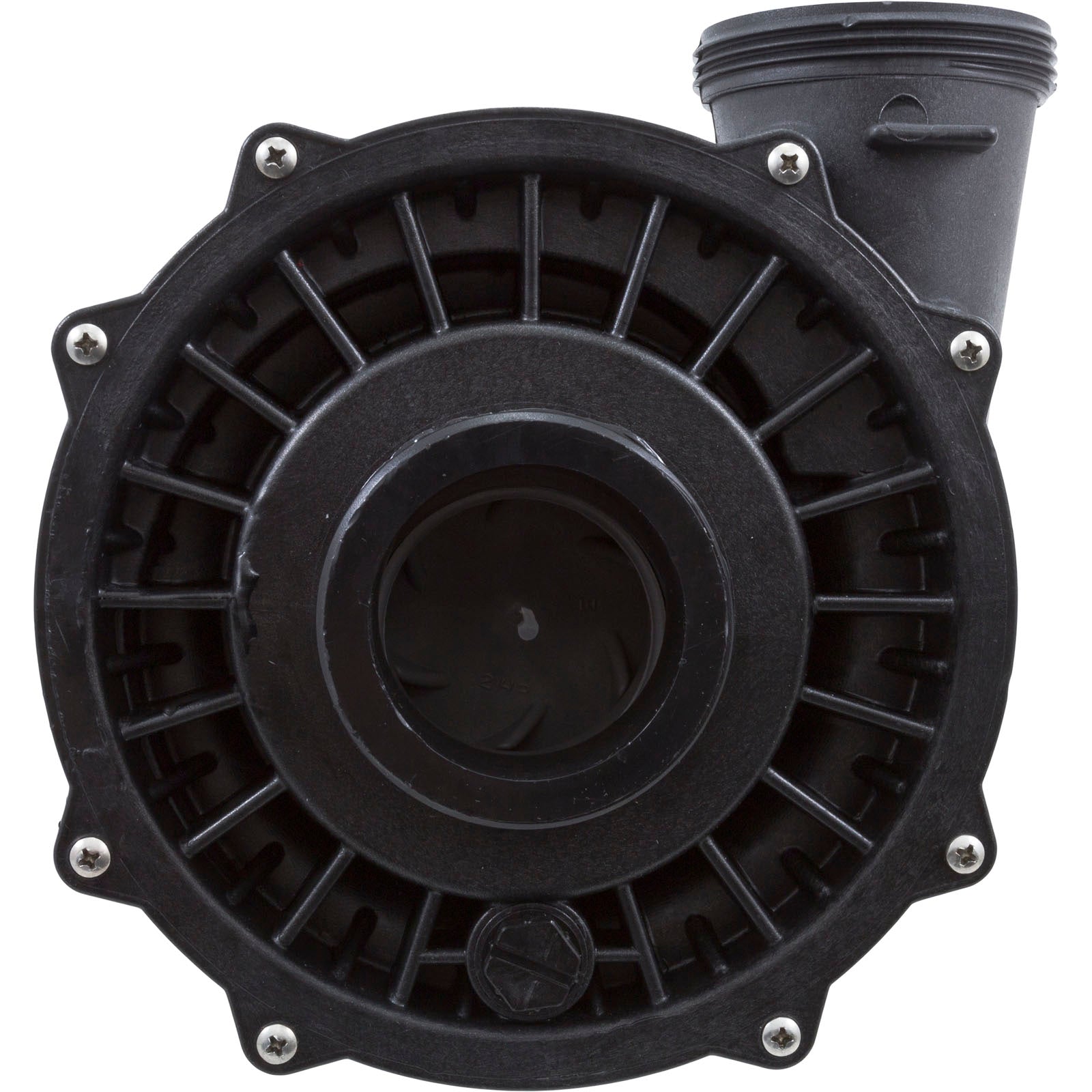

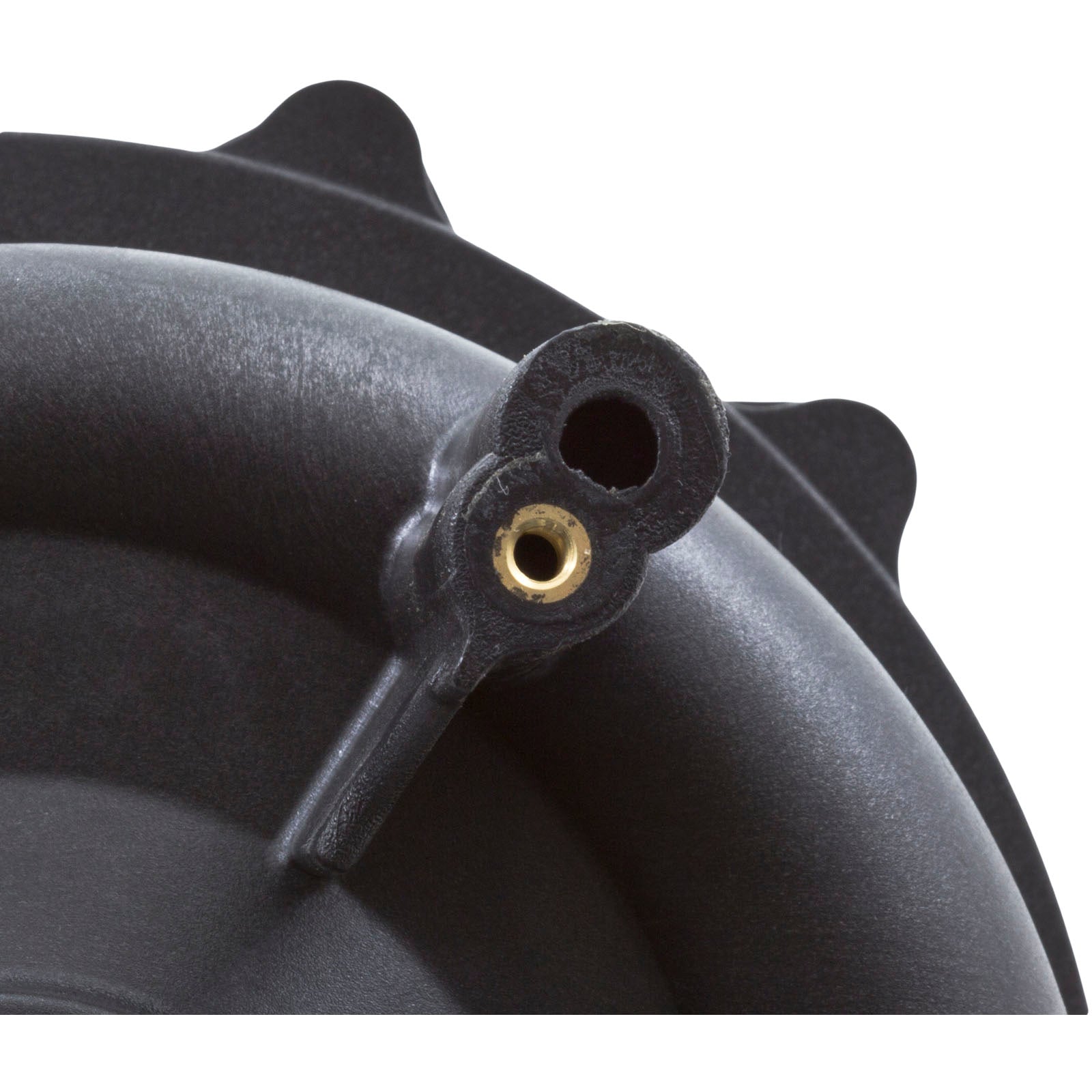

Waterway Executive Wet End.
Side discharge, 2-1/2"mbt suction x 2"mbt discharge, 48 frame wet end for the Waterway Executive pump. This wet end is used with a 3.0hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.
*Motor and unions sold separately.
Product Specifications:
Pump to Motor Foot Types
4a
Motor Frame
48 Frame Thru-Bolt
Drain Plug Location
3,6,9 o`clock
Suction Auxillary Port
None
Suction Style
Center
Suction Connection (Physical Dimension)
3-11/16"od
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2-1/2"
Discharge Auxilary Port
None
Discharge Style
Side
Discharge Connection (Physical Dimension)
3-1/16"od
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"
Horsepower
3.0hp
Manufacturer
Waterway
Pump Model
Executive
Manufacturer Impeller Number
310-4210 (2.0hp)
Volute Fastening Type
8 Screws
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-34-270-1538 |
| MPN | 310-1840 |
| Replaces | 1-PW30E42520, 310-2820, 404045, 5039-230, 806105062635, WW3101840 |
| Manufacturer | Waterway Plastics |
| Weight | 2.78 lb |
