Product Information
Description
- Pentair Part No. T29
- Fits T40F and T40FN
- Free Shipping

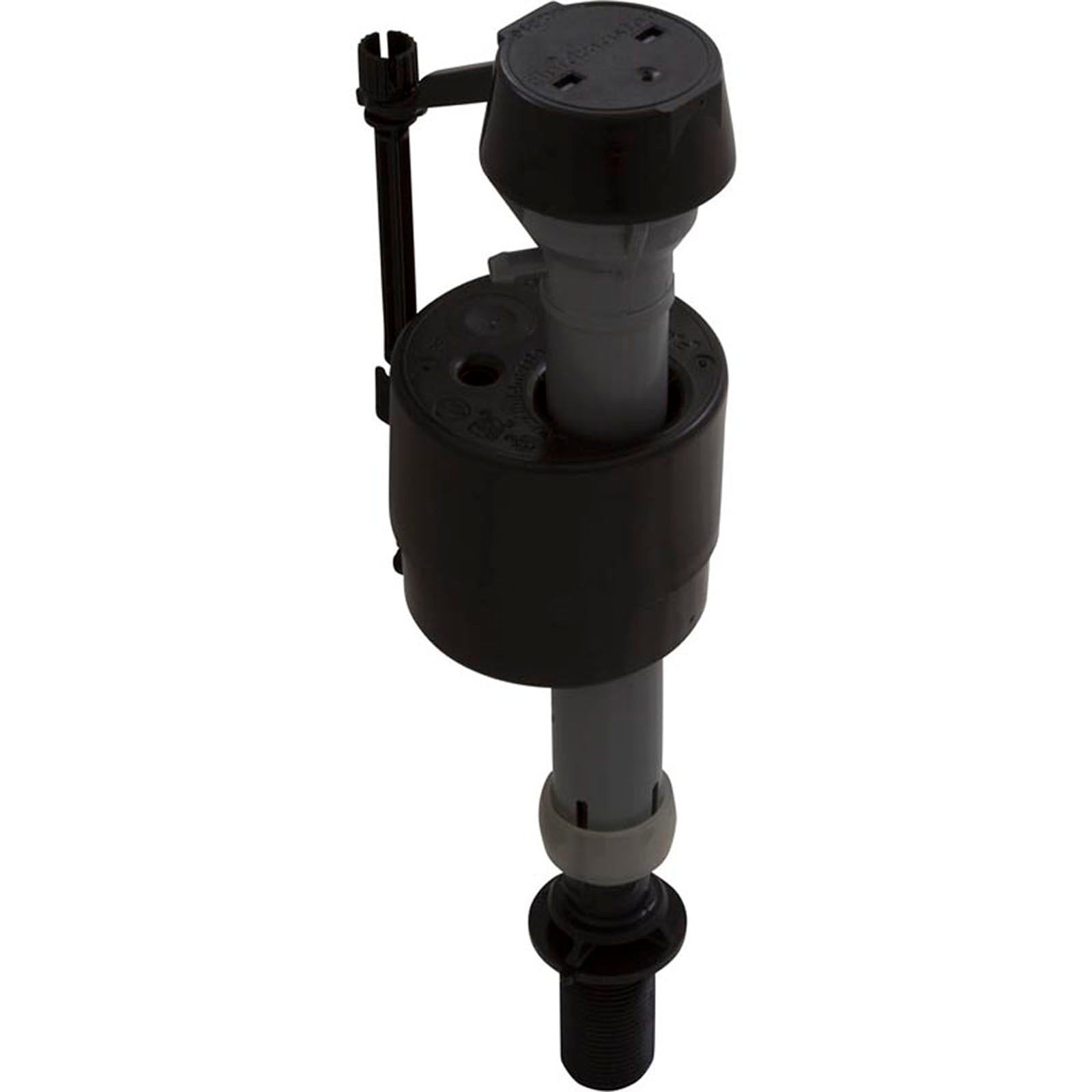

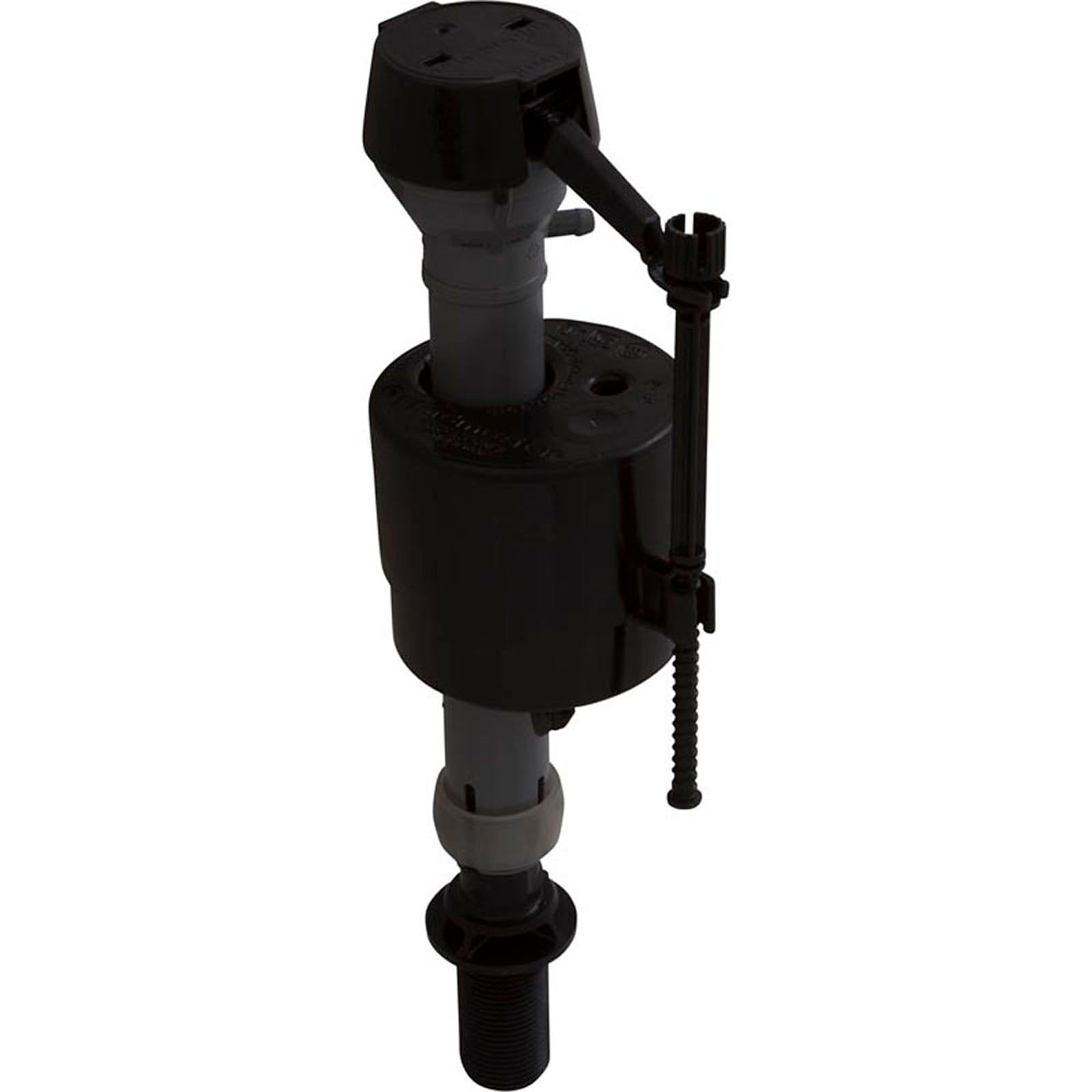

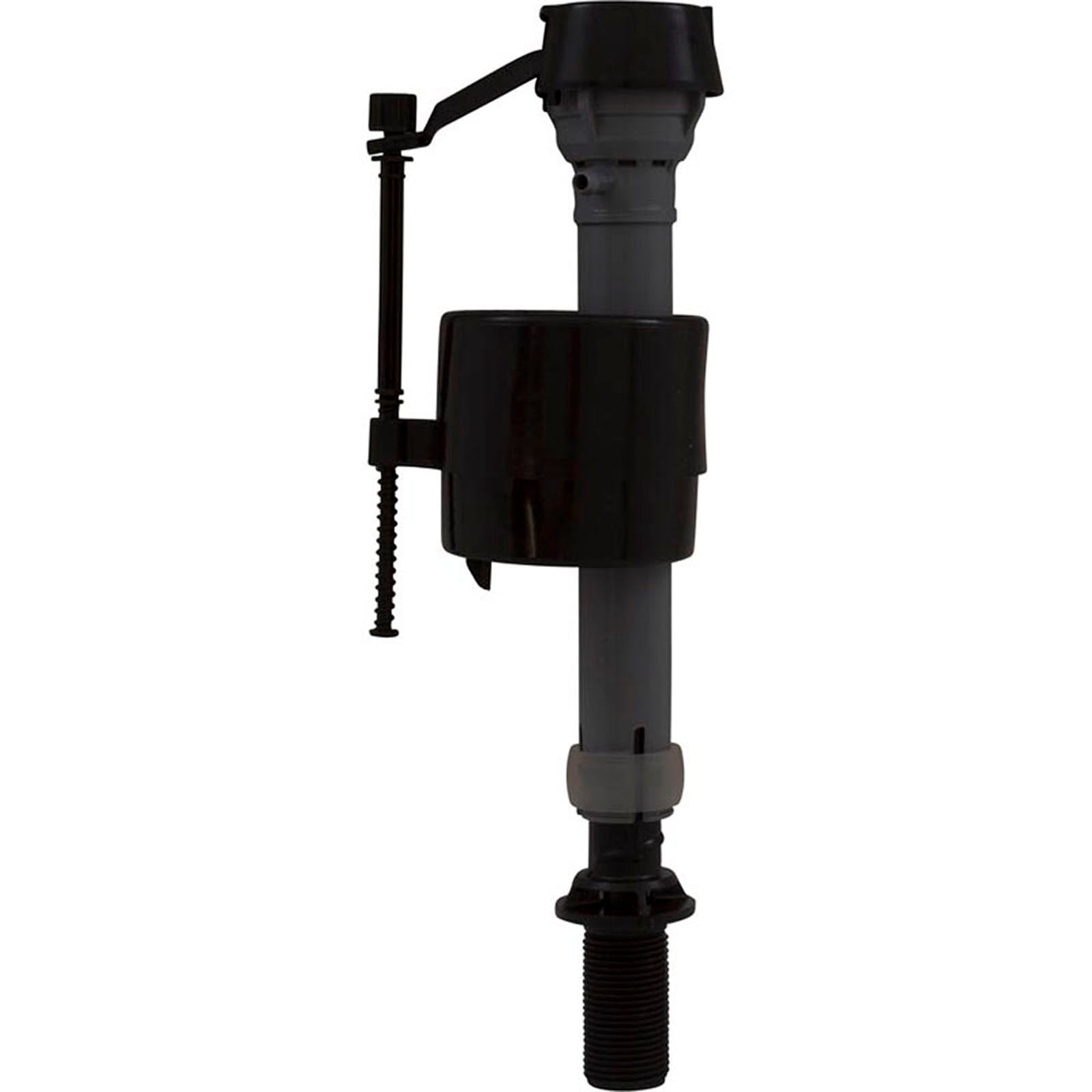

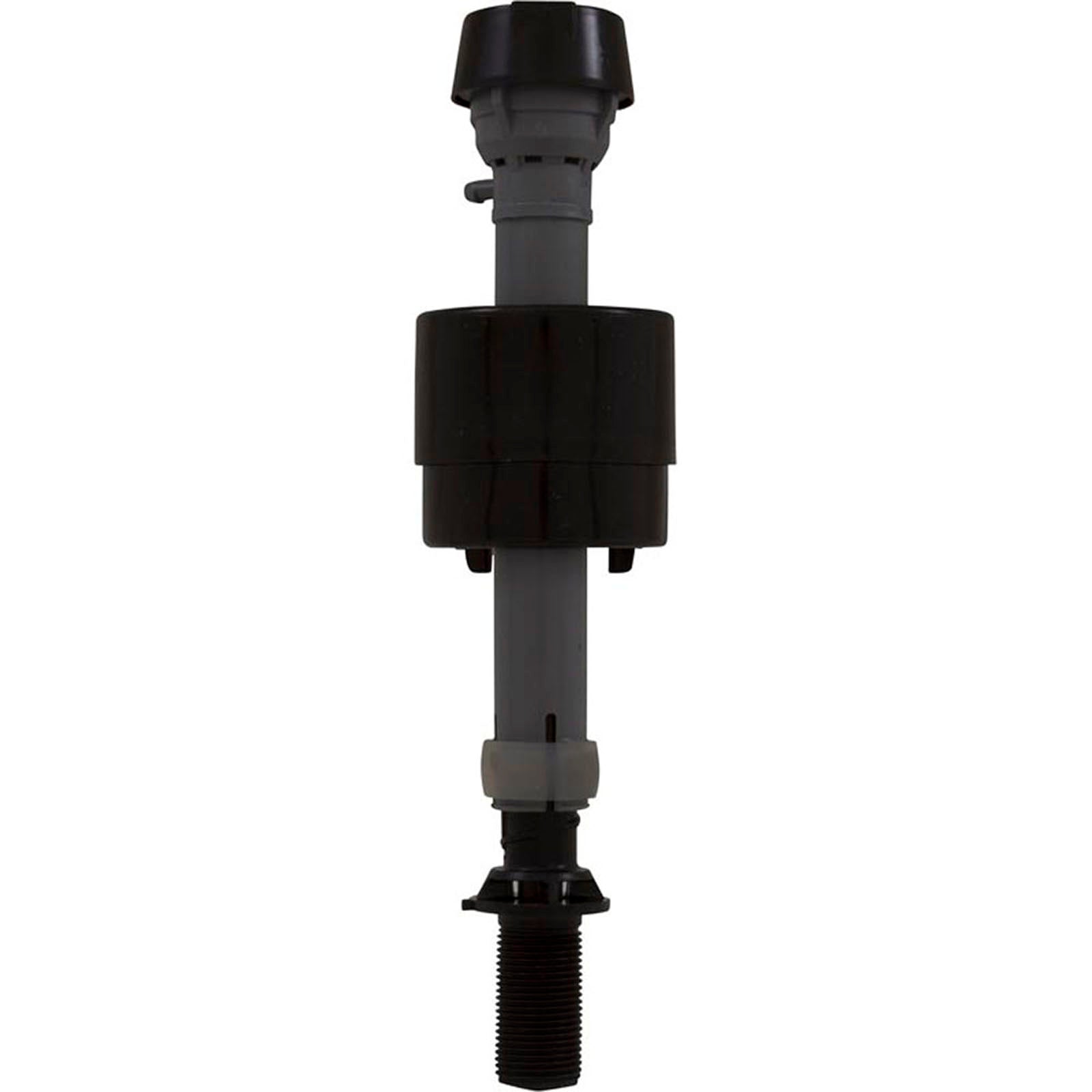

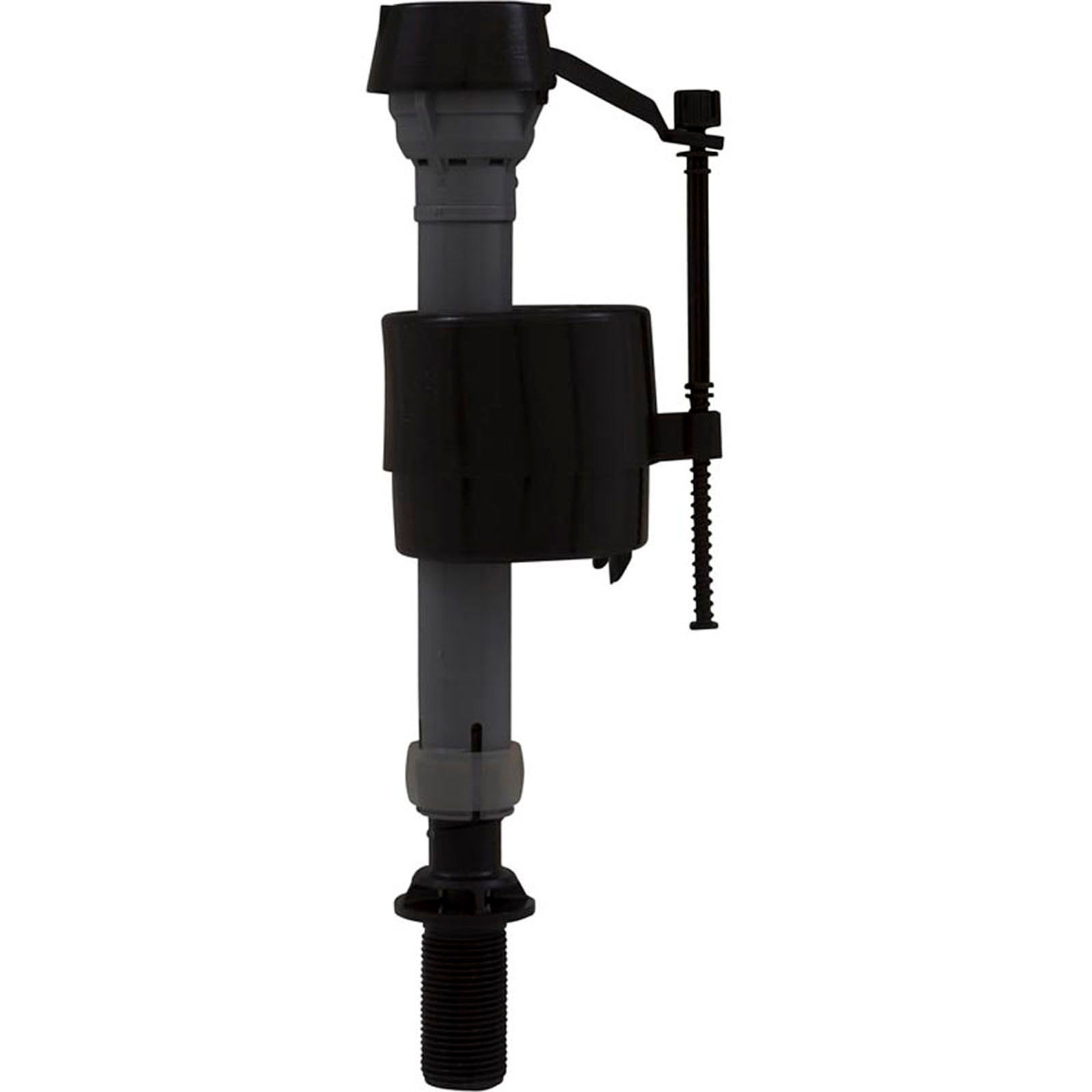

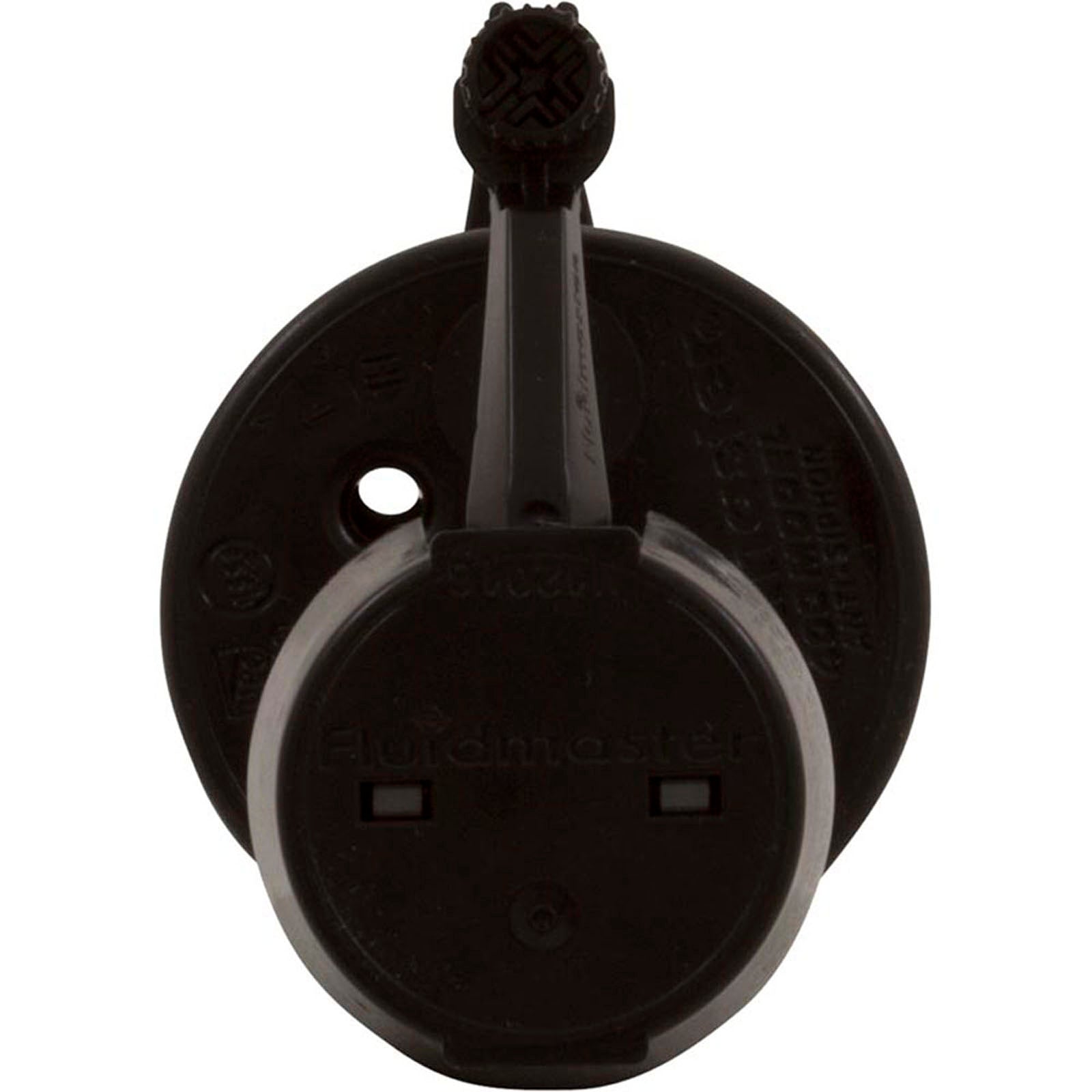

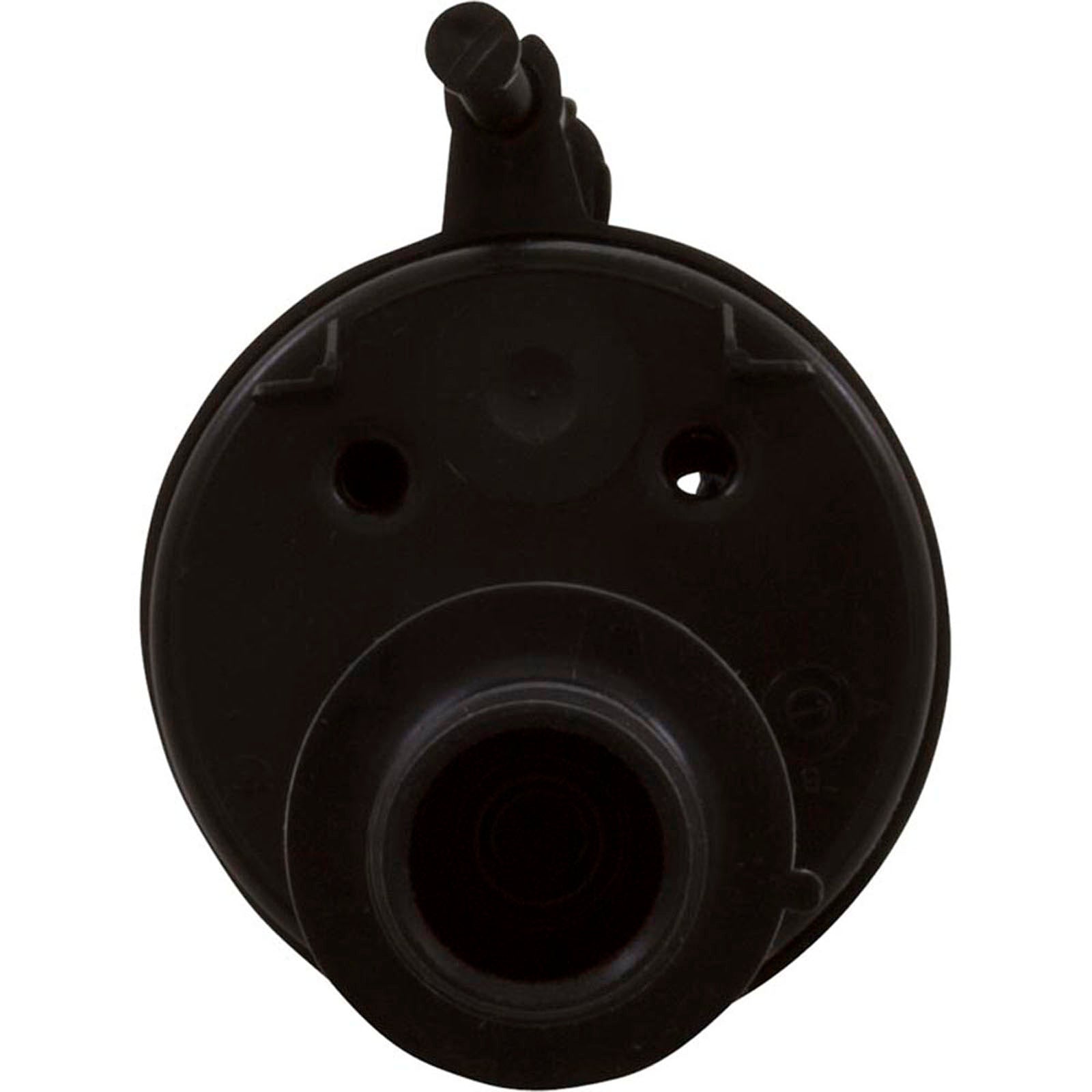

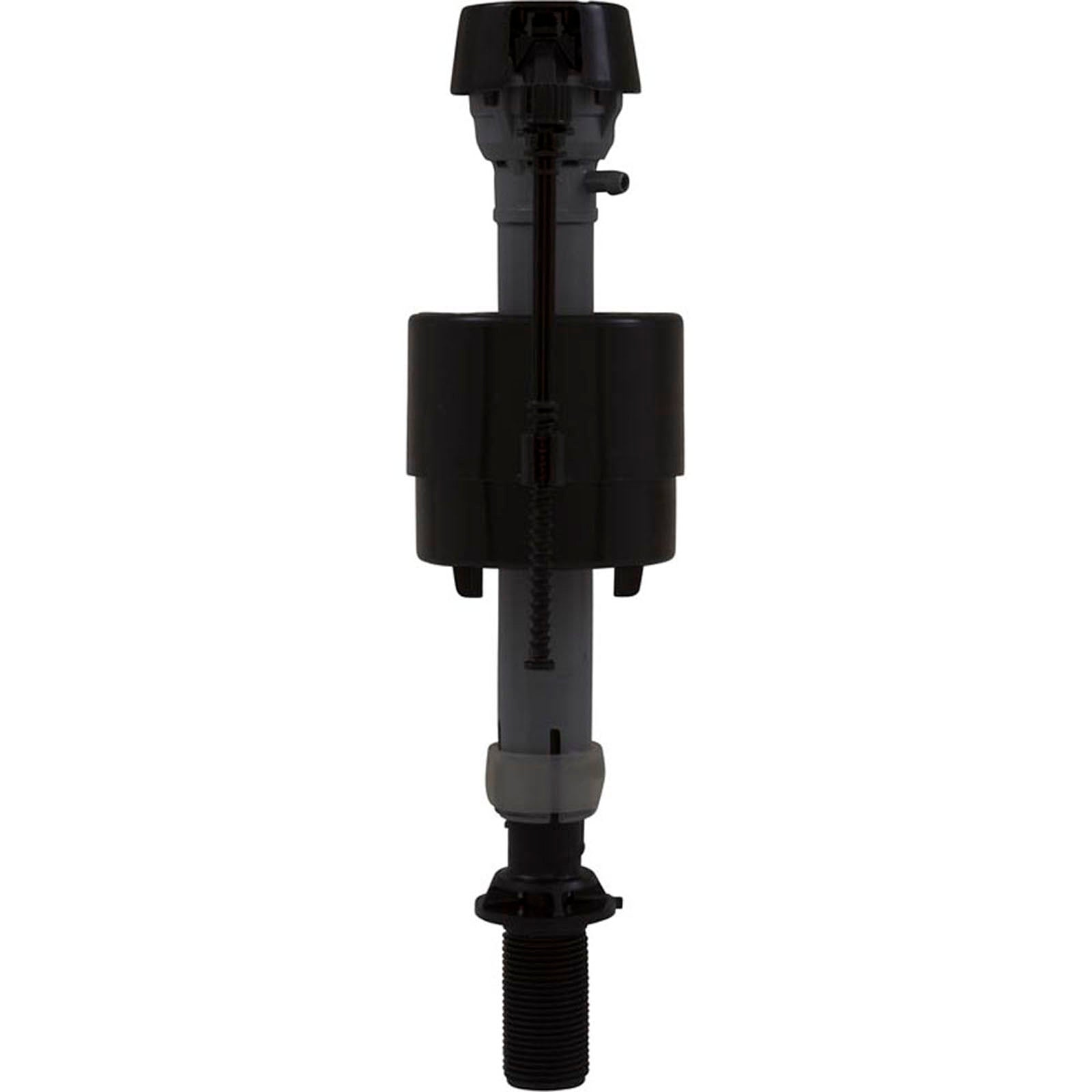

Pentair T29 Fluidmaster Fill Valve for T40F and T40FN AutoFill Water Fillers
Replacement float valve for Pentair AutoFill.
The Pentair T29 is the Fluidmaster valve Pentair lists as a replacement part for its AutoFill automatic water fillers. It is the fill valve used on the T40F standard inground models and the T40FN Vanishing Edge models, and it holds your pool's water level with an adjustable float.
Why PST Customers Pick This
Made for Pentair AutoFill
Pentair lists the T29 Fluidmaster valve in its AutoFill replacement parts. The T40F AutoFill models in almond, black, gray, dark gray and white are built with a Fluidmaster valve.
Standard and Vanishing Edge
Pentair uses a Fluidmaster valve in both the T40F AutoFill for standard inground pools and the T40FN Vanishing Edge AutoFill.
Set Your Water Level
Pentair's install guide sets the float height by lightly pressing down on the top of the fill valve and turning it clockwise or counterclockwise until you reach your water level.
Fine-Tune the Float
The float rides on a stainless steel rod. Squeeze the clip to move the float up or down, or screw the valve up or down to change the valve height.
Seal Threads With PTFE Tape
Pentair calls for PTFE thread seal tape on the valve assembly and says not to use liquid or paste sealers.
Clean the Debris Screen
A debris screen sits in the AutoFill bucket. To clear sand and debris from the supply line, Pentair has you remove and clean the screen, then reinstall the screen and the valve.
Installation Notice
Wrap the valve threads with PTFE thread seal tape only. Pentair warns against liquid or paste sealers and does not cover warranty damage caused by over tightening or cross threading.
Specifications
| Identification | |
|---|---|
| Manufacturer | Pentair |
| Part Number | T29 |
| Pentair Description | Fluidmaster valve |
| Part Type | Float valve, automatic water filler |
| SKU | PST-_T29 |
| Fitment | |
| AutoFill w/ Fluidmaster Valve | T40FB, T40FBK, T40FG, T40FDG, T40FW |
| AutoFill Vanishing Edge | T40FNB, T40FNBK, T40FNG, T40FNDG, T40FNW |
| T40B Models | Use a side-mounted float valve instead |
| Installation | |
| Thread Sealant | PTFE thread seal tape, no liquid or paste sealers |
| Height Adjustment | Press down on the valve top and turn |
| Float Adjustment | Clip on a stainless steel rod |
| AutoFill Supply Pipe | 3/4 in. |
| Related Pentair Parts | |
| Valve Extension | T6EXT, 6 in. extension for Fluidmaster valve |
Frequently Asked Questions
Which Pentair AutoFill models use the T29?
Pentair builds its T40F AutoFill (T40FB, T40FBK, T40FG, T40FDG, T40FW) and its T40FN Vanishing Edge AutoFill (T40FNB, T40FNBK, T40FNG, T40FNDG, T40FNW) with a Fluidmaster valve. The T40B models use a side-mounted float valve instead.
How do I adjust the water level?
Lightly press down on the top of the fill valve with one hand and turn it clockwise or counterclockwise until you reach the water level you want. You can also squeeze the float clip to move the float along its stainless steel rod.
What thread sealant should I use?
Pentair specifies PTFE thread seal tape and says not to use liquid or paste sealers.
Can I mount the valve higher?
Pentair lists the T6EXT, a 6 in. extension for the Fluidmaster valve, as a separate part.
Order the Pentair T29 From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Warranty Backed
- Authorized Pentair Dealer
Additional Info
| Category | Parts Pool Parts Pool Valve Parts |
| SKU | PST-_T29 |
| MPN | T29 |
| Replaces | 4310-070, 607763, LET-561-516, LLT29 |
| Manufacturer | Pentair |
| Weight | 0.37 lb |
