Product Information
Description
- Genuine Waterway Pump
- 2-Speed, 230V
- 1-Year Waterway Warranty
- Free Shipping

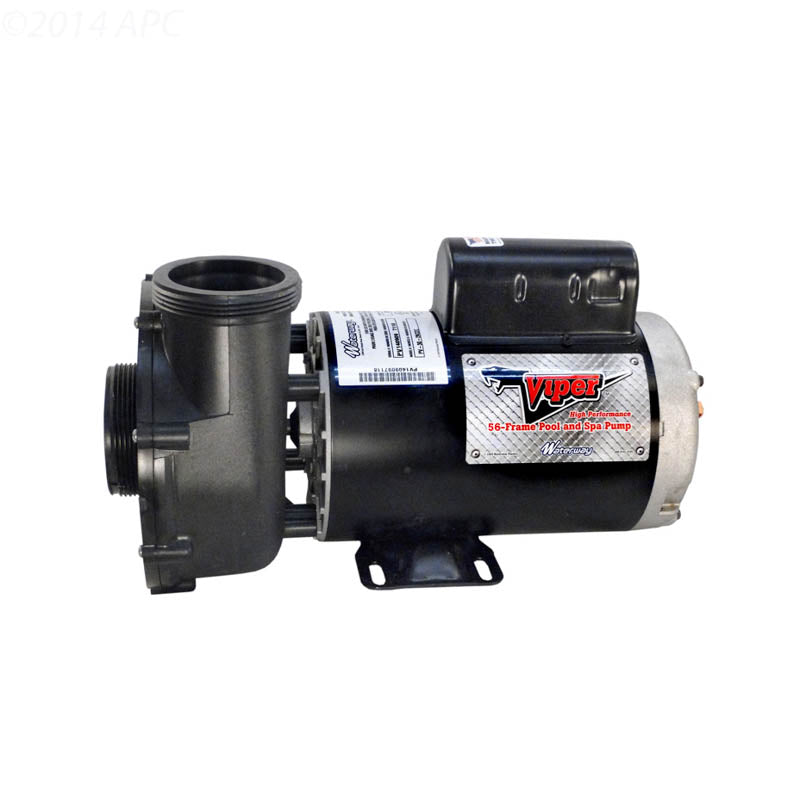

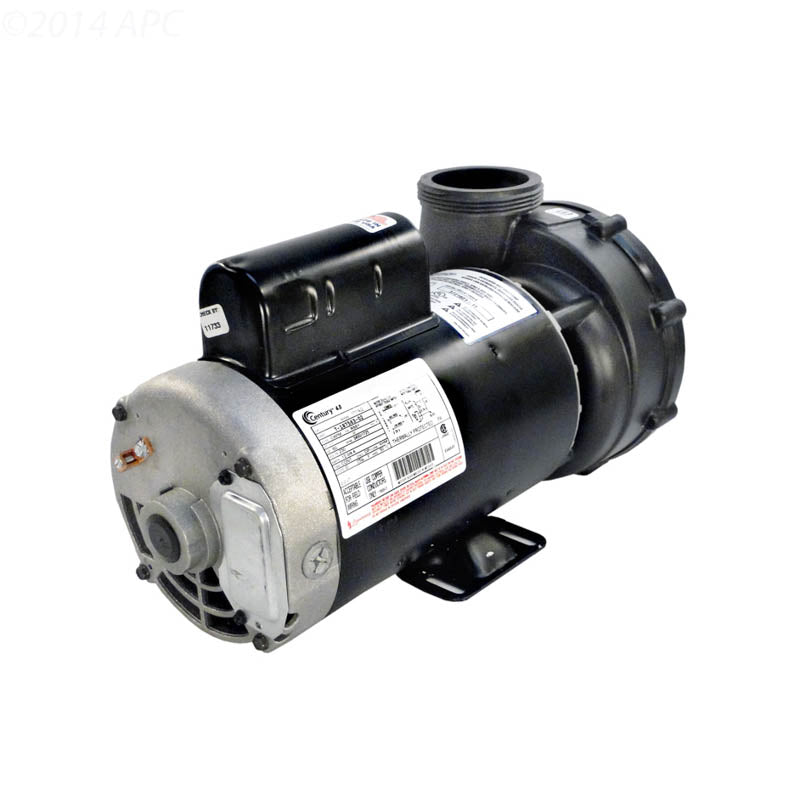

Waterway Viper 56-Frame 2-Speed Spa Pump, 4 HP, 230V (MV-40226-25)
Four horsepower, two speeds, 2-1/2 inch ports.
The Waterway Viper MV-40226-25 is the 4 HP, 230-volt, two-speed model in Waterway's Viper 56-Frame spa pump line, which Waterway designs for low pressure, high volume systems. It pairs an 8-inch diameter Viper wet end with a 56-frame motor and a 2-1/2 inch intake and discharge. Waterway rates it at 12 amps on high speed and 4.4 amps on low speed.
Why PST Customers Pick This
8-Inch Viper Wet End
Waterway sizes the Viper wet end at 8 inches in diameter for more volume, and designs it specifically for 56-frame motors.
Large 2-1/2 Inch Intake
The 2-1/2 inch intake is there for improved flow performance and reduced noise, and it is matched by a 2-1/2 inch discharge.
Rotates Every 90 Degrees
Waterway built the wet end so it can be rotated every 90 degrees, which lets you turn the discharge to suit your plumbing.
56-Frame Motor
The 56-frame motor adds strength, runs at a cooler operating temperature and is built for longer motor life, with two double shielded ball bearings in moisture resistant grease for quieter operation.
Thermally Protected
Waterway thermally protects the motor to extend its life expectancy.
Chlorine, Bromine and Salt
Silicon carbide seals, Viton bellows and a 316 stainless steel casing give corrosion resistance against chlorine, bromine and salt.
Specifications
| Identification | |
|---|---|
| Manufacturer | Waterway Plastics |
| Product Line | Viper 56-Frame spa pump |
| Waterway Part Number | MV-40226-25 |
| SKU | PST-WWMV4022625 |
| Electrical | |
| Horsepower | 4 HP |
| Speeds | 2 (high and low) |
| Voltage | 230V |
| Amps, High Speed | 12 |
| Amps, Low Speed | 4.4 |
| Frequency | 60 Hz |
| Motor Frame | 56-frame |
| Motor Protection | Thermally protected |
| Wet End and Construction | |
| Intake | 2-1/2 in |
| Discharge | 2-1/2 in |
| Wet End Diameter | 8 in |
| Wet End Rotation | Every 90 degrees |
| Shaft Seal | Silicon carbide seals, Viton bellows, 316 stainless steel casing |
| Bearings | Two double shielded ball bearings, moisture resistant grease |
| Warranty | |
| Waterway Limited Warranty | 1 year from date of purchase, when installed by a qualified installer |
Frequently Asked Questions
What is the difference between the MV-40226-25 and the MV-40126-25?
Both are 4 HP, 230V Viper 56-frame pumps with a 2-1/2 inch intake and discharge. The MV-40226-25 is the two-speed model, rated 12 amps on high and 4.4 amps on low. The MV-40126-25 is Waterway's single-speed 4 HP Viper.
What other sizes does the two-speed Viper 56-frame come in?
Waterway lists the two-speed Viper 56-frame in 3 HP (MV-30226-25), 4 HP (this pump, MV-40226-25) and 5 HP (3722021-1V), all at 230V with a 2-1/2 inch intake and discharge.
Can I turn the discharge to match my plumbing?
Yes. Waterway designed the Viper wet end so it can be rotated every 90 degrees.
What does Waterway's warranty cover?
Waterway warrants its products against defects in materials and workmanship for one year from the date of purchase, if installed by a qualified installer. Failures caused by freezing, negligence, improper installation, use or care are excluded, and warranty claims go through the place of purchase.
Order the Viper MV-40226-25 From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- 1-Year Waterway Warranty
- Authorized Waterway Dealer
Additional Info
| Category | Pool Products Pool Pumps 2 Speed Pumps |
| SKU | PST-WWMV4022625 |
| MPN | MV-40226-25 |
| Manufacturer | Waterway Plastics |
| Weight | 0.1 lb |
