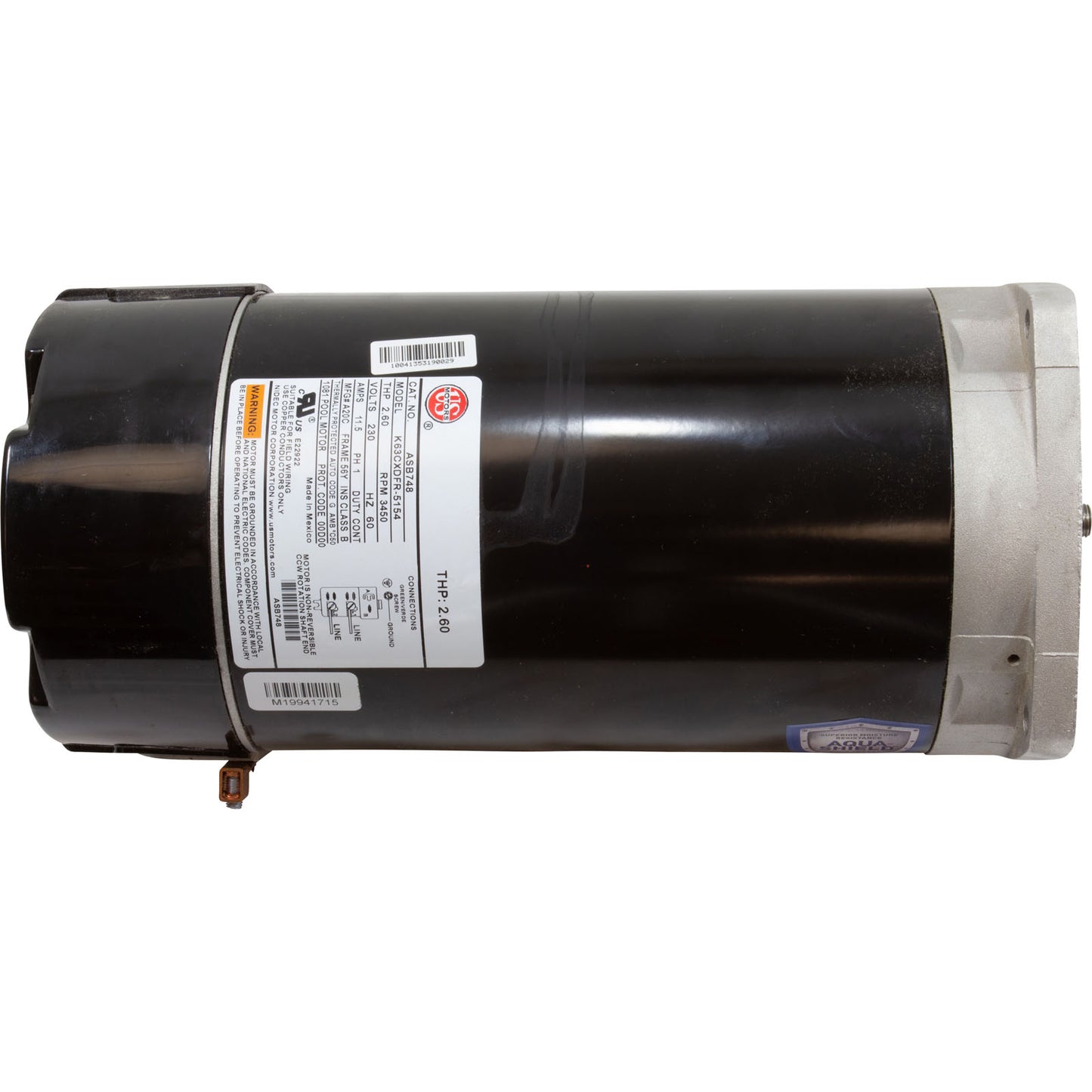

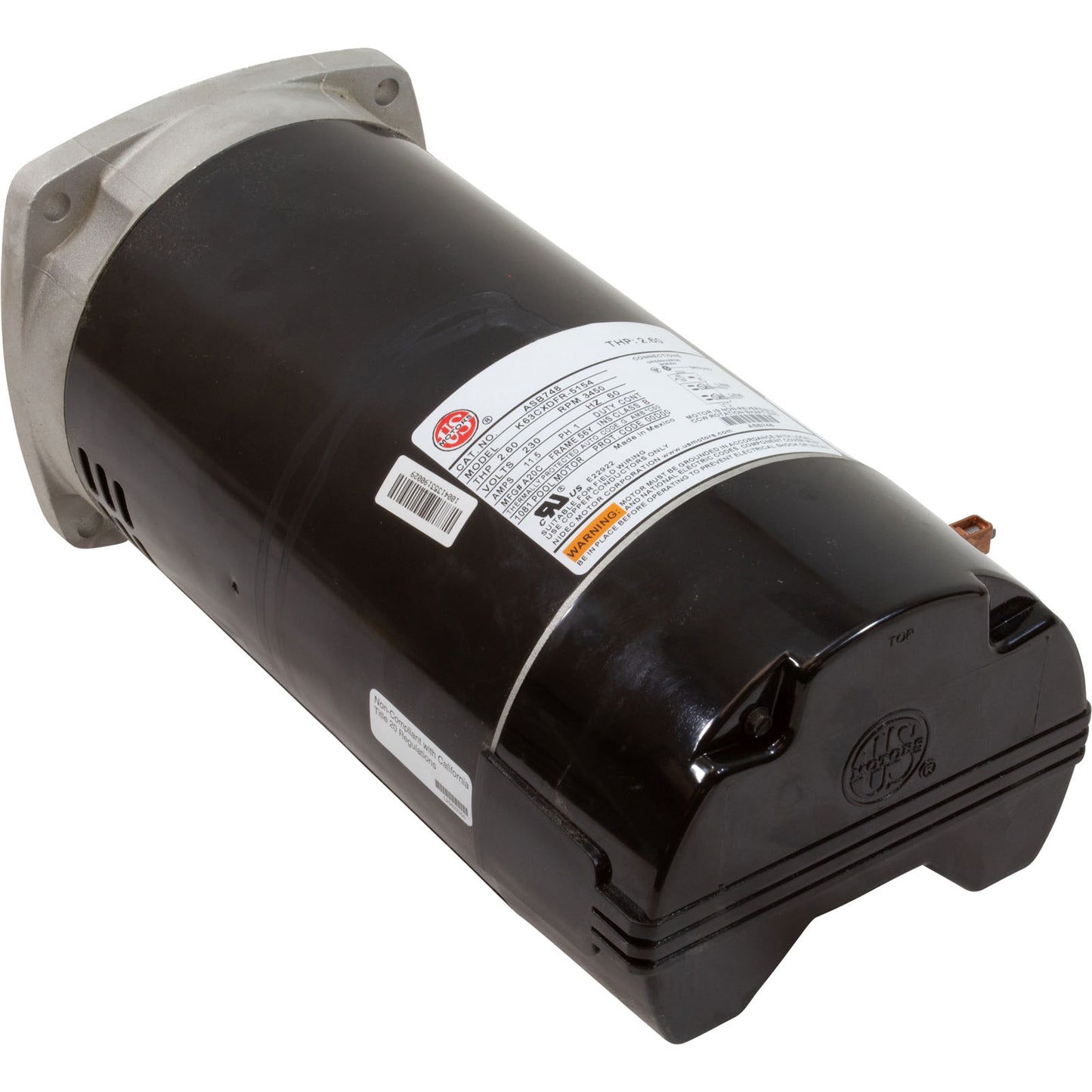

US Motors ASB748 2.0 HP (2.6 THP) 230V Square Flange Pool Pump Motor
The US Motors ASB748 is a high-efficiency, full-rated single-phase pool pump motor designed for optimal performance and durability in various in-ground pool and spa applications. Engineered by Nidec Motor Corp, this robust motor is a reliable replacement for popular models like PacFab Challenger, Whisperflo, and Pentair pumps, as well as Century B840 and B2840 motors.
Key Features & Benefits:
- Powerful Performance: Delivers 2.0 HP (nominal) with a 2.6 Total Horsepower (THP) rating, ensuring strong and consistent pump operation.
- Efficient Operation: Operates at 230 volts and 60 Hz with a low 11.5 amps full load, providing energy-efficient performance.
- High Speed: Achieves 3450 RPM for effective water circulation and filtration.
- Durable Construction: Features an Open Dripproof (ODP) enclosure and a 300/303 series stainless steel shaft for enhanced longevity and resistance to corrosion.
- Aqua-Shield™ Technology: Incorporates an optimized internal airflow design to minimize heat and moisture buildup, along with triple bearing protection (double sealed ball bearings, lip seal, and water slinger) to guard against water and debris.
- Switchless Design: Offers reliable, maintenance-free operation with no field adjustments needed.

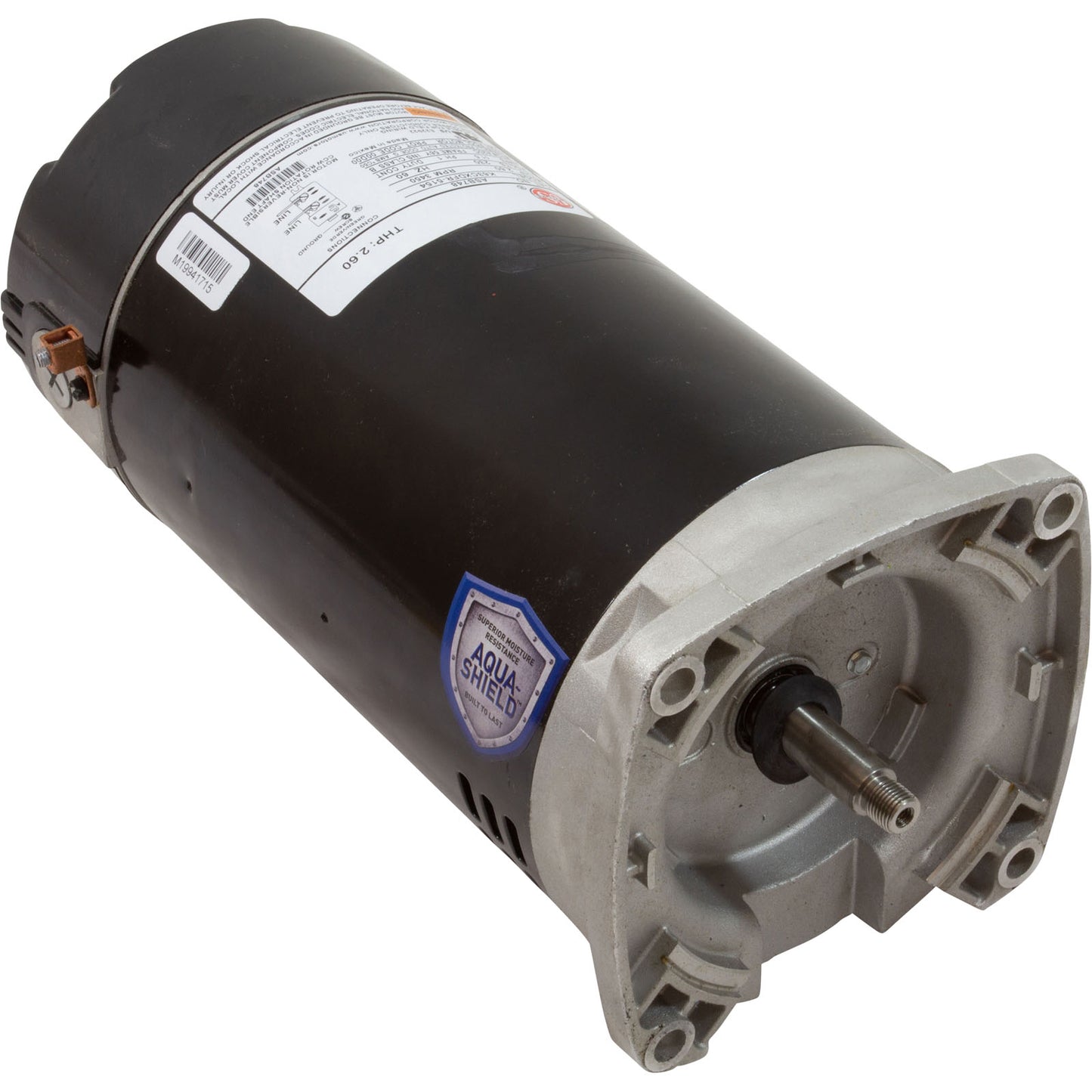

- Easy Installation: Designed with a NEMA 56Y frame and a square flange mount (1081 design) with 1/2-20 UNF-2A threaded shaft for straightforward replacement.
- Safety Features: Equipped with automatic thermal overload protection and Class B insulation for safe and continuous duty operation in up to 50°C ambient temperatures.
- Counter-Clockwise Rotation: Non-reversible CCW rotation facing the shaft, standard for many pool pump applications.

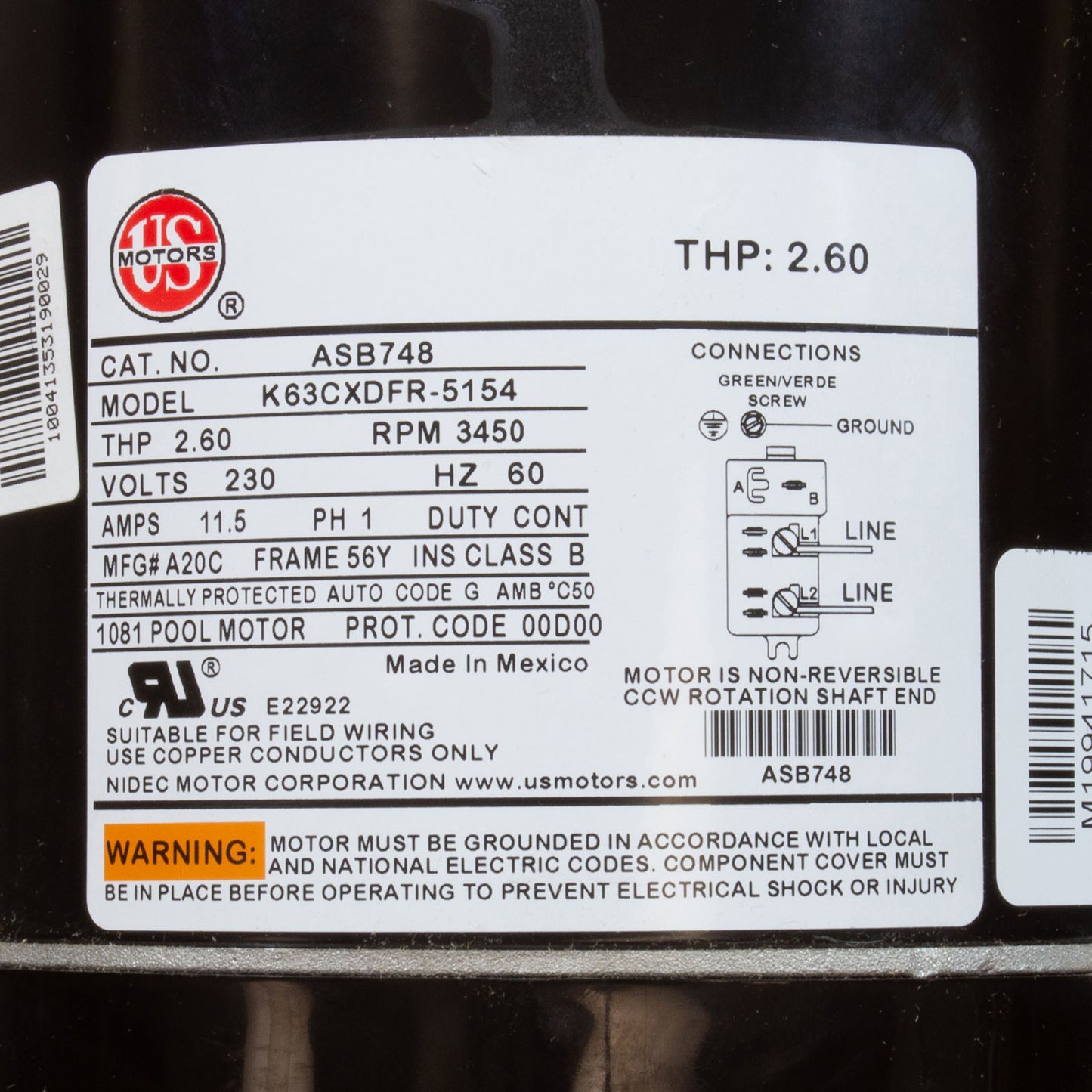

Specifications:
- Manufacturer: US Motors (Nidec Motor Corp)
- MPN: ASB748
- Horsepower: 2.0 HP (2.6 THP)
- Voltage: 230V
- Phase: Single Phase
- Amperage: 11.5 Amps
- RPM: 3450
- Hertz: 60 Hz
- Frame: 56Y
- Enclosure: ODP (Open Dripproof)

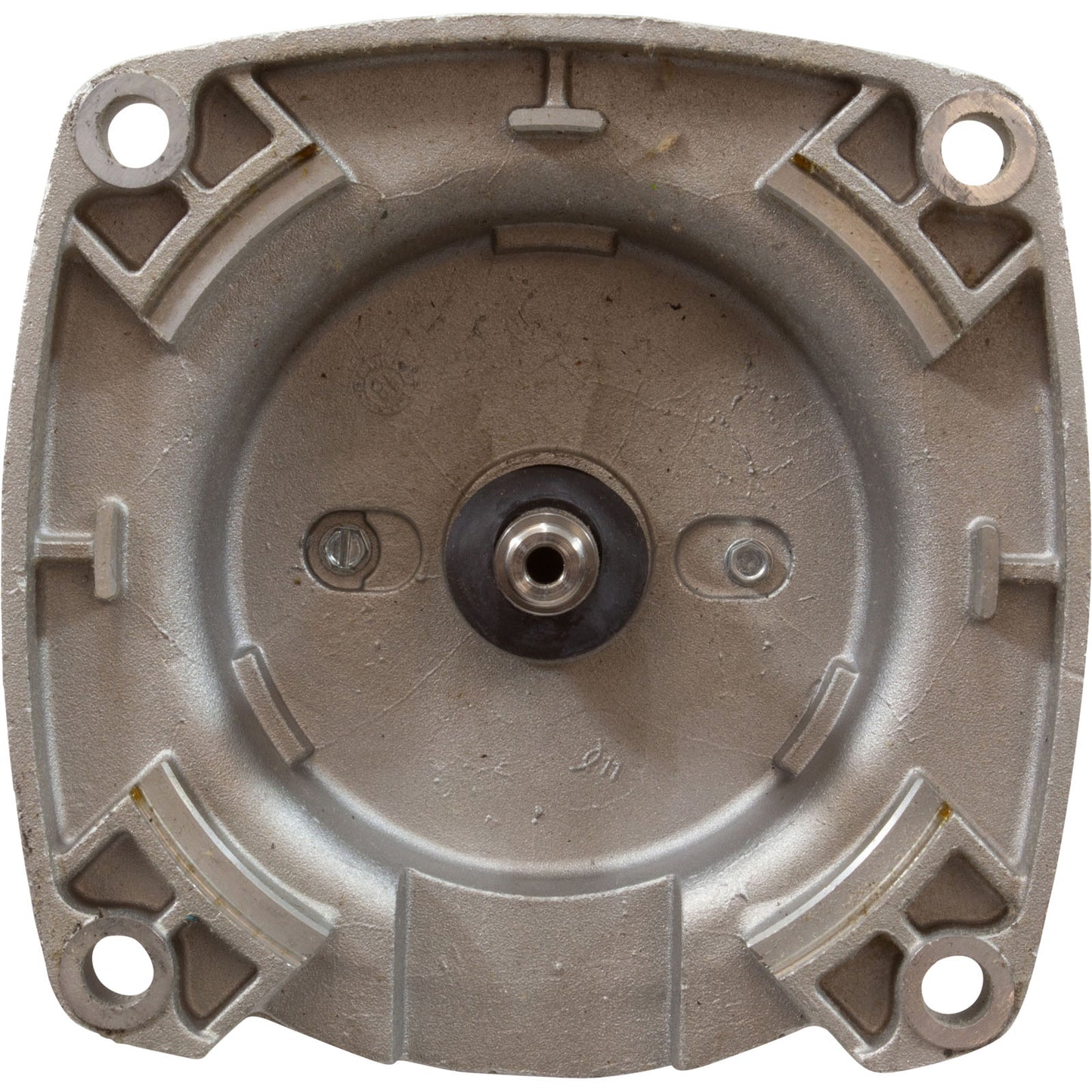

- Mounting: Square Flange (1081 Design)
- Shaft Type: 300/303 Series Stainless Steel, 5/8" diameter, 1/2-20 UNF-2A threaded
- Rotation: Non-reversible, Counter-Clockwise (CCW) Shaft End
- Insulation Class: B
- Thermal Protection: Automatic
- Bearings: Double Sealed Ball Bearings
- Ambient Temperature: 50°C
- Product Dimensions (L x W x H): Approximately 14.46" x 7.13" x 7.13"
Additional Info
| Category | Pool Pump Motor |
| SKU | PST-35-184-1526 |
| MPN | ASB748 |
| Manufacturer | US Motors |
| Weight | 34.0 lb |
