Description

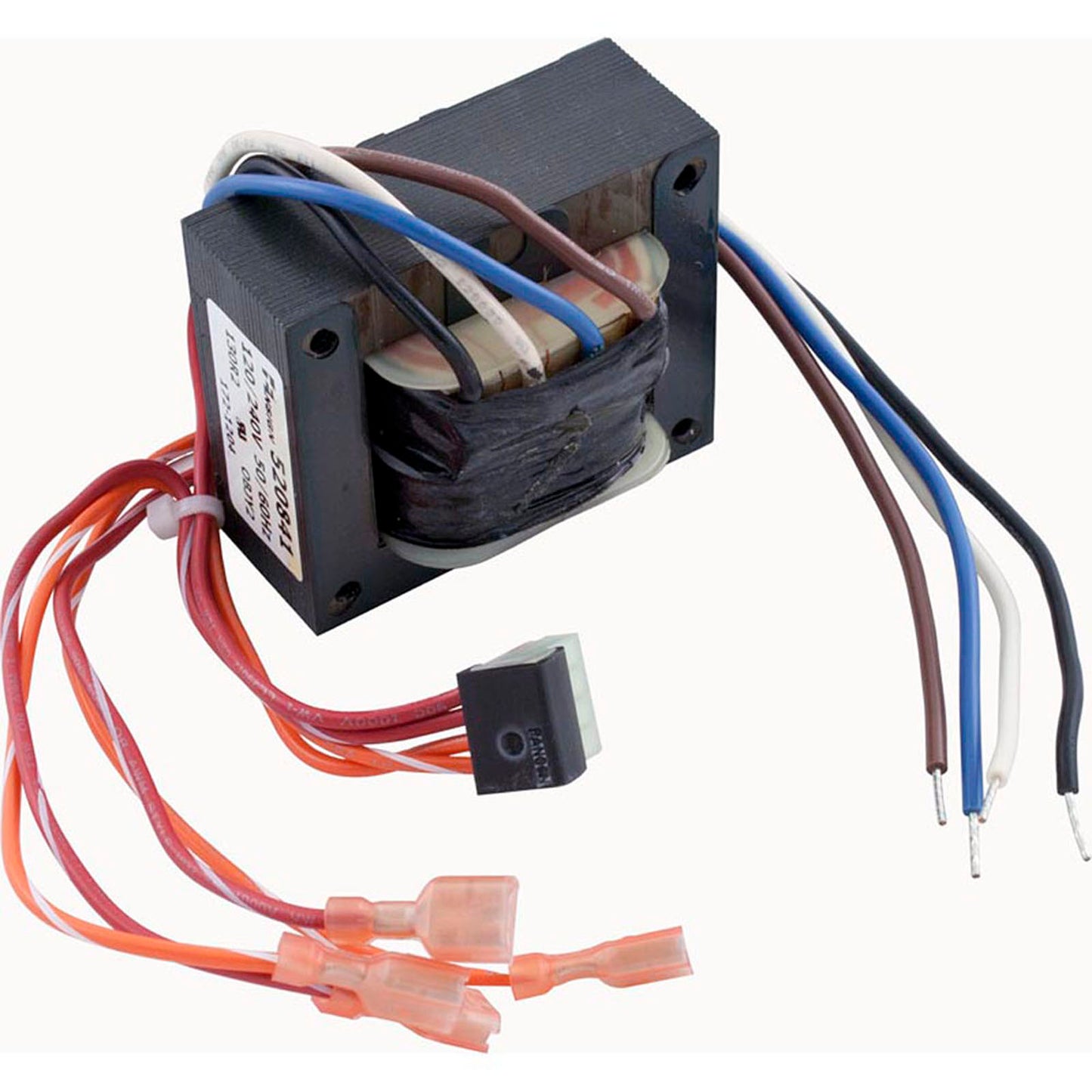

Pentair 520841Z SunTouch Transformer Kit, 115v/230v Input, 12v/18v/24v Output
Transformer kit for the SunTouch control system.
The Pentair 520841Z is the transformer kit in Pentair's SunTouch control system replacement parts. The specifications list 115v/230v input and 12v/18v/24v output.
| Manufacturer | Pentair |
|---|---|
| Part Number | 520841Z |
| Pentair Description | Kit, SunTouch transformer |
| Part Type | Transformer |
| System | Pentair SunTouch control system |
| Input Voltage | 115v/230v |
| Output Voltage | 12v/18v/24v |
| SunTouch AC Supply (Pentair Guide) | 120 VAC or 240 VAC |
| SunTouch Maximum Current (Pentair Guide) | 820 mA at 120 VAC, 410 mA at 240 VAC |
| SKU | PST-59-110-2212 |
Does it work on both 120 and 240 volt supplies?
The specifications list 115v/230v input. Pentair's SunTouch guide says the control system can be connected to either 120 VAC or 240 VAC, and shows separate transformer wire connections for each.
Where does the transformer sit?
Pentair's guide describes the SunTouch power center as the enclosure that houses the relays, the transformer and the circuit breakers. At start-up it calls for the transformer wire harness (J10) to be attached to the motherboard.
Additional Info
| Category | Parts Spa Parts Spa Electrical |
| SKU | PST-59-110-2212 |
| MPN | 520841Z |
| Replaces | 315900, 9237-184, COM-301-2911 |
| Manufacturer | Pentair |
| Weight | 1.96 lb |
