Product Information
Description

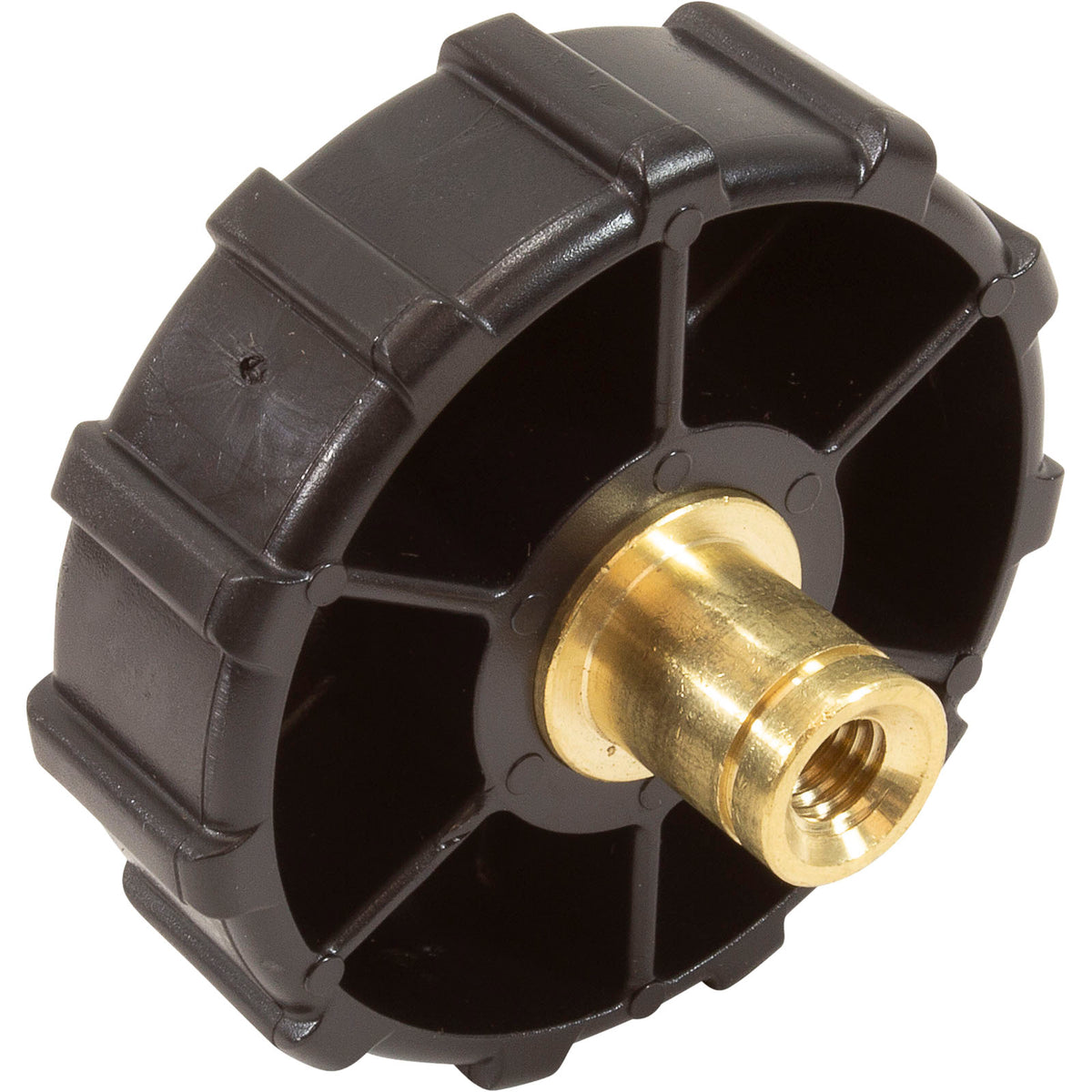

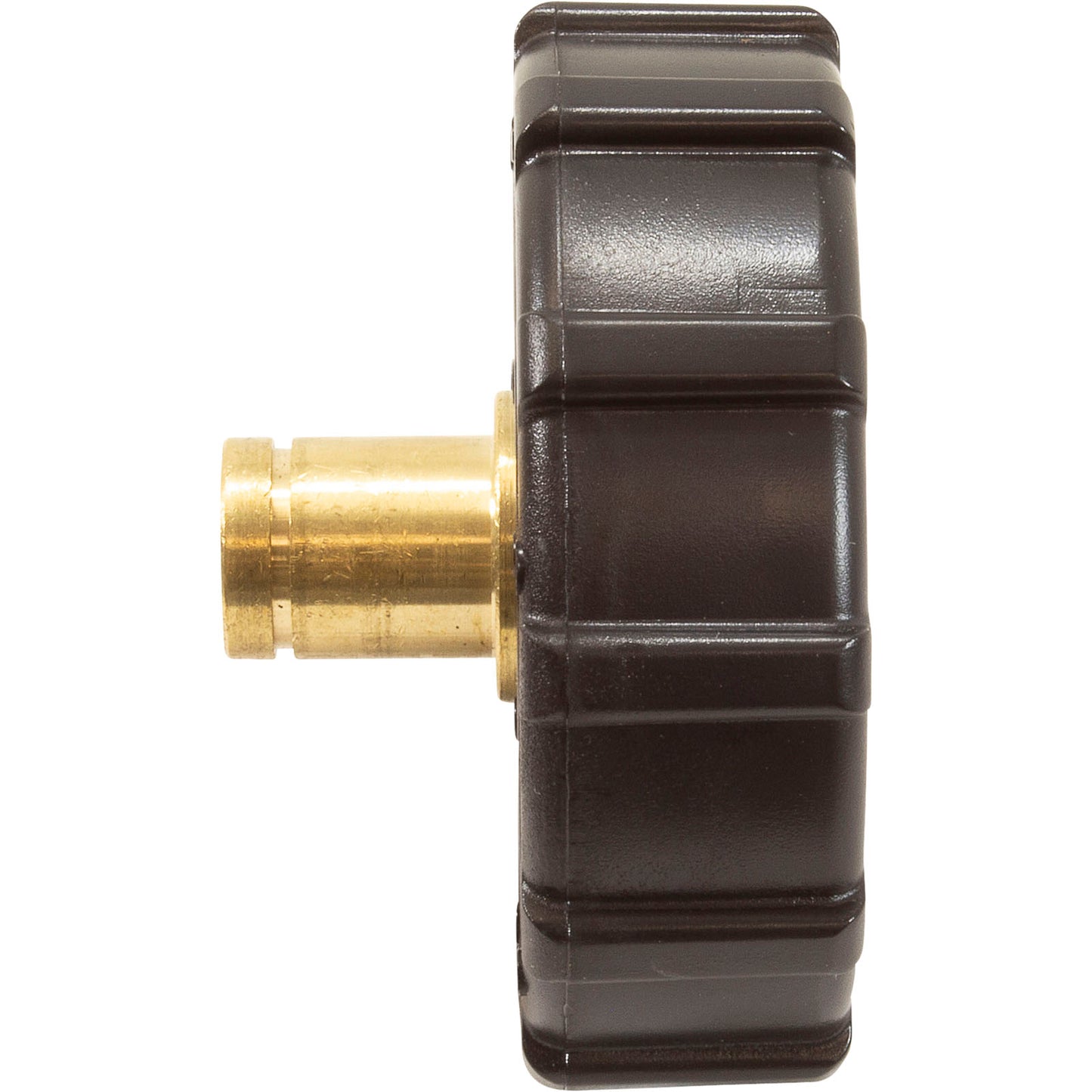

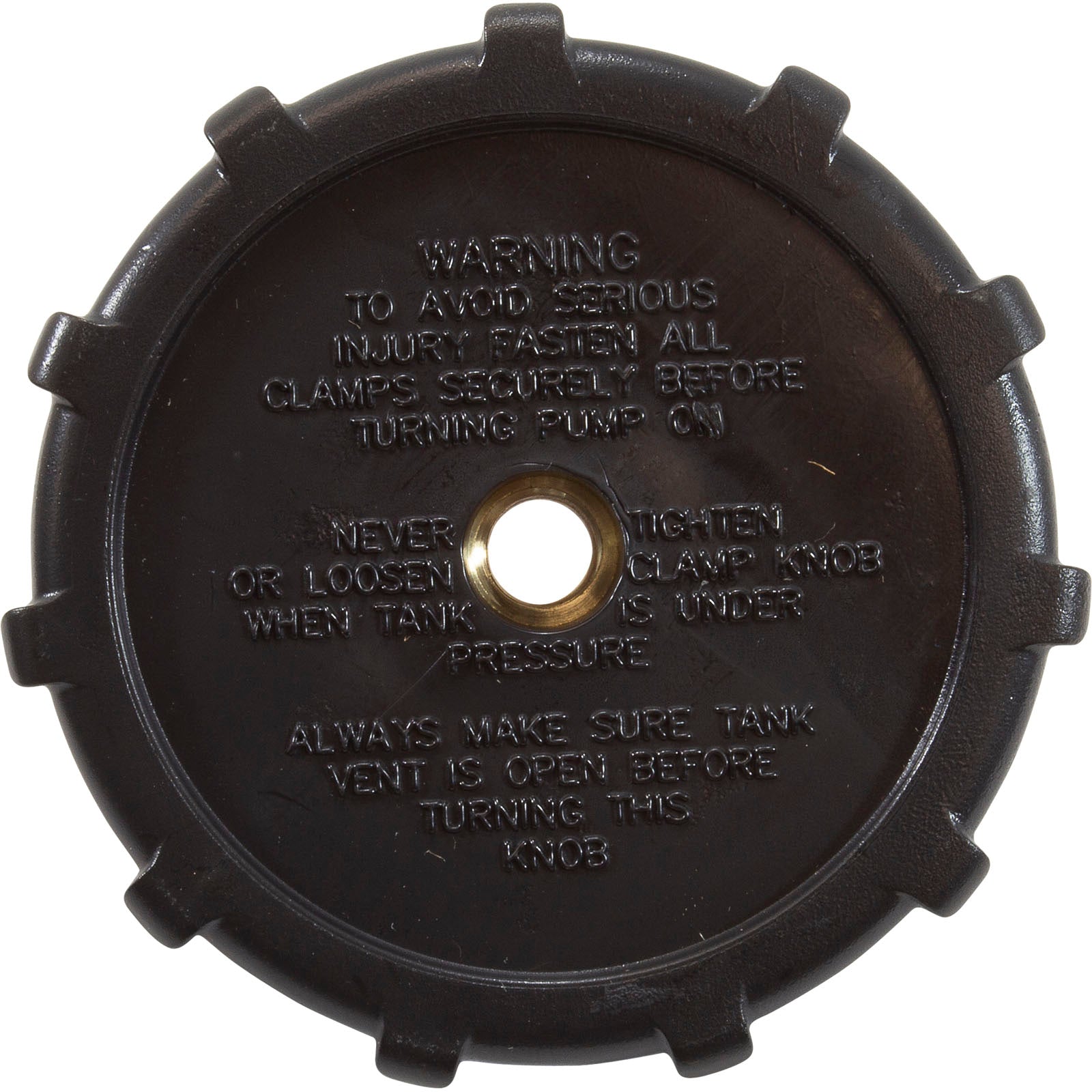

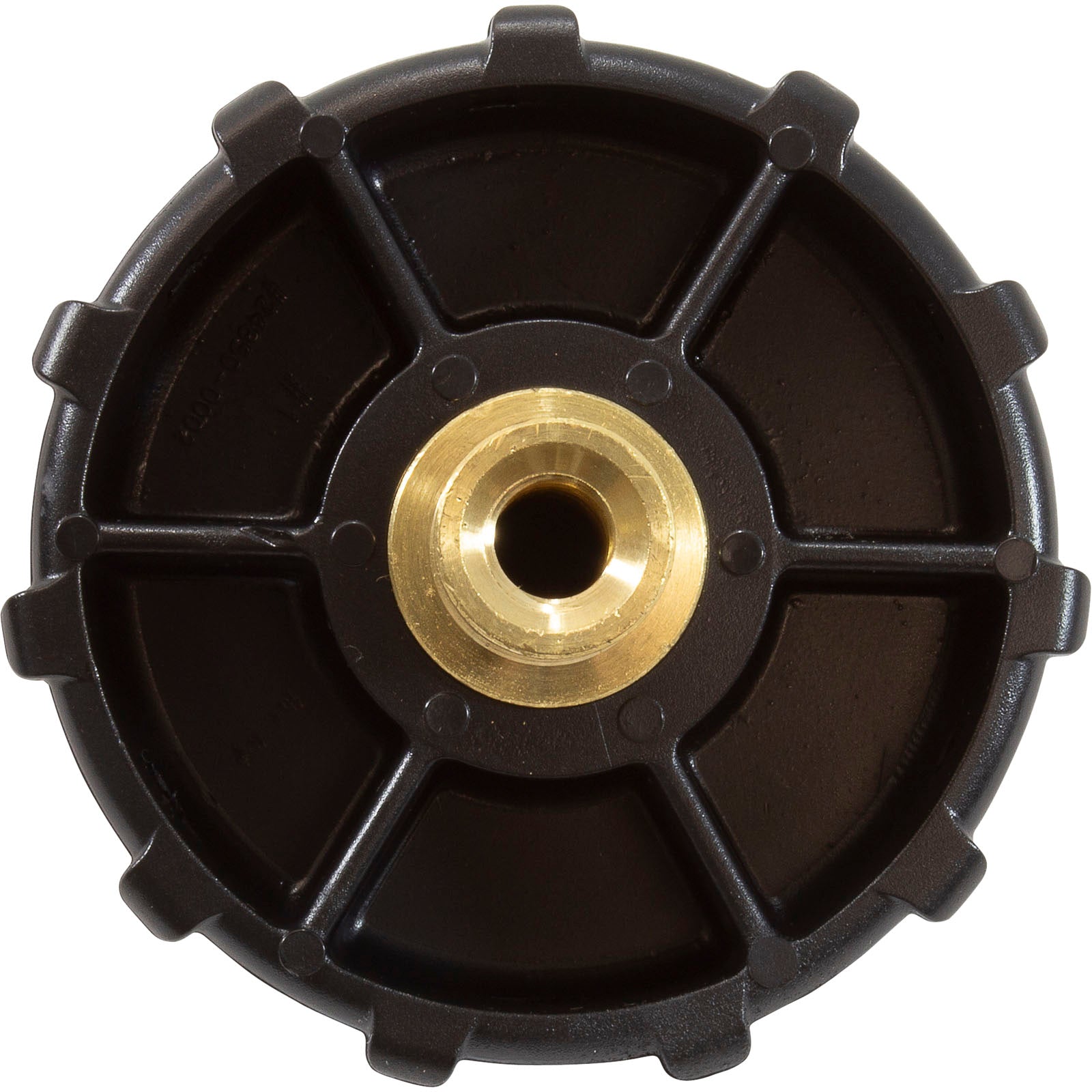

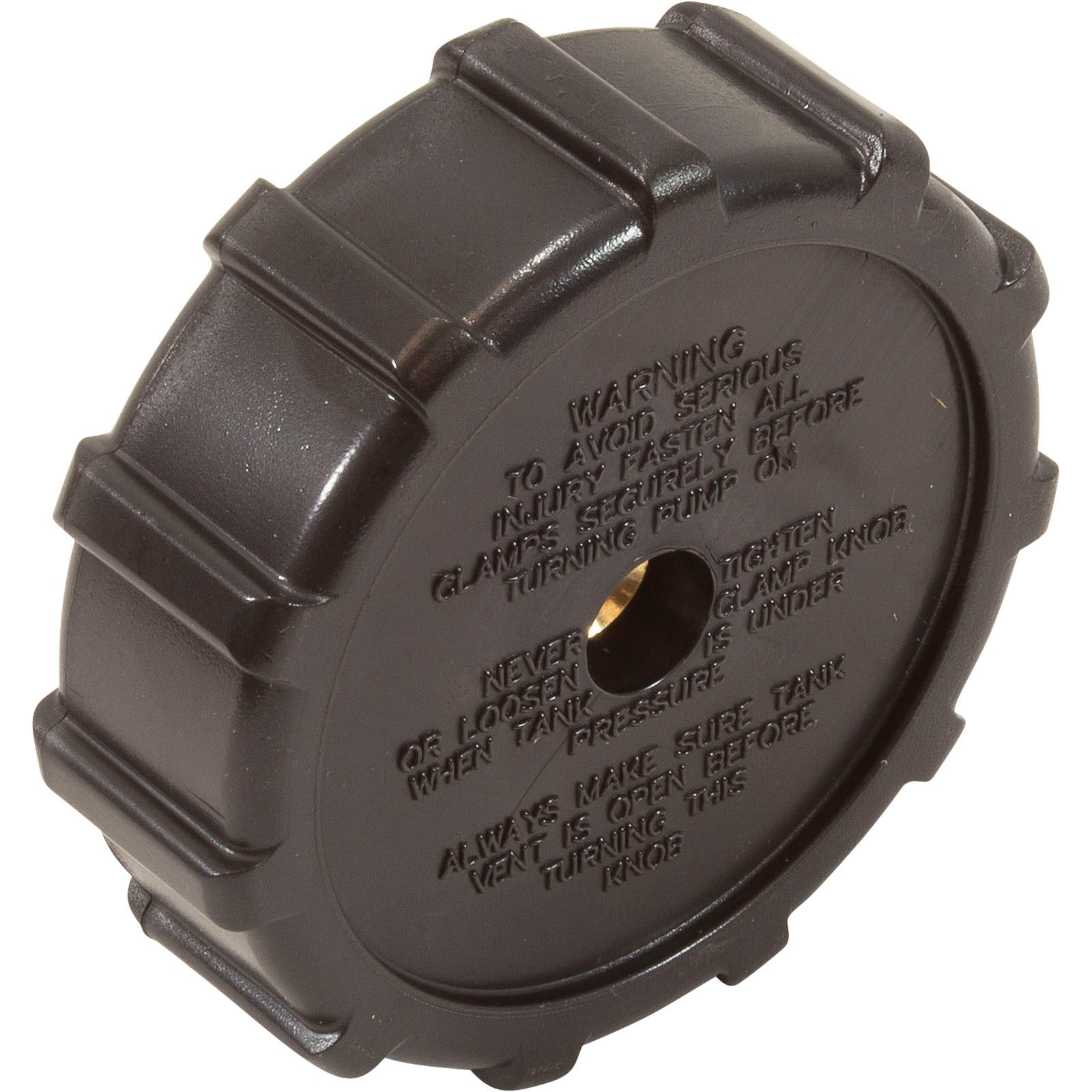

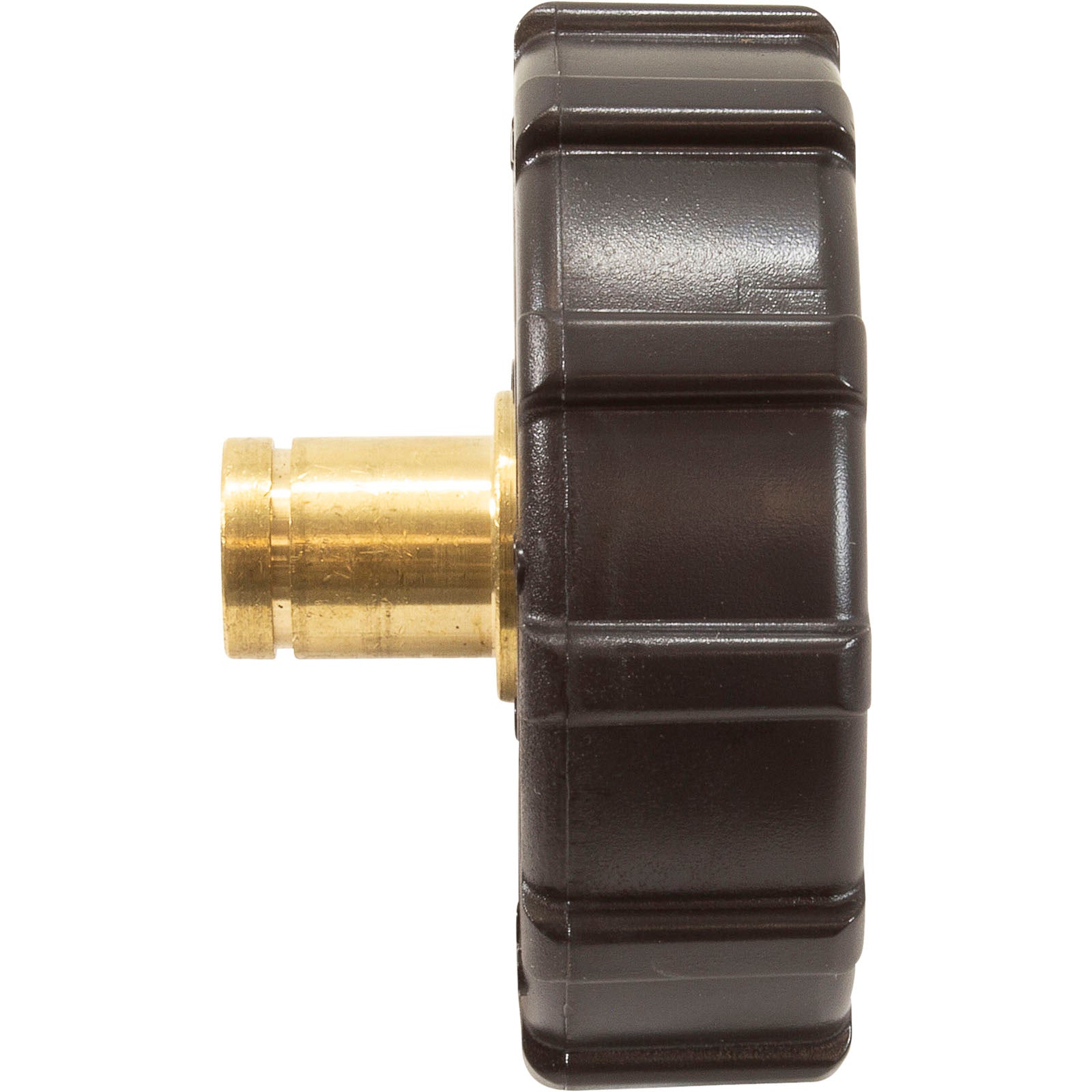

Pentair Sta-Rite System 3 Cartridge Filter Tank Clamp Knob (24850-0002Z)
Tank clamp knob for System 3 S7M and S8M cartridge filters
The Pentair 24850-0002Z is the tank clamp knob for Sta-Rite System 3 cartridge filters, models S7M120, S7M400, S8M150 and S8M500. The knobs tighten the clamps that hold the upper and lower tank halves together, and Pentair says they must be securely tightened before the filter is started. PST SKU PST-17-102-2420.
| Manufacturer | Pentair (Sta-Rite) |
|---|---|
| Part Number | 24850-0002Z |
| SKU | PST-17-102-2420 |
| Part Type | Tank clamp knob |
| Filter Line | Sta-Rite System 3 modular media cartridge filters |
| Fits Models | S7M120, S7M400, S8M150, S8M500 |
| Clamps per Filter | 7 on the S7M120, 8 on the S8M150 |
| Clamp Assembly | 24850-0200 (listed separately) |
| Clamp Bolt | 24850-0010 (listed separately) |
| Tightening | Hand tight, in Pentair's clamp sequence |
How tight should the knobs be?
Pentair's System 3 manual says to install the clamps, then tighten all clamp knobs securely hand tight in the sequence shown, alternating across the tank rather than working around the filter tightening adjacent clamps.
When is it safe to loosen the knobs?
Stop the pump, open the air release valve and wait until all pressure is released from the filter tank and system before loosening the clamp knobs.
How many clamps does my filter use?
Pentair's parts list says the S7M120 uses 7 clamps and clamp bolts and the S8M150 uses 8.
Additional Info
| Category | Parts Pool Parts Filter Parts |
| SKU | PST-17-102-2420 |
| MPN | 24850-0002Z |
| Manufacturer | Pentair |
| Weight | 0.26 lb |
