Product Information
Description
- Pentair Part 24851-0103S
- 25 in. Filter Size
- Fits S8M150, S8M500, S8D110
- Free Shipping

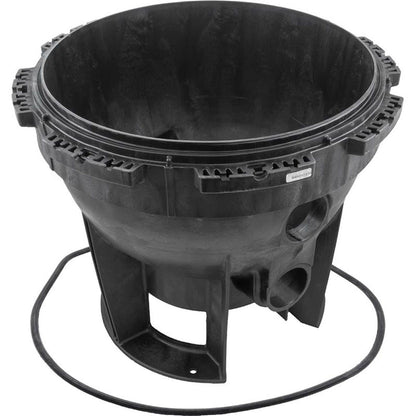

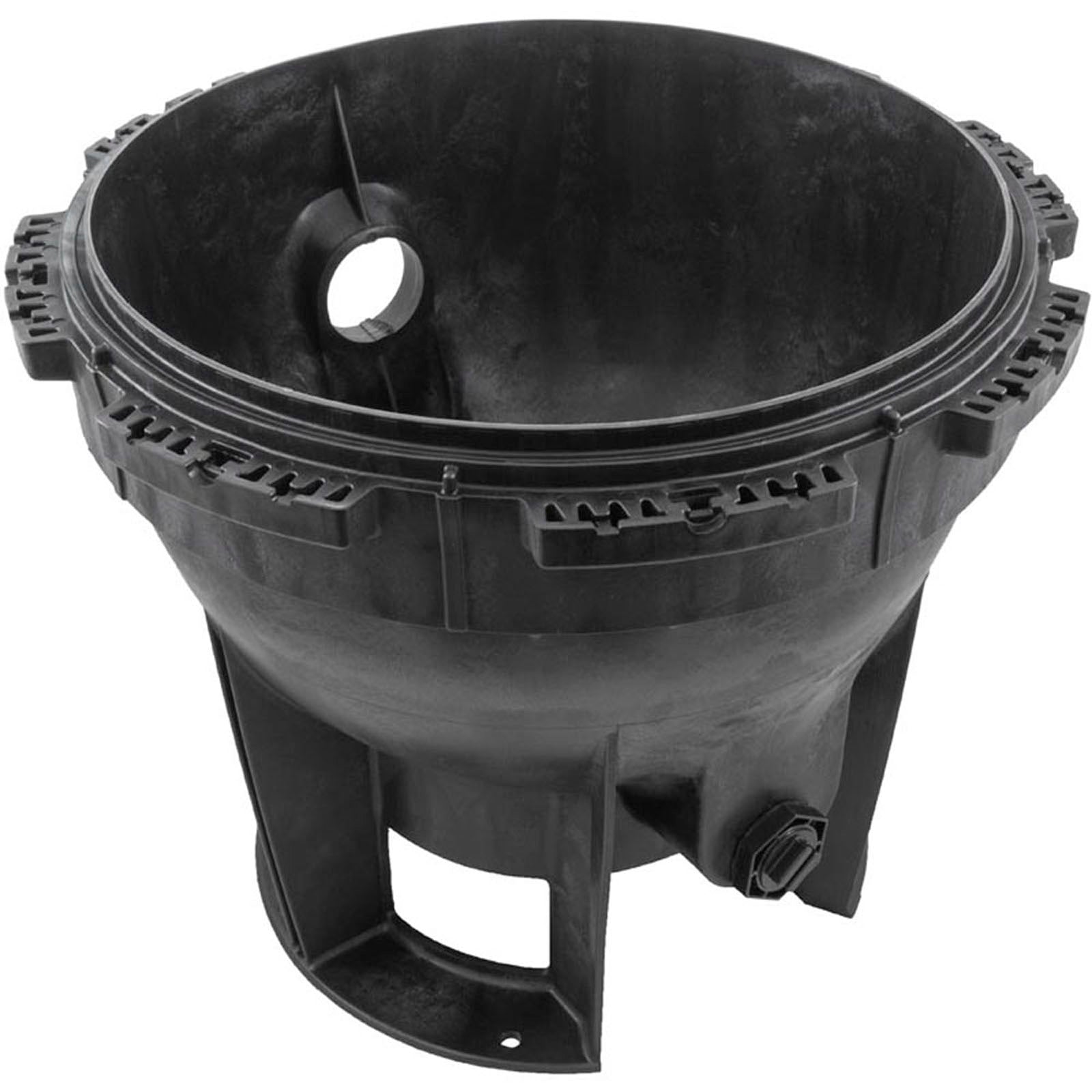

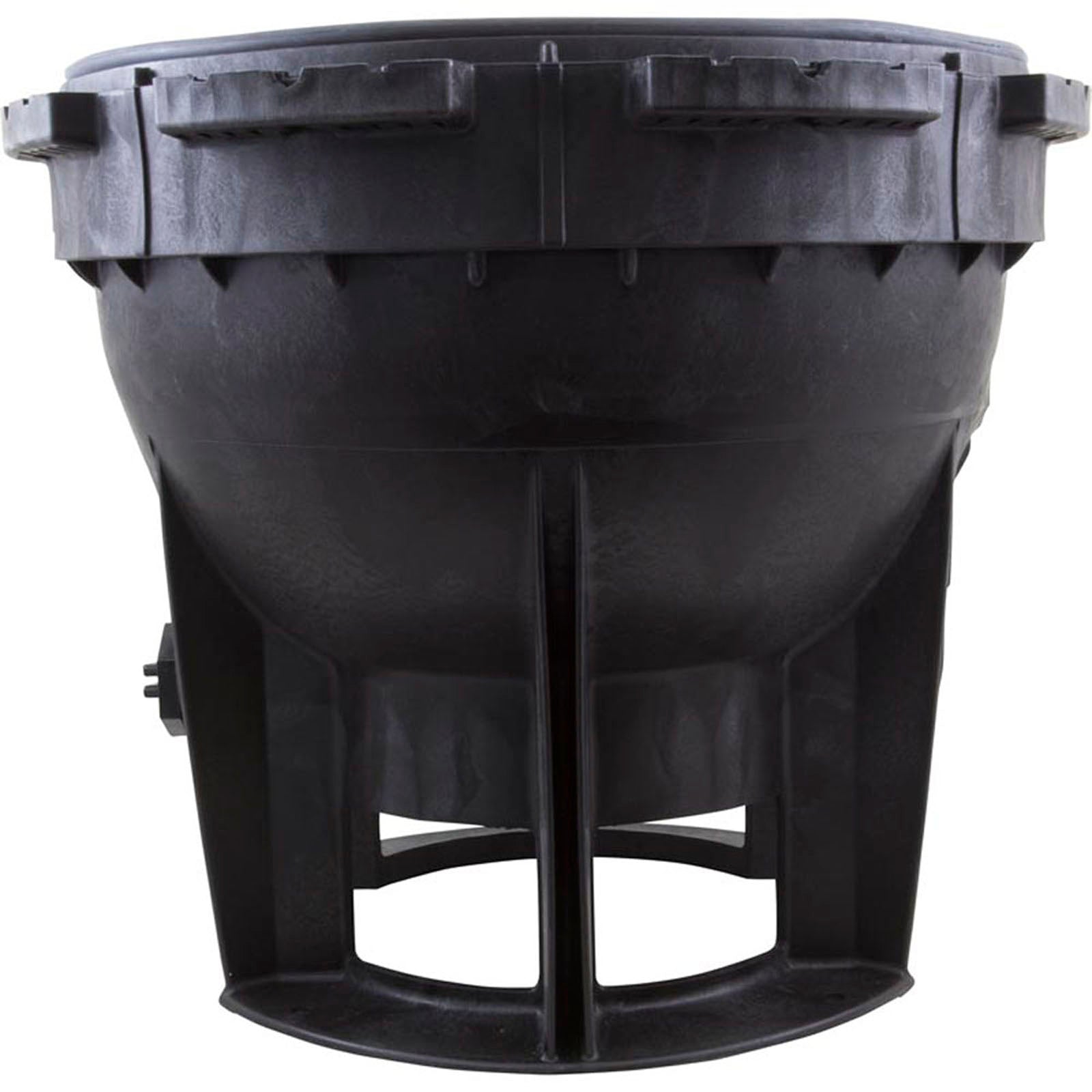

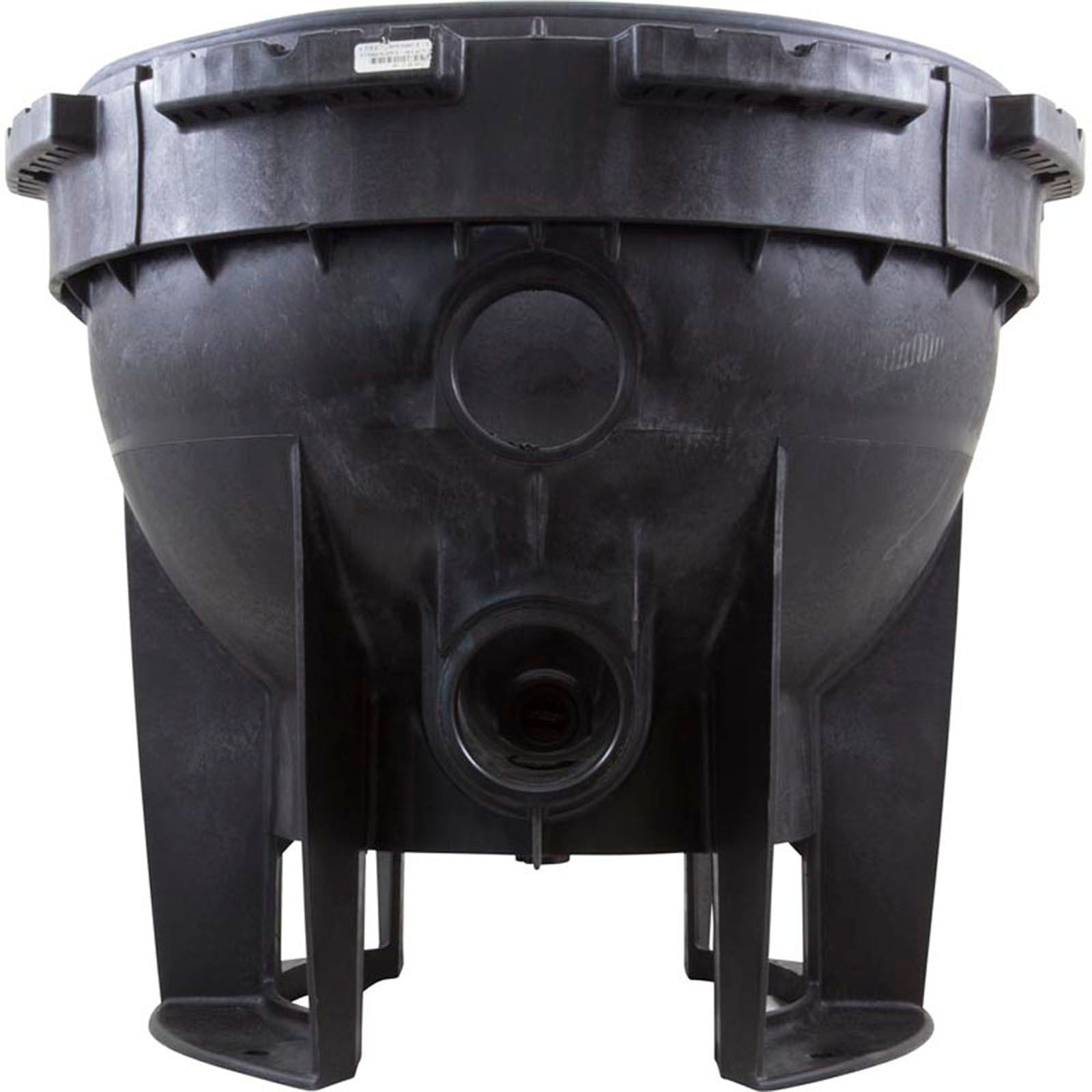

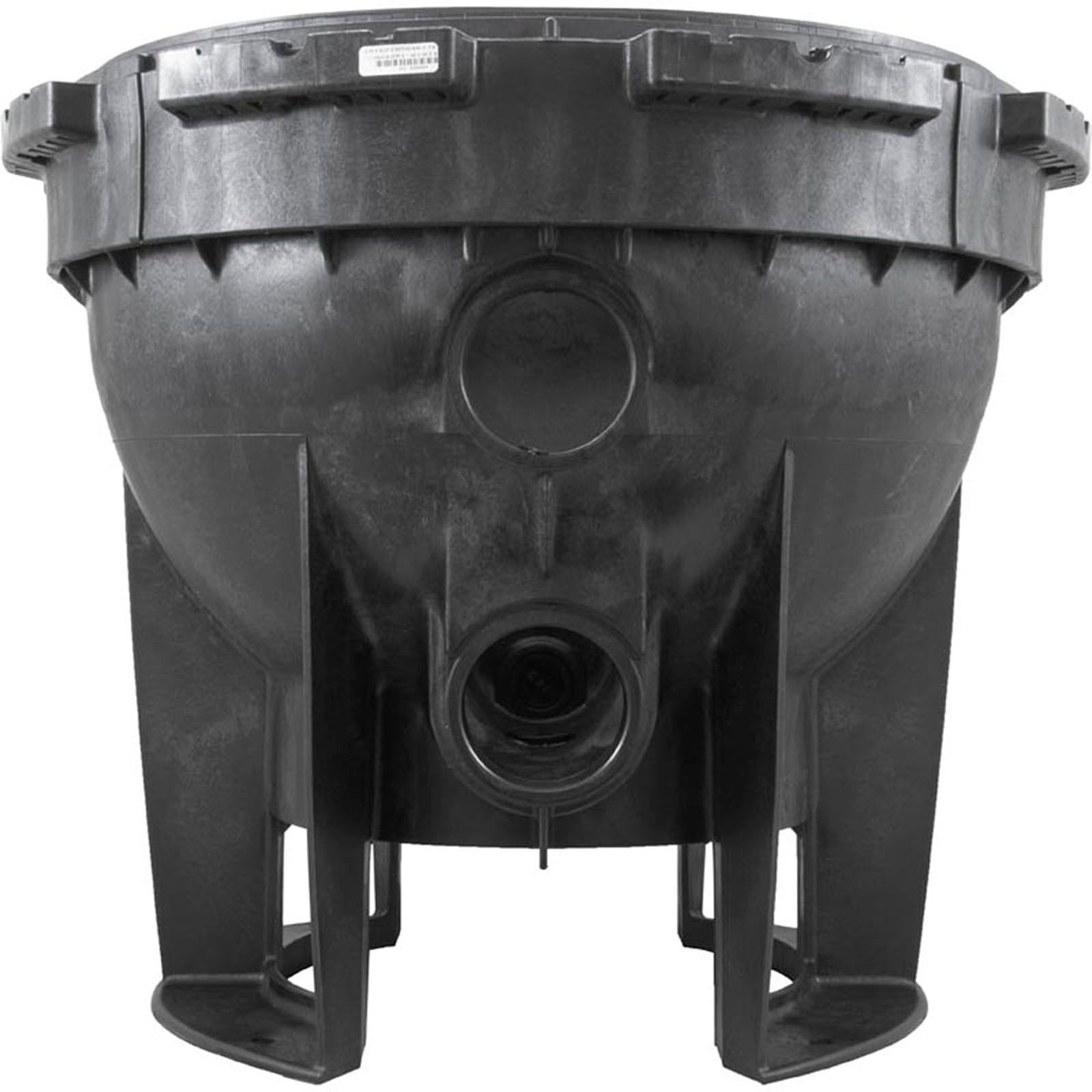

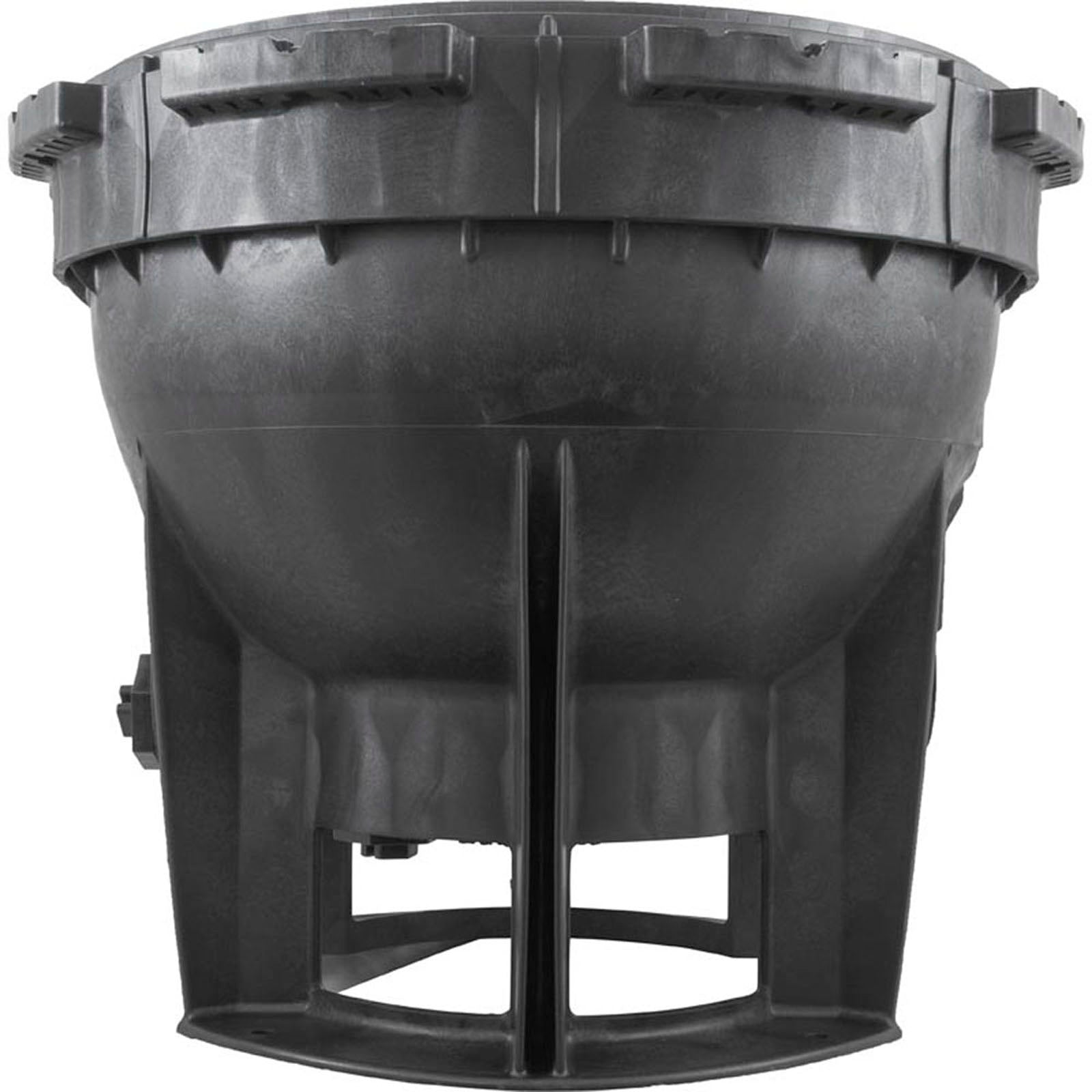

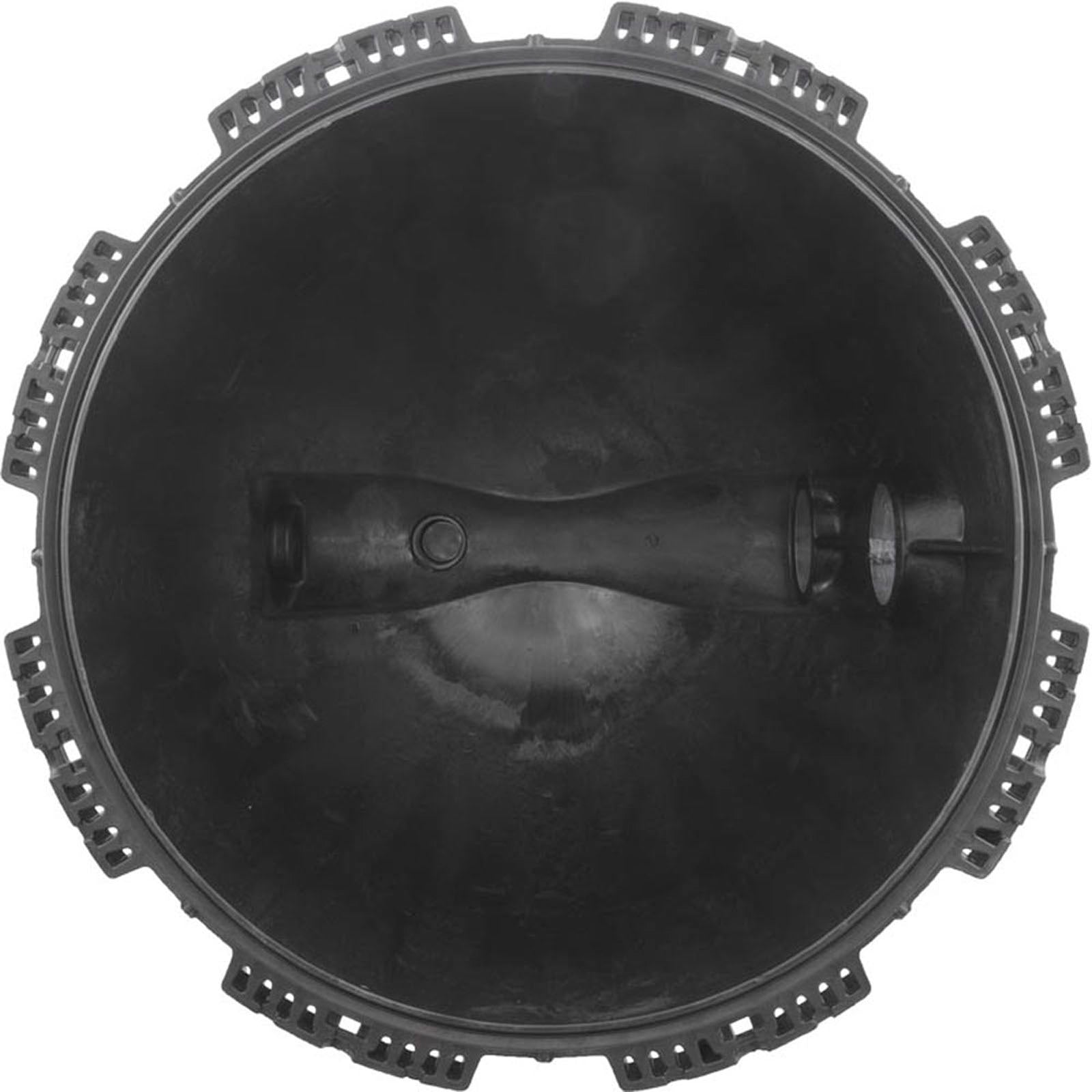

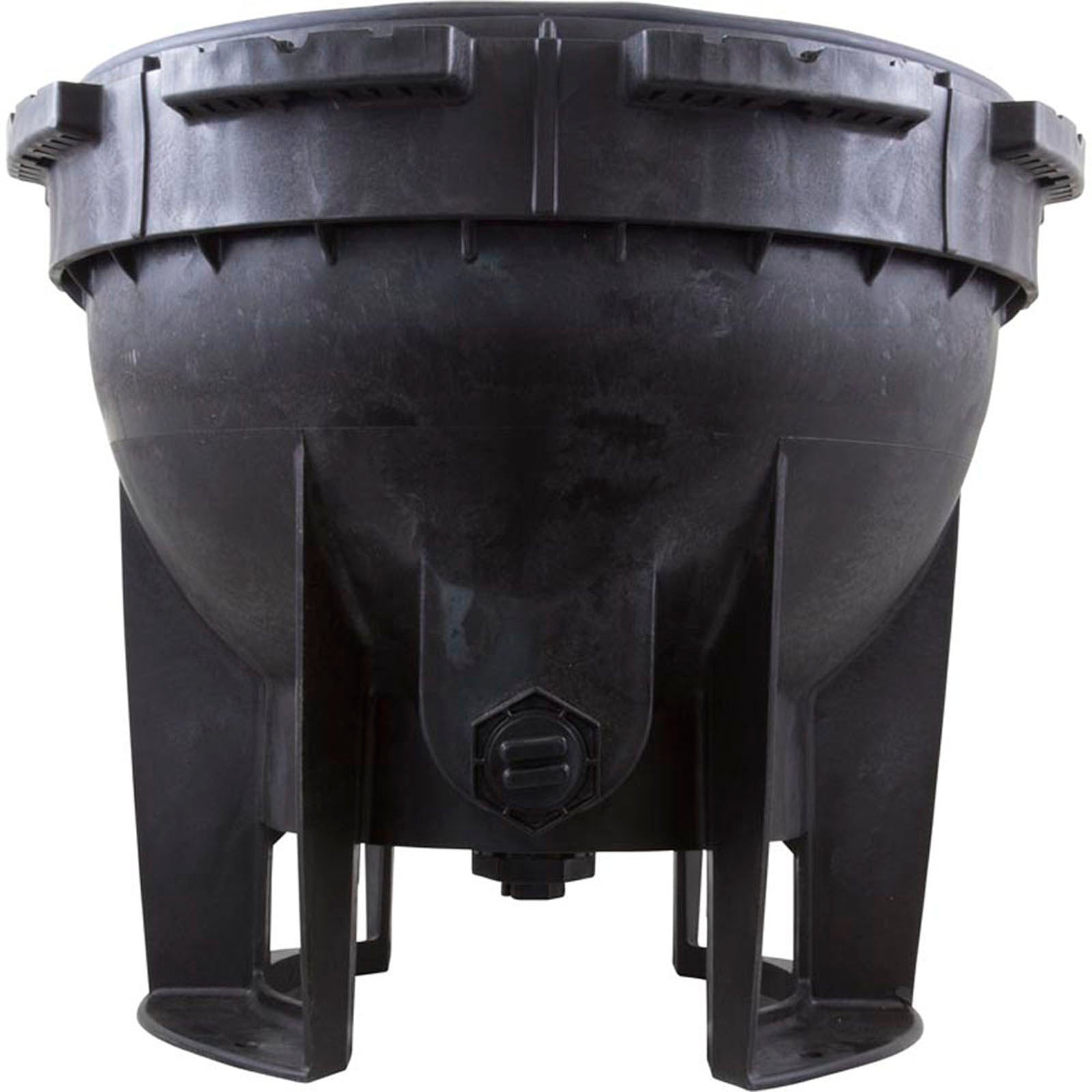

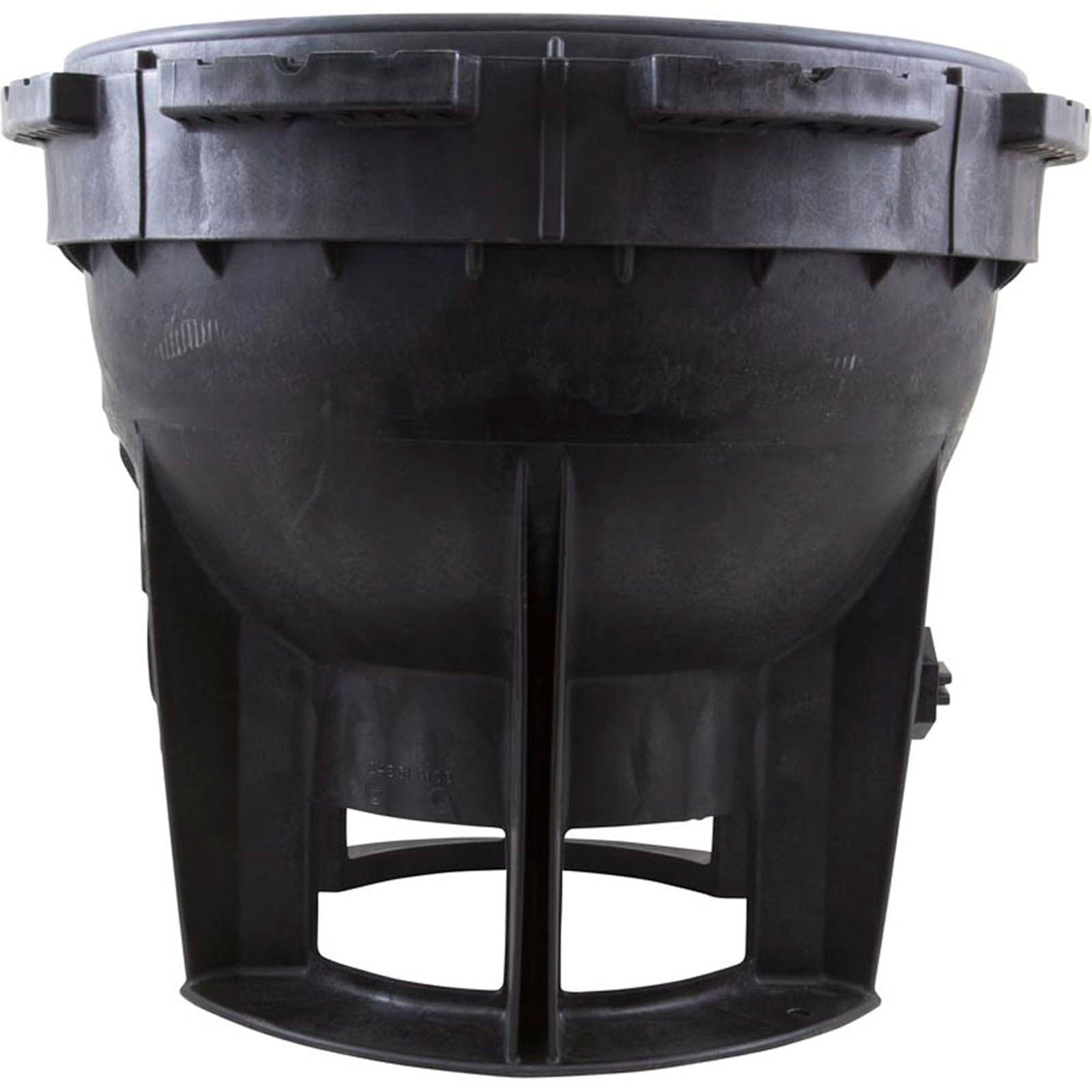

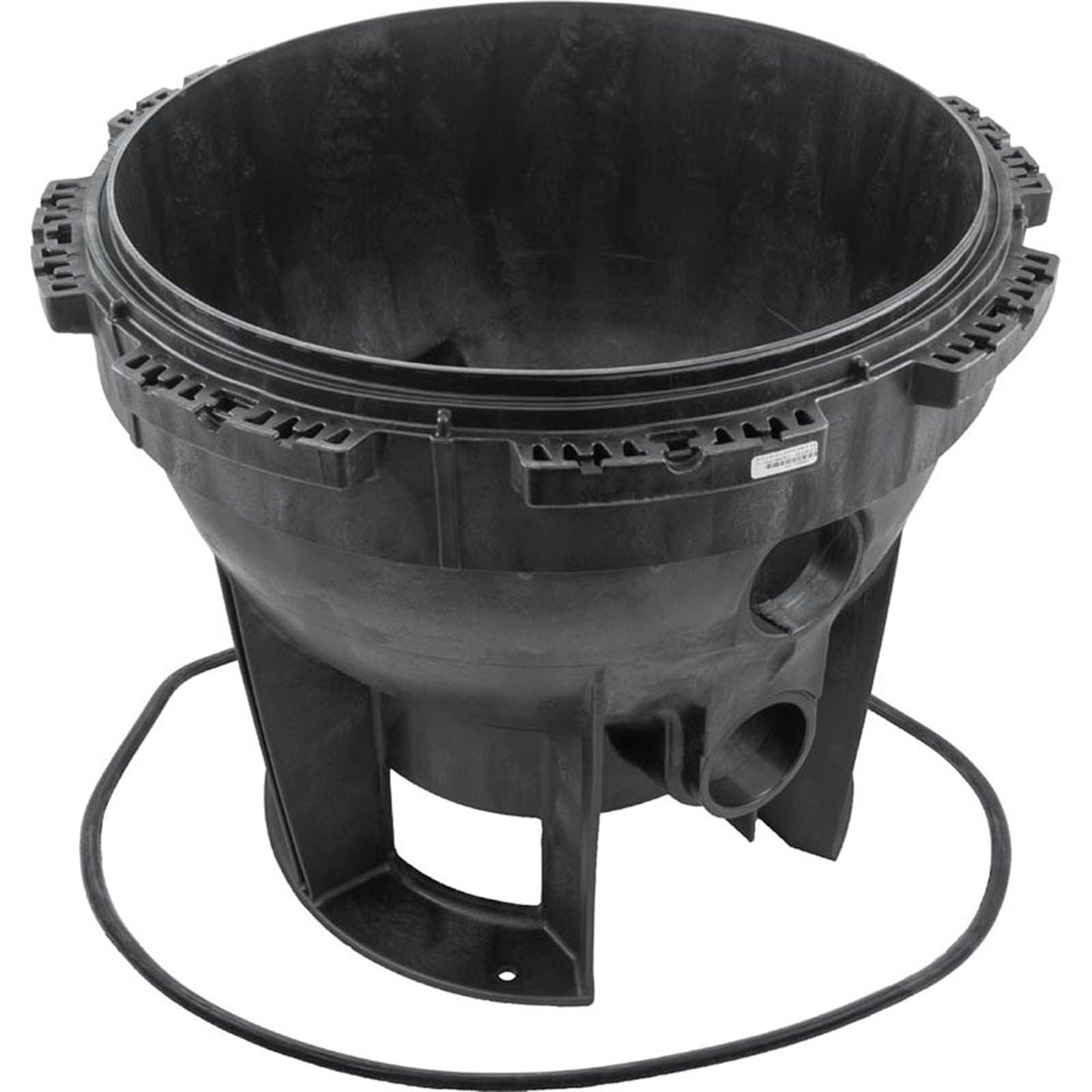

Pentair Sta-Rite 24851-0103S Lower Tank Half, 25 in. System 3 Filter
Lower tank half for 25 in. System 3 filters.
The Pentair Sta-Rite 24851-0103S lower tank half is the 25 in. lower half of the two-piece tank on Sta-Rite System 3 filters. Pentair's parts lists show it as the lower tank half for the SM Series modular media filters S8M150 and S8M500, and as the lower tank shell of the SD Series D.E. filter S8D110.
Why PST Customers Pick This
Made for 25 in. Filters
Pentair lists 24851-0103S as the Lower Tank Half, 25 in. Filter on the S8M150 and S8M500 parts list, and as the Lower Tank Shell on the S8D110 parts list. The 21 in. models use a different part.
Dura-Glas Two-Piece Tank
Pentair builds the System 3 SM and SD tank housing in two pieces from Dura-Glas, its glass-reinforced composite resin, with a matte black finish.
Posi-Lok Clamp Design
The two tank halves are held together by Posi-Lok clamps. Pentair's parts list notes that the S8M150 requires 8 clamps and clamp bolts, and the S8D110 uses eight.
50/50 Split-Tank Design
On the SM Series, Pentair says the 50/50 split-tank design gives extra room for cleaning and service.
Pentair Operating Limits
Pentair lists a maximum continual operating pressure of 50 psi for System 3 filters, and a maximum water temperature of 104°F (40°C) for pool and spa (bather) applications.
Pressure Warning
Pentair warns that a System 3 filter that is improperly disassembled or assembled may explode under pressure. Stop the pump, open the air release valve and release all pressure before loosening the clamps, and never operate the filter above 50 PSI.
Specifications
| Identification | |
|---|---|
| Manufacturer | Pentair (Sta-Rite) |
| Pentair Part Number | 24851-0103S |
| Pentair Description | Lower Tank Half, 25 in. Filter (SM Series); Lower Tank Shell, S8D110 (SD Series) |
| SKU | PST-17-102-1294 |
| Part Type | Filter tank half |
| Fitment | |
| Filter Line | Sta-Rite System 3 |
| SM Series Models | S8M150 and S8M500 (modular media, 25 in.) |
| SD Series Model | S8D110 (D.E.) |
| Filter Size | 25 in. |
| 21 in. Models | Not this part (Pentair lists 24850-0102S) |
| Tank Construction | |
| Tank Housing | Two-piece, Dura-Glas glass-reinforced composite resin |
| Finish | Matte black |
| Tank Closure | Posi-Lok clamps |
| System 3 Operating Limits | |
| Max Continual Pressure | 50 psi |
| Max Water Temperature | 104°F (40°C), pool and spa (bather) applications |
Frequently Asked Questions
Which System 3 filters use this tank half?
Pentair's parts lists show 24851-0103S as the lower tank half for the S8M150 and S8M500 SM Series modular media filters and as the lower tank shell for the S8D110 SD Series D.E. filter.
Will it fit a 21 in. System 3 filter?
No. For the 21 in. models (S7M120, S7M400 and S7D75) Pentair lists a different lower tank half, 24850-0102S.
Does it fit the S8S70 sand filter?
Pentair's parts index lists 24851-0103S only on its SM Series and SD Series pages, and it does not appear on the parts list for the S8S70 System 3 sand filter.
Are the clamps and cord ring included?

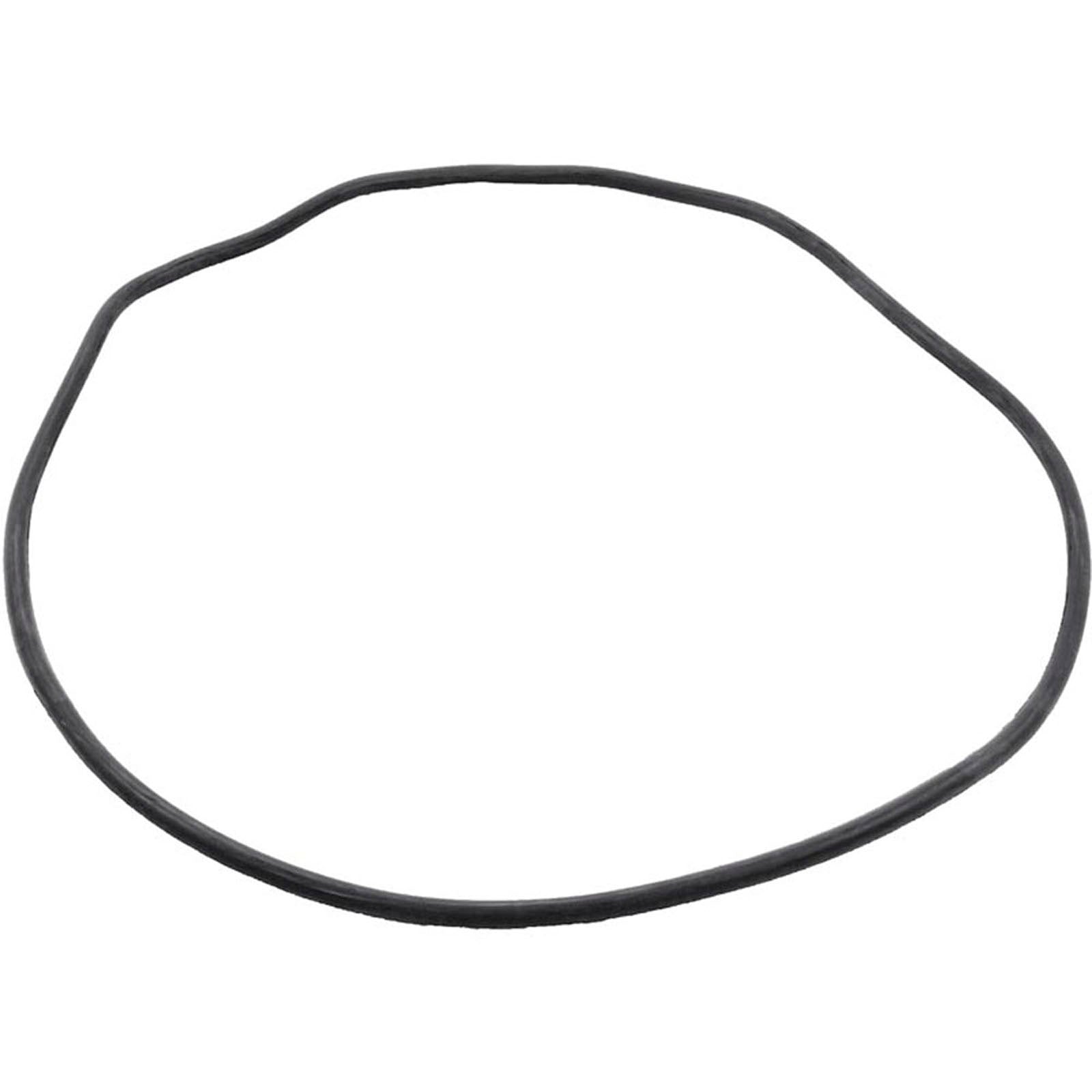

Pentair's parts lists show the Clamp Assembly (24850-0200Z), Clamp Bolt (24850-0010Z) and the 25 in. Cord Ring (24850-0009) as separate part numbers, along with the 25 in. Upper Tank Half Kit.
How should the tank halves be put back together?
Pentair's manual says to inspect the cord ring for cuts and nicks and replace it if damaged, not to lubricate the cord ring because lubricants may make it swell, and to tighten the clamp knobs hand tight in the sequence it shows to equalize stress on the tank.
Order the 24851-0103S From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Genuine Pentair Part
- Authorized Pentair Dealer
Additional Info
| Category | Parts Pool Parts Filter Parts |
| SKU | PST-17-102-1294 |
| MPN | 24851-0103S |
| Manufacturer | StaRite |
| Weight | 48.57 lb |
