Product Information
Description

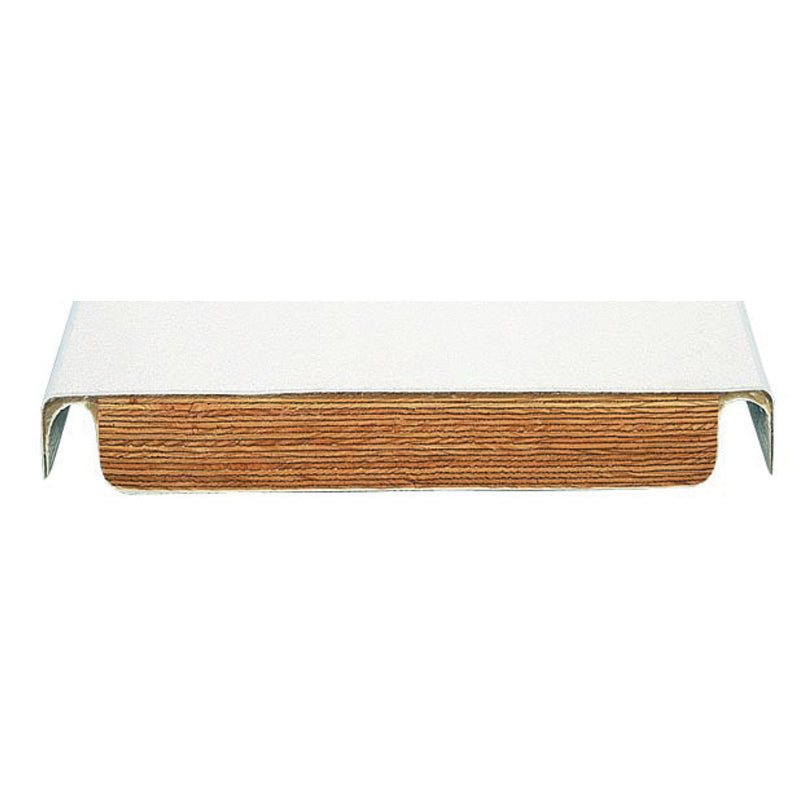

SR Smith 66-209-6162 Frontier III 16 ft Commercial Diving Board, Radiant White
Long board. Steady spring. Commercial grade.
The SR Smith Frontier III 16 ft Commercial Diving Board (SKU PST-662096162, MPN 66-209-6162) gives commercial aquatic centers, hotels, and large residential pools the longest spring in the Frontier III lineup with a 250 lb load rating and Radiant White acrylic finish with matching white tread. You get a full-width laminated Douglas Fir core wrapped in vacuum-formed acrylic and hand-laid fiberglass with extra reinforcement at the fulcrum, factory-drilled with two 9/16 inch mounting holes 12 inches apart on the heel end. PST ships this board direct from SR Smith with the full 3-year manufacturer warranty intact and matching hardware in the box, ready to drop onto your existing Cantilever, Flyte-Deck II, Salt Pool Jump System, Steel Meter, Supreme, or U-Frame stand.
Laminated Douglas Fir Core
The 16 ft Frontier III is built on a full-width laminated Douglas Fir runner that forms a single rigid skeleton from heel to tip, eliminating the torque and twist that shorter cores develop after thousands of dives. SR Smith hand-lays fiberglass and resin roving over the wood core to fully encapsulate it, then vacuum-forms the Radiant White acrylic skin on top. You get the controlled flex and quiet recovery divers expect from a commercial board, plus a sealed structure that shrugs off pool chemistry, UV, and weather year after year.
Reinforced Fulcrum Zone
SR Smith adds extra fiberglass and resin reinforcement at the fulcrum contact area, the high-stress point where rubber fulcrum pads bear the diver's downstroke. That reinforcement is what lets the 16 ft board carry the same 250 lb rated load as the shorter Frontier III boards while delivering noticeably more spring and longer recovery. Pair the board with SR Smith rubber fulcrum pads on a compatible stand, keep the fulcrum within published tolerance, and you get predictable spring performance for the full warranty period.
Sanded Non-Slip Tread
The full top surface is finished with a high-grade sanded non-slip tread in matching white, bonded to the acrylic skin rather than applied as a tape or paint layer. Divers get reliable grip on a wet board, swim lessons stay safer, and the tread holds up to commercial bather loads without lifting, peeling, or wearing slick the way painted finishes do. The two factory-drilled mounting holes are 9/16 inch diameter and centered 12 inches apart on the heel, so the board drops onto any compatible 2-hole jump stand without field drilling.
Who It's For
Commercial Aquatic Centers
Rated for moderate commercial use at school, municipal, and aquatic-center pools that need the full 16 ft spring length with a 250 lb diver load and a 3-year manufacturer warranty.
Hotel and Resort Pools
The Radiant White acrylic skin and matching sanded tread keep the look clean against tile and concrete decks, holding up to high-traffic guest use and constant exposure to chlorinated water.
Large Residential Pools
If your in-ground pool has the deck length and water depth to support a 16 ft board, this is the longest, springiest Frontier III you can install at home over a compatible jump stand.
Replacement on Existing Stands
Drops onto SR Smith Cantilever, Flyte-Deck II, Salt Pool Jump System, Steel Meter, Supreme, and U-Frame stands using the factory-drilled 2-hole heel pattern with included hardware.
Why PST Customers Pick This
Full 16 ft Length
The longest board in the Frontier III lineup, sized for commercial pools and large residential installs that want maximum spring and a longer take-off run.
Acrylic and Fiberglass Skin
A vacuum-formed acrylic outer body bonded over hand-laid fiberglass and resin roving fully seals the Douglas Fir core against water, UV, and pool chemistry.
250 lb Rated Capacity
Commercial weight rating supports adult divers across the full 16 ft span without exceeding the manufacturer's published load limit.
Factory-Drilled 2-Hole Heel
Two 9/16 inch mounting holes centered 12 inches apart let the board bolt down on any compatible SR Smith 2-hole stand with no field drilling.
SR Smith Engineered
Designed and supported by SR Smith, the long-running US pool deck equipment manufacturer behind Frontier, Flyte-Deck, and Salt Pool Jump diving systems.
Hardware Included
Ships with the matching mounting hardware kit so you can install the board on a prepared stand without sourcing fasteners separately.
Installation Notice
Diving board installations must follow the SR Smith Frontier III installation manual and local building code, including minimum water depth and clear envelope requirements (typically referenced to ANSI/APSP-5 for residential and ANSI/APSP-1 for public pools). The board must be installed on a compatible jump stand with rubber fulcrum pads inside the published fulcrum range, and the deck and anchors must be cured and rated for diving loads. Installations that exceed the fulcrum tolerance, omit the rubber pads, or place the board on an undersized pool will void the manufacturer warranty and create a serious injury risk.
Full Specifications
Frequently Asked Questions
What is the difference between the 66-209-6162 and the 66-209-6163?
Both are 16 ft Frontier III Commercial boards. The 66-209-6162 is Radiant White with matching white sanded tread; the 66-209-6163 is Marine Blue with white tread. Construction, weight capacity, mounting pattern, and warranty are identical. Pick the color that matches your deck and tile.
What pool size and water depth does a 16 ft diving board need?
A 16 ft board is the longest in the Frontier III line and is intended for commercial pools and large residential pools with a diving envelope and minimum water depth sized per ANSI/APSP-5 (residential) or ANSI/APSP-1 (public). Always confirm pool depth, slope, and deck clearance against the diving board manufacturer's published envelope and your local code before installing a board this long.
What stands is the Frontier III 16 ft board compatible with?
The 2-hole heel pattern matches SR Smith Cantilever, Flyte-Deck II, Salt Pool Jump System, Steel Meter, Supreme, and U-Frame stands. Bolting the board to a non-listed stand, or to a stand with a different fulcrum range, voids the manufacturer warranty.
What is the weight capacity of the Frontier III 16 ft board?
250 lb rated diver weight, the same rating as the shorter Frontier III commercial boards. The longer board carries that 250 lb load with more spring and a longer recovery because of the full-width Douglas Fir core and the reinforced fulcrum zone.
Can I install this diving board myself?
Bolting the board to a prepared stand is straightforward, but the stand anchors, deck rating, fulcrum position, and rubber fulcrum pads all have to be correct for the installation to be safe and warranty-eligible. Most pool owners hire a qualified pool builder or SR Smith dealer to install a 16 ft commercial board, especially on a new deck. PST is an authorized SR Smith dealer if you need help confirming the stand and fulcrum setup before you order.
Does the board come with mounting hardware?
Yes. The 66-209-6162 ships with the matching SR Smith mounting hardware kit for the 2-hole heel pattern. Rubber fulcrum pads ship with the stand or fulcrum kit, not with the board, so confirm you have current SR Smith pads before installing.
How long is the warranty?
SR Smith warrants the Frontier III for three years from the date of retail purchase against defects in material and workmanship under normal use. Installing the board outside the published fulcrum tolerance, on a non-listed stand, or under abusive load voids the warranty.
Order the Frontier III 16 ft White Diving Board From PST
Authorized SR Smith dealer. Backed by PST Pool Supplies' service team and the full SR Smith 3-year manufacturer warranty.
Additional Info
| Category | Parts Pool Parts Diving Board Parts |
| SKU | PST-662096162 |
| MPN | 66-209-6162 |
| Manufacturer | Zodiac |
| Weight | 230.0 lb |
