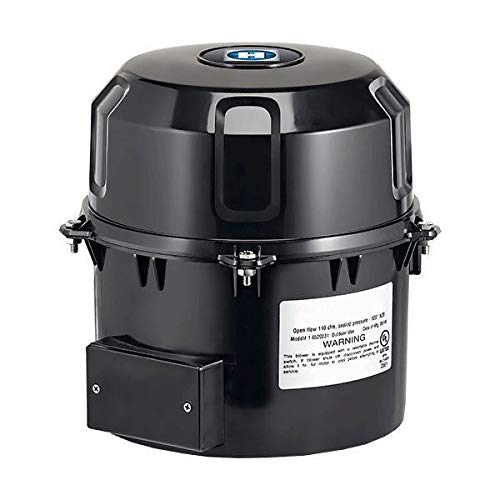

Hayward 2 HP Spa Blower, 230V (SPB202)

Hayward 2 HP Spa Blower, 230V (SPB202)

Hayward • Part # SPB202
SKU: SKU: PST-SPB202
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"mpn":"SPB202","saleprice":"0","warehouselocations":"Bloomfield, CT | Murray, UT"}
Regular price $305.40
Regular price $488.70 Sale price $305.40

74 in stock

Ships from: Bloomfield, CT | Murray, UT

Authorized dealer
Hayward

Genuine OEM product.

  1. Today Shipping 1 hrs 28 mins left
  2. 30 days ReturnsPolicy
View full details

Product Information

Description

  • Genuine Hayward Blower
  • 1-Year Parts Warranty
  • Rubber Motor Base
  • Free Shipping

Hayward SPB202 Spa Blower, 2 HP, 230V

Quiet 2 HP air for spas with 14+ jets.

2 HP
Blower
230V
Voltage
65 in.
Max H2O Pressure
14+
Water Jets
1 yr
Parts Warranty

The Hayward SPB202 is a 2 HP, 230V spa blower that adds air to a spa's air channel or supercharges its hydrotherapy jets. Hayward sets the motor on a rubber base for quiet running, and its sizing chart rates the 2 HP blower for up to 65 in. of water pressure and spas with 14 or more jets. Hayward lists it for in-ground and commercial applications with a 1-year parts warranty.

Why PST Customers Pick This

Rubber Motor Base

Hayward mounts its spa blower motors on a rubber base for quiet running, and builds them for extended life.

Sized for 14+ Jets

Hayward's chart puts the 2 HP blower at up to 65 in. of water column back pressure, 14 or more water jets, or 1.5 sq in. of total air channel hole area.

Supercharges Jets

Tie the venturi fittings of your jets back to the blower supply line and the blower increases the air mixed with the water at each jet.

Simple Plumbing

Run a 2 in. supply line from the blower and reduce to 1.5 in. at the spa to feed the jets, air caps or air channel.

230V Wiring

Use a double pole switch on a 220/240 V blower and connect the green ground wire supplied with the blower to ground at your electrical panel.

Hayward Warranty

Hayward covers the SPB202 with a 1-year parts warranty. Labor is not covered.

Electrical and Install Notice

Ground the blower before connecting power, never to a gas supply line, and match the supply voltage to the blower nameplate: Hayward warns that connecting 220 V to a 110 V blower will destroy it. Size wiring per the National Electrical Code. Never glue the blower to the supply line, since glue fumes may cause an explosion when the blower starts; secure it with a screw through a pre-drilled hole in the neck instead.

Specifications

Identification
Manufacturer Hayward
Hayward Part Number SPB202
Hayward Description Spa Blower, 2HP, 230V
GTIN / UPC 610377380690
SKU PST-SPB202
Electrical
Horsepower 2 HP
Voltage 230V
Amps, 2.0 HP Blower (Hayward chart) 6.0 A at 240 V
Switch Double pole switch for 220/240 V blowers
Sizing (Hayward chart, 2.0 HP)
Back Pressure Up to 65 in. of water (in. H2O)
Water Jets 14 or more
Air Channel Total Hole Area 1.5 sq in.
Installation
Mounting Vertical, at least 1 ft above the water line
Supply Line 2 in. from blower, reduce to 1.5 in. at the spa
Hartford Loop Required when the blower is more than 25 ft from the spa
Check Valve Vertical, accessible, above water level
Application & Warranty
Application In-ground and commercial
Parts Warranty 1 year
Labor Warranty None

Frequently Asked Questions

Is 2 HP the right size for my spa?

Hayward sizes blowers by back pressure. Measure the water height above the lowest part of the air channel, add 1 in. for every 10 ft of 2 in. supply pipe and 1/2 in. for every 90 degree turn. The 2 HP blower handles up to 65 in.; in Hayward's own example, a spa that totals 46 in. needs only a 1.5 HP blower. For jet systems, Hayward matches 2 HP to 14 or more jets.

How far from the spa can I install it?

Install it vertically, at least 1 ft above the water line, in a ventilated spot clear of debris, chemicals and sprinklers. If it sits more than 25 ft from the spa, Hayward calls for a Hartford loop 1 ft above the water line, as close to the spa as possible.

Do I need a check valve?

Hayward requires a loop and check valve at least 1 ft above water level when the blower is installed below grade or when it supercharges water jets. Mount the check valve vertically, above water level, where it can be serviced.

How do I check it on an existing spa?

Hayward suggests running the blower for 30 minutes and checking that air comes out of every jet. A Magnehelic pressure gauge (0 to 100 in.) measures the back pressure while the blower runs.

Order the Hayward SPB202 From PST

  • Free Shipping
  • 30-Day Returns
  • 1-Year Hayward Parts Warranty
  • Authorized Hayward Dealer

Additional Info

Category Spa Products Spa Air Blowers
SKU PST-SPB202
MPN SPB202
Manufacturer Hayward
Weight 10.5 lb
