Spa Electrics T1 TITAN 1.5" Nicheless Multi-Color LED Light, White Rim, 150' Cable
Spa Electrics T1 TITAN 1.5" Nicheless Multi-Color LED Light, White Rim, 150' Cable
Out of stock
Genuine OEM product.
- Today Shipping 9 hrs 44 mins left
- 30 days ReturnsPolicy
Frequently Bought Together
Product Information
Description
- RGB+W Multi Plus
- Water-Cooled Titanium
- IPX8 Rated
- QuickConnect Cable

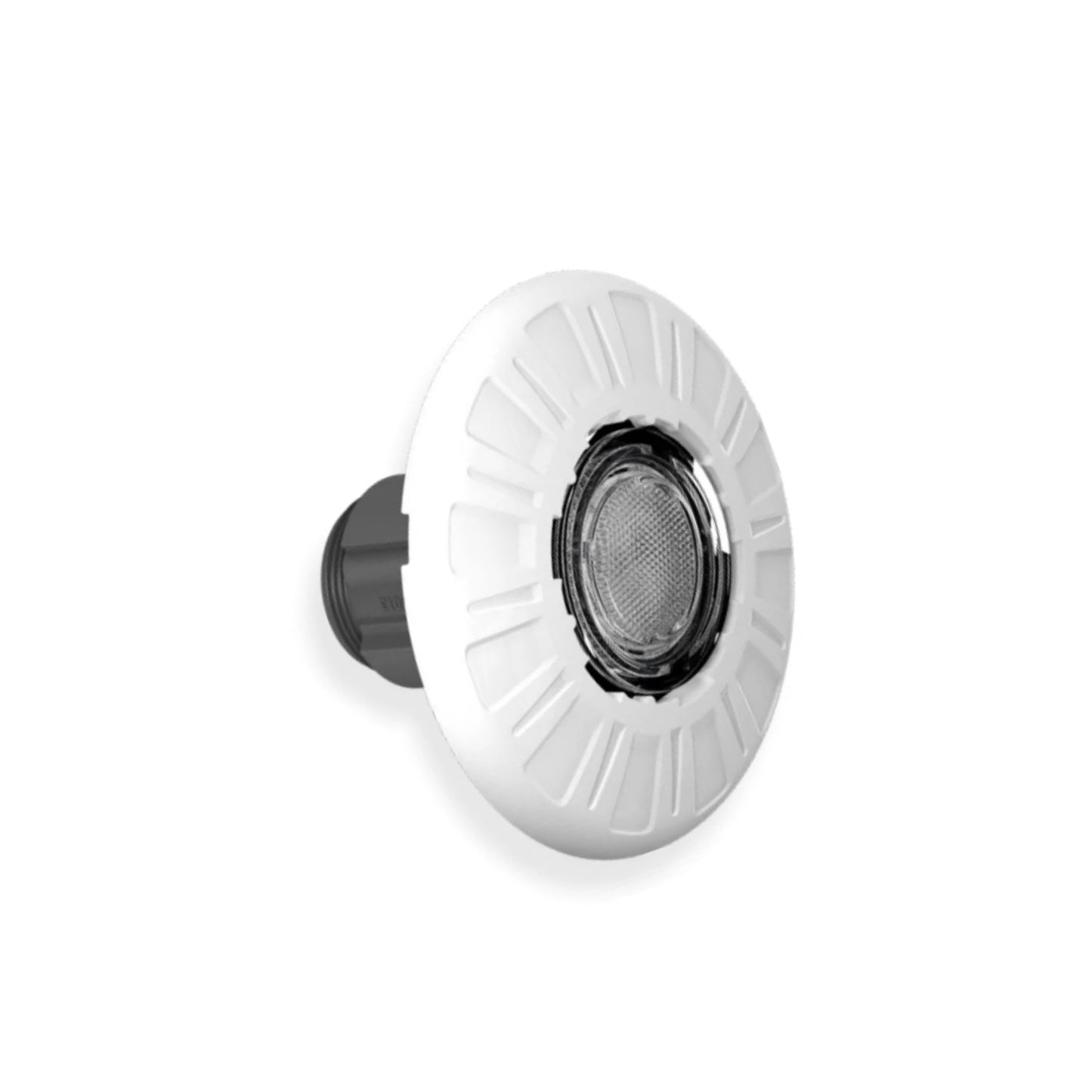

Spa Electrics T1 TITAN 1.5" Nicheless Multi-Color LED Light, White Rim, 150' Cable
Nicheless RGB+W retrofit with titanium heat sink.
The Spa Electrics Titan T1 Multi Plus DB (model T1FV L12 L4 WMP) is a nicheless LED pool light built for fibreglass and vinyl liner pools, shipped with a white rim, a 1.5 in threaded push-in bulkhead, and a 150 ft cable. It puts out 375 lumens from an RGB+W array on just 8 watts, and the water-cooled titanium heat sink keeps the diodes cool so brightness holds up season after season. The curly QuickConnect cable lets you lift the light out for service above the waterline without pulling cable back through the conduit.
Why PST Customers Pick This
Multi Plus RGB+W Color
The Multi Plus array pairs RGB color mixing with a dedicated white diode, so you get saturated color scenes and a genuinely clean white, not the washed-out approximation RGB-only lights produce when all three channels fire together.

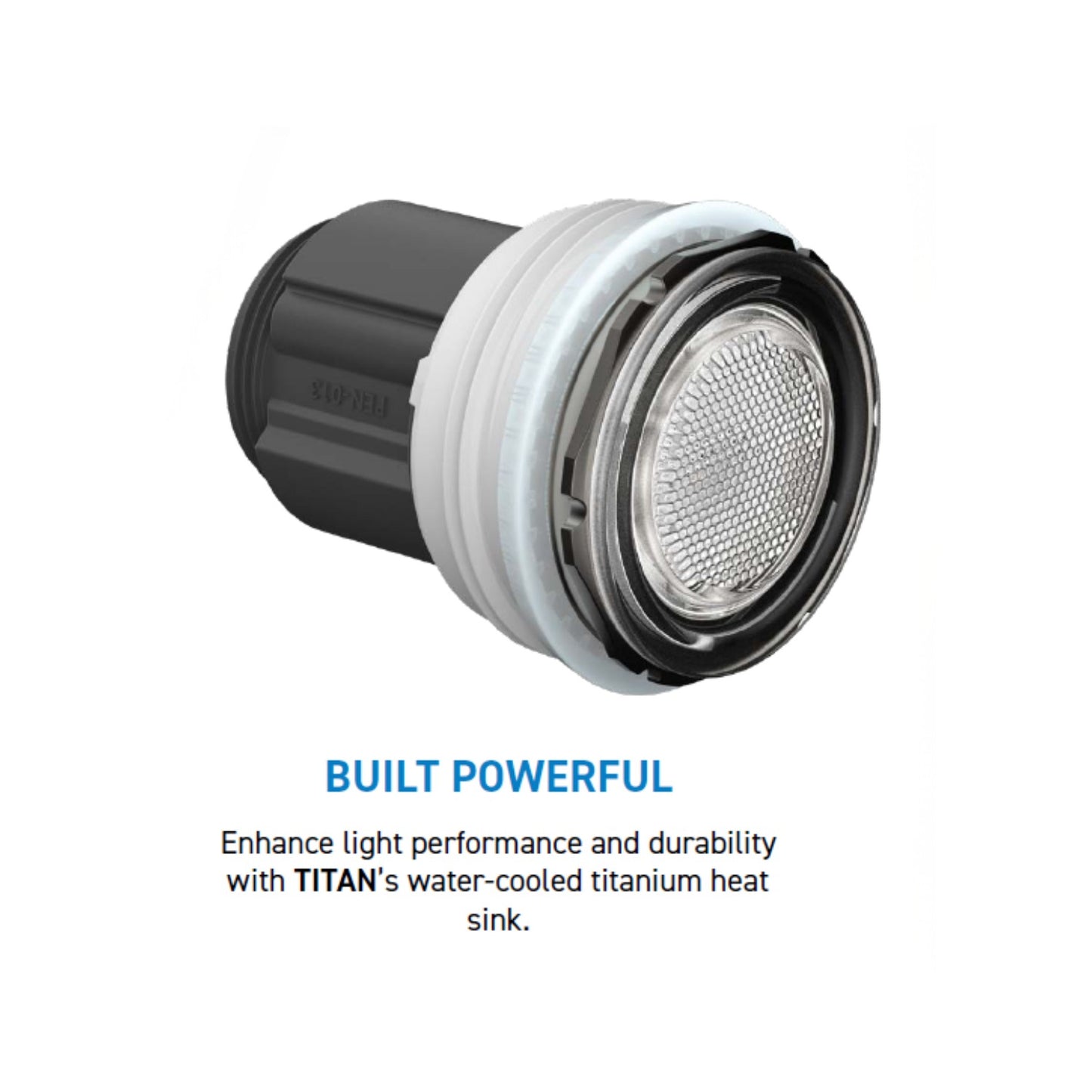

Water-Cooled Titanium Heat Sink
Heat is what kills LED pool lights. The Titan uses a water-cooled titanium heat sink that pulls thermal load straight into the surrounding pool water, protecting output and diode life while resisting salt and chlorine corrosion.

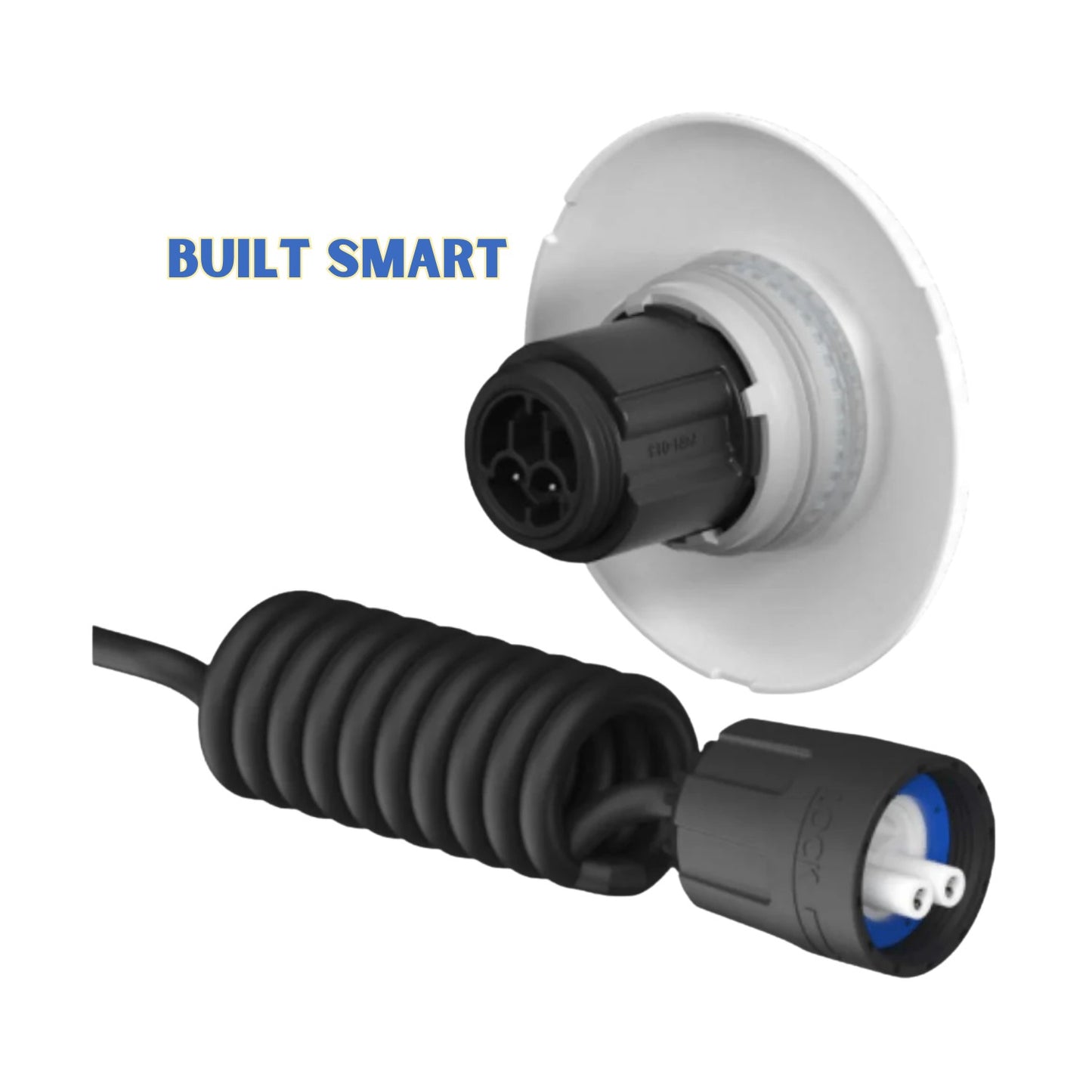

QuickConnect Curly Cable
The curly cable and QuickConnect plug let you pull the light up and service it above the waterline. No draining the pool, no fishing 150 ft of cable back through conduit to swap a fixture.
Nicheless 1.5 in Retrofit
The 1.5 in threaded push-in bulkhead fits 2 in SCH 40 pipe, so it drops into standard threaded return fittings. No wet niche required, which is what makes this a practical retrofit for existing fibreglass and vinyl pools.
Built for Fibreglass and Vinyl
This is the fibreglass and vinyl liner variant with a white rim. The rim and mounting hardware are matched to flexible and moulded pool walls rather than poured concrete shells.
Wide Transformer Compatibility
Runs on 10.5 to 13V AC and works with the Spa Electrics LVX plus most major 12V AC transformers and controllers, so you can usually keep the low-voltage gear you already have.
Installation Notice
Pool lighting must be installed to NEC 680. The low-voltage transformer requires a GFCI-protected supply circuit and the system must be bonded to the pool equipotential grid. Spa Electrics requires professional installation for warranty validation, and the warranty applies when the light is installed with Spa Electrics components. Never energize the fixture out of water.
Specifications
| Manufacturer | Spa Electrics |
|---|---|
| Series | Titan |
| Model | T1 Multi Plus DB |
| Model Code | T1FV L12 L4 WMP |
| PST SKU | PST-T1FVL12L4WMP |
| Pool Type | Fibreglass and vinyl liner |
| Rim Color | White |
| Thread Size | 1.5 in |
| Bulkhead | Push-in, fits 2 in SCH 40 pipe |
| Cable Length | 150 ft |
| Cable Type | Curly cable with QuickConnect plug |
| Supply Voltage | 10.5 to 13V AC |
| Wattage | 8 W |
| Light Output | 375 lumens |
| LED Array | RGB+W |
| LED Color Mode | Multi Plus |
| Ingress Protection | IPX8 |
| Heat Sink | Water-cooled titanium |
| Controller Compatibility | Spa Electrics LVX and most major 12V AC transformers and controllers |
| Installation | Nicheless retrofit, professional installation required for warranty |
Frequently Asked Questions
What does Multi Plus mean, and how is it different from plain RGB?
Multi Plus is Spa Electrics' RGB+W array, three color diodes plus a separate dedicated white diode. RGB-only lights make white by firing all three color channels at once, which reads slightly blue or green and looks dim. The dedicated white channel gives you a true, bright white for everyday swimming and saves the color scenes for when you want them.
Which version do I need for my pool?
This is the fibreglass and vinyl liner version with a white rim (model code T1FV). Spa Electrics also builds a concrete variant (T1C) with a clear rim and bulkhead, and the same fibreglass/vinyl light is offered with a grey rim if that matches your finish better. Match the variant to your pool shell type first, then pick rim color.
Do I have to drain the pool to replace or service the light?
No. That is the point of the curly cable and QuickConnect plug. You unthread the fixture, draw it up on the coiled cable to above the waterline, and unplug it there. No draining, and no pulling 150 ft of cable back through the conduit run.
Will it work with my existing transformer?
Most likely yes. The Titan T1 runs on 10.5 to 13V AC and is compatible with the Spa Electrics LVX controller plus most major 12V AC transformers and controllers. Confirm your transformer outputs 12V AC (not DC) and has enough headroom for the 8 W draw across all the fixtures on that circuit.
Can I install this myself?
Spa Electrics requires professional installation for warranty validation, and the warranty applies when the light is installed using Spa Electrics components. Pool lighting also falls under NEC 680, which governs GFCI protection and equipotential bonding. Even for a straightforward nicheless retrofit, have a licensed pool electrician make the final connections.
Order the Spa Electrics Titan T1 From PST
Authorized Spa Electrics dealer. Backed by PST Pool Supplies' service team and full manufacturer warranty support.
- Free Shipping
- 30-Day Returns
- Warranty Backed
- Authorized Spa Electrics Dealer
