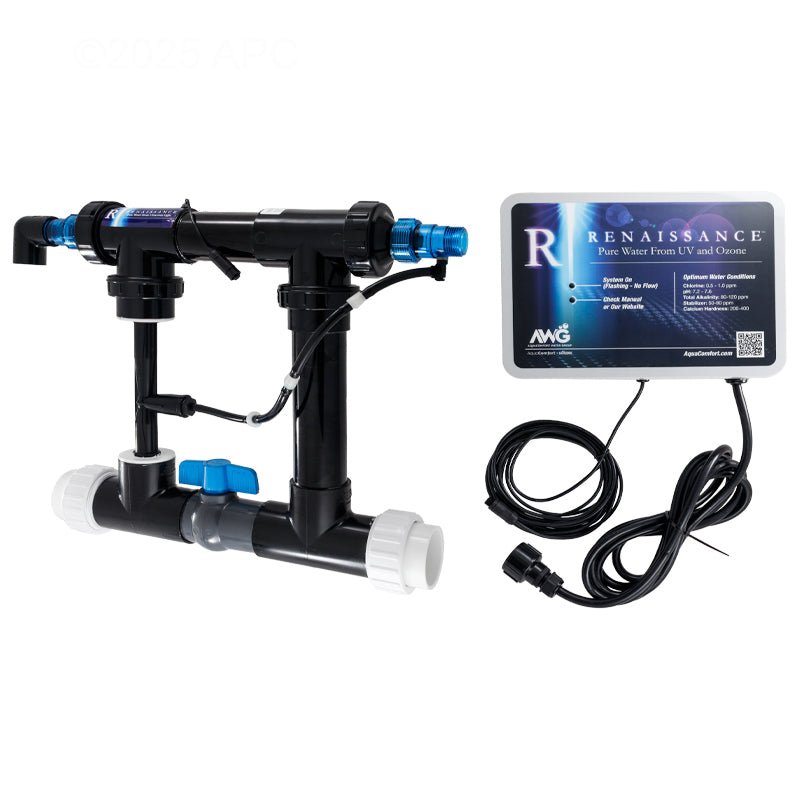

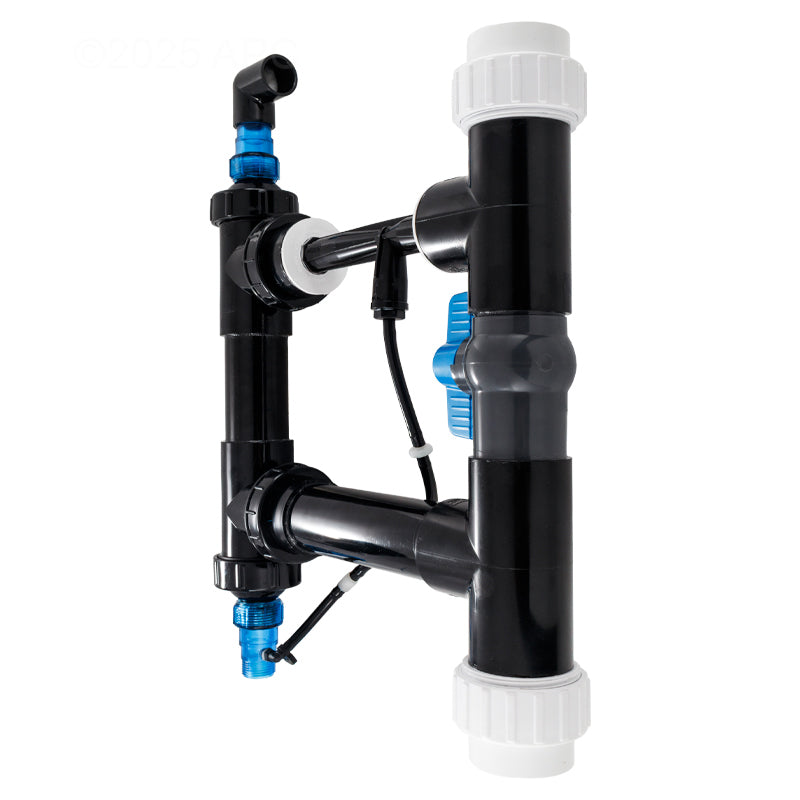

Solaxx Renaissance UV and Ozone Inground System, 35K Gallons, 220V (UV4000A)
Drinking water clean, in your pool.
The Solaxx Renaissance UV4000A (PST-UV4000A) is a dual-action inground sanitizer that pairs a 57-watt UV sterilization chamber with a 400 mg/hr ozone generator to wipe out 99.99% of waterborne contaminants before they ever reach your pool. Sized for residential inground pools up to 35,000 gallons, it runs on 220V and plumbs into your existing return line so the pool pump does all the circulation work. Owners typically cut traditional sanitizer use by up to 80%, leaving water that swims softer, smells cleaner, and goes easier on liners, swimsuits, and skin.
Two Sanitizers, One Chamber

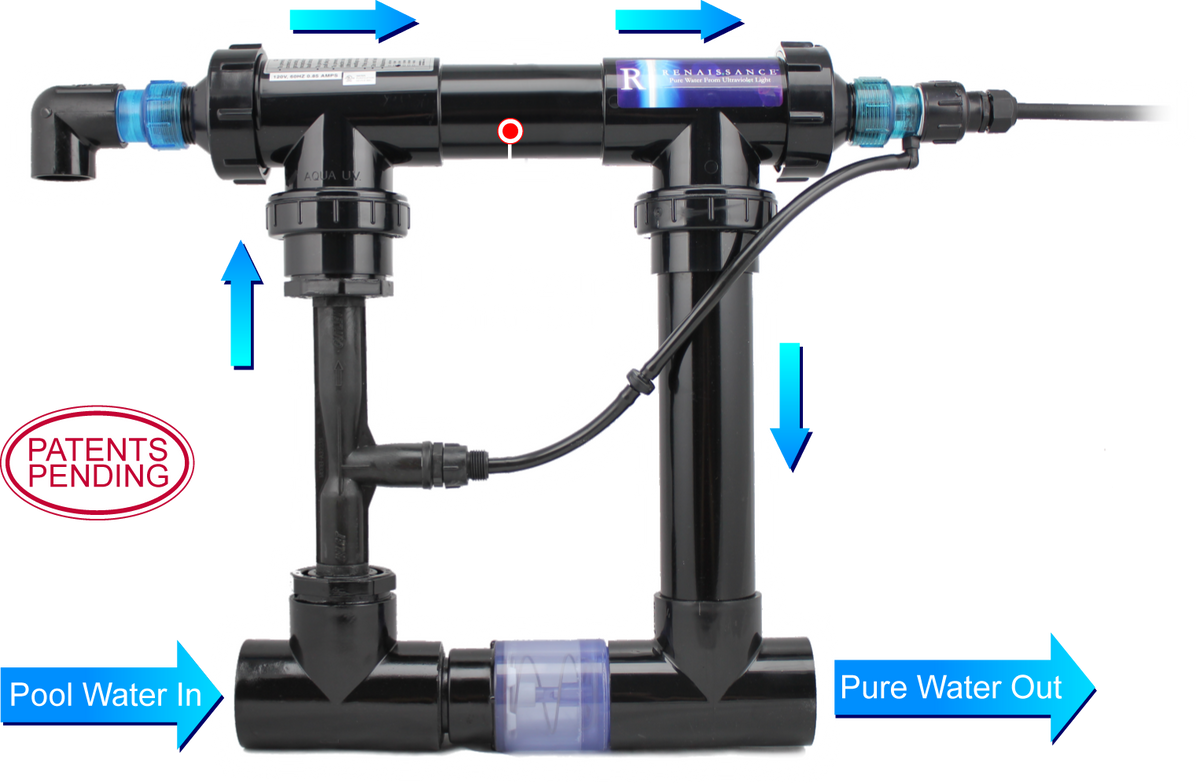

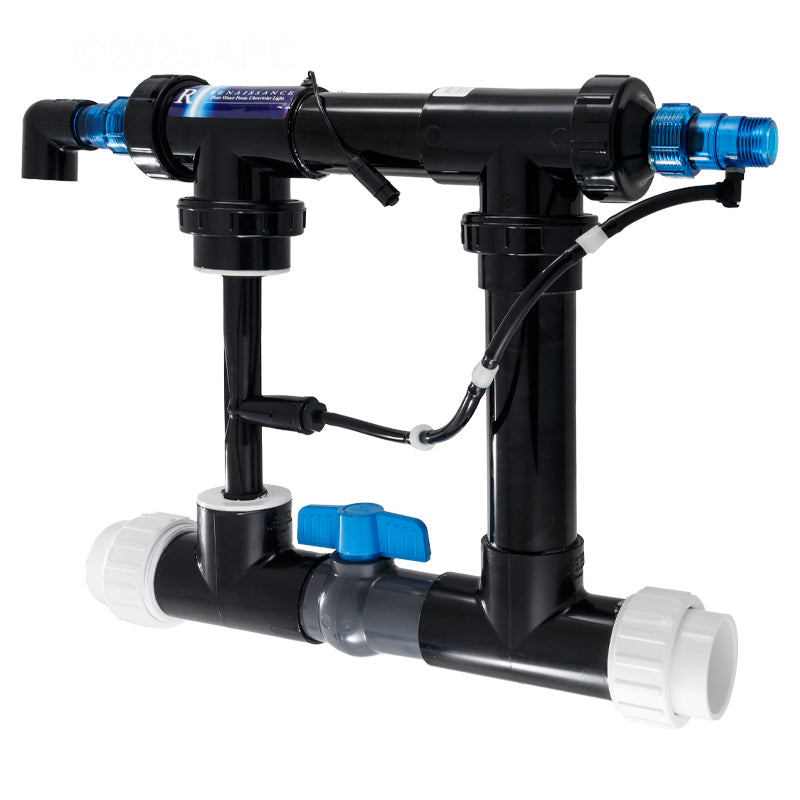

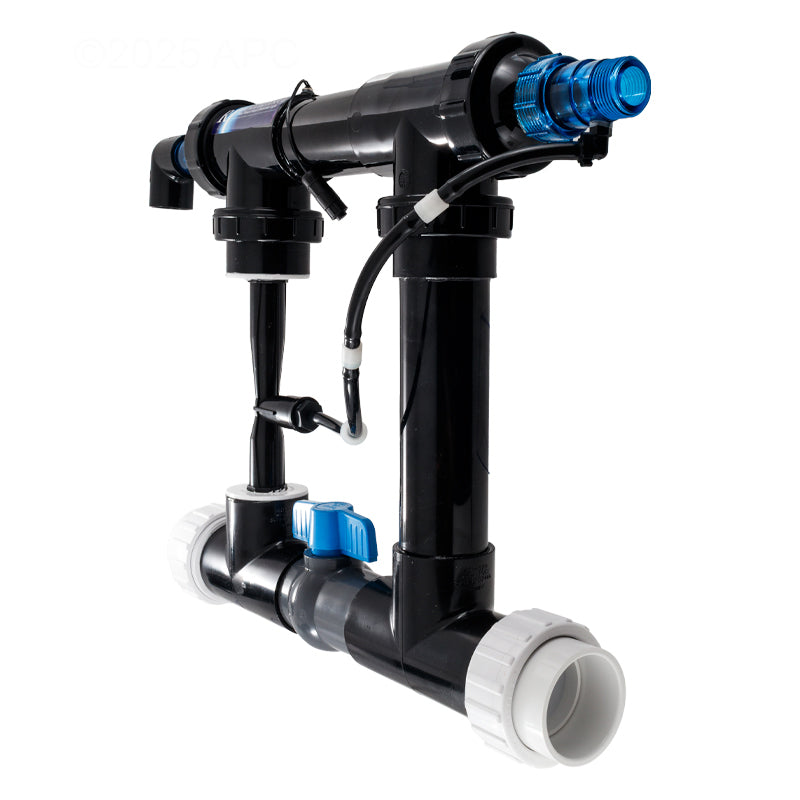

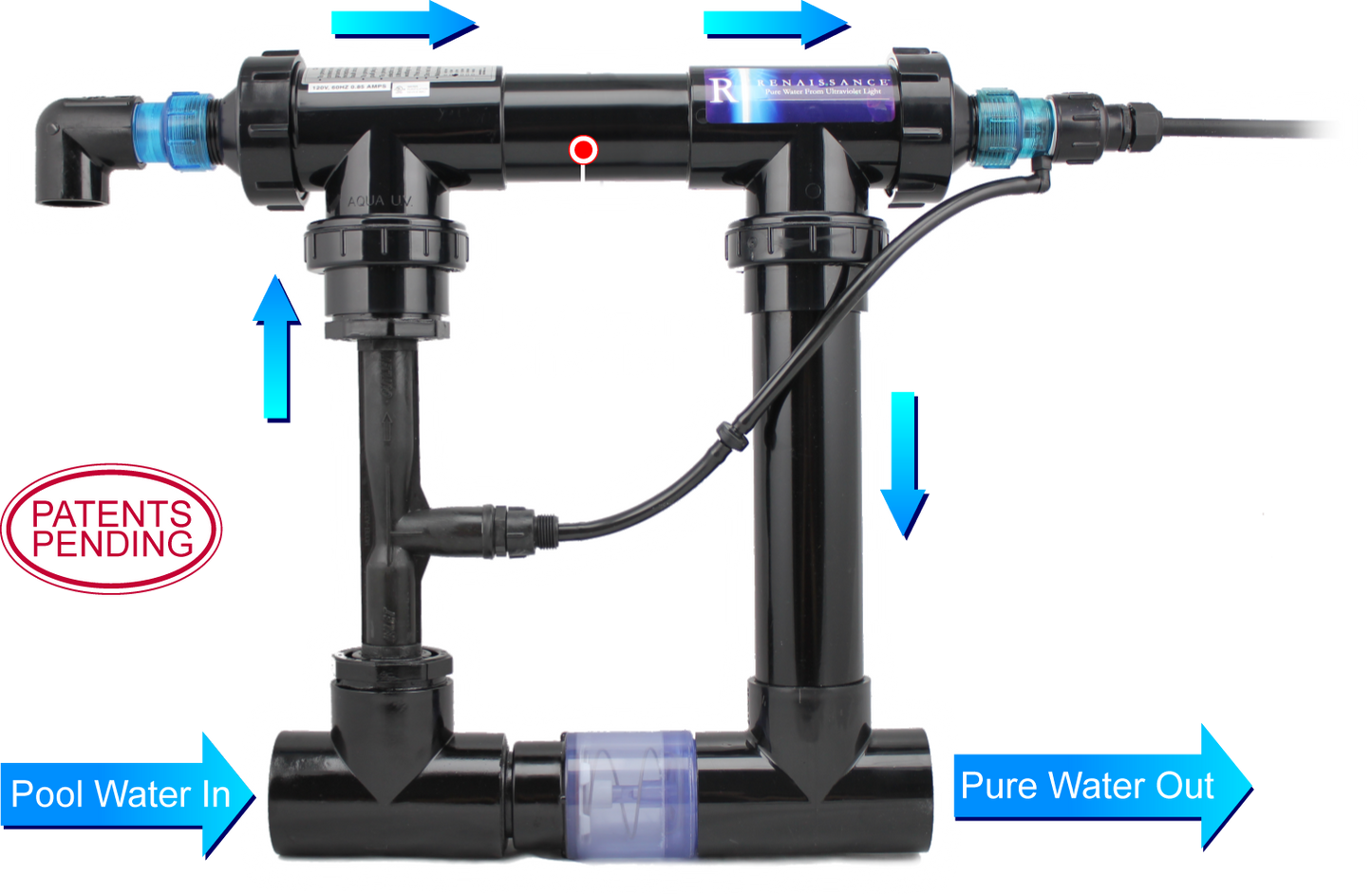

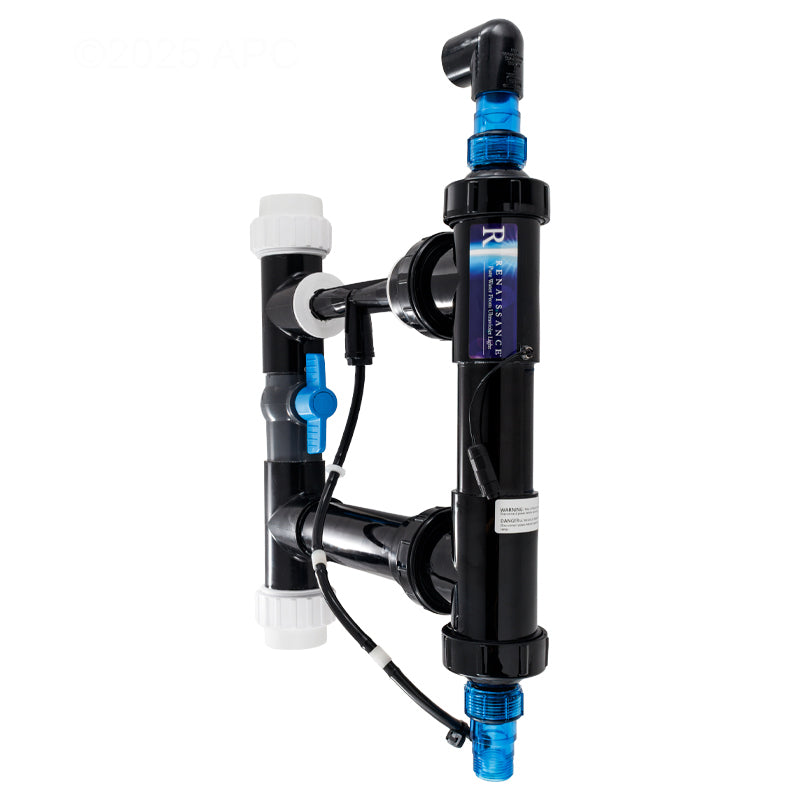

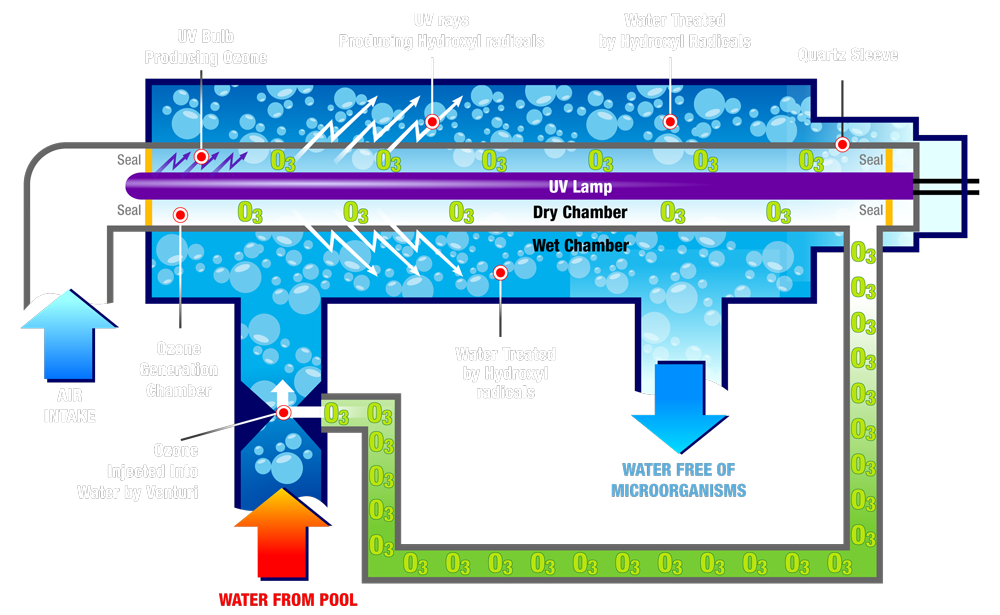

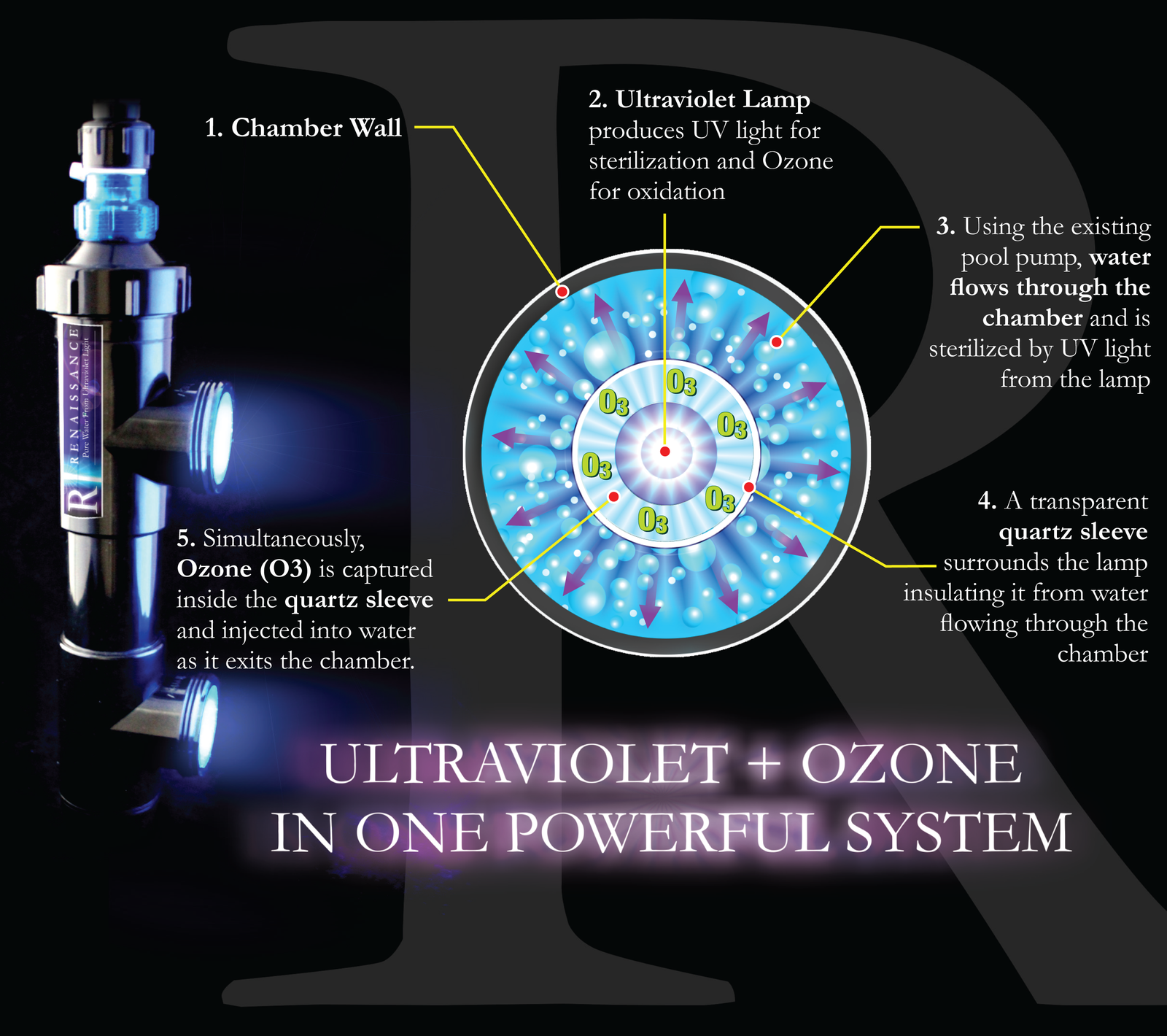

The Renaissance treats water with UV-C light and ozone in the same pass, so every gallon of return-line water gets hit twice before it enters the pool. The 57 W medium-pressure lamp delivers a regulated 30 mJ/cm² UV dose while the integrated ozone module injects 400 mg/hr of O3. Together they oxidize chloramines, kill algae spores, and inactivate bacteria, viruses, and protozoa that free chlorine alone struggles with.
Smarter Command Center

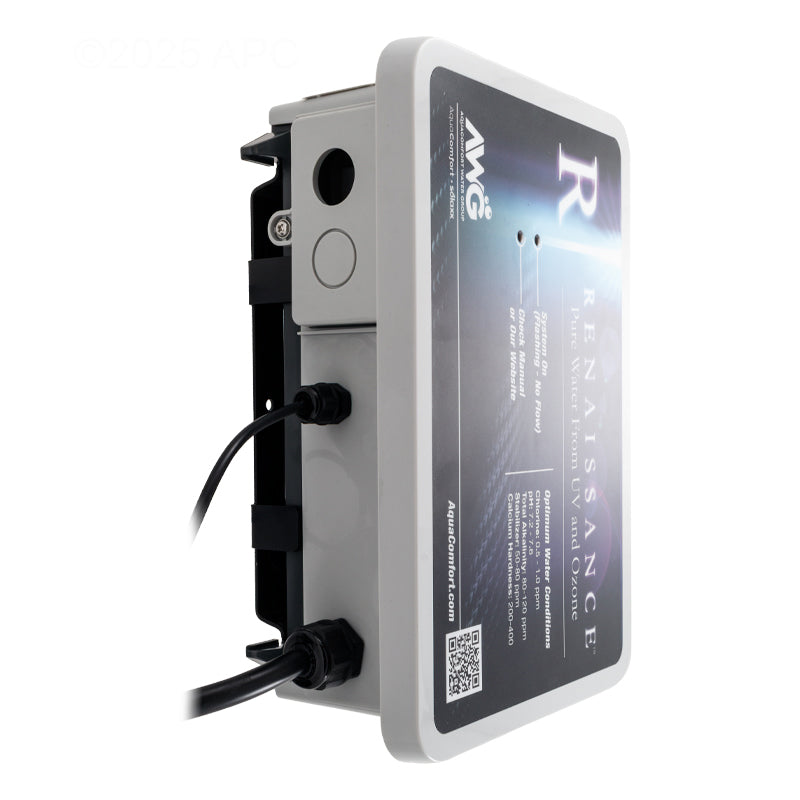

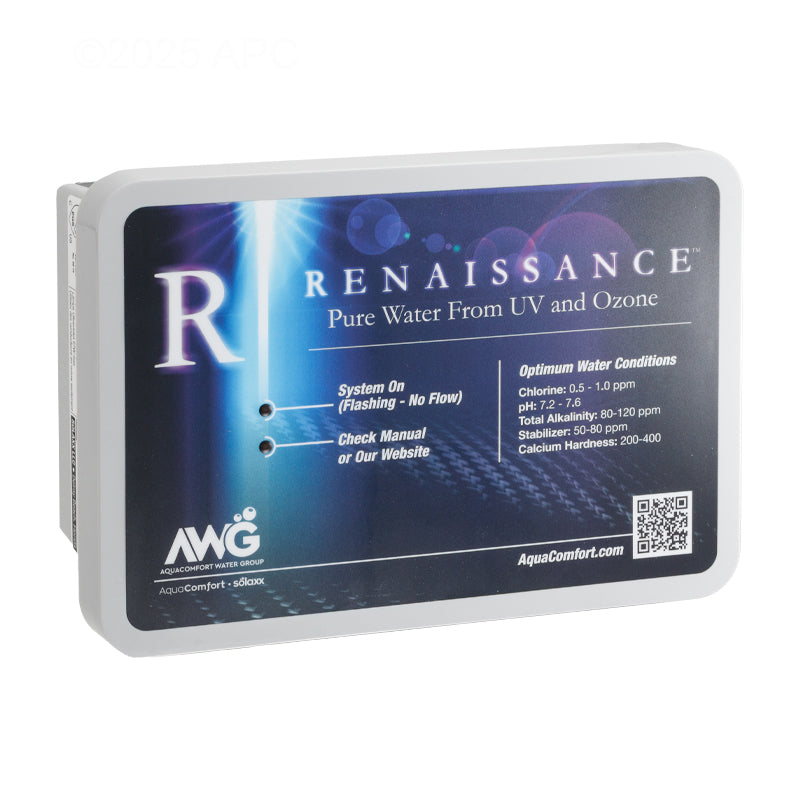

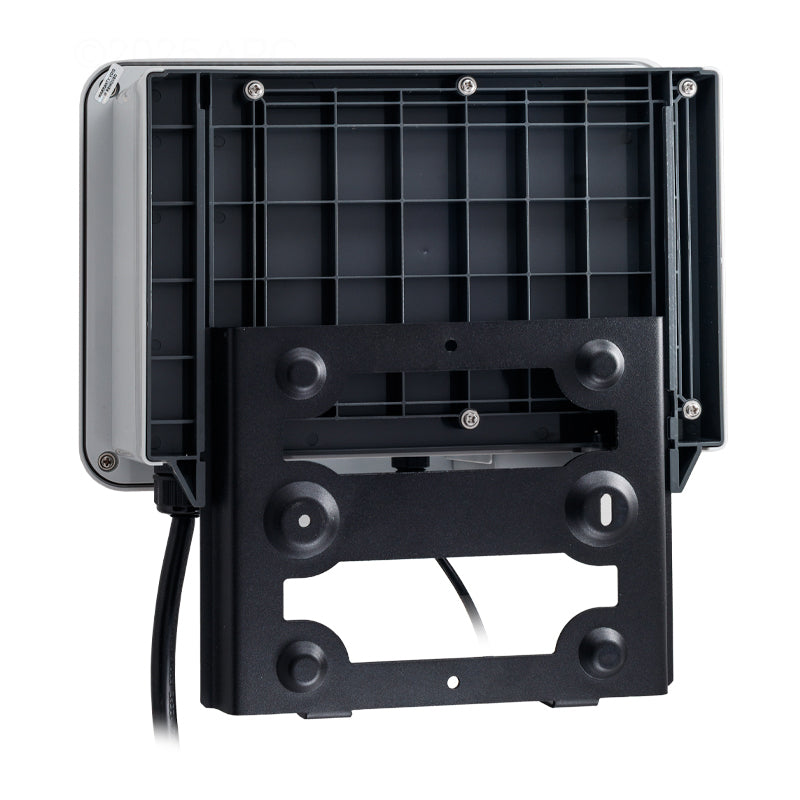

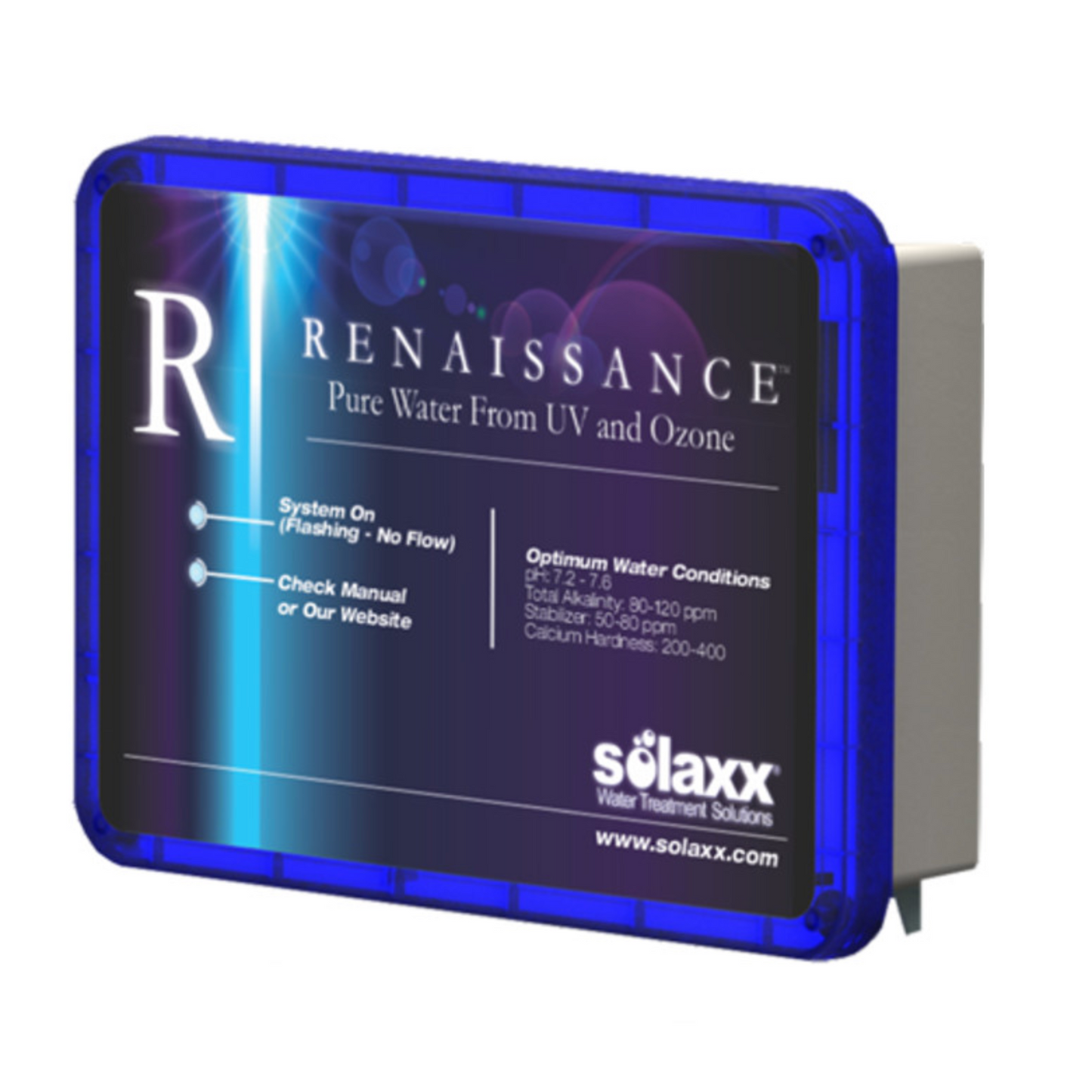

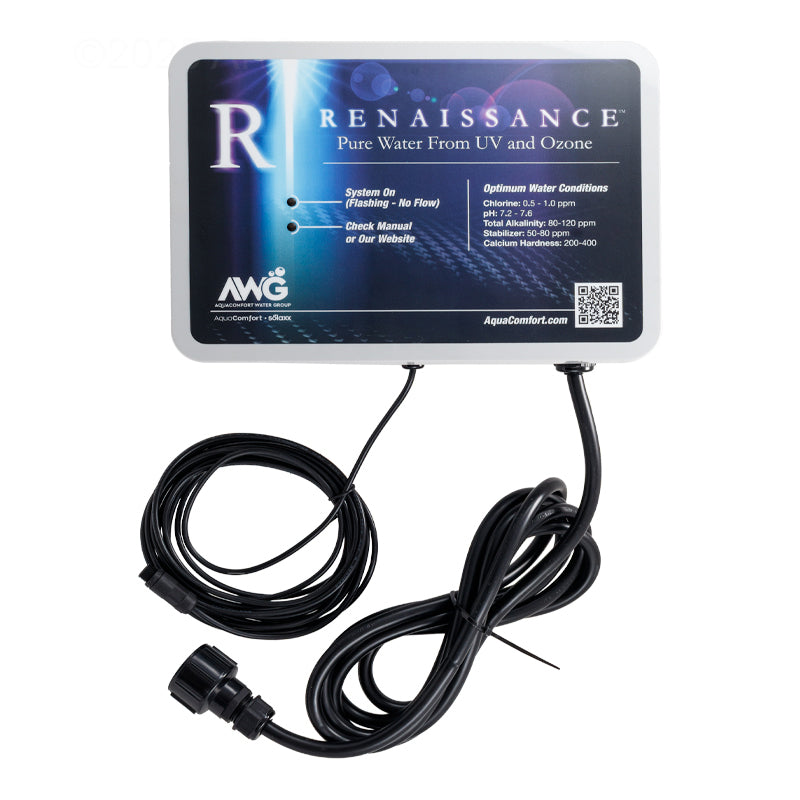

The 220V power supply features a glowing deep blue perimeter light that doubles as an at-a-glance status indicator, plus LED diagnostics on the front panel for lamp life, ozone output, and flow. Built-in dry-fire protection shuts the lamp down automatically if pump flow drops, protecting the bulb and the chamber. You see system health from across the equipment pad, no guesswork.
Less Chlorine, Softer Water
Because UV and ozone do the heavy lifting on contaminants, your residual chlorine demand drops sharply, typically by up to 80%. Swimmers notice it immediately, no red eyes, no bleached suits, no chemical smell off the surface. You still maintain a small free-chlorine residual for in-pool protection, but the gallon jugs and tabs you used to burn through stretch much further.
Who It's For
Residential Inground Pools
Sized for vinyl liner, fiberglass, and gunite inground pools up to 35,000 gallons on a single pump system. Plumbs into the return line after the heater.
Chemical-Sensitive Swimmers
Ideal for households with kids, allergy sufferers, or anyone bothered by chloramine smell and irritation. Dramatically reduces combined chlorine.
Chloramine and Algae Problem Pools
Cuts the chloramine load that causes cloudy water and surface haze, and disrupts algae and biofilm before it establishes in skimmer lines or filter media.
High-Bather-Load Pools
Pool parties, lessons, and shared backyards push organic load fast. Continuous UV and ozone oxidation keeps the water clear without shock-dosing every weekend.
Why PST Customers Pick This
99.99% Pathogen Kill
Combined UV-C and ozone inactivate bacteria, viruses, protozoa, and algae spores that survive free chlorine alone.
Wide Flow Range
Rated for 20 to 120 GPM with under 5 ft of head loss at 100 GPM, so it works with most single-speed and VS pumps.
Returns-Line Install
Installs downstream of the heater on the return side. Standard 2 in plumbing, no chemical feed pumps to maintain.
13,000-Hour Lamp
Long-life 57 W medium-pressure UV bulb means roughly 18 months of continuous run before a routine swap.
Dry-Fire Protection
Built-in flow sensing shuts the lamp down if circulation drops, protecting the bulb and quartz sleeve from thermal damage.
Up to 50 PSI Rated
Heavy-wall chamber handles up to 50 PSI continuous so it stands up to dirty filters and high-head return runs.
Installation Notice
The UV4000A power supply must be hard-wired to a dedicated 220V circuit by a licensed electrician and bonded per NEC Article 680. UV-C light causes severe eye and skin burns on direct exposure, never operate the chamber outside the plumbing loop or with the quartz sleeve removed.
Full Specifications
Frequently Asked Questions
Does the Renaissance UV4000A replace my chlorine entirely?
No, and it should not. UV and ozone are in-line sanitizers, they treat water as it passes through the chamber but leave no residual in the pool itself. You still maintain a low free-chlorine residual (around 1 ppm) for in-pool protection between turnovers. Most owners report cutting their chlorine use by up to 80%.
What pool size and pump does the UV4000A work with?
It is rated for inground pools up to 35,000 gallons with a flow rate between 20 and 120 GPM. That covers virtually every residential single-pump installation, including variable-speed pumps run at low RPM. For pools over 35K gallons, step up to the larger Renaissance models or run two systems in parallel.
What is the difference between the UV4000A and the 110V Renaissance models?
The UV4000A is the 220V version, hard-wired to a dedicated 220V circuit. Solaxx also offers a 110V Renaissance built for smaller pools or installations where 220V isn't available. Both share the same UV chamber and ozone module, the difference is the power supply and the pool-size rating.

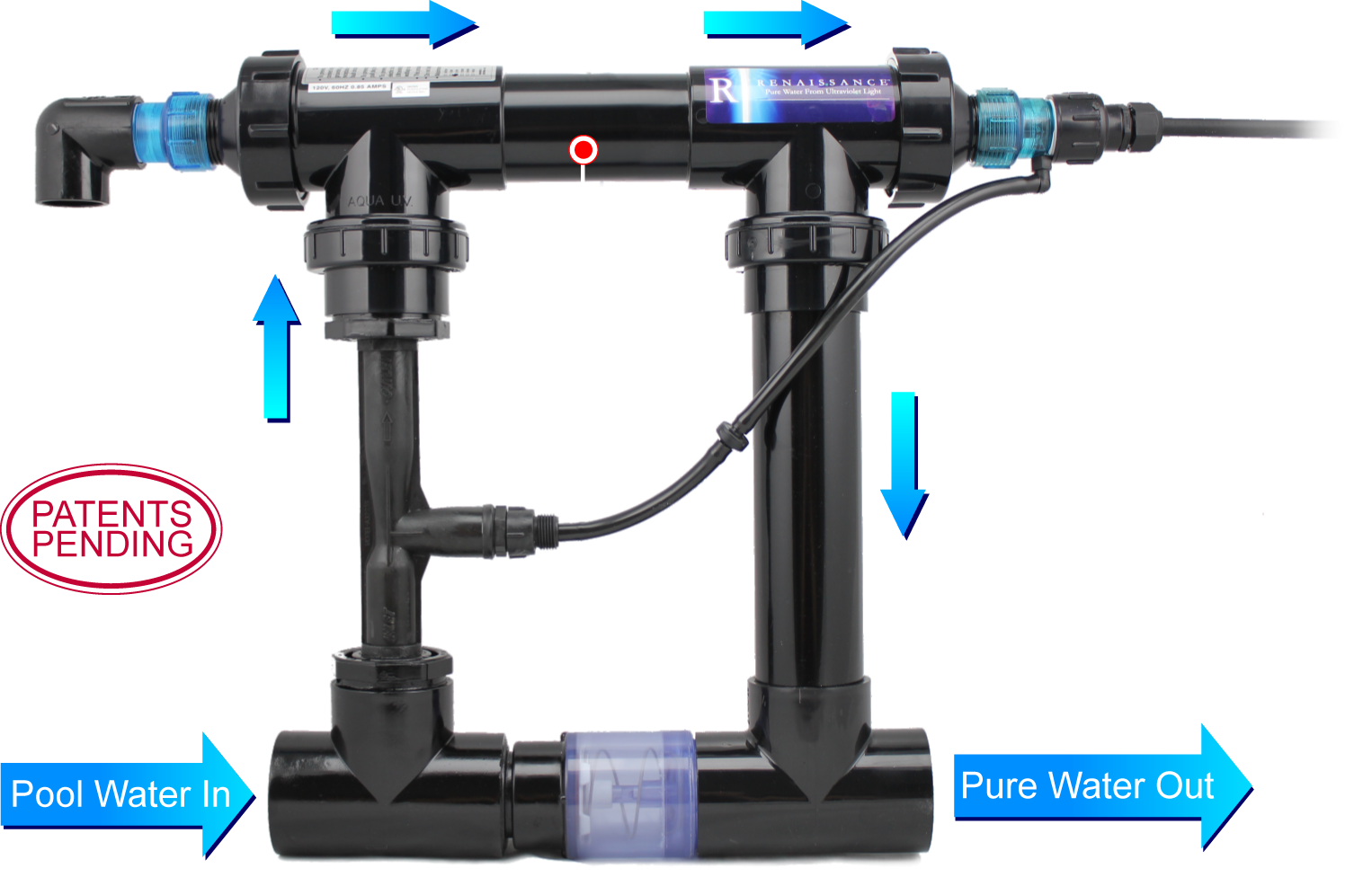

Where in the plumbing loop does this install?

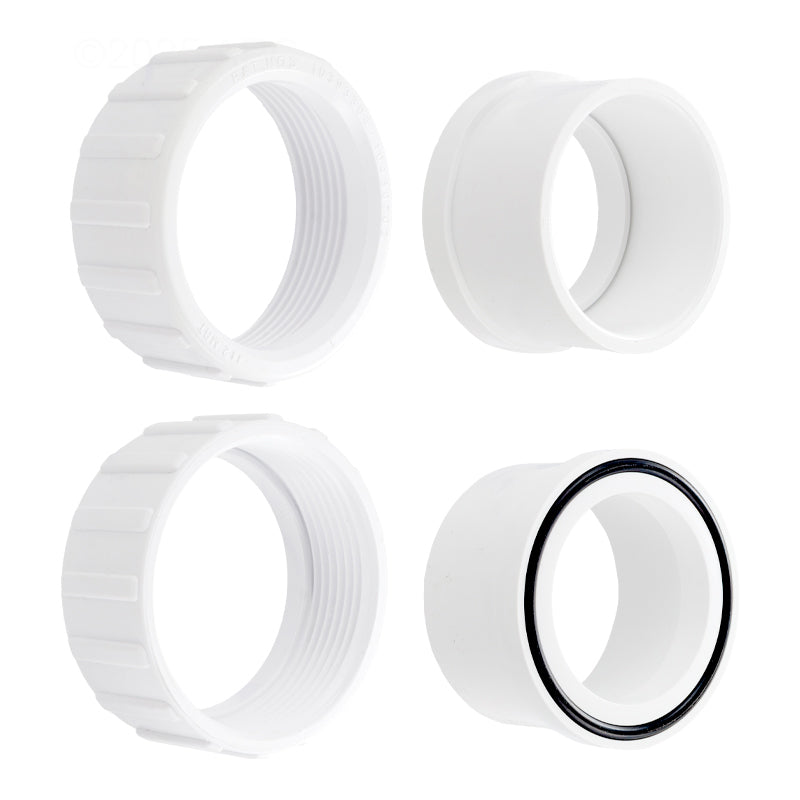

On the return side, downstream of the filter and heater, so the UV chamber sees clean, heated water and the treated water goes straight back to the pool. Standard 2 in PVC unions on either side of the chamber make service straightforward. Always install per the included manual and local code.
Can I install the UV4000A myself?
The plumbing side is straightforward for an experienced DIY pool owner, two 2 in PVC connections on the return line. The electrical side requires a licensed electrician, the 220V power supply must be hard-wired to a dedicated circuit and bonded per NEC Article 680. If you are not comfortable with bonding and pool-equipment wiring, hire a pro for the electrical.
How often do I replace the UV bulb?
The medium-pressure lamp is rated for 13,000 hours, roughly 18 months of continuous run for a pool that filters 24/7. The Renaissance command center tracks lamp hours, and the front-panel LED will indicate when it is time to swap. Replacement bulbs are stocked under Solaxx part number UV4000A-010.
Does this work with salt water pools?
Yes. The Renaissance pairs well with salt chlorine generators, the UV and ozone do the heavy lifting on contaminants so you can run the salt cell at a lower output and stretch cell life. The chamber materials are rated for salt-pool service.
Order the Solaxx UV4000A From PST
Authorized Solaxx dealer. Backed by PST Pool Supplies' service team and a full 2-year manufacturer warranty.
Additional Info
| Category | Pool Products Pool Accessories Pool Sanitation System |
| SKU | PST-UV4000A |
| MPN | UV4000A |
| Manufacturer | Solaxx |
| Weight | 18.4 lb |
