Product Information
Description

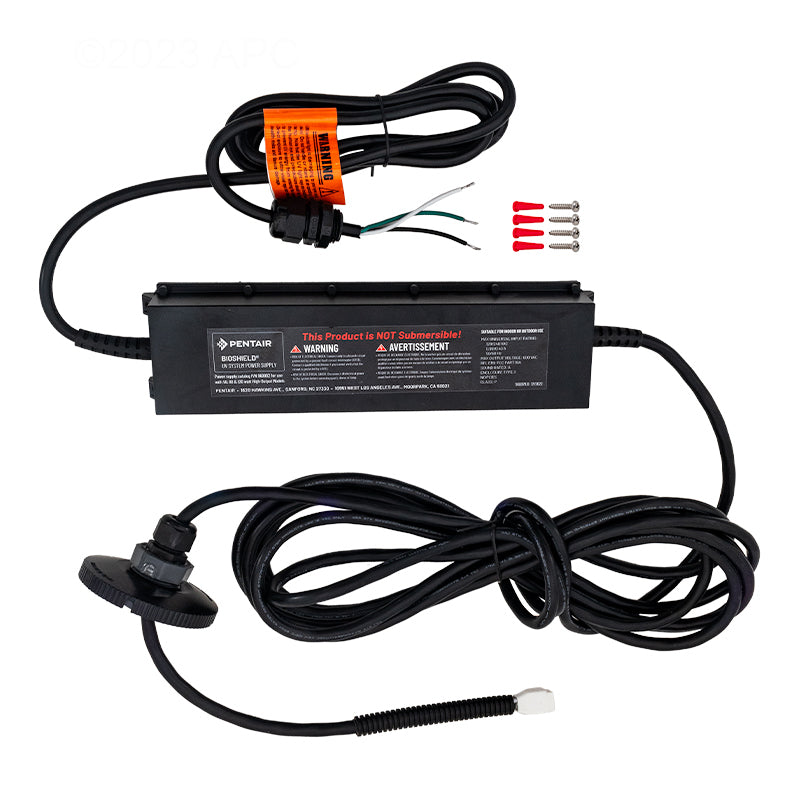

Pentair 523032 BioShield UV Power Supply (Ballast) for Models 522635, 522636 and 522637
Ballast for the 50, 80 and 120 watt BioShield UV systems.
The Pentair 523032 is the power supply, or ballast assembly, that Pentair lists for the BioShield UV System models 522635, 522636 and 522637. Pentair lists a different ballast for the 522638 (523033) and the 522945 (523053), so match the part number to your UV model.
| Manufacturer | Pentair |
|---|---|
| Pentair Part Number | 523032 |
| Pentair Description | Ballast assembly |
| Part Type | UV system power supply (ballast) |
| System | Pentair BioShield UV System |
| SKU | PST-523032 |
| Model 522635 | 50 watt lamp (523035), 25 GPM max flow at 30 mJ/cm2 |
|---|---|
| Model 522636 | 80 watt lamp (523036), 45 GPM max flow at 30 mJ/cm2 |
| Model 522637 | 120 watt lamp (523037), 62 GPM max flow at 30 mJ/cm2 |
| Input Voltage | 120/240 VAC, 50/60 Hz |
|---|---|
| System Amperes | 0.98 to 0.43 A (models 522635 to 522637) |
| Ballast for Model 522638 | 523033 |
|---|---|
| Ballast for Model 522945 | 523053 |
- Pentair BioShield UV System model 522635 (50 watt)
- Pentair BioShield UV System model 522636 (80 watt)
- Pentair BioShield UV System model 522637 (120 watt)
Which BioShield models use the 523032 power supply?
Pentair's BioShield installation guide lists 523032 as the power supply for models 522635, 522636 and 522637. The 522638 uses 523033 and the 522945 uses 523053.
Where should the power supply be mounted?
Pentair says to mount the power supply on a surface that does not expose it to standing water, closer to the UV unit than the flow switch, and not in an extremely confined space where heat and moisture can be retained.
How is the ballast wired?
On a listed mechanical timer, Pentair says to wire the UV system to the load side of the timer switch so it only operates when the pump is running. The ballast also delays the lamp for 25 seconds at start-up, and the lamp will not operate in a low flow condition.
Additional Info
| Category | Parts Pool Parts Pool UV System Parts |
| SKU | PST-523032 |
| MPN | 523032 |
| Manufacturer | Pentair |
| Weight | 0.1 lb |
