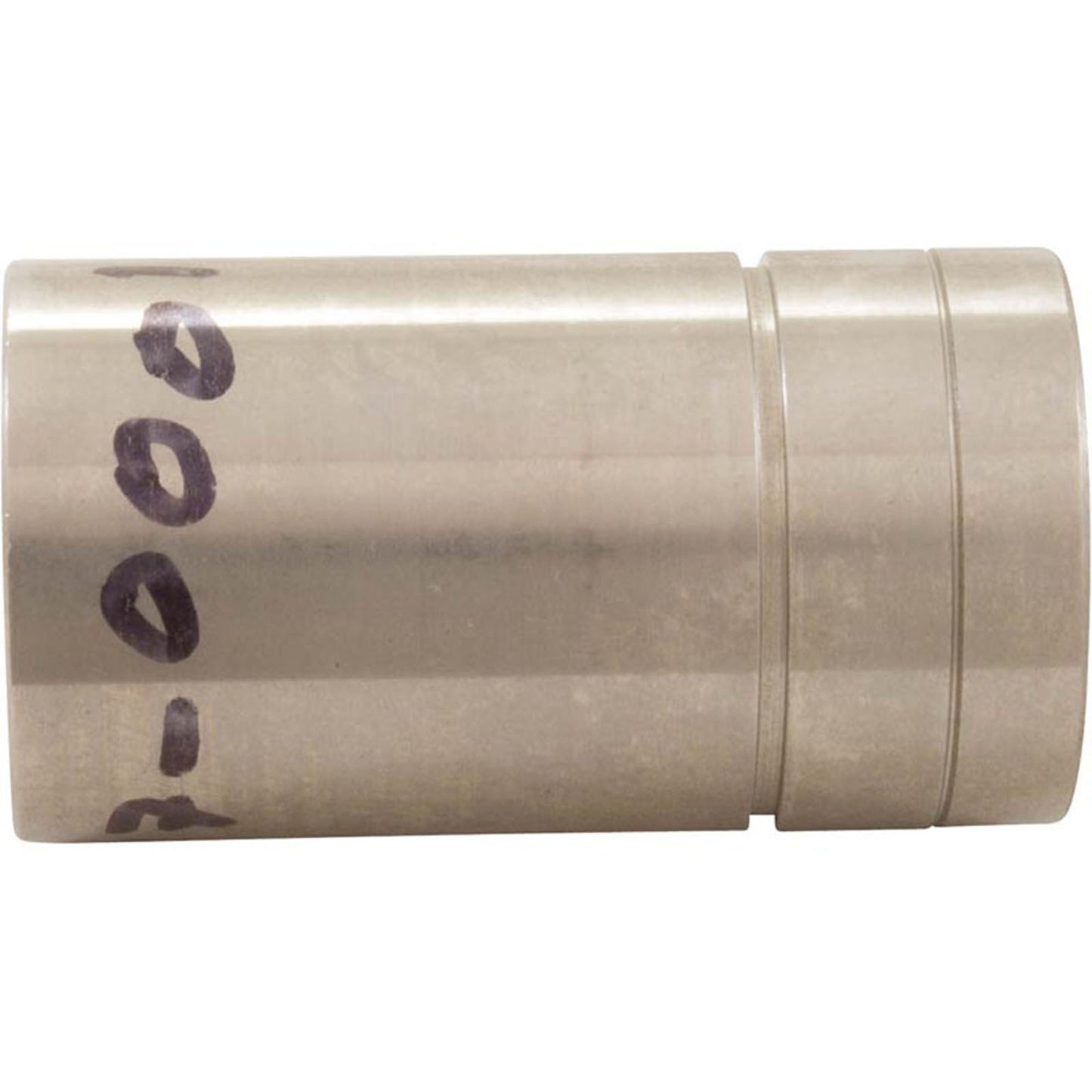

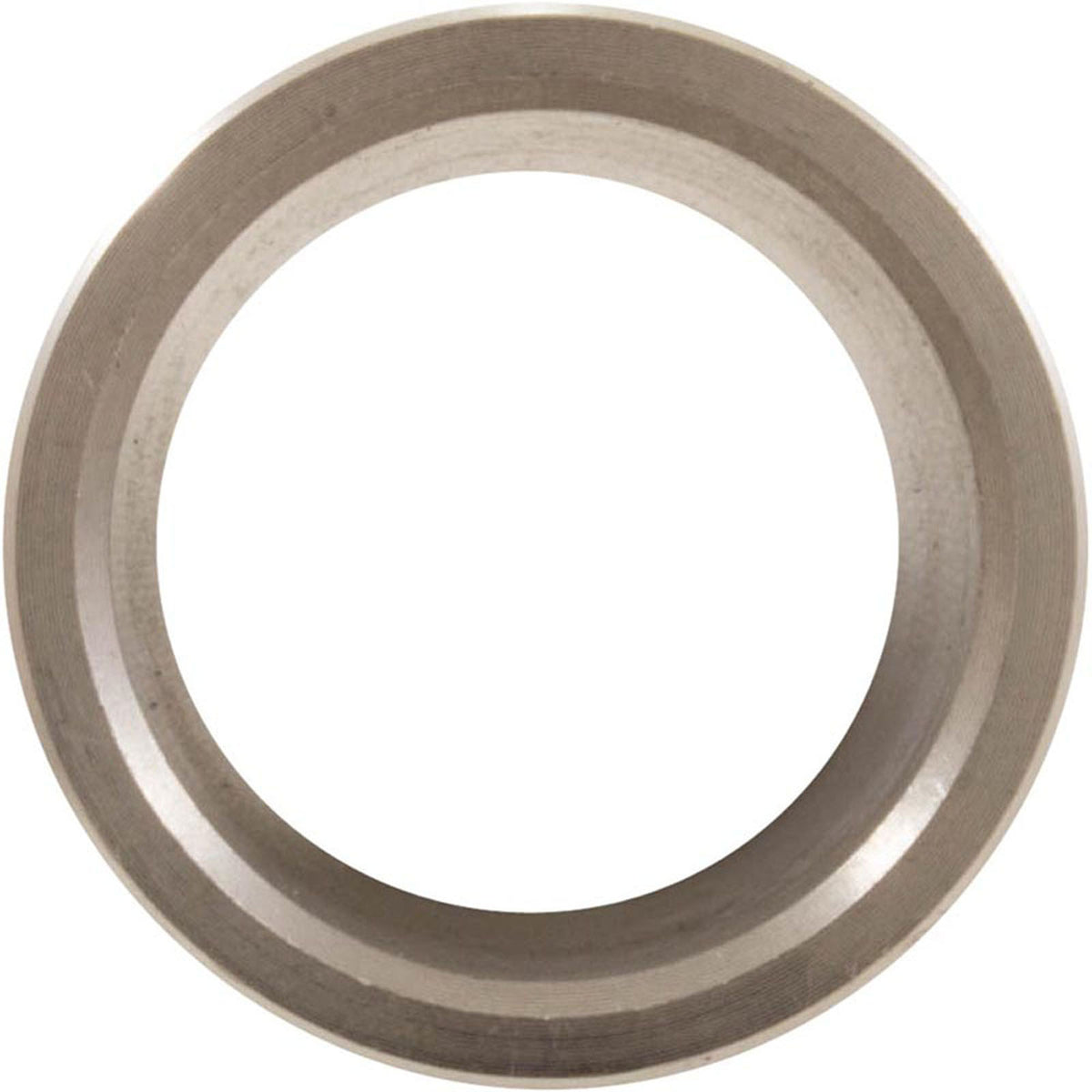

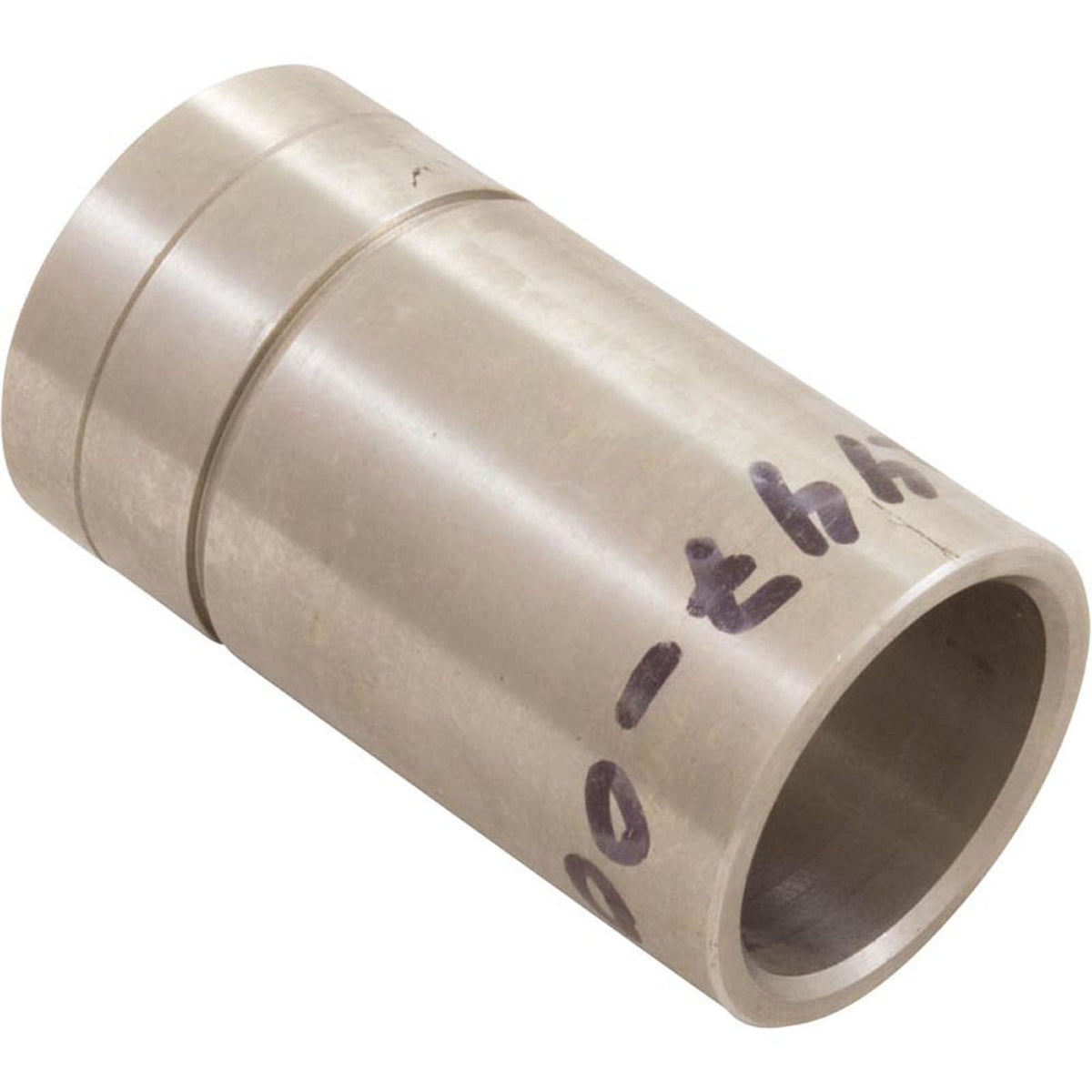

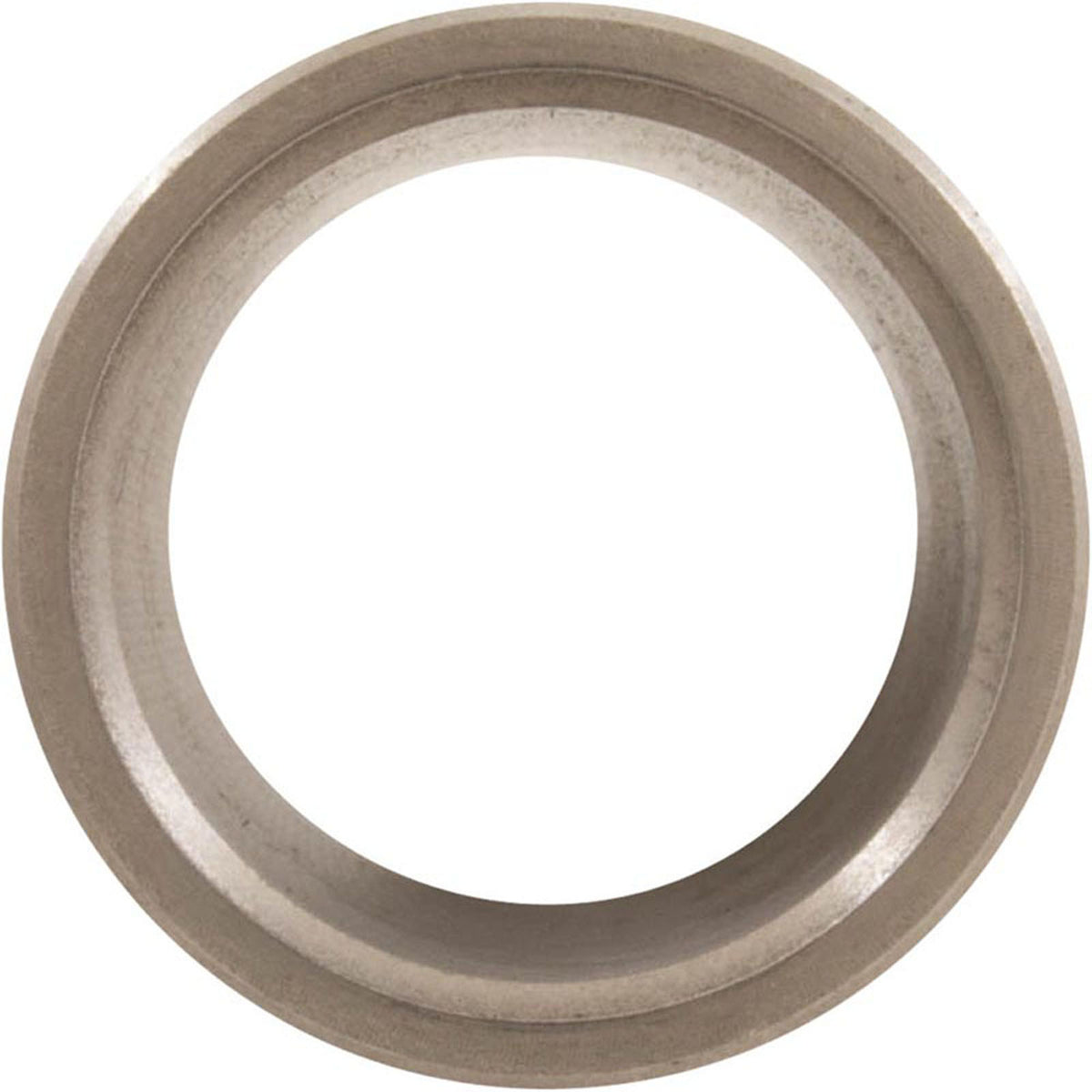

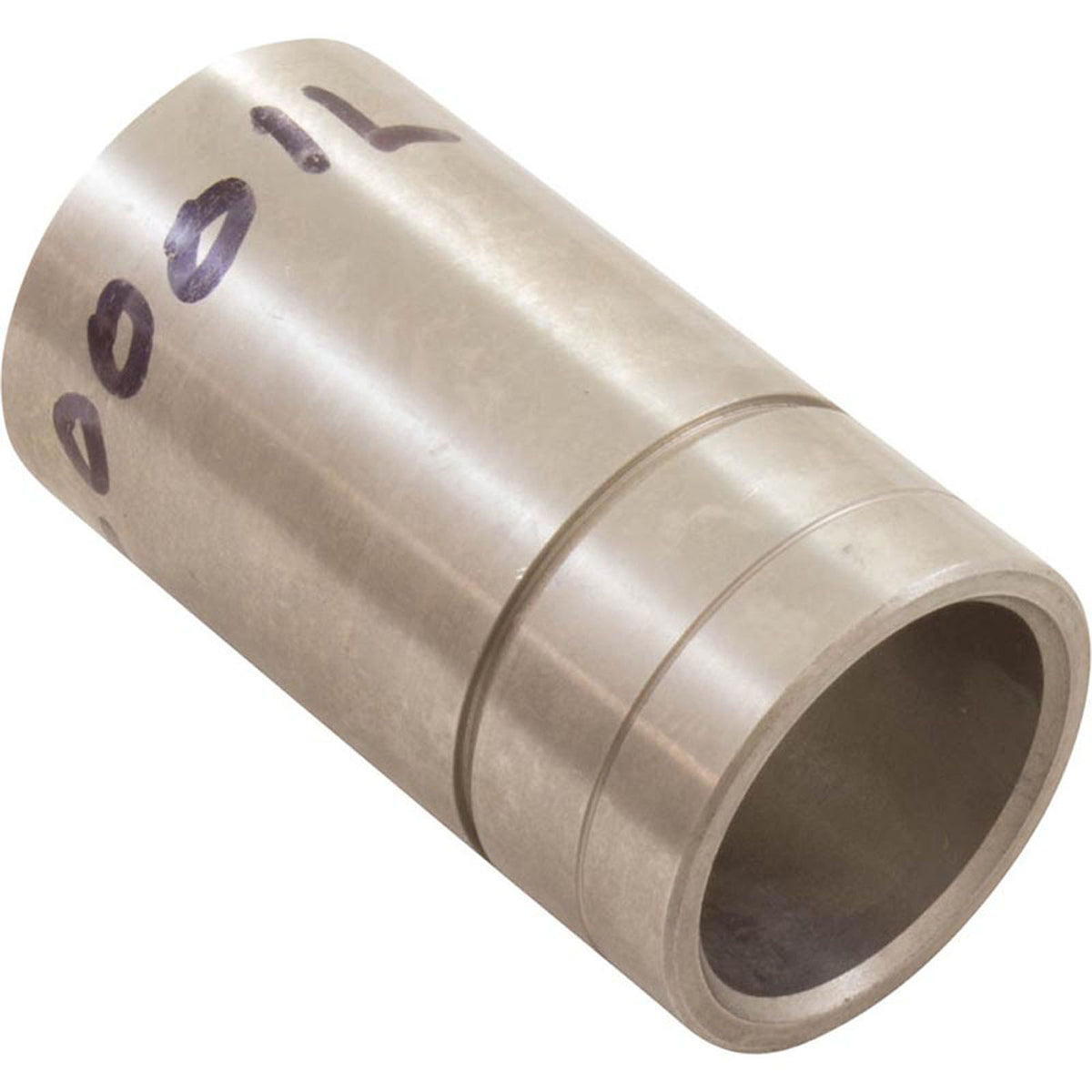

Pentair Shaft Sleeve for CSPH/CCSPH Pumps, 7-1/2 to 15 HP (37447-0001L)

Pentair Shaft Sleeve for CSPH/CCSPH Pumps, 7-1/2 to 15 HP (37447-0001L)

Pentair • Part # 37447-0001L
SKU: SKU: PST-35-102-3004
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110420820033","mpn":"37447-0001L","prop65":"This product can expose you to chemicals which is known to the State of California to cause cancer and reproductive harm.","saleprice":"0","warehouselocations":"Newnan, GA","warranty":"12 Months"}
Regular price $256.80
Regular price $410.80 Sale price $256.80

Low stock: 8 left

Ships from: Newnan, GA

Authorized dealer
Pentair

Genuine OEM product, sold with full manufacturer warranty support.

  1. Today Shipping 1 hrs 10 mins left
  2. 30 days ReturnsPolicy
  3. 12 Months Warranty Manufacturer

Frequently Bought Together

Lube Tube, Roper Products, 1oz, with PFTE
Lube Tube, Roper Products, 1oz, with PFTE
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110753513537","discontinued":false,"mpn":"00150","saleprice":"0","warehouselocations":"Corona, CA","warranty":"12 Months"}
Regular price $11.80
Regular price $18.90 Sale price $11.80
Lube Tube, Roper Products, 4oz, with PFTE
Lube Tube, Roper Products, 4oz, with PFTE
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110753546305","mpn":"00450","saleprice":"0","warehouselocations":"Murray, UT","warranty":"12 Months"}
Regular price $16.50
Regular price $26.50 Sale price $16.50
O-Ring Chart, Aladdin
O-Ring Chart, Aladdin
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110783627329","discontinued":false,"mpn":"MG1","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months"}
Regular price $46.50
Regular price $74.40 Sale price $46.50
Retaining Ring, CSPH/CCSPH Series, 7,10,& 15HP
Retaining Ring, CSPH/CCSPH Series, 7,10,& 15HP
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"discontinued":false,"mpn":"S11207","prop65":"This product can expose you to chemicals which is known to the State of California to cause cancer and reproductive harm.","saleprice":"0","warehouselocations":"Newnan, GA | Bloomfield, CT","warranty":"12 Months"}
Regular price $32.30
Regular price $51.80 Sale price $32.30
View full details

Product Information

Description

  • Genuine Pentair Part
  • Stainless Steel Sleeve
  • Free Shipping

Pentair Shaft Sleeve for CSPH and CCSPH Commercial Pumps (37447-0001L)

Key No. 8 sleeve for CSP Series pumps.

Key No. 8
Parts Diagram
1
Per Pump
7-1/2 to 15 HP
60 Hz Models
Stainless
Sleeve
37447-0002L
20 HP Uses

The Pentair 37447-0001L shaft sleeve is Key No. 8 in the parts lists for Pentair's CSPH and CCSPH commercial self-priming pumps, one per pump. It covers the 7-1/2, 10 and 15 HP models at 60 Hz, the 200V CSPH2 and CCSPH2 models through 15 HP, and the 50 Hz 5CSPH and 5CCSPH models from 5 to 10 HP. The 20 HP models use a different sleeve, 37447-0002L.

Why PST Customers Pick This

Genuine Pentair Sleeve

Pentair lists 37447-0001L as the shaft sleeve, Key No. 8, in the CSPH, CCSPH, 5CSPH and 5CCSPH owner's manual. This sleeve replaces the earlier 37447-0001.

Stainless Steel Shaft Sleeve

Pentair's CSP Series brochure describes the pump motors as JM type, NEMA C-flange design with a stainless steel shaft sleeve, and the shaft as stainless steel sleeved and gasketed.

Carries the Shaft Seal

During reassembly, the rotating half of the mechanical shaft seal (S32014 on these models) slides onto the shaft sleeve, polished face first, and the seal retaining ring (S11207) holds it in place.

Back Pull-Out Service

The CSP Series uses a back pull-out design, so Pentair says normal wearing parts can be serviced without disconnecting the piping. The bracket, impeller and motor slide out of the volute as one unit.

Service Notice

Pentair's manual says to disconnect all power to the pump and close the valves to isolate it before disassembly. To remove or assemble the shaft sleeve itself, Pentair says to call its customer service (ref. TSB # C80-173SA).

Specifications

Identification
Manufacturer Pentair
Part Number 37447-0001L
Pentair Description Shaft Sleeve
Replaces 37447-0001
Key No. 8
Quantity Used 1 per pump
Material Stainless steel
SKU PST-35-102-3004
Fitment
230V 1 Phase, 60 Hz CSPHK-142, CSPHL-143, CCSPHK-142, CCSPHL-143
230/460V 3 Phase, 60 Hz CSPHK3-142, CSPHL3-143, CSPHM3-144, CCSPHK3-142, CCSPHL3-143, CCSPHM3-144
200V 3 Phase, 60 Hz CSPH2K3-142, CSPH2L3-143, CSPH2M3-144, CCSPH2K3-142, CCSPH2L3-143, CCSPH2M3-144
50 Hz Models 5CSPHJ3-142, 5CSPHK3-143, 5CSPHL3-144, 5CCSPHJ3-142, 5CCSPHK3-143, 5CCSPHL3-144
Use 37447-0002L Instead CSPHN3-145, CCSPHN3-145, CSPH2N3-145, CCSPH2N3-145 (20 HP), 5CSPHM3-145, 5CCSPHM3-145
Mating Pentair Parts (Models Using 37447-0001L)
Mechanical Shaft Seal S32014 (Key No. 6)
Retaining Ring S11207 (Key No. 7)
Gasket, Impeller to Shaft Sleeve 33455-8044 (Key No. 10)

Frequently Asked Questions

Will this fit a 20 HP CSPH or CCSPH?

No. Pentair lists 37447-0002L as the shaft sleeve for the 20 HP models (CSPHN3-145, CCSPHN3-145, CSPH2N3-145 and CCSPH2N3-145). On the 50 Hz line, the 15 HP 5CSPHM3-145 and 5CCSPHM3-145 also use 37447-0002L.

Does it replace part 37447-0001?

Yes. The 37447-0001L replaces the earlier 37447-0001 sleeve.

Can I swap the sleeve myself?

Pentair's disassembly steps say to call customer service to remove or assemble the shaft sleeve, referencing TSB # C80-173SA. The same steps cover the shaft seal, retaining ring and impeller gasket that sit around the sleeve.

Which seal and gasket go with this sleeve?

On every model that uses this sleeve, Pentair lists mechanical shaft seal S32014, retaining ring S11207 and impeller to shaft sleeve gasket 33455-8044. Pentair notes not to lubricate the shaft gaskets, since that may interfere with sealing.

Order the 37447-0001L From PST

Backed by PST Pool Supplies' service team.

  • Free Shipping
  • 30-Day Returns
  • Warranty Backed
  • Authorized Pentair Dealer
California Prop 65 Warning:
This product can expose you to chemicals which is known to the State of California to cause cancer and reproductive harm.

Additional Info

Category Parts Pool Parts Pool Pump Parts
SKU PST-35-102-3004
MPN 37447-0001L
Replaces 374470001L, 5078-04, 600433, _37447-0001L, STA-101-7520
Manufacturer Pentair
Weight 0.28 lb
