Hayward E-Command 4 Main Circuit Board for HPC-4 Controls (GLX-PCB-HPC-4)

Hayward E-Command 4 Main Circuit Board for HPC-4 Controls (GLX-PCB-HPC-4)

Hayward • Part # GLX-PCB-HPC-4
SKU: SKU: PST-_GLX-PCB-HPC-4
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"discontinued":false,"mpn":"GLX-PCB-HPC-4","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ | Newnan, GA | Bloomfield, CT | Murray, UT"}
Regular price $920.60
Regular price $1,472.90 Sale price $920.60

19 in stock

Ships from: Memphis, TN | Tucson, AZ | Newnan, GA | Bloomfield, CT | Murray, UT

Authorized dealer
Hayward

Genuine OEM product.

  1. Today Shipping 0 hrs 31 mins left
  2. Final sale No returnsPolicy

Final sale. This item cannot be returned or exchanged. All warranty claims must be made with the manufacturer directly.

View full details

Product Information

Description

  • Genuine Hayward Part
  • All E-Command 4 Models
  • 1-Year Part Warranty
  • Free Shipping

Hayward GLX-PCB-HPC-4 Main Circuit Board for E-Command 4 (HPC-4) Pool Controls

Main board for every E-Command 4 model.

GLX-PCB-HPC-4
Hayward Part
4 Models
E-Command 4 Fit
2 Screws
Board Mounting
1 yr
Part Warranty

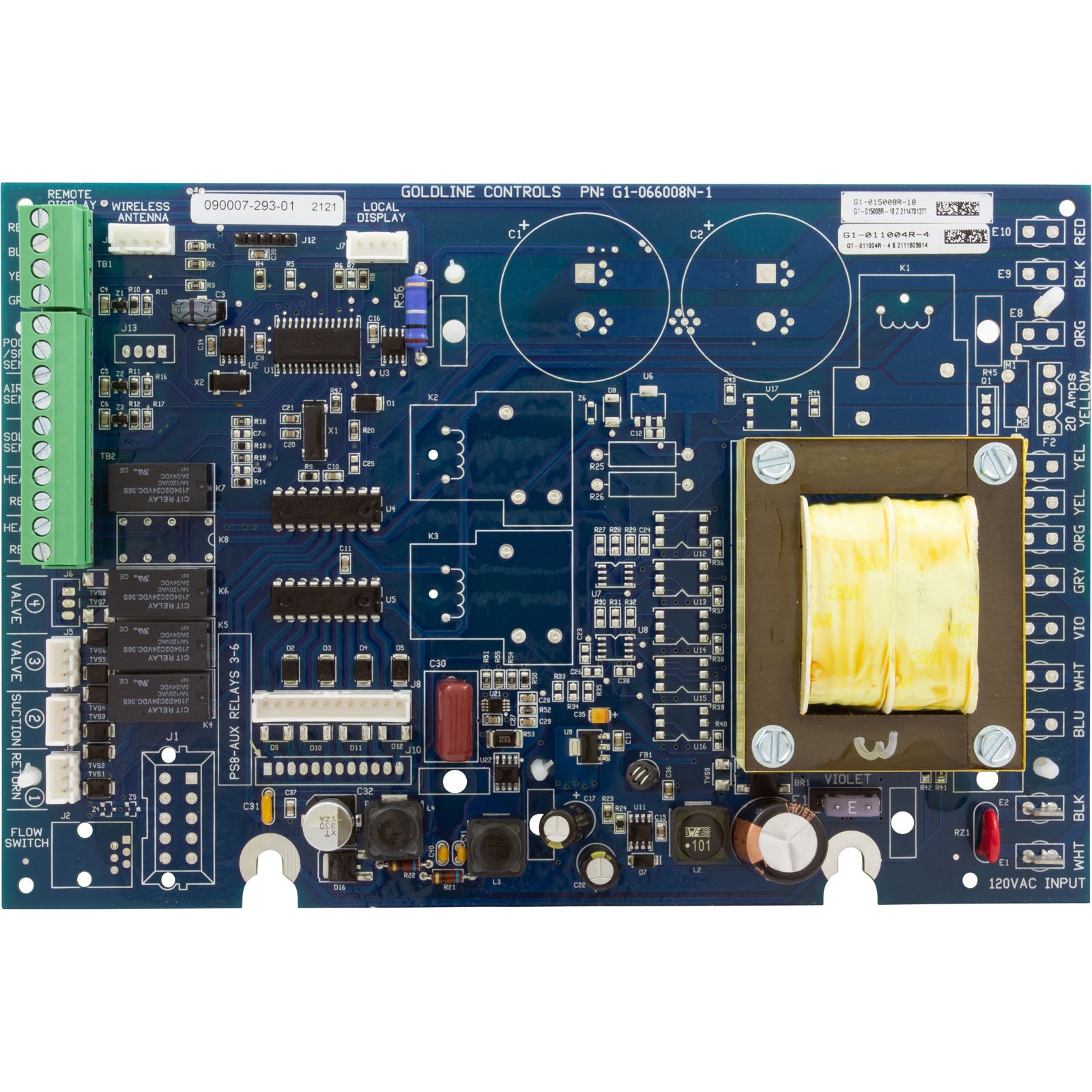

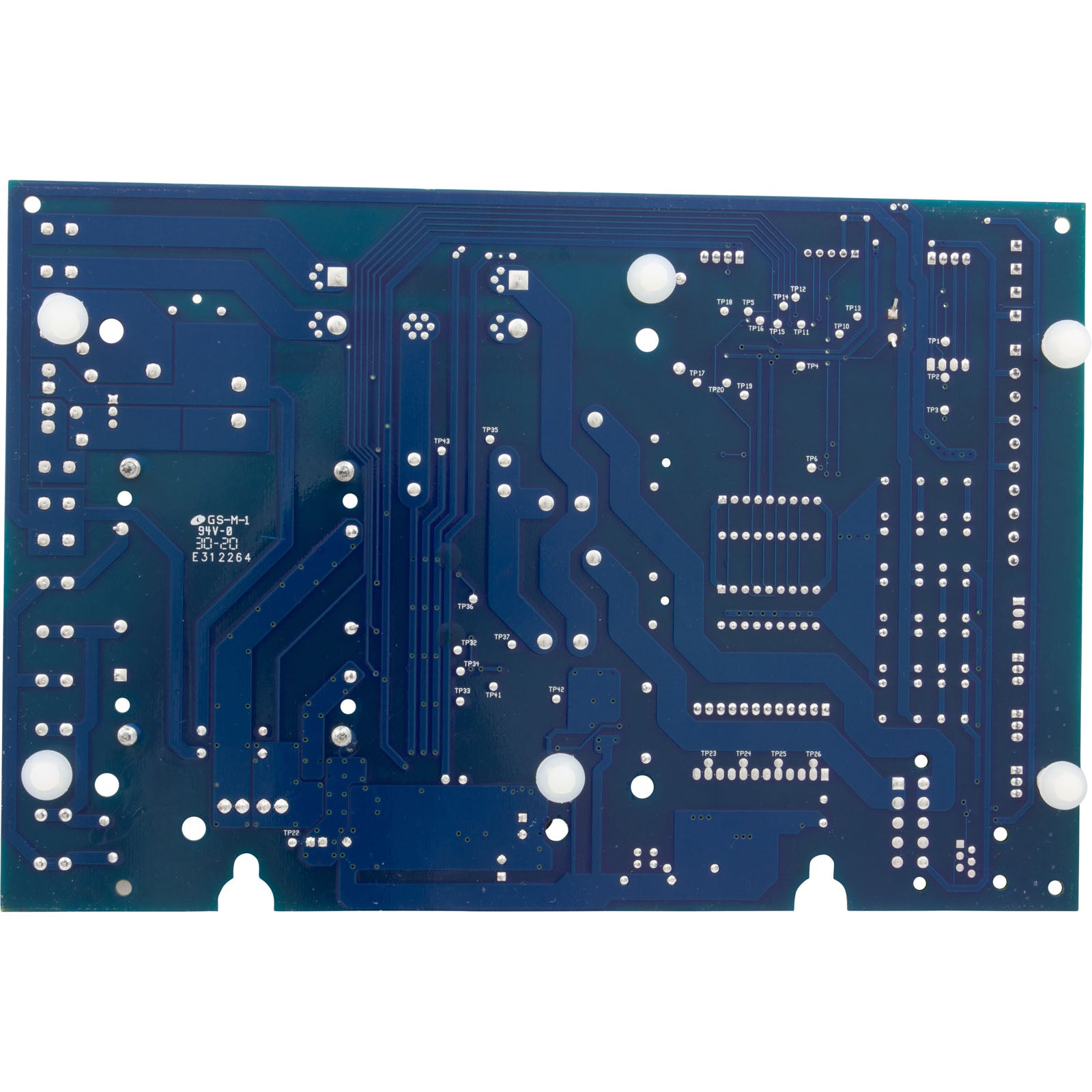

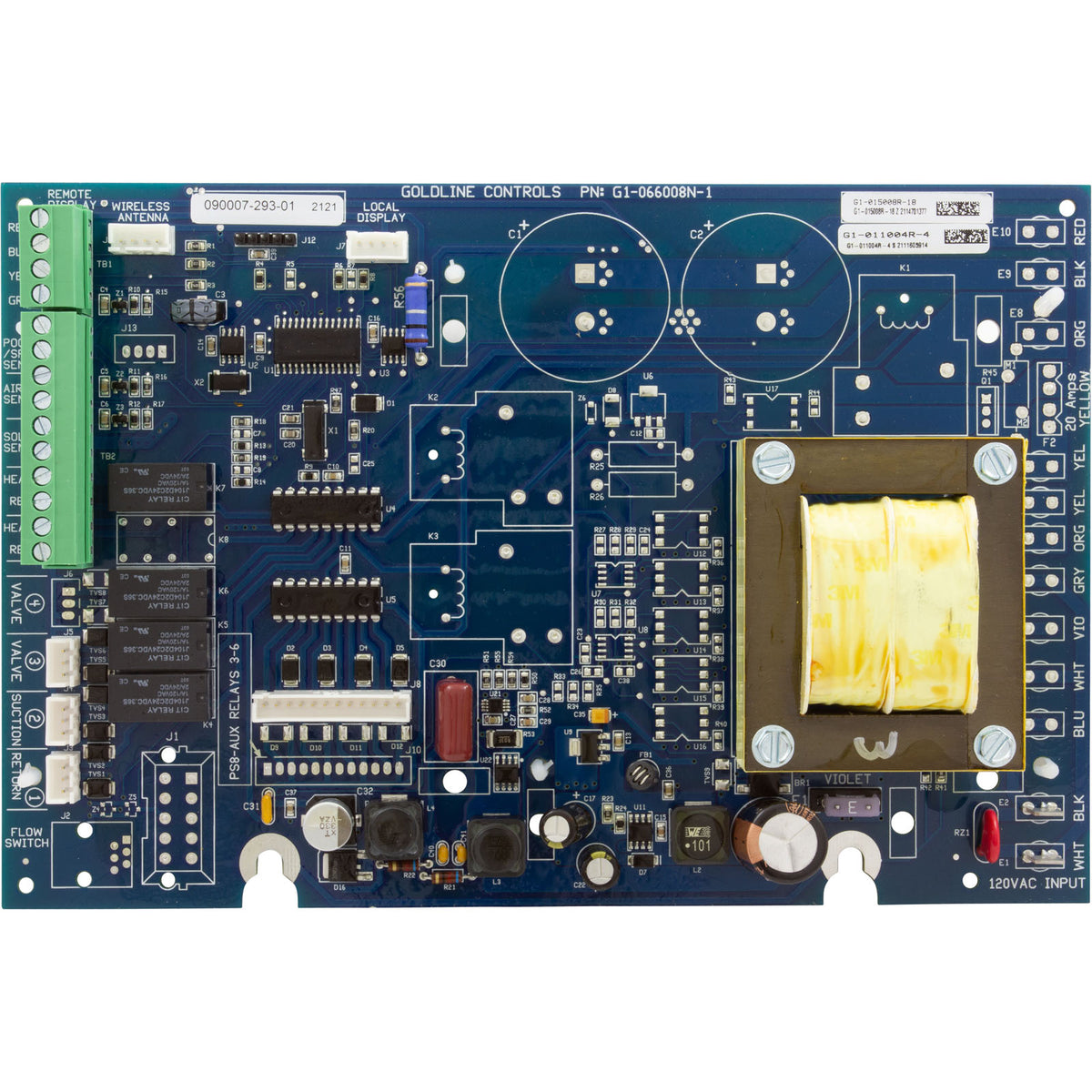

The Hayward GLX-PCB-HPC-4 is the replacement main printed circuit board for the E-Command 4 (HPC-4) pool control. Hayward lists it as compatible with every E-Command 4 model: the HPC-4, HPC-4-ACT, HPC-4-RC and HPC-4-ACT-RC. The board stores the control's Configuration, Timers and Settings programming, so Hayward has you record those menus before you swap it.

Why PST Customers Pick This

Genuine Hayward Board

Hayward part number GLX-PCB-HPC-4, GTIN 761418011346, an aftermarket automation part covered by a 1-year replacement part warranty. Hayward's instructions call for genuine Hayward replacement parts only.

Fits Every E-Command 4

Hayward states the board is compatible with all E-Command 4 models, including the HPC-4, HPC-4-ACT, HPC-4-RC and HPC-4-ACT-RC.

Record Your Programming

The Configuration, Timers and Settings menus live on the main board. Write down everything in those three menus before you start, then re-enter it on the new board.

Plug-In Terminal Blocks

The sensor and display communication terminal blocks unplug from the old board as a unit, so you don't disconnect individual wires. Note where the transformer wires go: the lug locations on the new board may differ.

Two-Screw Mounting

The old board comes out by loosening its 2 mounting screws and sliding it forward and up. The new board installs with two mounting screws.

Initialize, Then Configure

After power-up, hold the Menu, Lights and Aux2 buttons together until the board beeps to initialize it. Then reset the Configuration menu to its defaults and enter your recorded settings.

Electrical Notice

Hayward's instructions require that all circuit breakers are OFF before you remove the old board. Remove the metal panel, then the local display, before touching the board, and replace the panel before restoring power.

Specifications

Identification
Manufacturer Hayward
Hayward Part Number GLX-PCB-HPC-4
Hayward Description Service part, main PCB, HPC-4 (E-Command 4)
GTIN / UPC 761418011346
SKU PST-_GLX-PCB-HPC-4
Part Type Automation part, main PCB
Compatibility
Control Hayward E-Command 4 (HPC-4)
Compatible Models HPC-4, HPC-4-ACT, HPC-4-RC, HPC-4-ACT-RC
Pool Type In-ground
Installation
Mounting 2 mounting screws
Initialization Hold Menu, Lights and Aux2 until the board beeps
Instructions Hayward 092449 Rev B, GLX-PCB-HPC-4 replacement instructions
Warranty
Replacement Part Warranty 1 year (Hayward)

Frequently Asked Questions

Will this board fit my HPC-4-ACT-RC?

Yes. Hayward lists the GLX-PCB-HPC-4 as compatible with all E-Command 4 models, including the HPC-4, HPC-4-ACT, HPC-4-RC and HPC-4-ACT-RC.

Will I lose my schedules when I replace the board?

The Configuration, Timers and Settings information is stored on the main board, so Hayward has you record all of it before the swap. After installing and initializing the new board, reset the Configuration menu to its defaults and re-enter your recorded programming.

How do I initialize the new board?

With power restored, hold the Menu, Lights and Aux2 buttons at the same time until you hear a series of beeps. The board is then initialized and ready to configure.

Do I have to rewire the sensors?

No. Hayward's instructions have you unplug the sensor and display communication terminal blocks from the old board and plug them onto the new one, without disconnecting individual wires. Transformer wires and any other wires move individually, so note their locations first.

Order the GLX-PCB-HPC-4 From PST

Backed by PST Pool Supplies' service team.

  • Free Shipping
  • 1-Year Hayward Part Warranty
  • Genuine Hayward Part
  • Authorized Hayward Dealer

Additional Info

Category Parts Pool Parts Automation Parts
SKU PST-_GLX-PCB-HPC-4
MPN GLX-PCB-HPC-4
Replaces 2807-110, 365026, GLD-301-1017
Manufacturer Hayward
Weight 1.98 lb
