Description

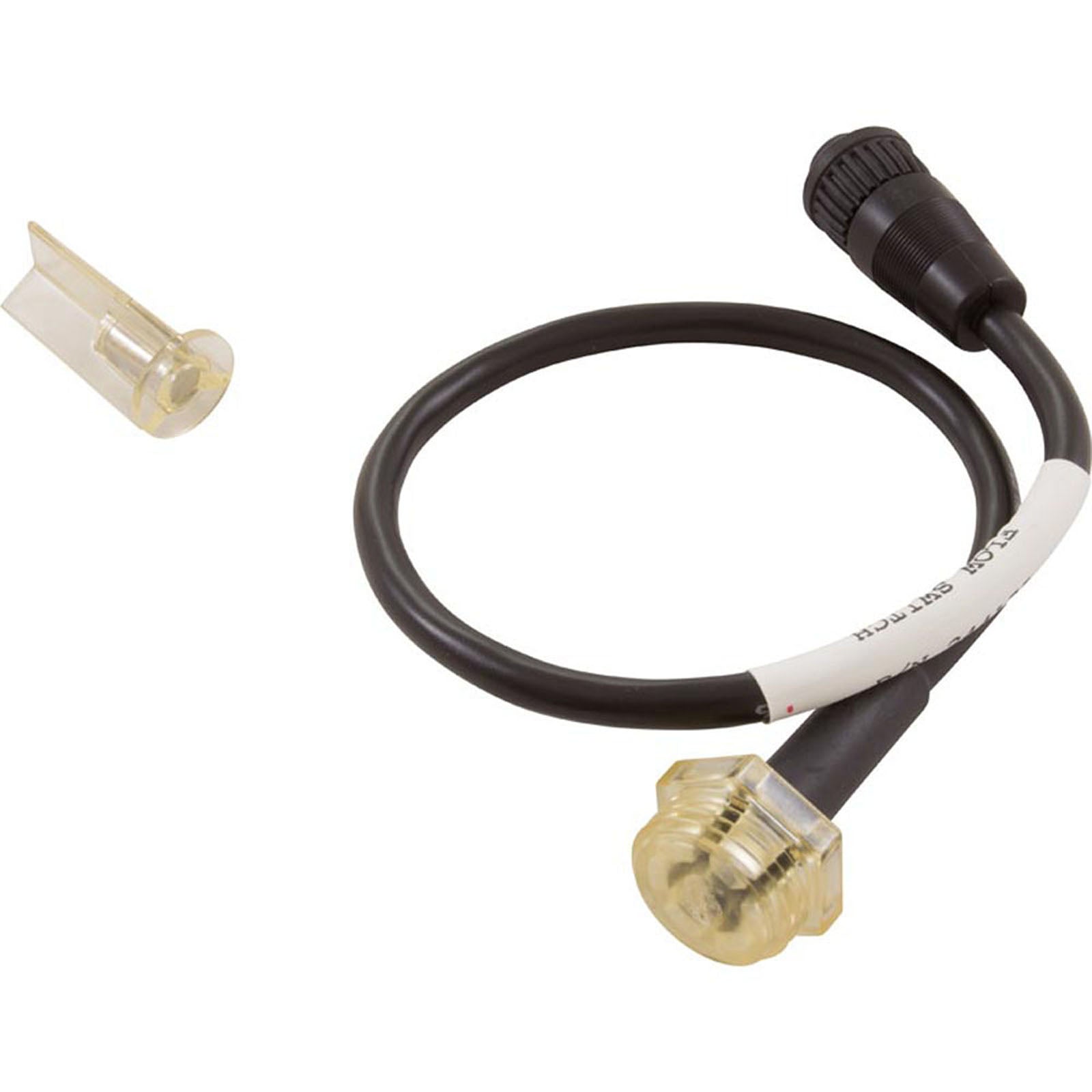

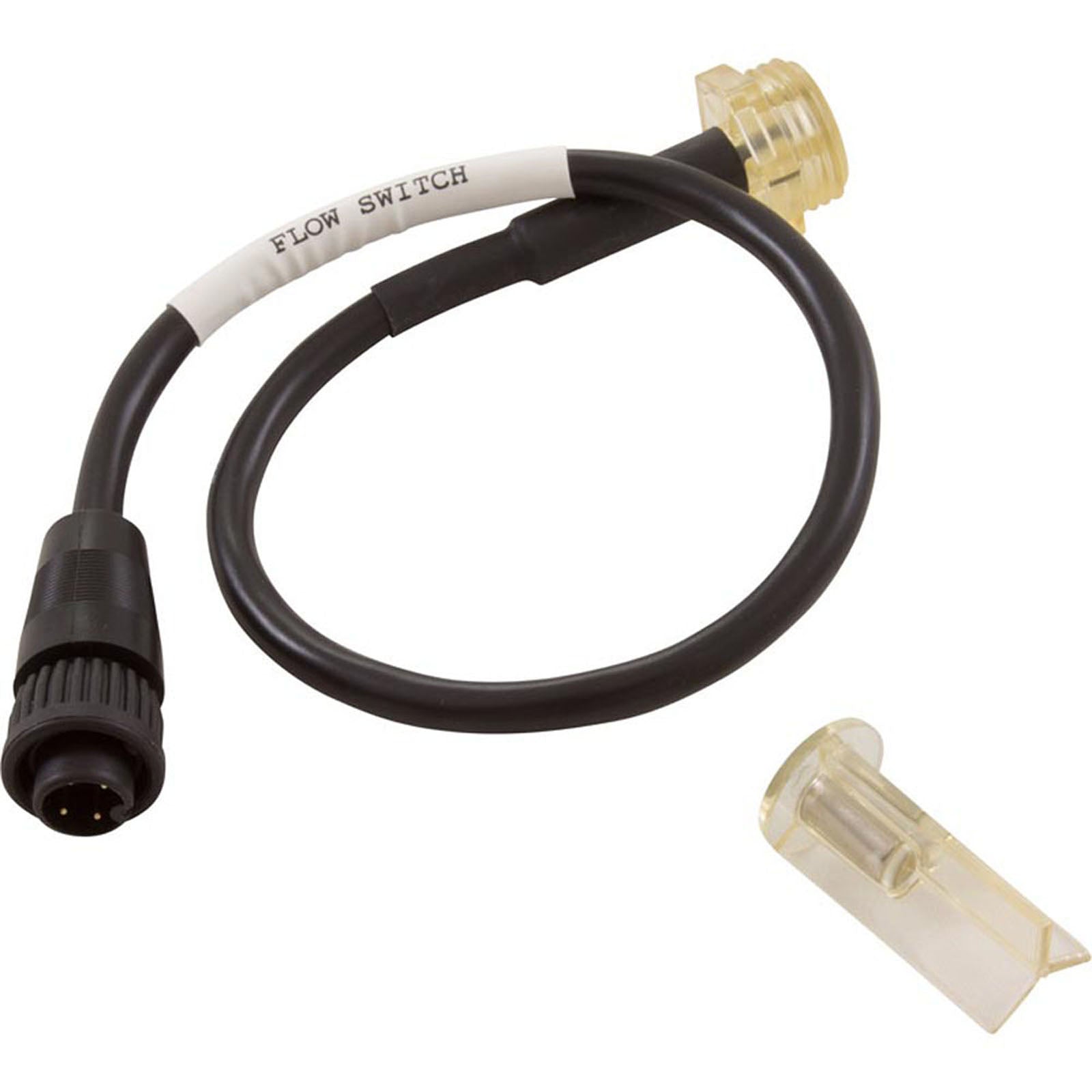

Hayward CAX-20206 Float-Style Flow Sensor for CAT Controller Molded Flow Cells
Float-style flow switch for Hayward CAT controllers.
The Hayward CAX-20206 is a float-style flow sensor, also called a flow switch, for the molded flow cell used on Hayward CAT controllers. In Hayward's CAT 3500 manual, the flow sensor tells the controller to stop feeding chemicals when the filtration system is off or flow is low.
| Manufacturer | Hayward |
|---|---|
| Hayward Part Number | CAX-20206 |
| Hayward Description | SENSOR-FLOW, FLOAT STYLE |
| Part Type | Flow sensor |
| Style | Float-style flow switch |
| Works With | Molded flow cell on Hayward CAT controllers |
| Hayward Part Category | Automation parts, commercial parts |
| Pool Type | Commercial |
| SKU | PST-_CAX-20206 |
| Replacement Part Warranty | 1 year, parts only (Hayward) |
What does the flow sensor do on a CAT controller?
Hayward's CAT 3500 manual says the flow sensor monitors flow across the pH and ORP sensors and signals the controller to disable automated chemical feeding when the filtration system is off or recirculation flow is low.
Which flow cell is it for?
It is listed as a float-style flow switch for the molded flow cell on Hayward CAT controllers. Hayward's CAT 3500 package uses an injection-molded flow cell, while the CAT 1000 package uses a round machined acrylic flow cell with a pressure flow switch.
Additional Info
| Category | Parts Pool Parts Automation Parts |
| SKU | PST-_CAX-20206 |
| MPN | CAX-20206 |
| Replaces | 901556, CAX20206, HAY-451-2022 |
| Manufacturer | Hayward |
| Weight | 0.14 lb |
