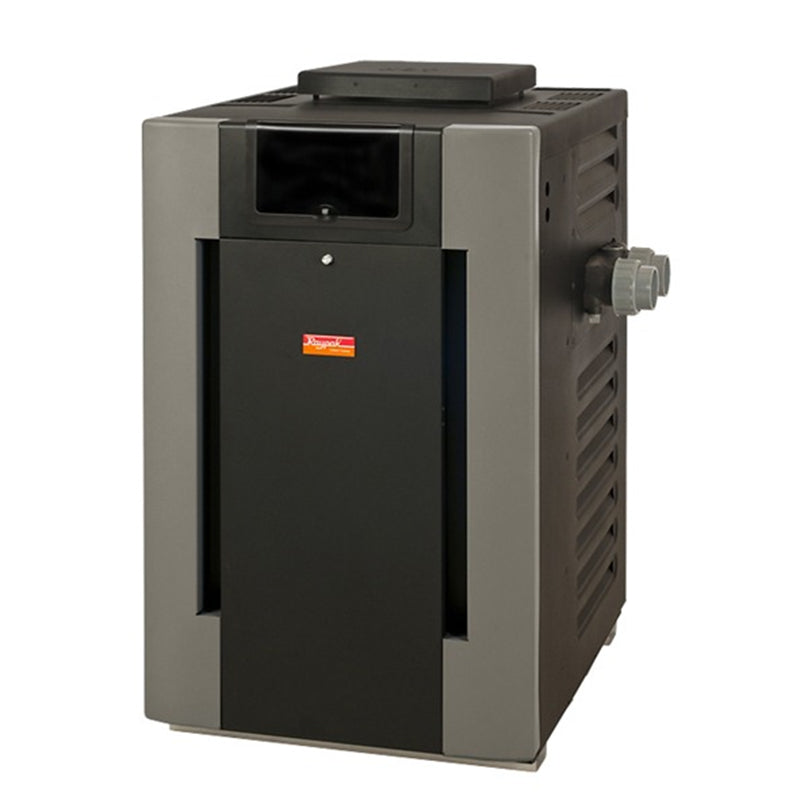

Raypak 009224 Digital P-R206A-EP-C 199K BTU Propane Pool and Spa Heater
Fast heat. Smart controls. Outdoor ready.
The Raypak Digital P-R206A-EP-C (SKU PST-PR206AEPC, MPN 009224) is the entry point of Raypak's full-size Digital series, delivering 199,500 BTU of liquid propane heat to residential pools and spas at elevations from 0 to 2,000 feet. You get an LCD control board with on-board diagnostics, a copper finned-tube heat exchanger paired with corrosion-resistant polymer headers, and a stackless outdoor top so the unit drops onto an equipment pad with no extra vent kit. PST ships this heater factory-fresh from Raypak with the full manufacturer warranty intact.
Digital Control, Real Diagnostics
You set the pool and spa temperatures from a backlit LCD display and the on-board controller handles the rest. Flame strength indicator, run-time tracking, and an on-board voltmeter surface problems before they become service calls. The intermittent spark pilot only fires on a call for heat, so you stop paying propane to keep a standing pilot lit. Fault codes pinpoint sensor and ignition issues at a glance, cutting troubleshooting time when your pool tech is on the clock.
Copper Tubes, Polymer Headers
Raypak pairs an integral copper finned-tube heat exchanger with non-metallic polymer headers, so the high-flow water path stays free of the galvanic corrosion that eats traditional cast headers. The Unitherm Governor automatically regulates flow to keep heat-exchanger water above 105 F, which kills the condensation, sooting, and scale that shorten heater life. The result is a heater built to ride out hard water, salt-chlorinated pools, and the temperature swings of shoulder-season operation.
Outdoor Top, Stackless Install
The stackless outdoor top ships installed, so you skip the chimney kit and drop the cabinet straight onto the equipment pad. A polyester-coated galvanized sheet metal cabinet runs through a 7-stage wash before paint to lock out rust, and the case is rated for full outdoor exposure. Industry-low pressure drop and a 125 GPM max flow rate mean the heater piggybacks onto existing 2 inch plumbing without choking your pump or filter loop.
Who It's For
Residential In-Ground Pools
Sized for backyard pools up to roughly 20,000 gallons. Heats your pool from morning cool-down to swim temperature in a single afternoon on most setups.
Above-Ground and Vinyl Pools
The polymer headers and copper heat exchanger play nicely with the softer water chemistry of vinyl liner and above-ground pools, where chlorides can attack metal headers.
Spas and Spillover Spas
199.5K BTU brings a spa from cold to 104 F in well under an hour, and the digital controls let you stage spa and pool setpoints independently.
Propane and Off-Grid Sites
Factory-configured for liquid propane (HD-5 grade), so the heater works on properties without natural gas service. The 0 to 2,000 ft altitude rating covers most of the country.
Why PST Customers Pick This
199,500 BTU Propane Input
Delivers Raypak's full Digital-series heat output for residential pools and spas, fueled by liquid propane (HD-5).
Backlit LCD Display
Read pool and spa temps, flame strength, voltage, and run time without removing a panel.
Dual Voltage 120/240 VAC
Ships wired for 120 VAC and field-converts to 240 VAC without ordering additional parts.
Unitherm Governor Standard
Regulates flow to keep heat-exchanger water above 105 F, stopping condensation, sooting, and scale before they start.
Low Pressure Drop
Up to 125 GPM through 2 inch water connections, so the heater drops onto an existing pad without re-piping.
Stackless Outdoor Top
Outdoor cabinet ships ready to install, no chimney kit or indoor vent run required.
Installation Notice
Propane gas piping and electrical connections must be installed by a licensed gas technician and licensed electrician per NFPA 54 (National Fuel Gas Code) and NEC Article 680 for pool equipment bonding. Improper venting clearance, undersized gas supply, or missing bonding can produce carbon monoxide, cause heater shutdowns, and void Raypak's warranty. This heater is rated for elevations of 0 to 2,000 feet only, do not install above 2,000 feet without the correct high-altitude orifice kit.
Full Specifications
Frequently Asked Questions
What is the difference between the P-R206A-EP-C (009224) and the P-M206A-EP-C (009974) or P-D206A-EP-C (009946)?
All three are 199,500 BTU propane Digital 206A heaters. The P-R206A-EP-C (009224) uses copper tubes with polymer headers, the P-M206A-EP-C (009974) uses cupro-nickel tubes with polymer headers for harder water and salt pools, and the P-D206A-EP-C (009946) is the same copper build with cupro-nickel upgrades for some commercial use. Pick the 009224 for standard chlorinated residential water chemistry.
What pool size is the Raypak 206A rated for?
At 199,500 BTU input and 82% efficiency, the 206A is sized for residential pools up to roughly 20,000 gallons in moderate climates. For pools over 25,000 gallons, look at the 266A, 336A, or 406A models in the same series. Spa-only and pool/spa combo installations use this model heavily because it brings a spa to 104 F quickly.
Can this heater run on natural gas instead of propane?
No. The EP in P-R206A-EP-C means the unit is factory-built and certified for liquid propane only. The matching natural gas model is the P-R206A-EN-C (009217). Field-converting between gas types is not supported by Raypak.
Will this work at my elevation?
The 009224 is rated for 0 to 2,000 feet only. Raypak builds separate high-altitude SKUs for 2,000 to 3,000 ft (009228), 3,000 to 5,000 ft, and 5,000 to 7,000 ft. Confirm your install elevation before ordering, the orifices are not interchangeable in the field.
Can I install this heater myself?
No. Propane gas piping must be sized, sealed, and pressure-tested by a licensed gas technician per NFPA 54, and the electrical hookup plus pool bonding must follow NEC Article 680. Self-installation typically voids the Raypak warranty and creates real carbon-monoxide and electrocution risk. PST recommends a licensed pool builder or HVAC contractor familiar with Raypak Digital heaters.
What size propane line and tank do I need?
Raypak specifies a manifold pressure that requires at least 11 inches water column of supply pressure for propane. Most installations use a 1/2 inch or 3/4 inch propane line from a dedicated regulator, sized by your gas contractor against the total connected BTU load. A 199.5K BTU heater running continuously consumes roughly 2.2 gallons of propane per hour, so size your tank for your run schedule plus reserve.
Is the Raypak Digital warranty intact when I buy from PST Pool Supplies?
Yes. PST Pool Supplies is an authorized Raypak dealer, and every heater ships factory-sealed with the full Raypak limited residential warranty. Keep your purchase receipt and have a licensed installer file the start-up documentation to lock in coverage.
Order the Raypak 009224 From PST
Authorized Raypak dealer, factory-fresh stock, and our service team on standby for sizing and install questions.
Additional Info
| Category | Pool Products Pool Heaters |
| SKU | PST-PR206AEPC |
| MPN | 009224 |
| Manufacturer | Raypak |
| Weight | 250.0 lb |
