Product Information
Description
IMPORANT NOTE: When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.

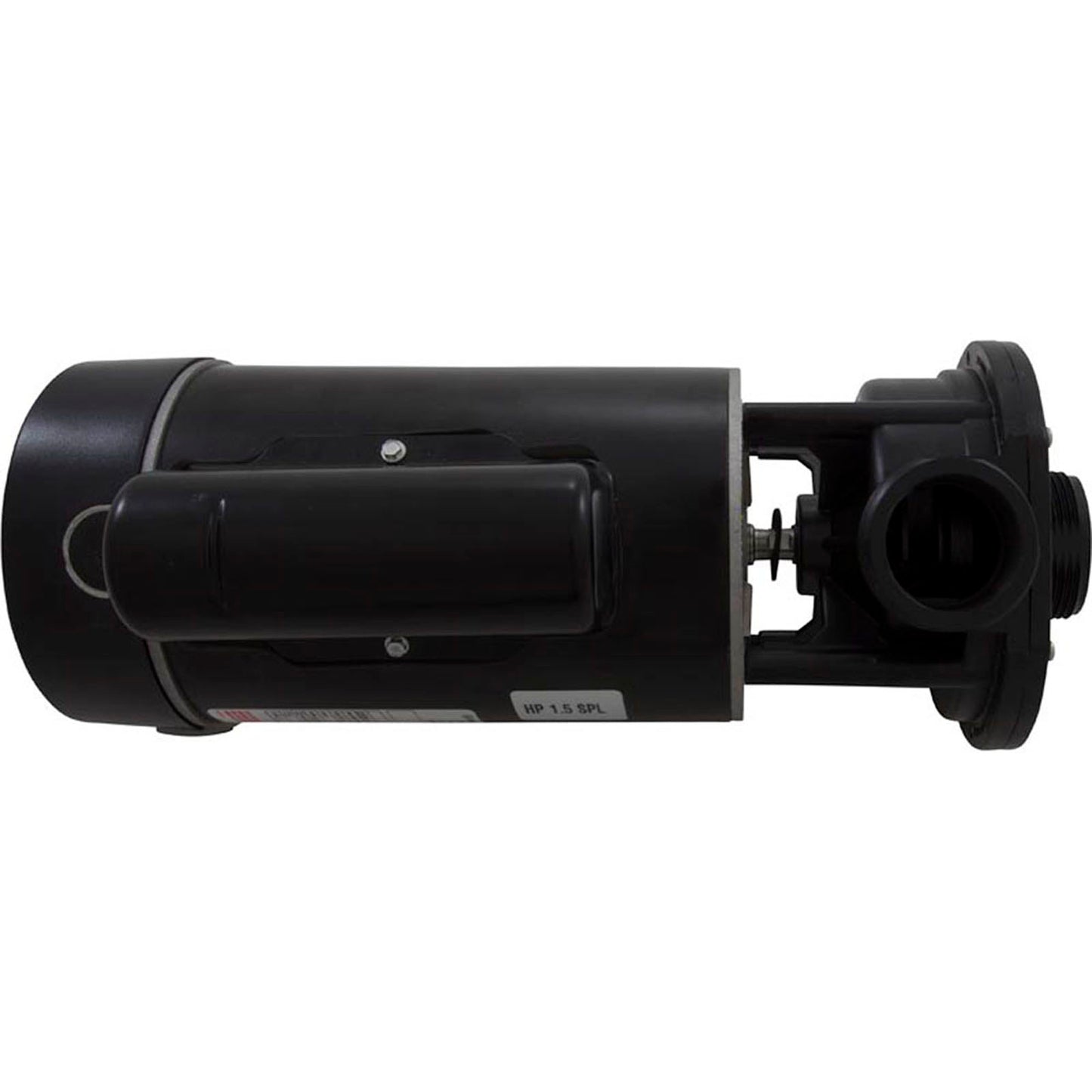

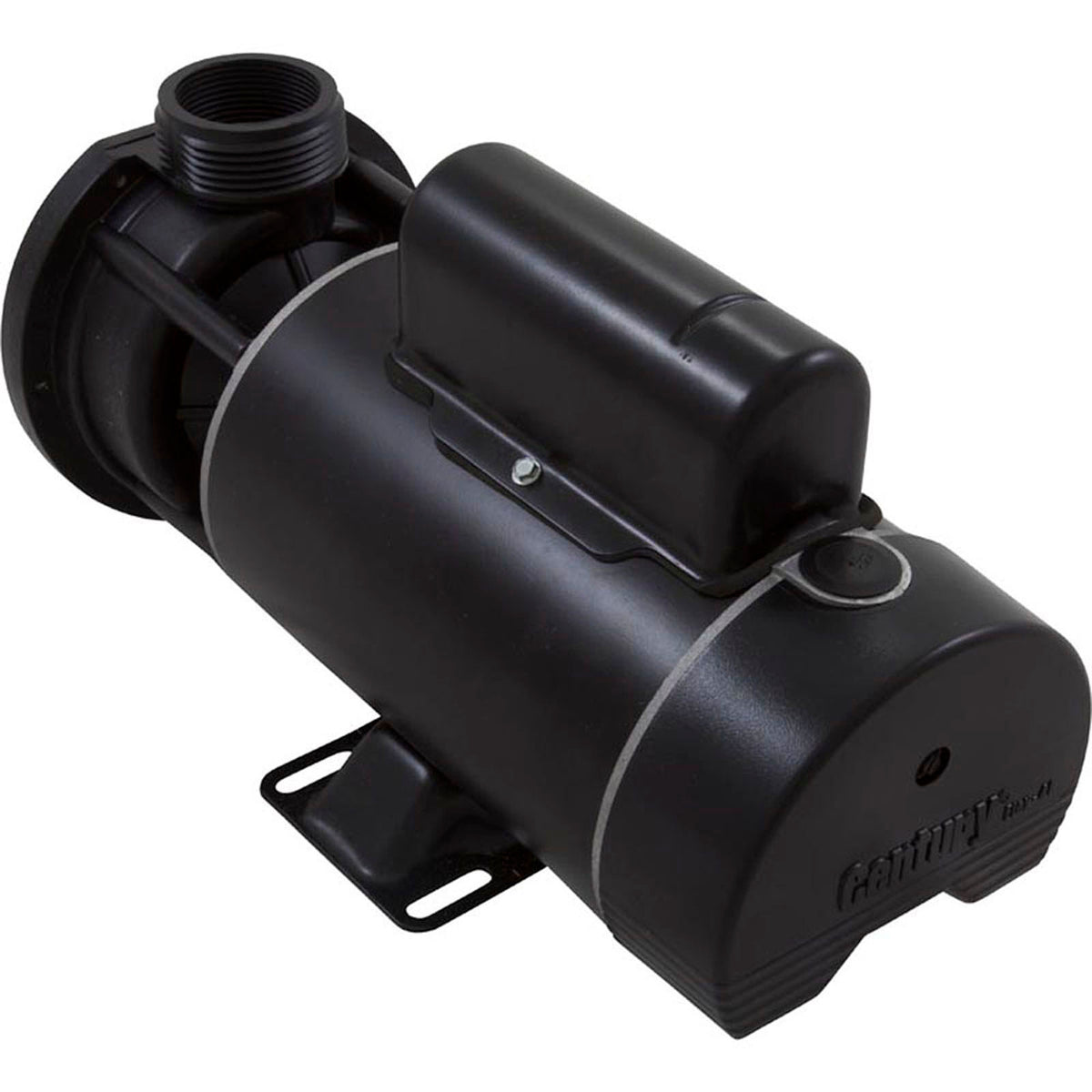

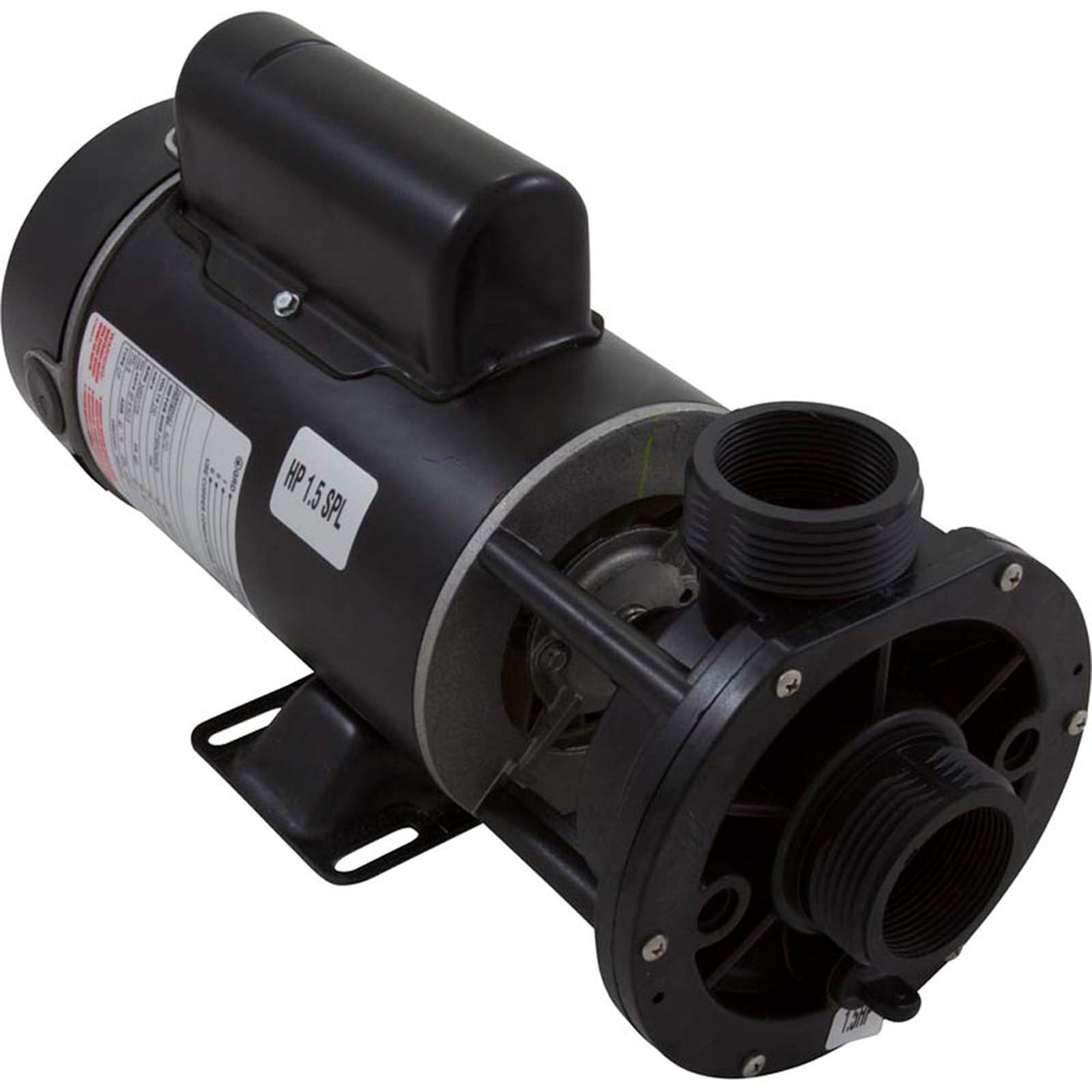

The Waterway Center Discharge 48-Frame pump is the perfect replacement for most center discharge applications. It has reliable performance. It features 1-1/2" intake and discharge and a rotatable wet end for easy installation.
SPA PUMP PRODUCT FEATURES:
- Reliable center discharge performance.
- 1-1/2" Intake and discharge.

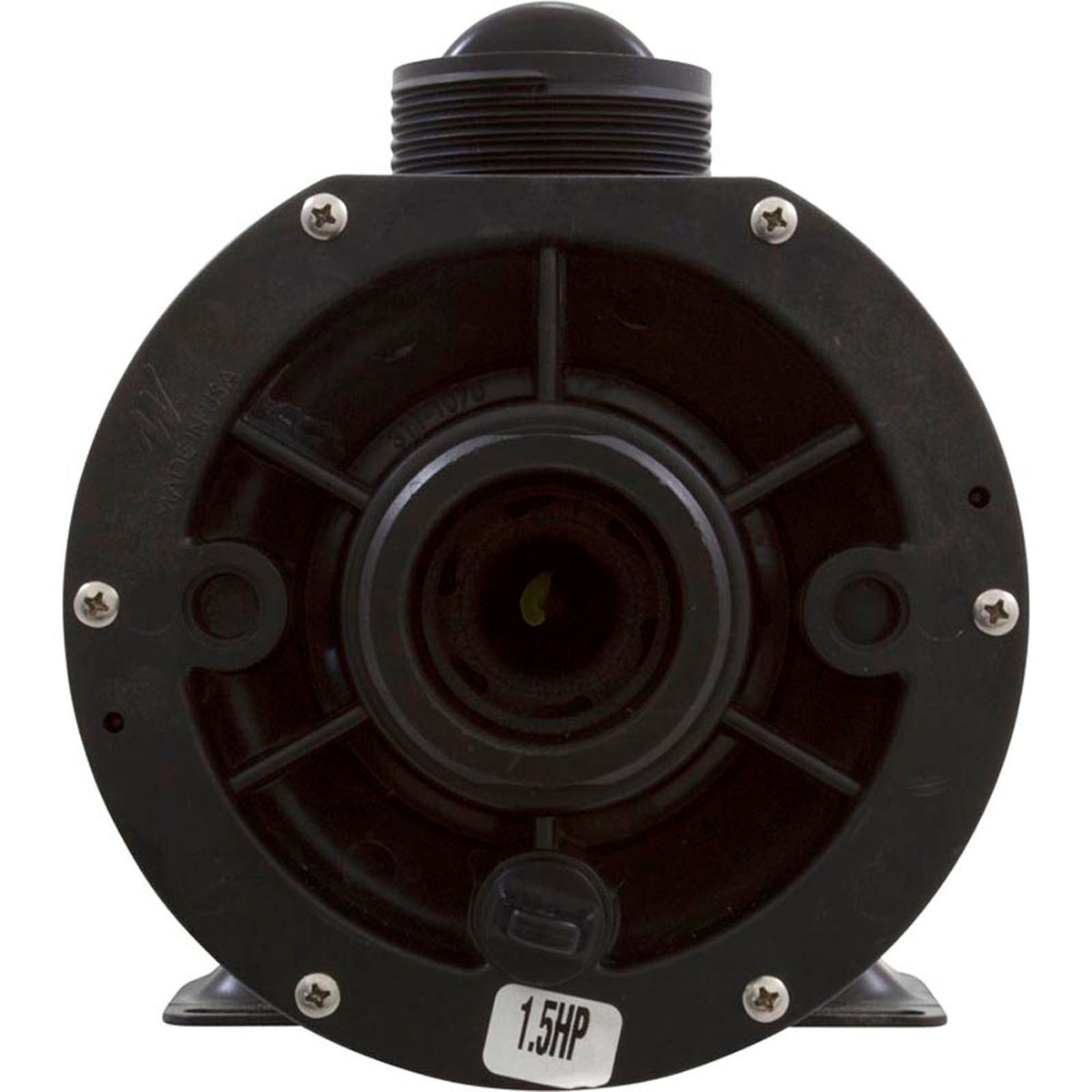

- Wet end can be rotated for easy installation.
- 1.5hp - Dual Speed Pump.
- Dimensions (H x W x L): 7.35" x 7" x 14.00"
- California Title 20 Compliant.
Note: This new E-Series version replaces the old style Waterway center discharge pump.
Product Specifications:
Complete Pump Type
Portable Spa Pump
Speed
2 Speed (2-Spd)
Motor Voltage
230v
Drain Plug Location
3,6,9 o`clock
Pump to Motor Foot Types
15
Suction Style
Center
Suction Connection (Physical Dimension)
1-7/8"id, 2-7/16"od
Suction Connection Type
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Suction Pipe Size
1-1/2"
Discharge Style
Center
Discharge Connection (Physical Dimension)
1-7/8"id, 2-7/16"od
Discharge Connection Type
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Discharge Pipe Size
1-1/2"
Horsepower
1.5hp
Motor Frame
48 Frame Thru-Bolt

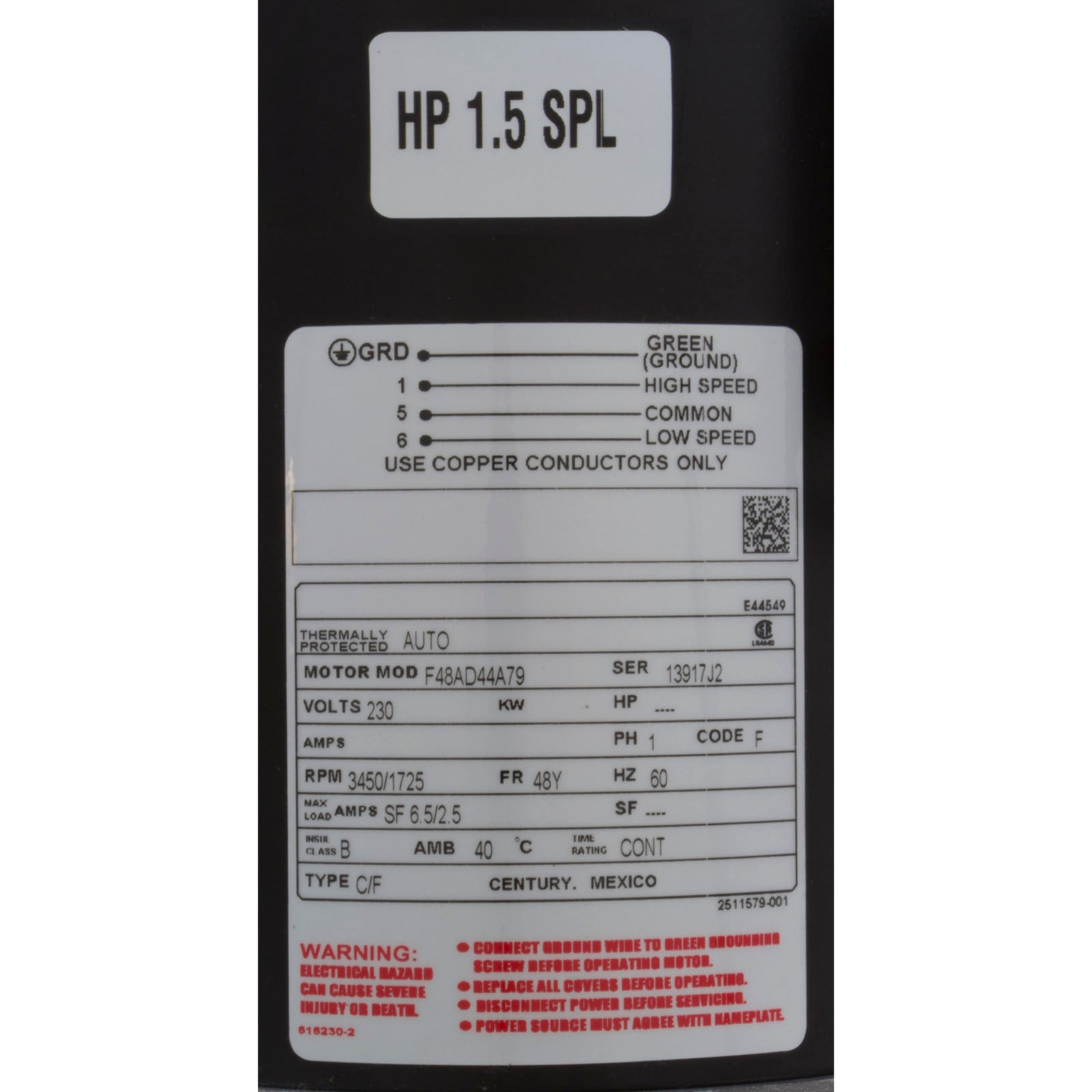

Motor Amperage/Wattage
6.5A/2.5A
Manufacturer
Waterway
Pump Model
E-Series Center Discharge
Manufacturer Impeller Number
310-8030
Volute Fastening Type
6 Screws
Volute/Sealplate Number
315-1070
Manufacturer Wet End Number
310-1140
Additional Info
| Category | Spa Products Spa Circulation Pumps |
| SKU | PST-34-270-3027W |
| MPN | 3420620-15HZW |
| Replaces | 3420620, 3420620-15 |
| Manufacturer | Waterway Plastics |
| Weight | 30.89 lb |
