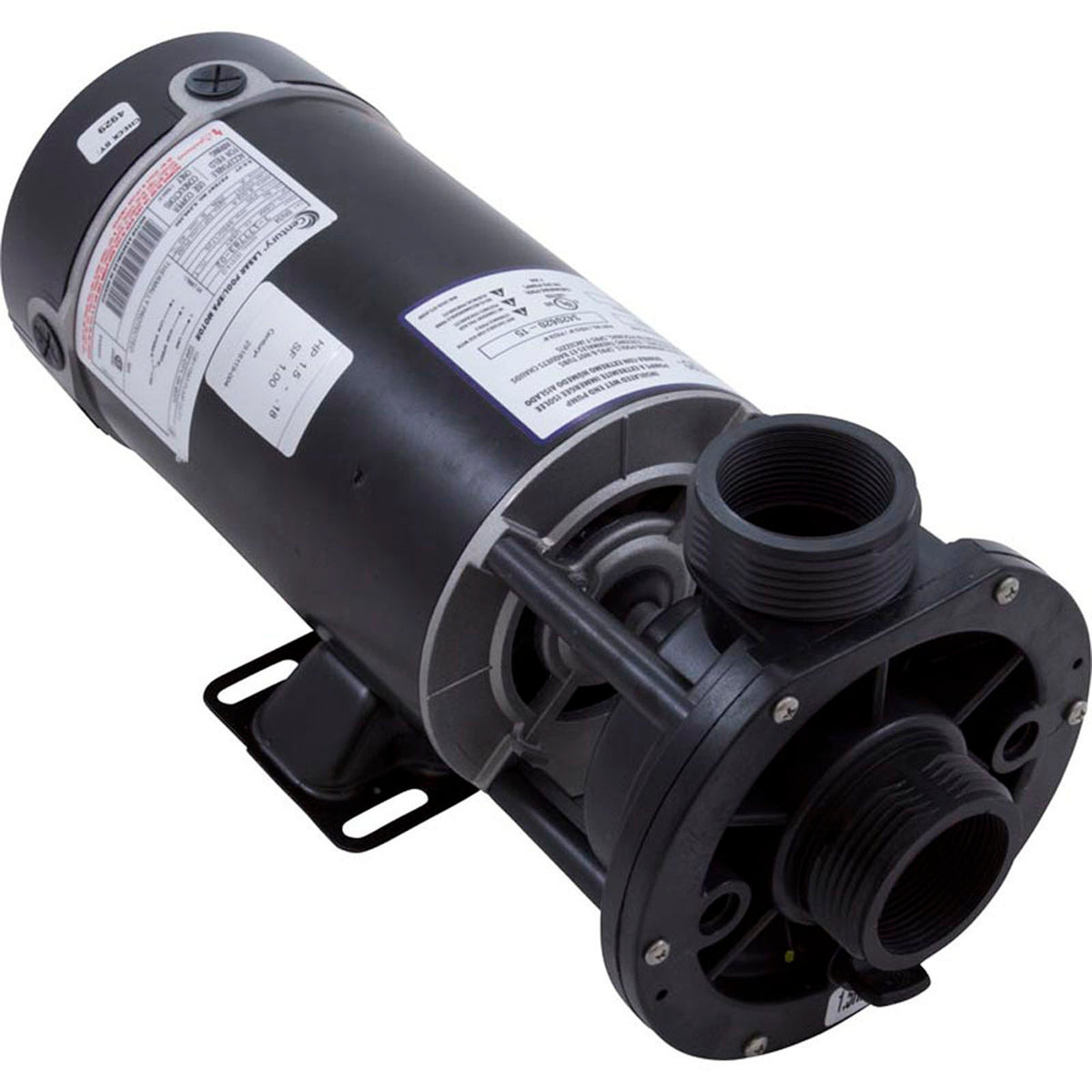

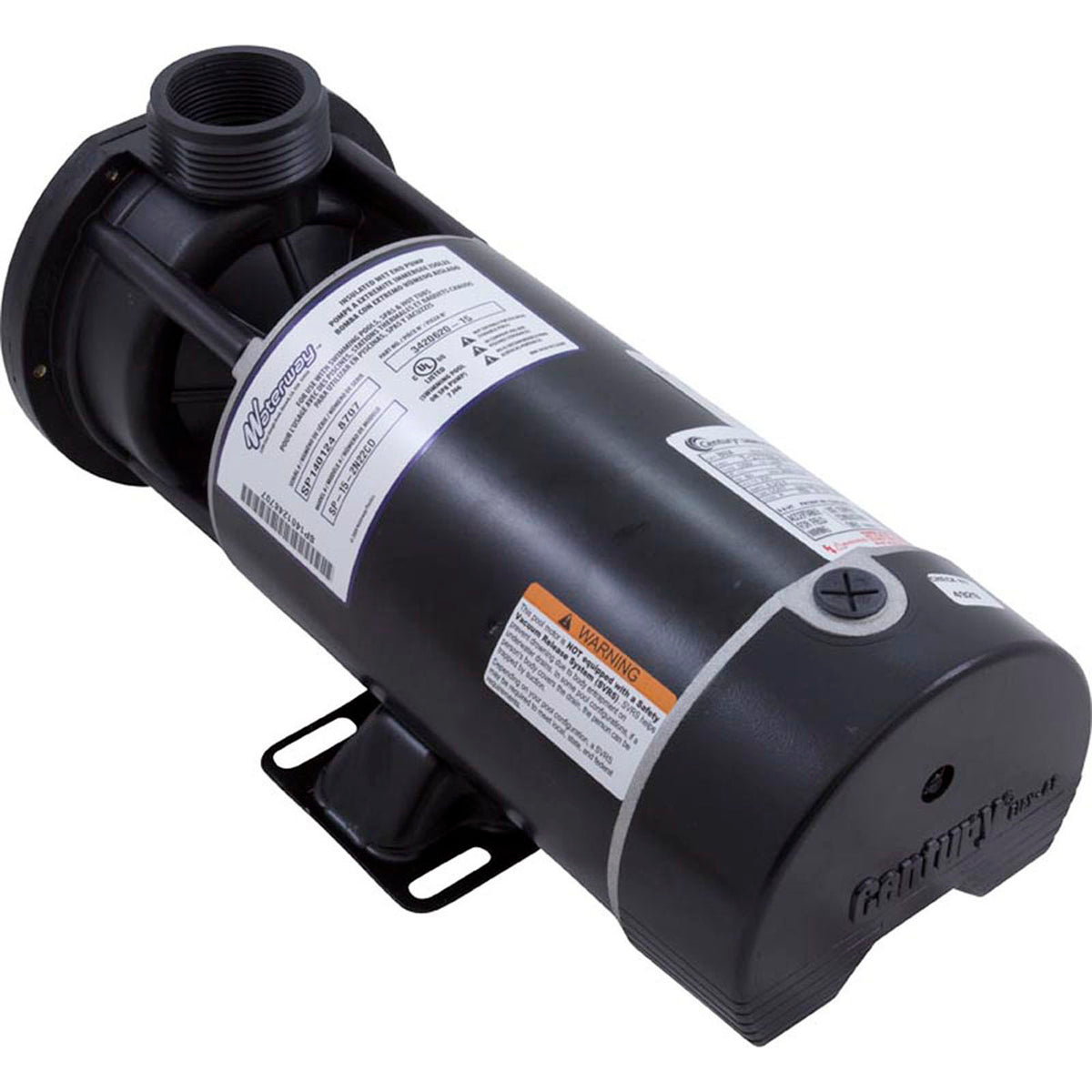

Pump, WW E-Series, 1.5hp, 230v, 2-Speed, 48fr, 1-1/2", OEM

Pump, WW E-Series, 1.5hp, 230v, 2-Speed, 48fr, 1-1/2", OEM

Waterway Plastics Part # 3420620-15
SKU: SKU: PST-34-270-3618
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 39940.0 Website Price Number: 39940.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110404632641","mpn":"3420620-15","saleprice":"0","warehouselocations":"Memphis, TN","warranty":"12 Months","websiteprice":"399.4"}
Regular price $406.70
Regular price $483.30 Sale price $406.70

Out of stock

Recommended Add-ons

Pump Cord, H-Q, 14/4 x 31, AMP-4 Male(R/B/W with G)
Pump Cord, H-Q, 14/4 x 31, AMP-4 Male(R/B/W with G)
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 1740.0 Website Price Number: 1740.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110674313281","discontinued":false,"mpn":"30-1001C","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months","websiteprice":"17.4"}
Regular price $18.00
Regular price $34.30 Sale price $18.00
Pump Union, 1-1/2"fbt x 1-1/2"s, qty 2
Pump Union, 1-1/2"fbt x 1-1/2"s, qty 2
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 1670.0 Website Price Number: 1670.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110765244481","discontinued":false,"mpn":"52271000","saleprice":"0","warehouselocations":"Las Vegas, NV","warranty":"12 Months","websiteprice":"16.7"}
Regular price $18.10
Regular price $36.00 Sale price $18.10
O-Ring, Buna-N, 1-7/8" ID, 1/8" Cross Section, Generic
O-Ring, Buna-N, 1-7/8" ID, 1/8" Cross Section, Generic
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 770.0 Website Price Number: 770.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110786969665","discontinued":false,"mpn":"90-423-5225","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months","websiteprice":"7.7"}
Regular price $8.50
Regular price $18.10 Sale price $8.50
Motor Base, Waterway, Self Aligning, 48 Frame, Rubber
Motor Base, Waterway, Self Aligning, 48 Frame, Rubber
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 1190.0 Website Price Number: 1190.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110662647873","discontinued":false,"mpn":"319-0019","saleprice":"0","warehouselocations":"Las Vegas, NV","warranty":"12 Months","websiteprice":"11.9"}
Regular price $13.60
Regular price $28.10 Sale price $13.60
View full details

Product Information

Description

The Waterway Center Discharge 48-Frame pump is the perfect replacement for most center discharge applications. It has reliable performance. It features 1-1/2" intake and discharge and a rotatable wet end for easy installation.

Spa Pump Product Features:

  • Reliable center discharge performance.
  • 1-1/2" Intake and discharge.
  • Wet end can be rotated for easy installation.
  • 1.5 hp and 2 speed.
  • Dimensions (H x W x L): 7.35" x 7" x 15.73".
  • California Title 20 Compliant.

Note: This new E-Series version replaces the old style Waterway center discharge pump.

Product Specifications:
Complete Pump Type
Portable Spa Pump
Speed
2 Speed (2-Spd)
Motor Voltage
230v
Drain Plug Location
3,6,9 o`clock
Pump to Motor Foot Types
15
Suction Style
Center
Suction Connection (Physical Dimension)
1-7/8"id, 2-7/16"od
Suction Connection Type
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Suction Pipe Size
1-1/2"
Discharge Style
Center
Discharge Connection (Physical Dimension)
1-7/8"id, 2-7/16"od
Discharge Connection Type
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Discharge Pipe Size
1-1/2"
Horsepower
1.5hp
Motor Frame
48 Frame Thru-Bolt
Motor Amperage/Wattage
6.5A/2.5A
Manufacturer
Waterway
Pump Model
E-Series Center Discharge
Manufacturer Impeller Number
310-8030
Volute Fastening Type
6 Screws
Volute/Sealplate Number
315-1070
Manufacturer Wet End Number
310-1140

Additional Info

Category Spa Products Spa Circulation Pumps
SKU PST-34-270-3618
MPN 3420620-15
Replaces 3420620, 3420620-15, 5030-151, 5030-253, 625232
Manufacturer Waterway Plastics
Weight 0.0 lb
