Product Information
Description

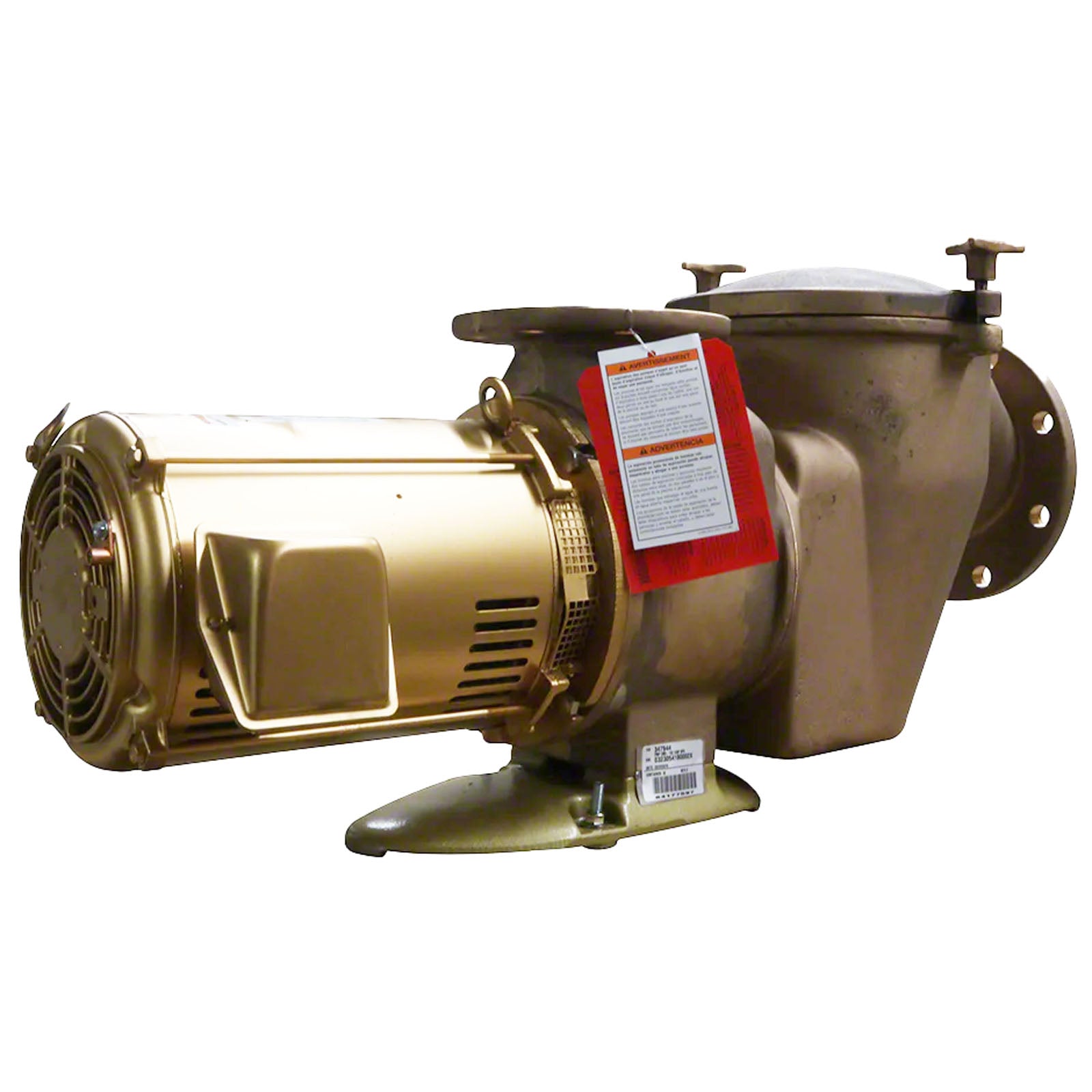

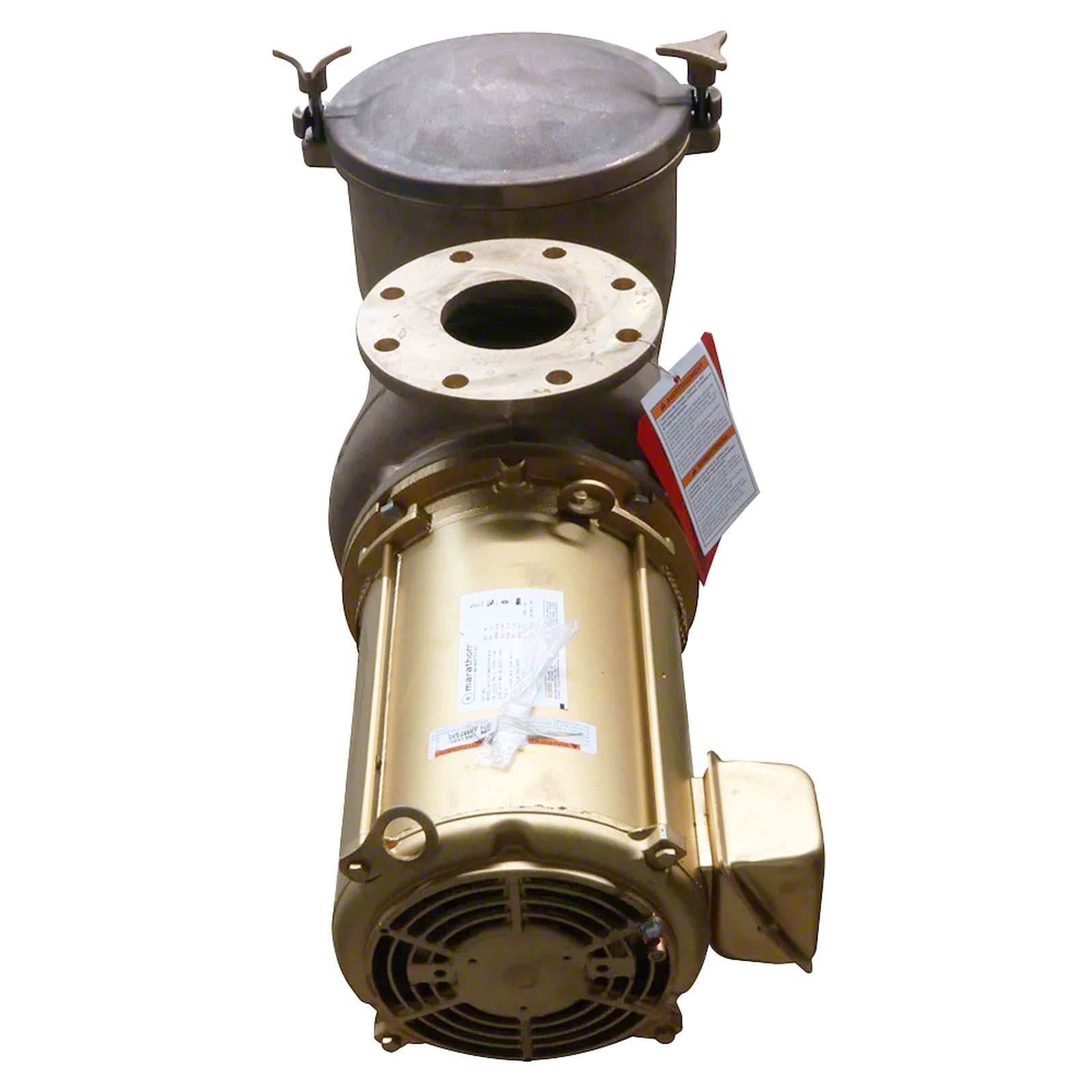

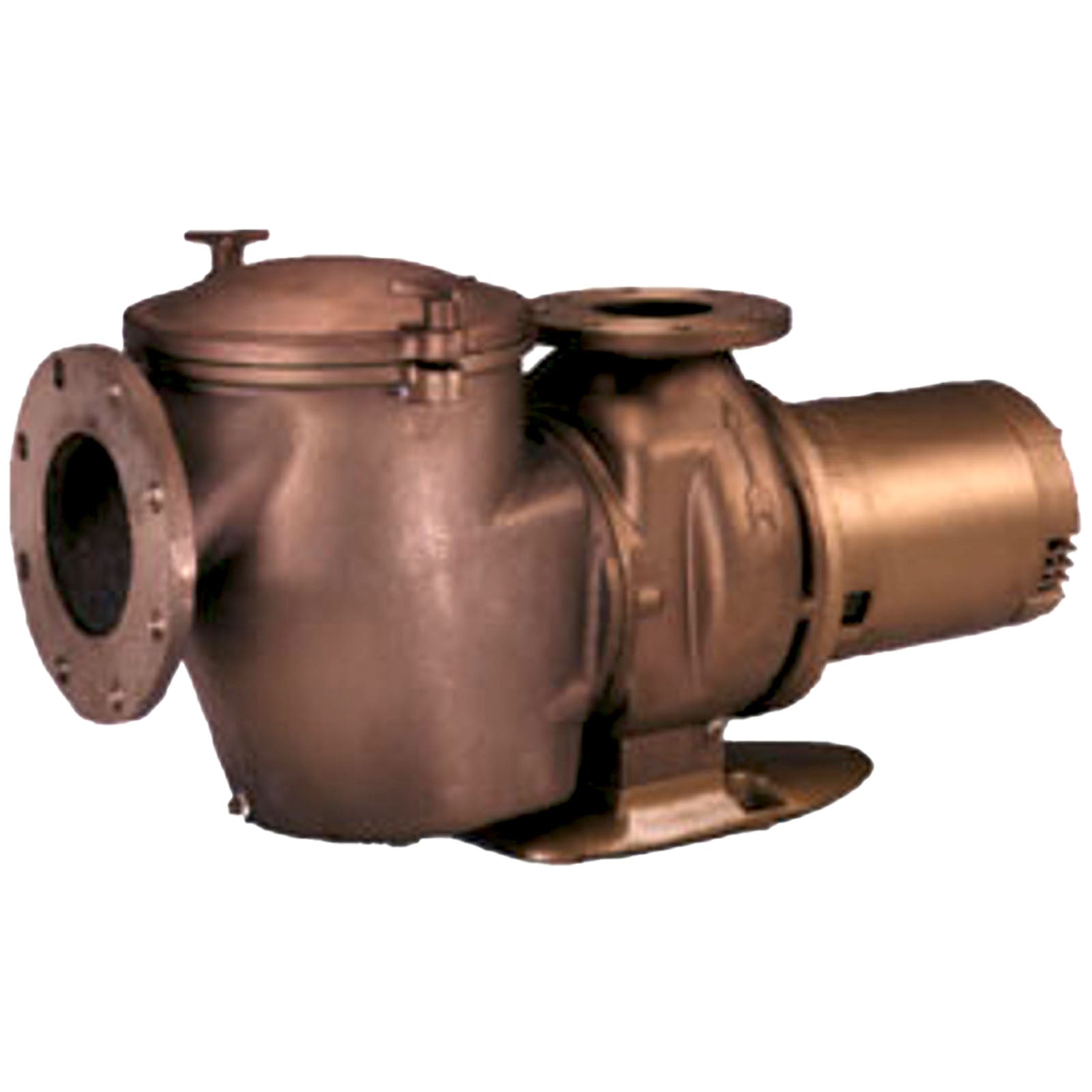

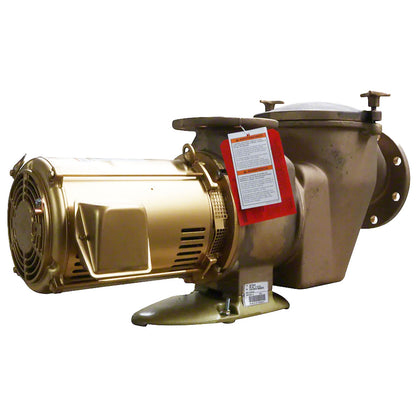

011659, Pump, Pentair C Series CHK-100 W/ Trap, 10hp, 3ph, BronzeProduct Features:
- Large commercial pump with stainless steel basket.
- Easy service ability.
- All bronze construction for strength and durability.
- 6 Inch suction and 4 Inch discharge for maximum capabilities.

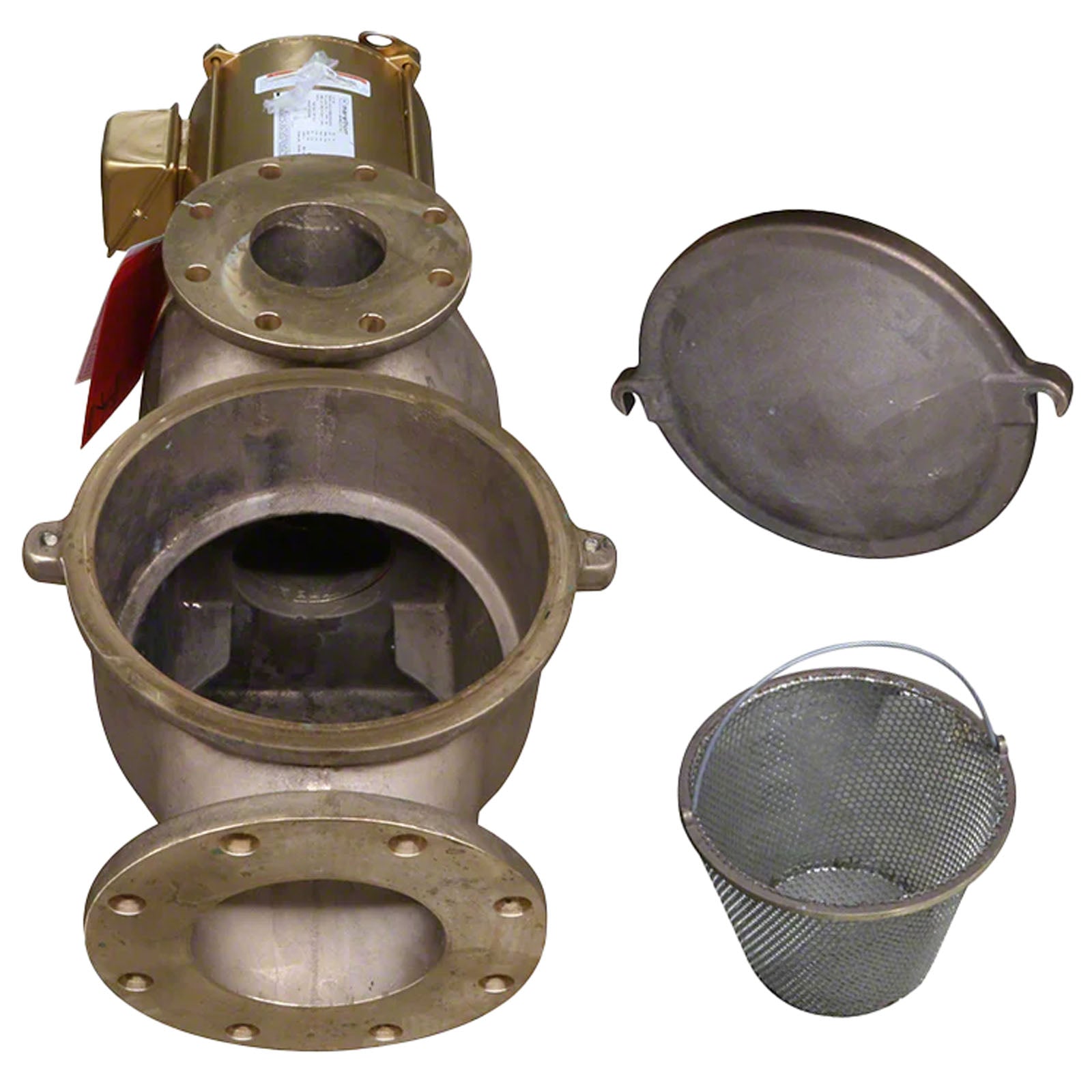

- Heavy-gauge stainless steel strainer basket with an open area 5 times the area of the suction port.
- Closed impeller for longer motor bearing life.
- Heat-resistant seal capable of operation at up to 150 deg.
- Bronze volute and pot, coated cast iron foot, flanged connections, 6 Inch suction, 4 Inch discharge.
Product Specifications:
Complete Pool Pump Type
Commercial
Motor Voltage
220v/440v
Speed
1 Speed (1-Spd)
Motor Amperage/Wattage
25.3A/12.6A
Horsepower
10.0hp
Manufacturer
Pentair
Pump Model
C Series
Suction Pipe Size
6"
Suction Style
Top
Discharge Pipe Size
4"
Discharge Style
Center
Enclosure
NEMA Rated
Frequency Rating
60 Hz
Height
19-1/4 Inch
Length
36.88 Inch
Motor Class
B
Phase
3-Phase
Port Size
6 Inch x 4 Inch ANSI Flange
Service Factor
1.15
Standards Approvals
NSF Listed , NSF Standard 50 For Non Self-Priming Centrifugal Pumps
Width
16-1/2 Inch
Additional Info
| Category | Pool Products Pool Pumps Single Speed Pumps |
| SKU | PST-34-102-1442 |
| MPN | 011659 |
| Replaces | 84559 |
| Manufacturer | Pentair Pool Products |
| Weight | 376.0 lb |
