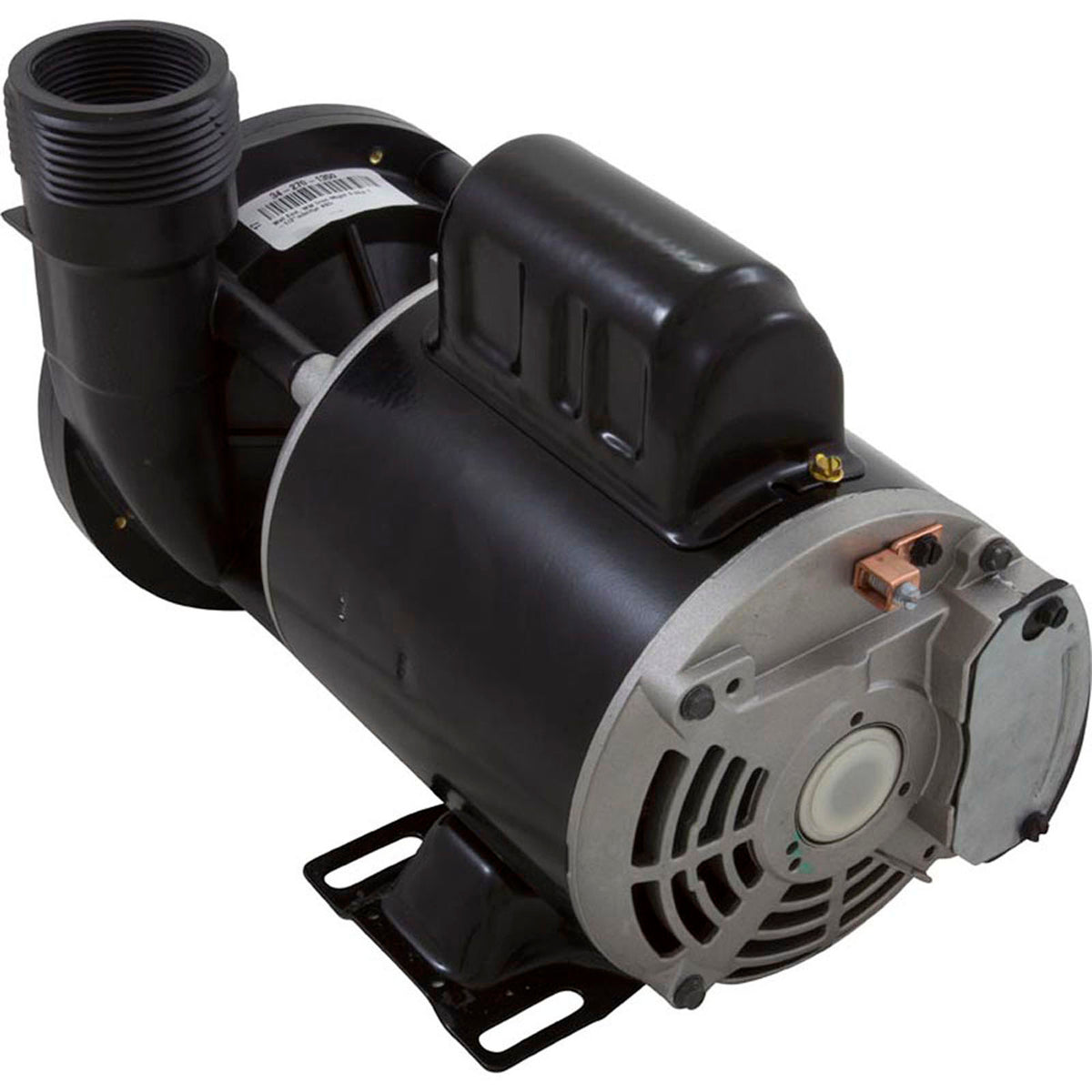

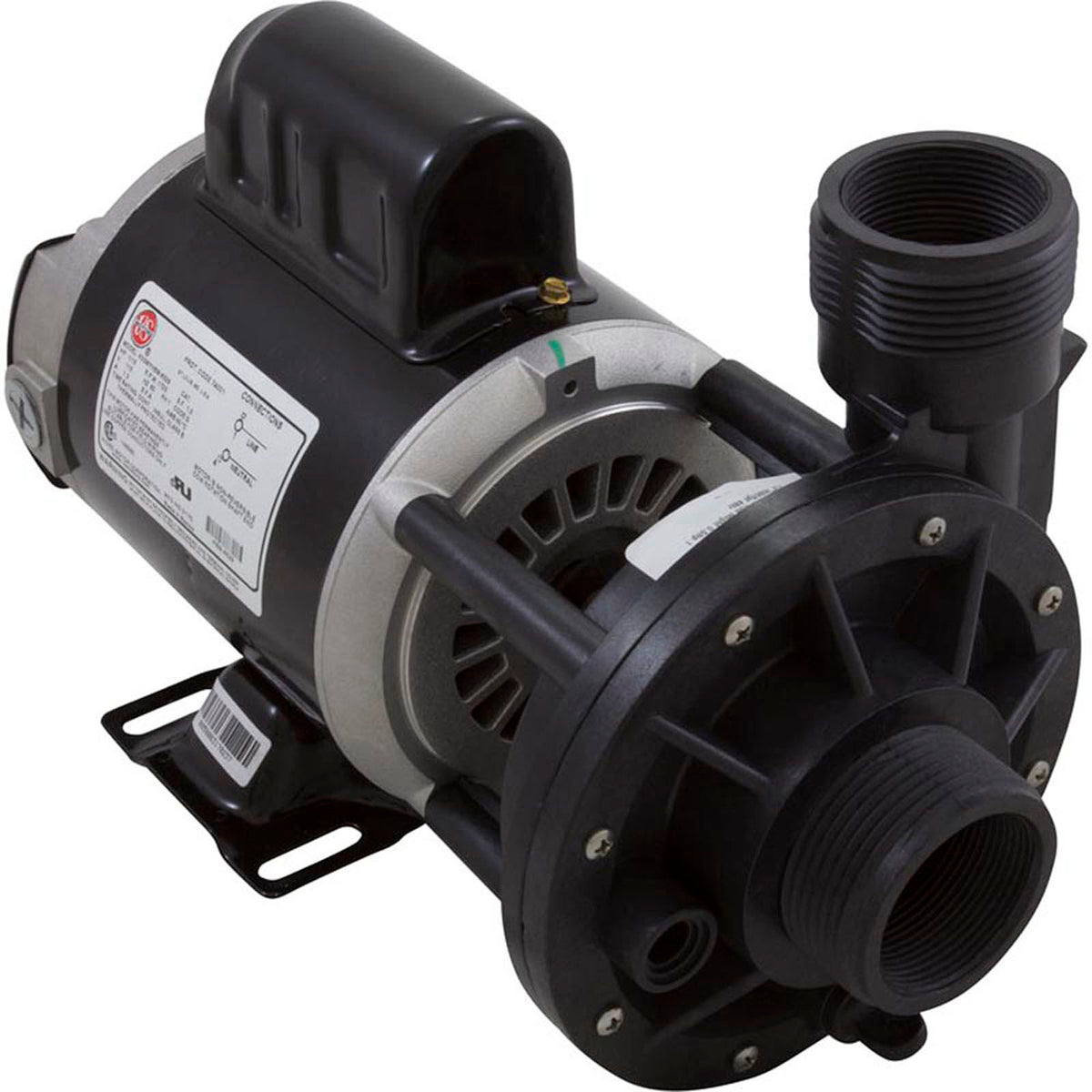

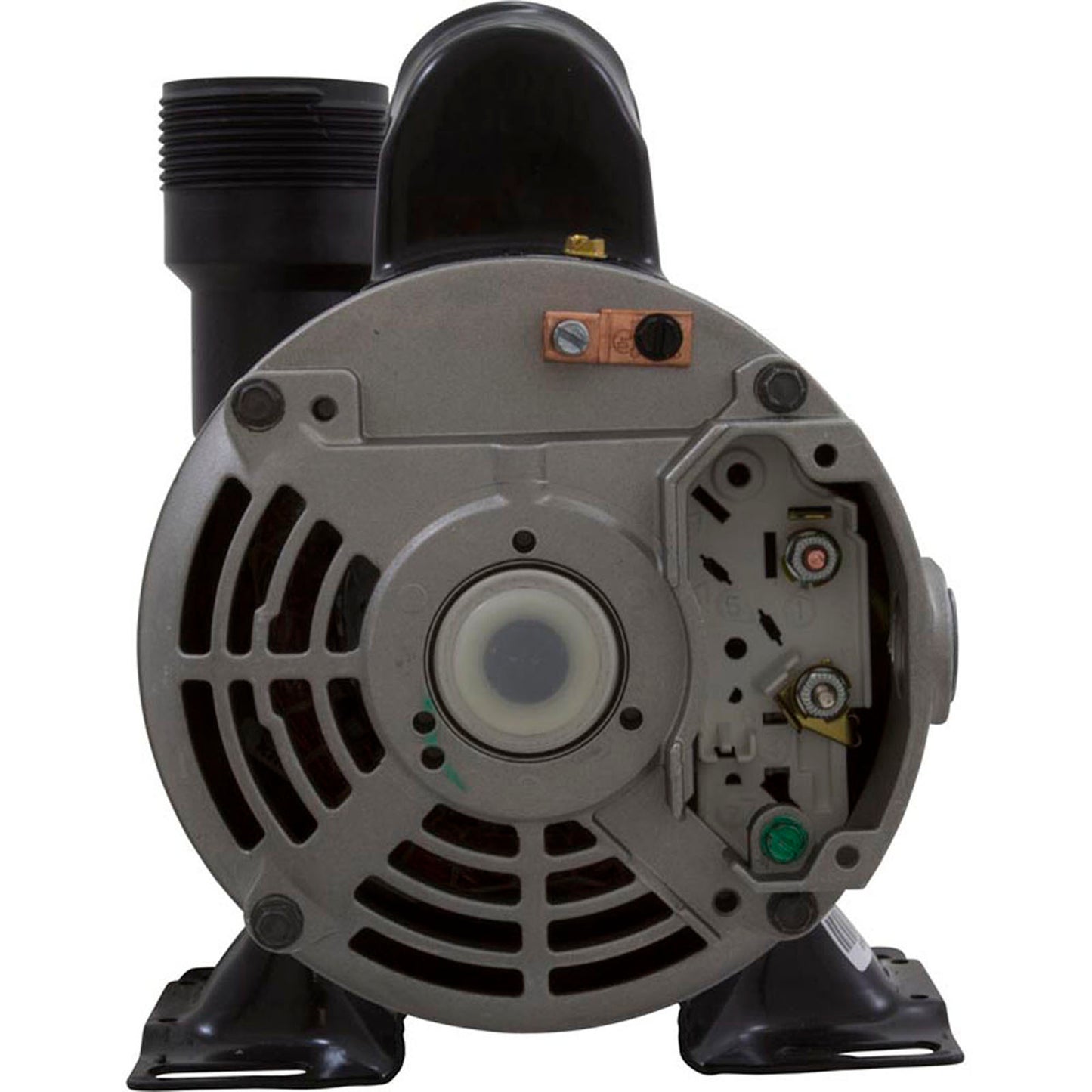

Pump, Circ, WW Iron Might, 1/15hp US Motors, 1-1/2", 230v, 48fr

Pump, Circ, WW Iron Might, 1/15hp US Motors, 1-1/2", 230v, 48fr

Waterway Plastics Part # 3410020-1EHZN
SKU: SKU: PST-34-270-1055N
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 24360.0 Website Price Number: 24360.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110399389761","mpn":"3410020-1EHZN","saleprice":"0","warehouselocations":"Tucson, AZ","warranty":"12 Months","websiteprice":"243.6"}
Regular price $239.40
Regular price $359.10 Sale price $239.40

Out of stock

Recommended Add-ons

Cord, H-Q, P2, 1-Spd, Molded/Lit, 48", 115v/230v, 15A, Pink
Cord, H-Q, P2, 1-Spd, Molded/Lit, 48", 115v/230v, 15A, Pink
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 1980.0 Website Price Number: 1980.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110675886145","mpn":"30-0240-48","saleprice":"0","warehouselocations":"Las Vegas, NV","warranty":"12 Months","websiteprice":"19.8"}
Regular price $30.40
Regular price $56.10 Sale price $30.40
O-Ring, Buna-N, 2" ID, 1/8" Cross Section, Generic
O-Ring, Buna-N, 2" ID, 1/8" Cross Section, Generic
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 770.0 Website Price Number: 770.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110787035201","discontinued":false,"mpn":"90-423-5226","saleprice":"0","warehouselocations":"Bloomfield, CT","warranty":"12 Months","websiteprice":"7.7"}
Regular price $8.80
Regular price $16.90 Sale price $8.80
Pump Union, 1-1/2" Female Buttress Thread x 1-1/2" Slip
Pump Union, 1-1/2" Female Buttress Thread x 1-1/2" Slip
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 1120.0 Website Price Number: 1120.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110760984641","discontinued":false,"mpn":"0602-15B","saleprice":"0","warehouselocations":"Bloomfield, CT","warranty":"12 Months","websiteprice":"11.2"}
Regular price $12.50
Regular price $27.20 Sale price $12.50
Motor Base, Waterway, Self Aligning, 48 Frame, Rubber
Motor Base, Waterway, Self Aligning, 48 Frame, Rubber
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 1190.0 Website Price Number: 1190.0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110662647873","discontinued":false,"mpn":"319-0019","saleprice":"0","warehouselocations":"Las Vegas, NV","warranty":"12 Months","websiteprice":"11.9"}
Regular price $13.60
Regular price $28.10 Sale price $13.60
View full details

Product Information

Description

NOTE: When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.

The Iron Might is the ultimate in efficiency. It uses only 1.3 Amps while offering twenty-four hour circulation, pumping 40 gallons per minute (GPM).

Spa Pump Features:

  • Side discharge for optimum performance.
  • 24 hour circulation.
  • 48 frame proven design.
  • 1-1/2" union in/out.
  • Uses less than an amp of power.
  • Dimensions (H x W x L): 8.25" x 6.5" x 12"
  • California Title 20 Compliant.
Product Specifications:
Complete Pump Type
Circulation Pump
Speed
1 Speed (1-Spd)
Motor Voltage
230v
Drain Plug Location
7,10 o`clock
Pump to Motor Foot Types
15
Suction Style
Center
Suction Connection (Physical Dimension)
1-11/16"id, 2-7/16"od
Suction Connection Type
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Suction Pipe Size
1-1/2"
Discharge Style
Side
Discharge Connection (Physical Dimension)
1-11/16"id, 2-7/16"od
Discharge Connection Type
Female Pipe Thread (fpt), Male Buttress Thread (mbt)
Discharge Pipe Size
1-1/2"
Horsepower
1/15hp
Motor Frame
48 Frame Thru-Bolt
Motor Amperage/Wattage
1.3A
Manufacturer
Waterway
Pump Model
Iron Might
Manufacturer Impeller Number
310-8020
Volute Fastening Type
8 Screws
Volute/Sealplate Number
311-1060
Manufacturer Wet End Number
310-1000

Additional Info

Category Spa Products Spa Circulation Pumps
SKU PST-34-270-1055N
MPN 3410020-1EHZN
Replaces 3410020-1E, 34100201E, 806105066381, WWP34100201E
Manufacturer Waterway Plastics
Weight 0.0 lb
