Product Information
Description

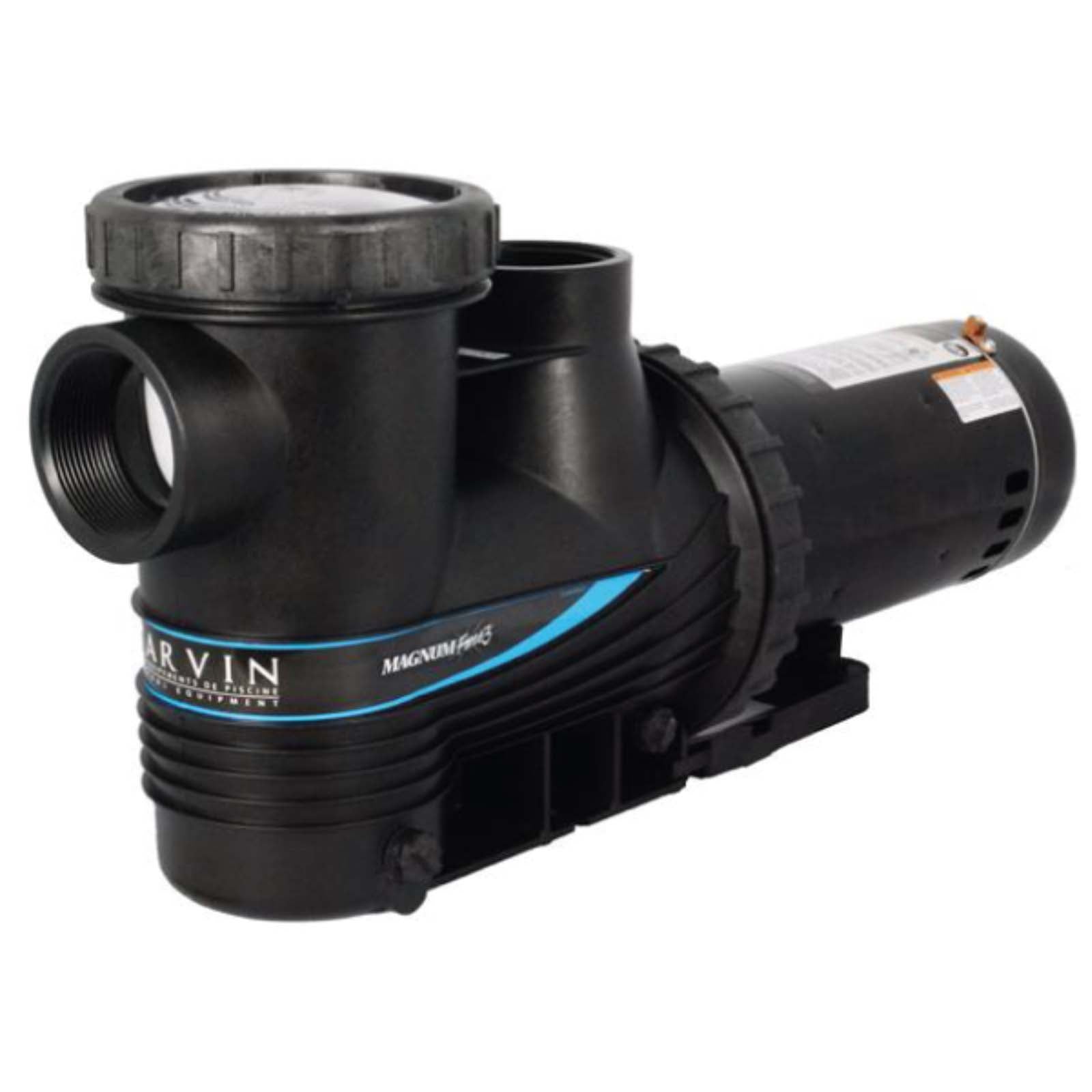

Pump, Carvin Magnum Force 3, 4.0hp, 1-Spd, 3 Phase, 3", Full, EEPump Features:
- Exclusive flap prevents debris in the pump strainer, skimmer basket and filter from flowing back into the pool
- Flap also prevents residual hot water in the heater from flowing into the filter and causing damage
- Exclusive dual Ring-Lok™ design gives tool-free access to the strainer basket and pump internals
- Heavy-duty strainer basket with exclusive priming tube for superior priming capabilities
- Patened air-cooled heat sink lets the pump run dry without damaging the shaft seal
- One-piece case eliminates bolts and gaskets and provides for quiet operation
- Floating eye seal between closed impeller and diffuser maximizes efficiency
- 3" fpt connections
- Maximum water temperature 104℉
- Energy effiecient motor
Product Specifications:
Complete Pool Pump Type
In Ground
Motor Voltage
208v-230v/460v
Speed
1 Speed (1-Spd)
Motor Amperage/Wattage
10.1A-9.8A/4.9A
Horsepower
4.0hp
Manufacturer
Jacuzzi/Carvin
Pump Model
Magnum Force 3
Suction Pipe Size
3"
Suction Connection Type
Female Pipe Thread (fpt)
Suction Style
Top
Discharge Pipe Size
3"
Discharge Connection Type
Female Pipe Thread (fpt)
Discharge Style
Center
Motor Frame
C-Face
Drain Plug Location
L/Side Bottom, Back
Additional Info
| Category | Pool Products Pool Pumps Single Speed Pumps |
| SKU | PST-34-105-1022 |
| MPN | 94022710 |
| Replaces | 390355, 5064-460, 9402-2710 |
| Manufacturer | Carvin |
| Weight | 50.0 lb |
