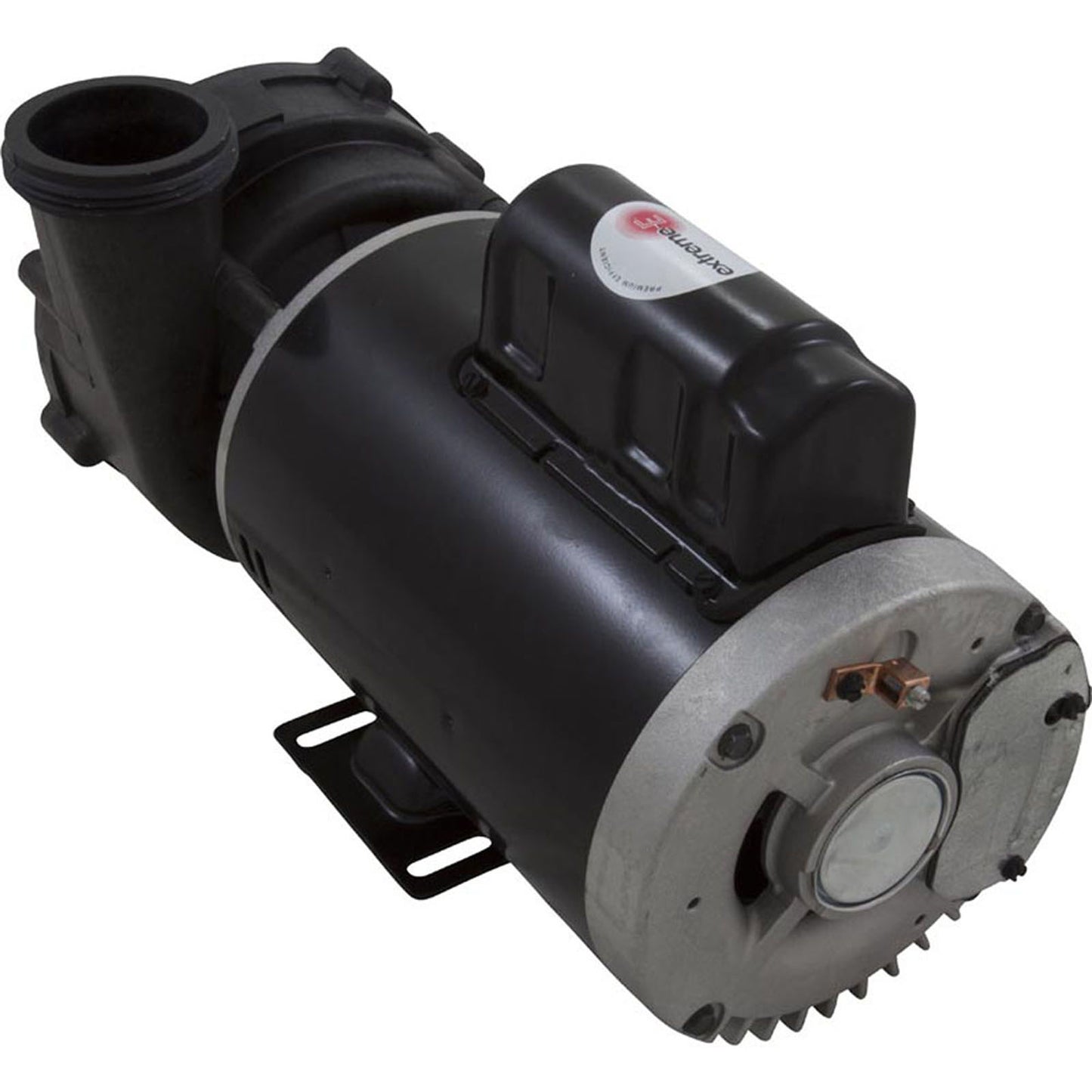

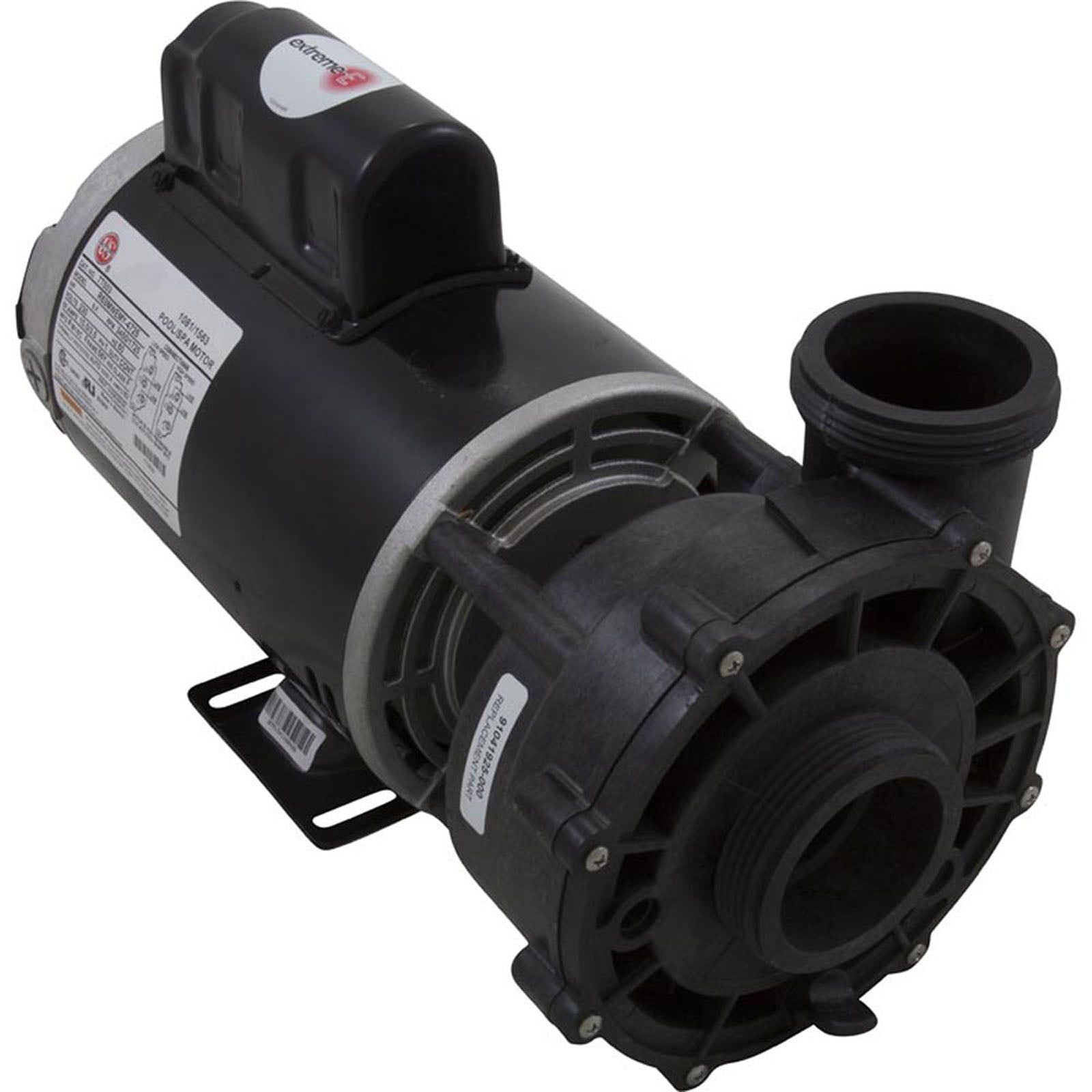

Pump, Aqua Flo XP2e, 2.5hp US Motor, 230v, 2-Speed, 56fr, 2"

Pump, Aqua Flo XP2e, 2.5hp US Motor, 230v, 2-Speed, 56fr, 2"

Aqua-Flo Part # 05325761-2000HZN
SKU: SKU: PST-34-402-2480N
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110410563649","mpn":"05325761-2000HZN","warranty":"2 Year"}
Regular price $346.00
Regular price $535.80 Sale price $346.00

Out of stock

Frequently Bought Together

Pump Cord, H-Q, 14/4 x 31, AMP-4 Male(R/B/W with G)
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110674313281","discontinued":false,"mpn":"30-1001C","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months"}
Regular price $18.80
Regular price $40.50 Sale price $18.80
Pump Union, 2" Female Buttress Thread x 2" Slip
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110761017409","discontinued":false,"mpn":"0602-20","saleprice":"0","warehouselocations":"Las Vegas, NV","warranty":"12 Months"}
Regular price $15.10
Regular price $35.40 Sale price $15.10
O-Ring, Buna-N, 2-1/2" ID, 1/8" Cross Section, Generic
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110787264577","discontinued":false,"mpn":"90-423-5230","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months"}
Regular price $9.90
Regular price $18.90 Sale price $9.90
Lube Tube, Roper Products, 4oz, with PFTE
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110753546305","mpn":"00450","saleprice":"0","warehouselocations":"Murray, UT | Las Vegas, NV","warranty":"12 Months"}
Regular price $17.60
Regular price $39.00 Sale price $17.60
View full details

Product Information

Description

Aqua-Flo by Gecko's original offering in this high performance spa line, the "XP2", offers high performance while utilizing the same space requirements as most other applications. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, heavily jetted spas requiring increased flow.

Spa Pump Product Features:

  • Fine tuned impeller that moves water through the system with maximum performance.
  • 2" suction and discharge.
  • 48 and 56 frame versions.
  • Thermally protected to extend life expectancy of motor.
  • Multiple drain locations.
  • Continuous rated horsepower of 2.5hp.
  • California Title 20 Compliant.
Product Specifications:
Speed
2 Speed (2-Spd)
Motor Voltage
230v
Drain Plug Location
4,6,9 o`clock
Pump to Motor Foot Types
9
Suction Style
Center
Suction Connection (Physical Dimension)
3-1/16"od
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2"
Discharge Style
Side
Discharge Connection (Physical Dimension)
3-1/16"od
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"

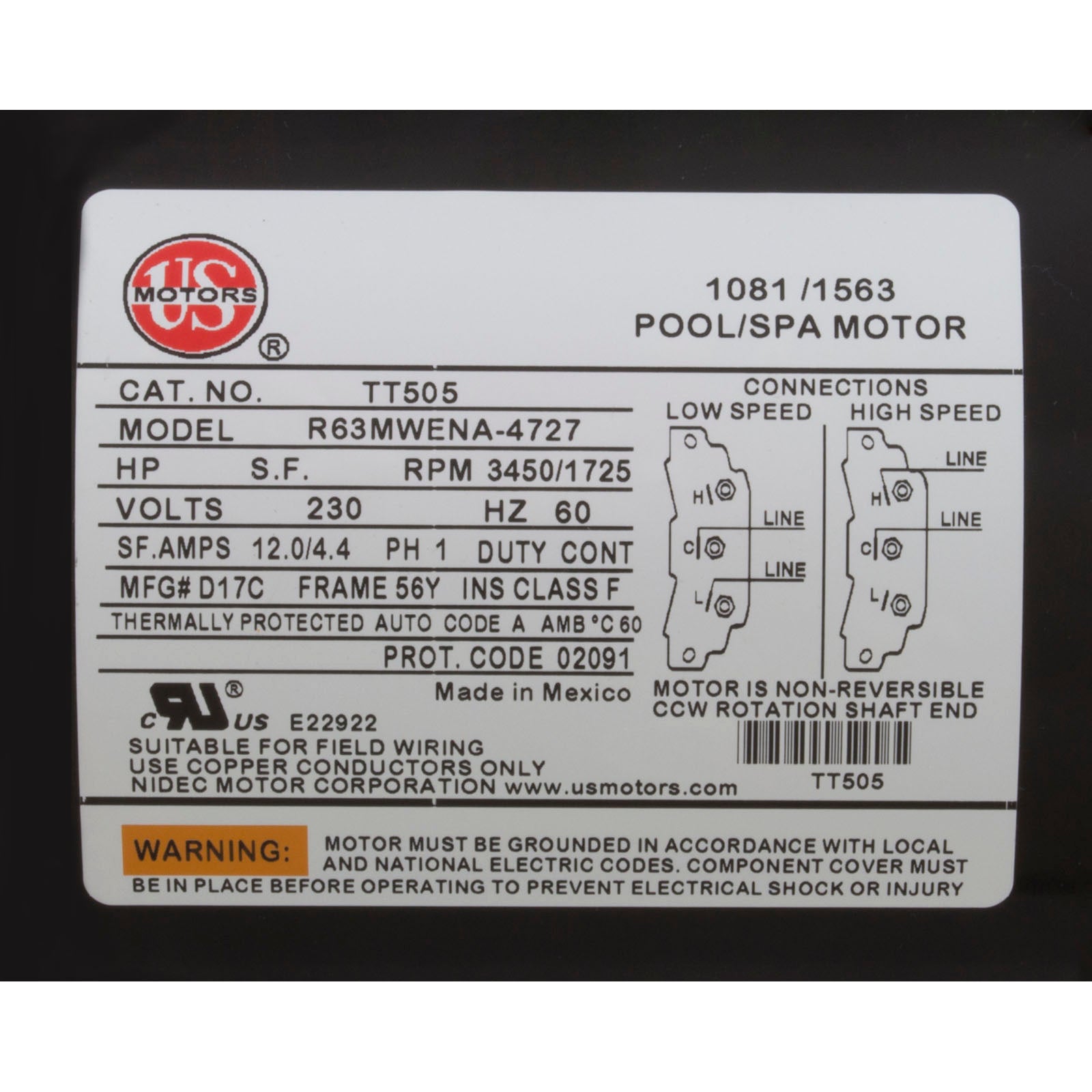

Horsepower
2.5hp
Motor Frame
56 Frame Thru-Bolt
Motor Amperage/Wattage
12.0A/4.4A
Manufacturer
AquaFlo/Gecko
Pump Model
Flo-Master XP2e
Manufacturer Impeller Number
91695250
Volute Fastening Type
8 Screws
Volute/Sealplate Number
92770705
Manufacturer Wet End Number
91041925-000

Additional Info

Category Spa Products Spa Circulation Pumps
SKU PST-34-402-2480N
MPN 05325761-2000HZN
Replaces 07330500-2040
Manufacturer Aqua-Flo
Weight 38.1 lb
