Product Information
Description

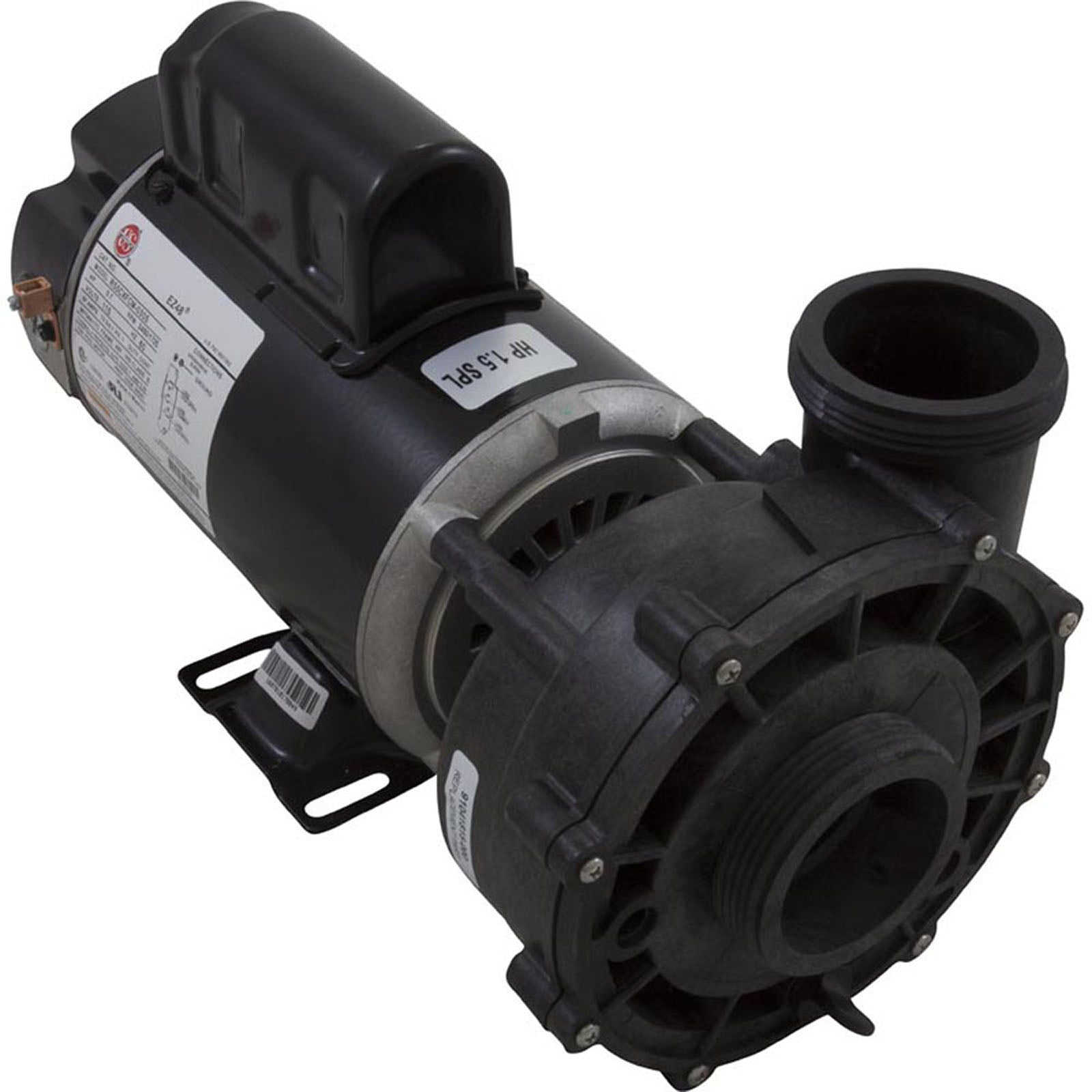

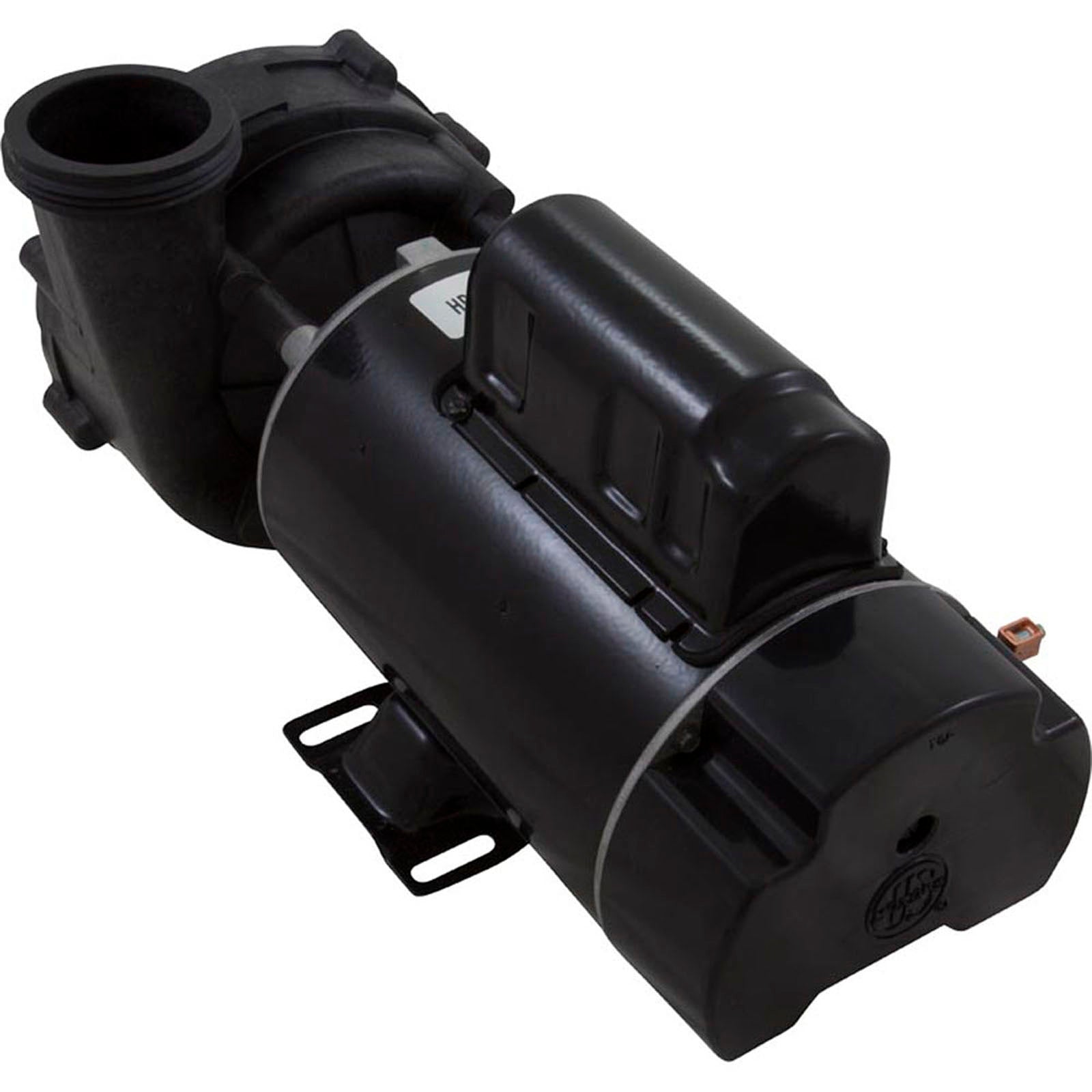

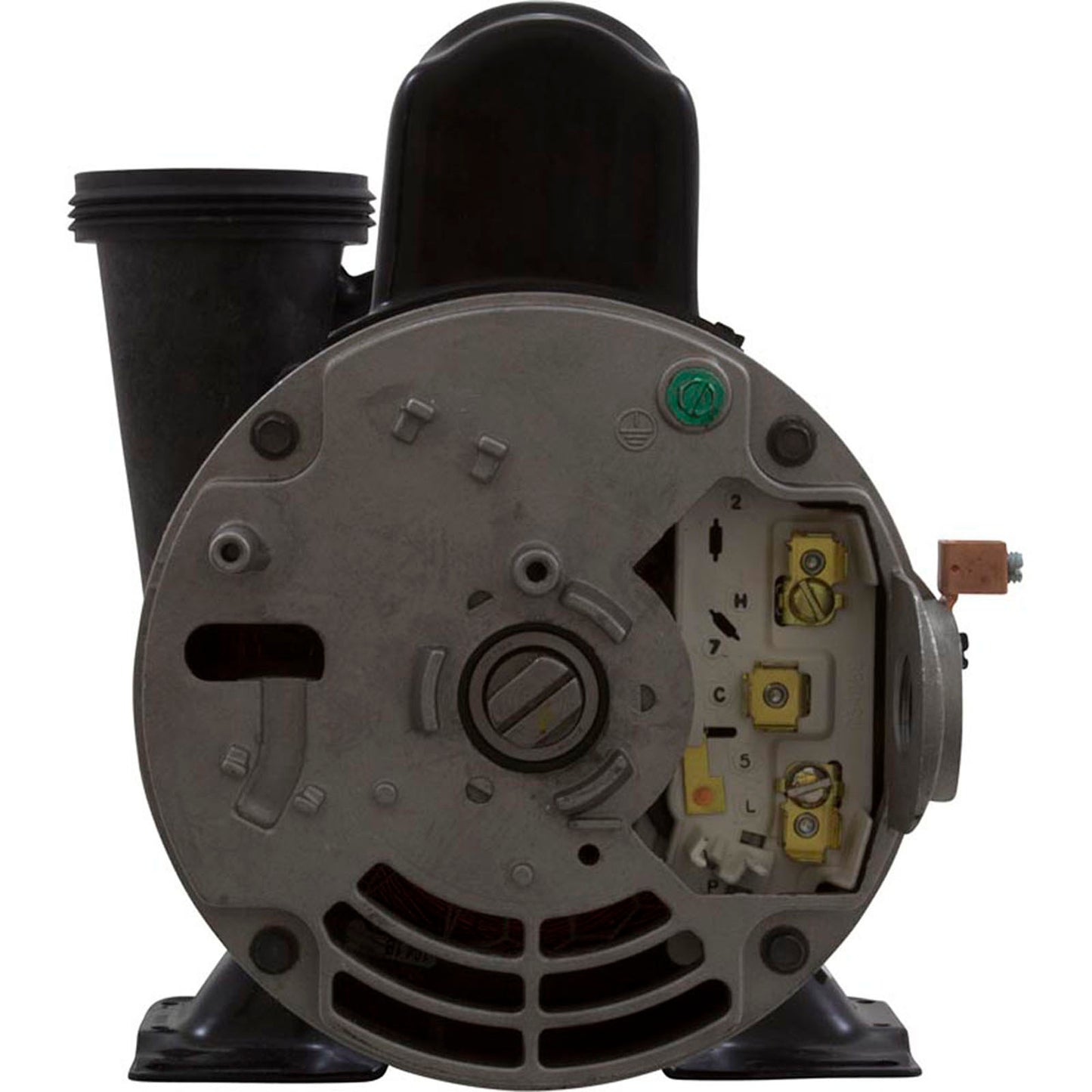

Pump, Aqua Flo XP2, 1.5hp Nidec, 115v, 2-Speed, 48fr, 2", Kit
When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.
Aqua-Flo by Gecko's original offering in this high performance spa line, the "XP2", offers high performance while utilizing the same space requirements as most other applications. Having a shut-off head of more than traditional 48 frame spa pumps, but less than 56 frame pool pumps, these unique pumps have been designed for today's large, heavily jetted spas requiring increased flow.
Spa Pump Features:
- Fine tuned impeller that moves water through the system with maximum performance.
- 2" suction and discharge.
- 48 and 56 frame versions.
- Thermally protected to extend life expectancy of motor.
- Multiple drain locations.
- California Title 20 Compliant.
Product Specifications:
Complete Pump Type
Portable Spa Pump
Speed
2 Speed (2-Spd)
Motor Voltage
115v
Drain Plug Location
4,6,9 o`clock
Pump to Motor Foot Types
9
Suction Style
Center
Suction Connection (Physical Dimension)
3-1/16"od
Suction Connection Type
Male Buttress Thread (mbt)
Suction Pipe Size
2"
Discharge Style
Side
Discharge Connection (Physical Dimension)
3-1/16"od
Discharge Connection Type
Male Buttress Thread (mbt)
Discharge Pipe Size
2"
Horsepower
1.5SPL
Motor Frame
48 Frame Thru-Bolt

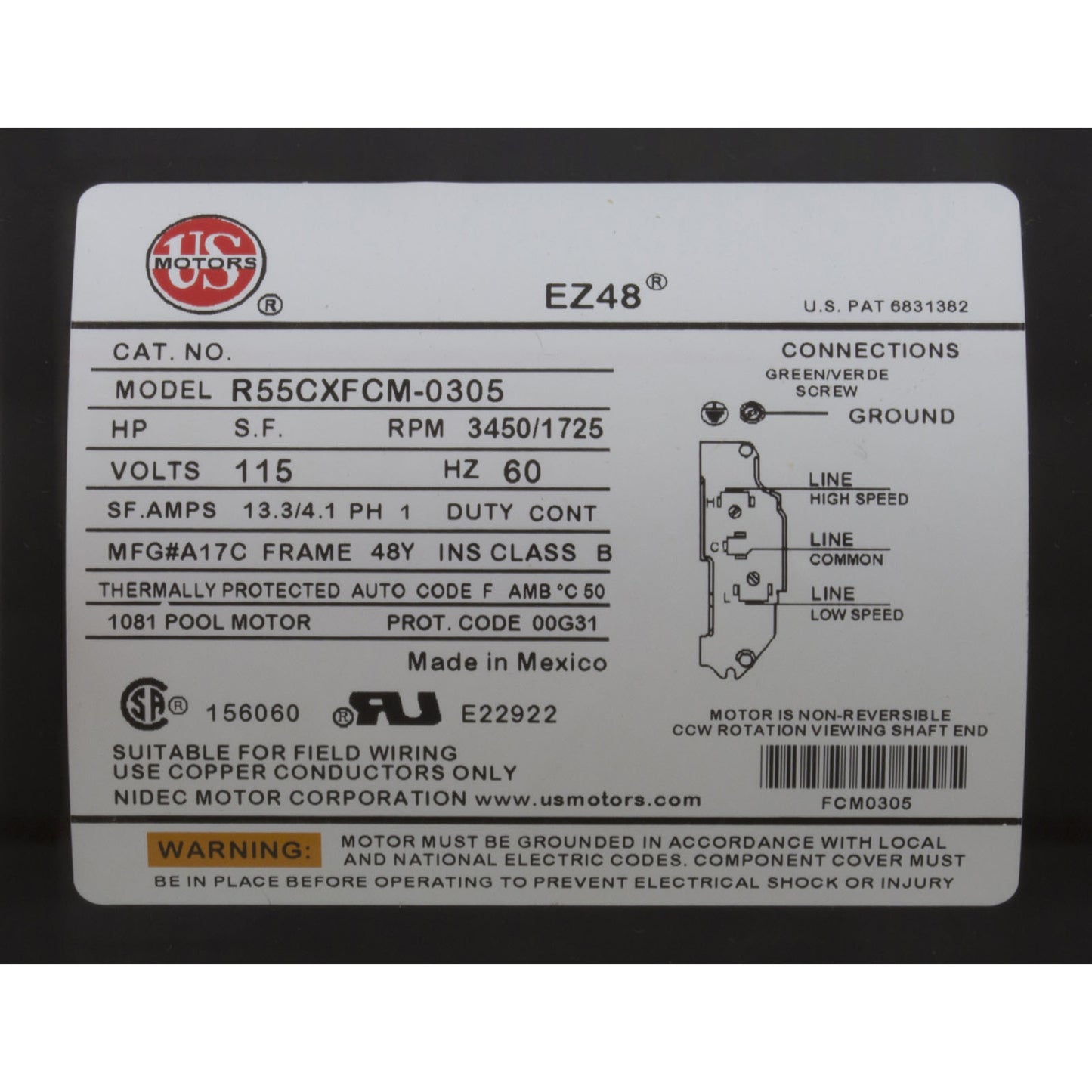

Motor Amperage/Wattage
13.3A/4.1A
Manufacturer
AquaFlo/Gecko
Pump Model
Flo-Master XP2e
Manufacturer Impeller Number
91694150
Volute Fastening Type
8 Screws
Volute/Sealplate Number
92770705
Manufacturer Wet End Number
91041815-000
Additional Info
| Category | Spa Products Spa Circulation Pumps |
| SKU | PST-34-402-2420N |
| MPN | 06115000-1040HZN |
| Replaces | 05015500-2000, 05115002-2300, 05115004-2000, 05115004-2300, 05115005-2040, 05115005-2340, 05115007-2340, 05115008-2340, 05115008-5340, 05115009-2340, 05215000-7340, 05517000-2340, 05615003-2000, 05615003-2300, 05615004-2340, 05615005-2340, 05615007-2300, 05615008-2340, 05615316-1300, 05615316-1340, 05615316-2300, 05615316-2340, 05615319-2040, 05615319-2300, 05615319-2340, 05615319-2381, 05617001-2300, 05617001-2340, 05617002-2300, 05617003-2300, 05617004-2300, 05617421-2340, 05815510-2340, 06115000-1040, 06617763-2, AF06115000, AQF-10-372 |
| Manufacturer | Aqua-Flo |
| Weight | 32.35 lb |
