Speck 21-80 G/GS Pump Power End, 4.0 HP, Single Phase, 56C Frame
Speck 21-80 G/GS Pump Power End, 4.0 HP, Single Phase, 56C Frame
Low stock: 4 left
Ships from: Memphis, TN | Tucson, AZ
Genuine OEM product.
- Today Shipping 10 hrs 7 mins left
- 30 days ReturnsPolicy
Frequently Bought Together
Product Information
Description
- Fits 21-80 G and 21-80 GS
- 4.0 HP, Single Phase
- 56C Frame
- Free Shipping
Speck 21-80 G/GS Pump Power End, 4.0 HP, Single Phase
Power end for the 4 HP Speck 21-80.
This Speck power end is the 4.0 HP, single phase, single speed power end for the Speck Model 21-80 G (flooded suction) and Model 21-80 GS (self-priming) pumps, on a 56C frame. Speck lists its 4.0 HP versions as Models 21-80/33 G and 21-80/33 GS, rated 208-230 V. Speck designs the 21-80 so the motor comes out without disturbing the plumbing.
Why PST Customers Pick This
Fits the 21-80 G and GS
Listed for both versions of the Speck 21-80: the 21-80 G flooded suction pump and the 21-80 GS self-priming pump, which Speck rates for self-priming up to 4 feet.
4.0 HP Single Phase

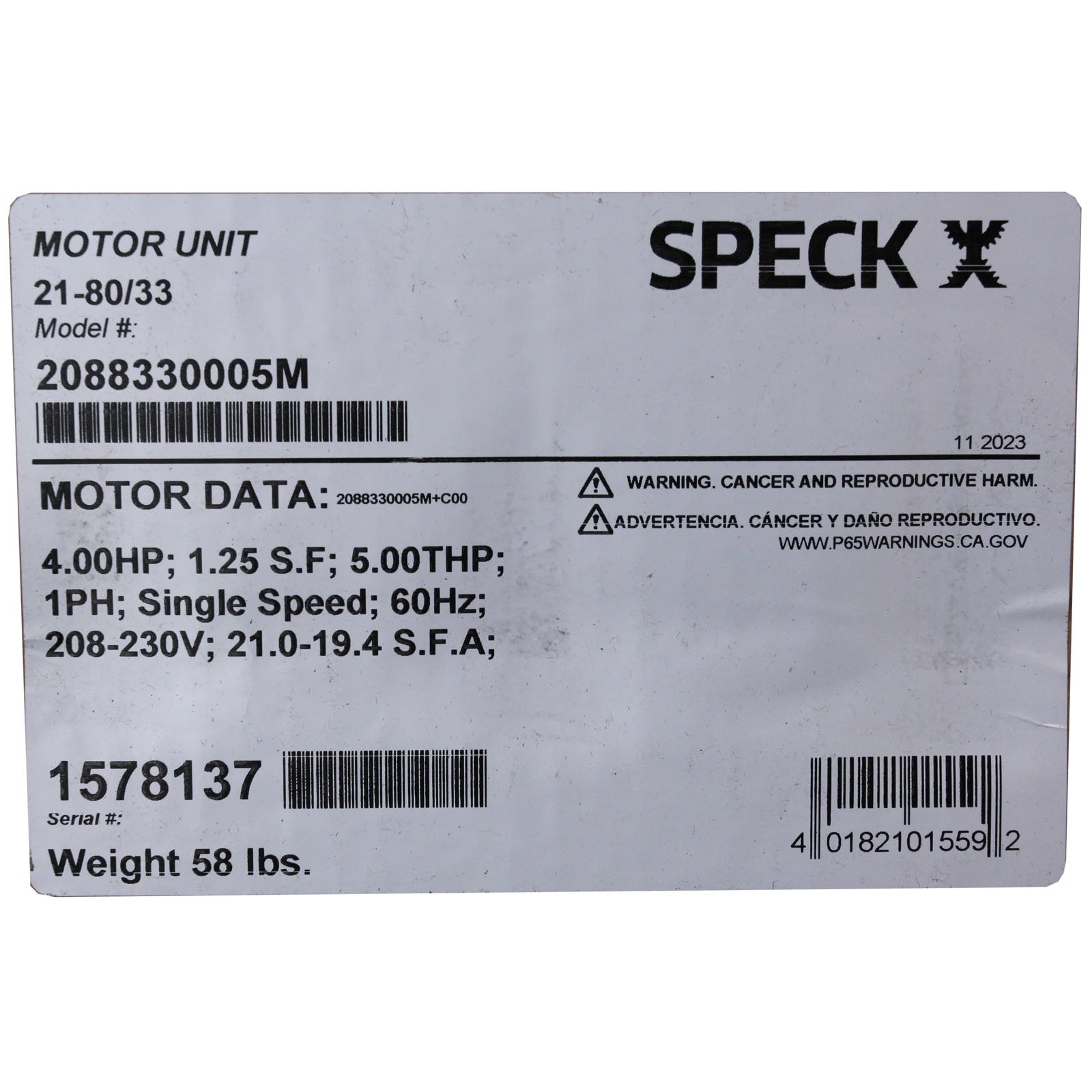

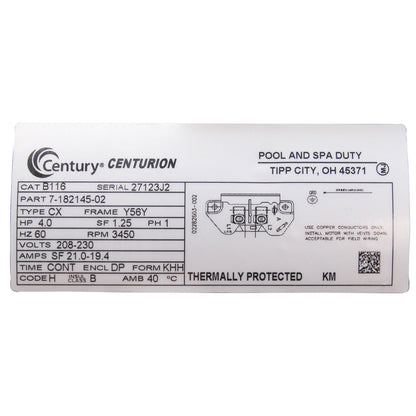

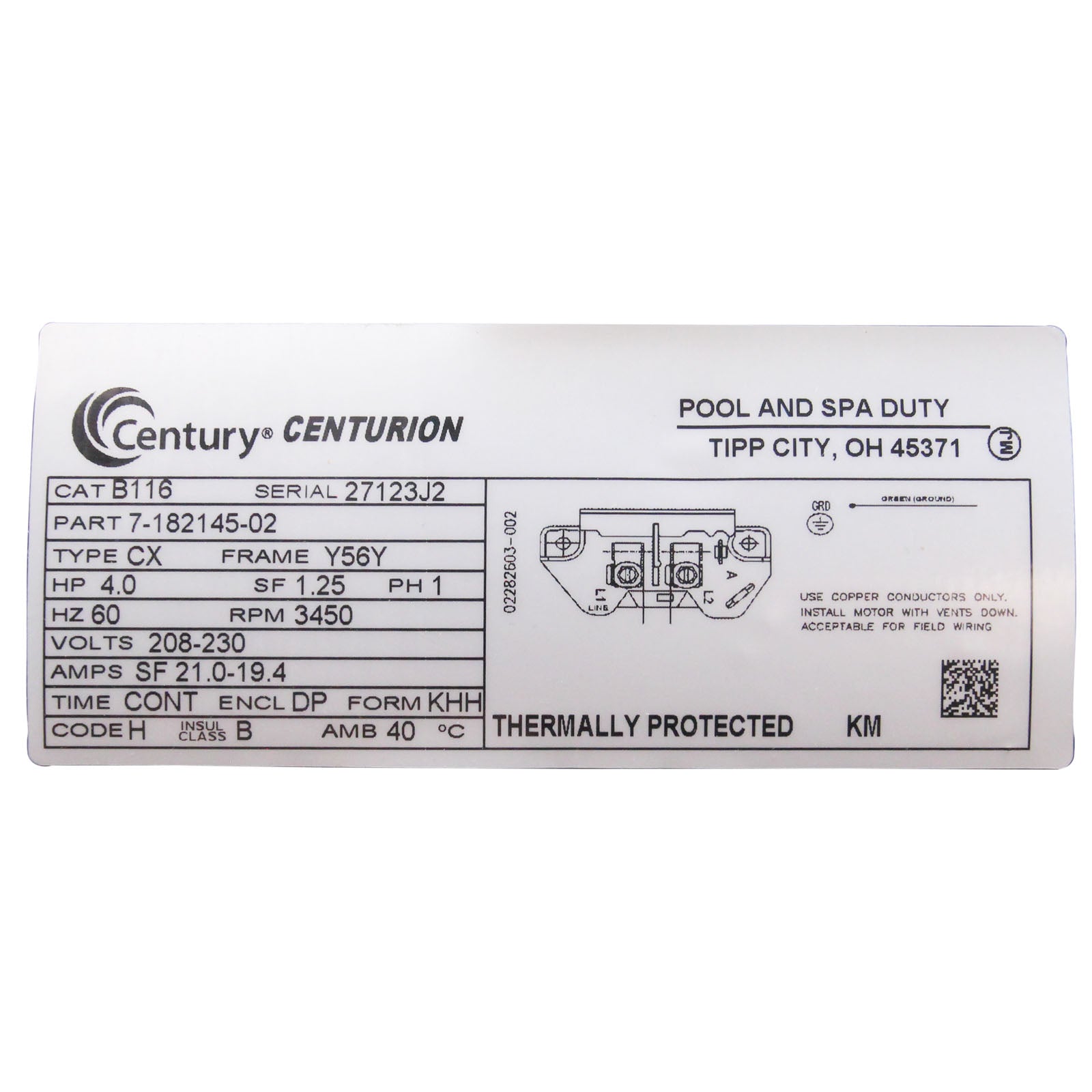

A 4.0 HP, single phase, single speed power end on a 56C frame. Speck lists its 4.0 HP 21-80/33 G and GS at 208-230 V, 21.0 to 19.4 A, 5.0 total HP and a 1.25 service factor.
Energy Efficient 56 Frame Motor
Speck builds the 21-80 on heavy duty "1081" E-plus / extreme-E energy efficient pool motors: a large 56 frame motor, thermally protected, with a PSC switchless design and extra large sealed ball bearings. No motor starter is required.
Swaps Without Re-Plumbing
Speck notes the 21-80 motor is easy to remove without disturbing the plumbing, with reusable O-rings throughout. Its manual describes removing the eight casing bolts at the aluminum flange and sliding the motor out with the seal housing.
Seal Parts for the Job
Speck lists the 21-80 mechanical seal as 2920343310 (20 mm, carbon/ceramic) and the SPK-2180-GOKIT Seal GoKit, which includes the mechanical seal, O-rings, gaskets and V-ring.
Built for Pool Water
Speck rates the 21-80 for pool water with up to 5,000 ppm salt and temperatures up to 175°F, and its impeller has a dielectric shaft sleeve that separates pool water from the electrical parts.
Installation Notice
Speck states that the 21-80 must be installed and serviced by a qualified pool professional and conform to all national, state and local codes. It must be connected to a GFCI-protected supply circuit, and the motor must be bonded per NEC 680-26 using the copper bonding lug.
Specifications
| Identification | |
|---|---|
| Manufacturer | Speck Pumps |
| Part Type | Pump power end |
| SKU | PST-35-475-1704 |
| Fitment | |
| Pump Models | Speck Model 21-80 G and Model 21-80 GS |
| Speck 4.0 HP Models | 21-80/33 G (flooded suction), 21-80/33 GS (self-priming) |
| Other Size | 6.0 HP single phase power end for the 21-80 G/GS is a separate part |
| Speck Applications | Hydrotherapy, swim spas, waterfalls, water slides, vanishing edge pools |
| Motor | |
| Horsepower | 4.0 HP |
| Phase | Single phase |
| Speed | Single speed |
| Frame | 56C |
| Voltage (Speck, 4.0 HP models) | 208-230 V |
| Amps (Speck, 4.0 HP models) | 21.0-19.4 A |
| Total HP (Speck, 4.0 HP models) | 5.0 THP |
| Service Factor (Speck, 4.0 HP models) | 1.25 |
| Motor Type (Speck) | Premium energy efficient, ODP, 56 frame |
| Related Speck Parts | |
| Mechanical Seal Part | 2920343310, 20 mm carbon/ceramic |
| Seal Kit Part | SPK-2180-GOKIT (mechanical seal, O-rings, gaskets, V-ring) |
| Impeller Part (4 HP) | 2923223014, 113-122 x 20 mm |
Frequently Asked Questions
Will this fit both the 21-80 G and the 21-80 GS?
Yes. This 4.0 HP power end is listed for both the Speck 21-80 G and 21-80 GS. Speck makes the G as the flooded suction version and the GS as the self-priming version.
Is there a 6 HP version?
Yes. A 6.0 HP single phase power end for the 21-80 G/GS is a separate part. Speck's 6.0 HP pumps are Models 21-80/34 G and 21-80/34 GS.
Which seal kit fits the 21-80?
Speck lists the SPK-2180-GOKIT Seal GoKit for the 21-80/33 and 21-80/34 G and GS models. It includes the mechanical seal, O-rings, gaskets and V-ring.
Who should install it?
Speck's manual says the 21-80 must be installed and serviced by a qualified pool professional, and Speck's warranty terms call for installation by a qualified pool industry professional and a licensed electrician.
Order the Speck 21-80 Power End From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Warranty Backed
- Authorized Speck Dealer
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-35-475-1704 |
| MPN | 2088330005M |
| Replaces | 5144-101, 903450, _2088330005M |
| Manufacturer | Speck Pumps |
| Weight | 58.0 lb |
