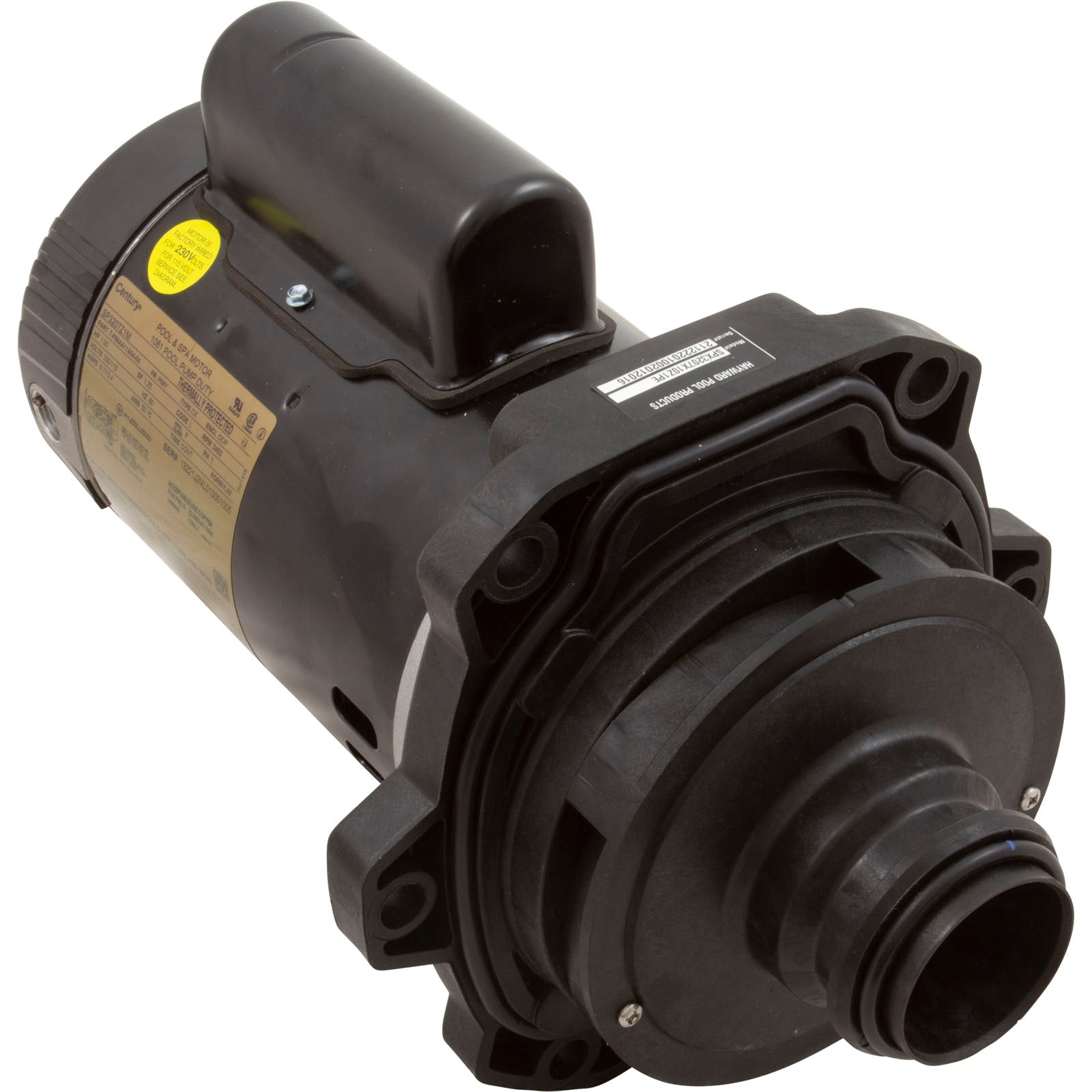

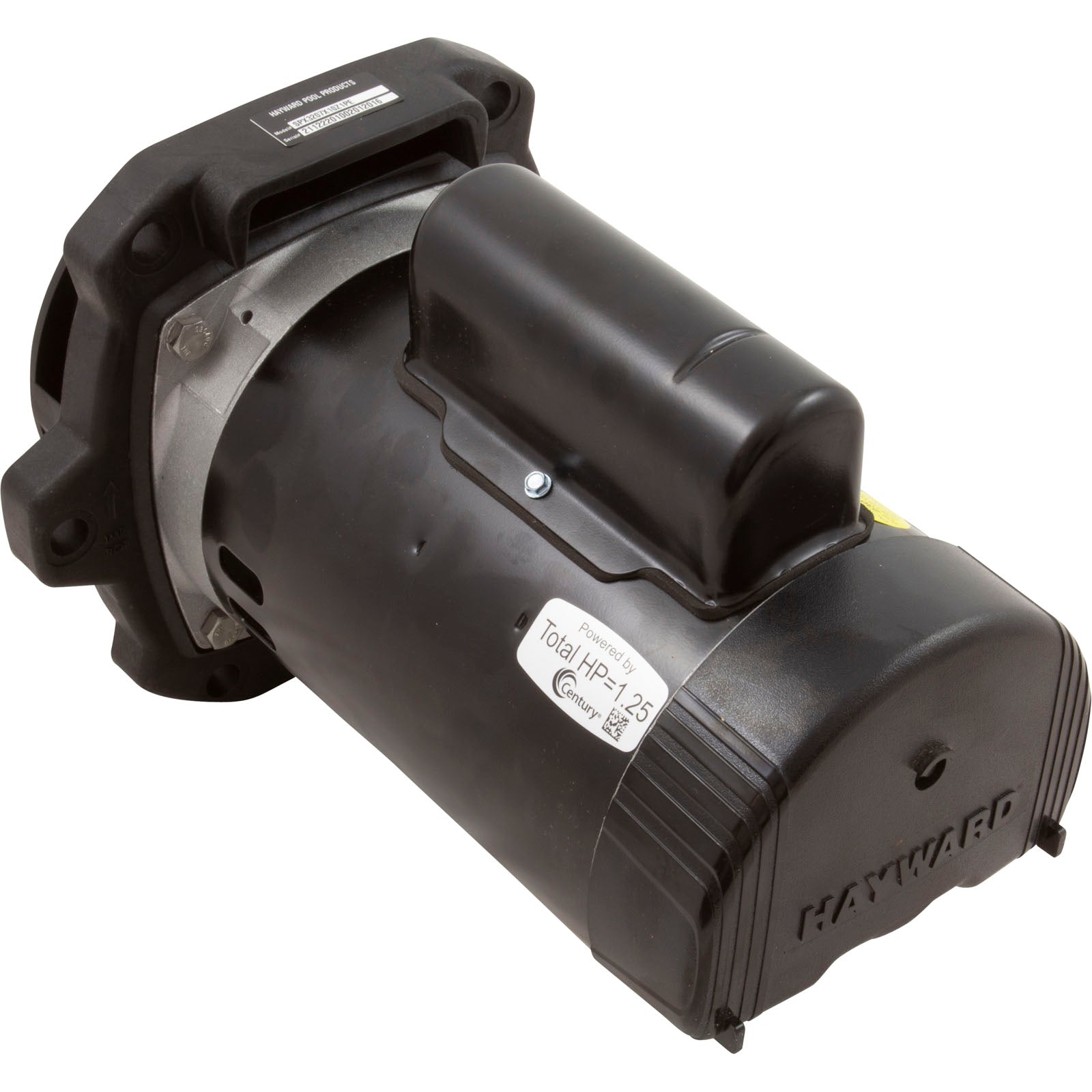

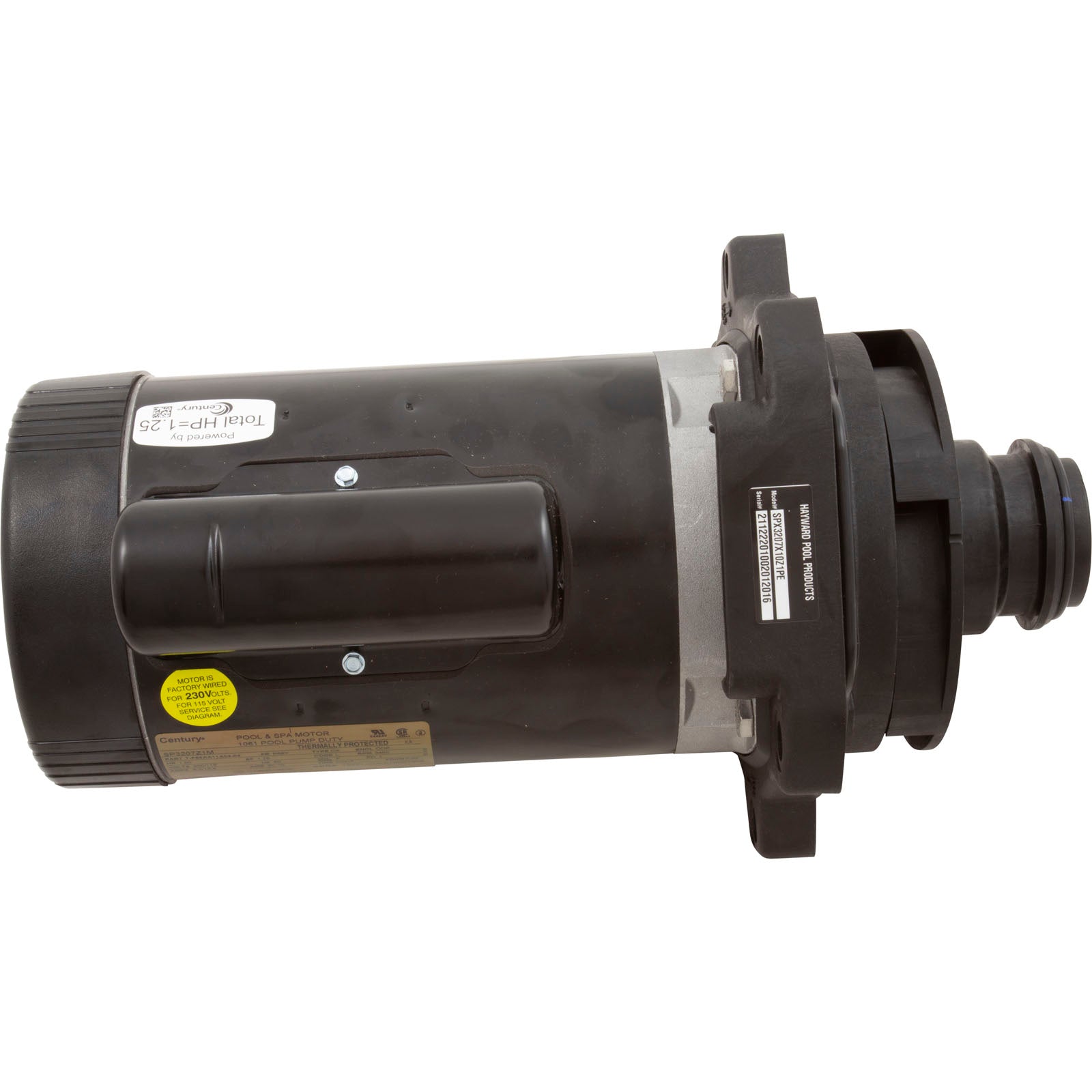

Hayward SPX3207X10Z1PE 1 HP Power End for TriStar SP3207X10 MaxRate Pumps
Motor and pump internals in one assembly.
The Hayward SPX3207X10Z1PE is the power end Hayward lists for the TriStar SP3207X10, the 1 HP MaxRate model. Hayward's TriStar manual defines the power end assembly as the motor plus parts 7 through 18 of the pump: diffuser, impeller, shaft seal, seal plate and the bolts that hold it all together.
Why PST Customers Pick This
Motor Plus Parts 7 to 18

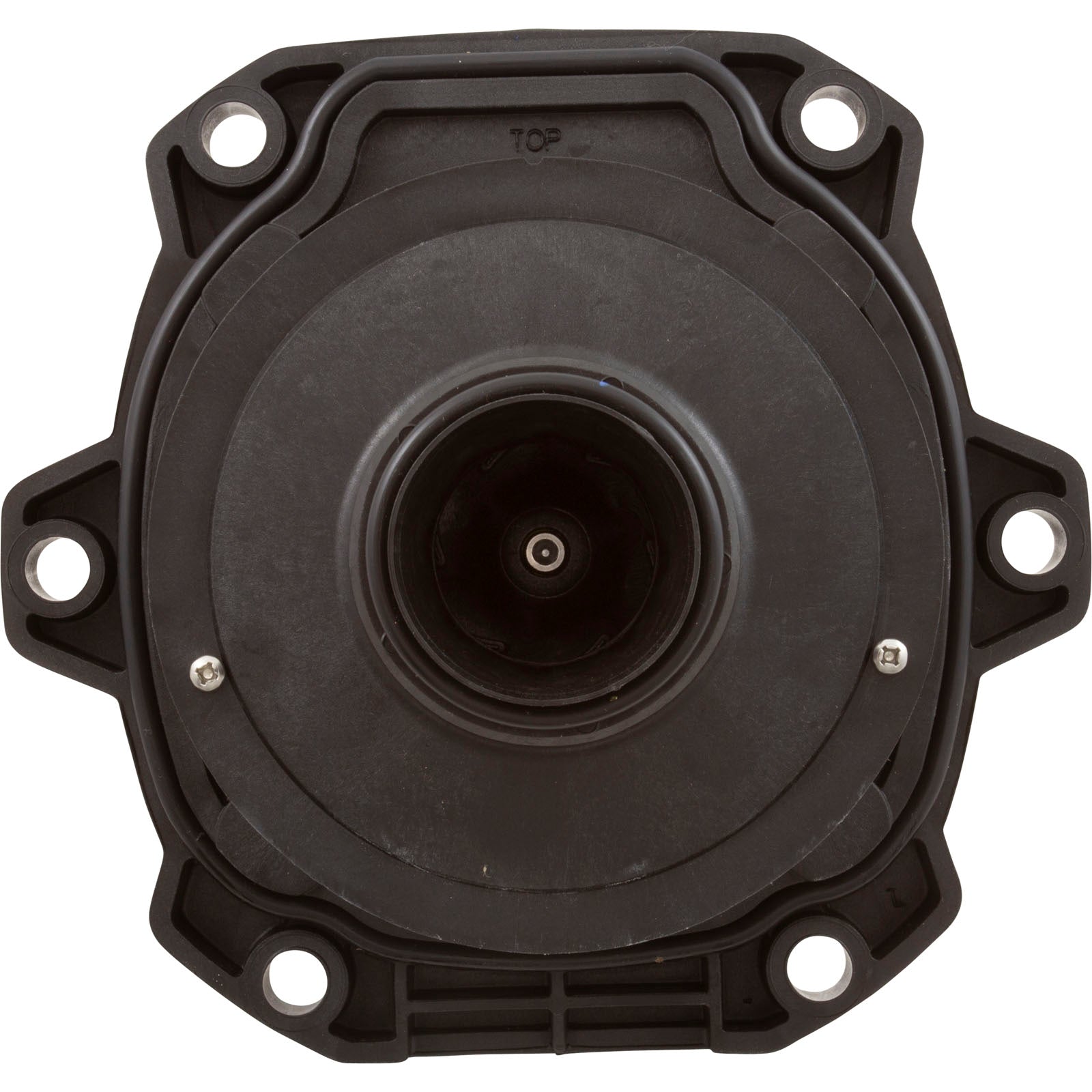

Per Hayward, the assembly covers the diffuser screw, diffuser O-ring, diffuser, impeller screw, impeller ring, impeller, shaft seal assembly, housing O-ring, seal plate, housing insert and spacer kit, housing bolts and motor bolts, along with the motor.
Matched to the SP3207X10
Hayward's TriStar parts table pairs the SP3207X10 MaxRate pump with power end SPX3207X10Z1PE, motor SPX3207Z1MR and the 1 HP MaxRate impeller SPX3207CM.

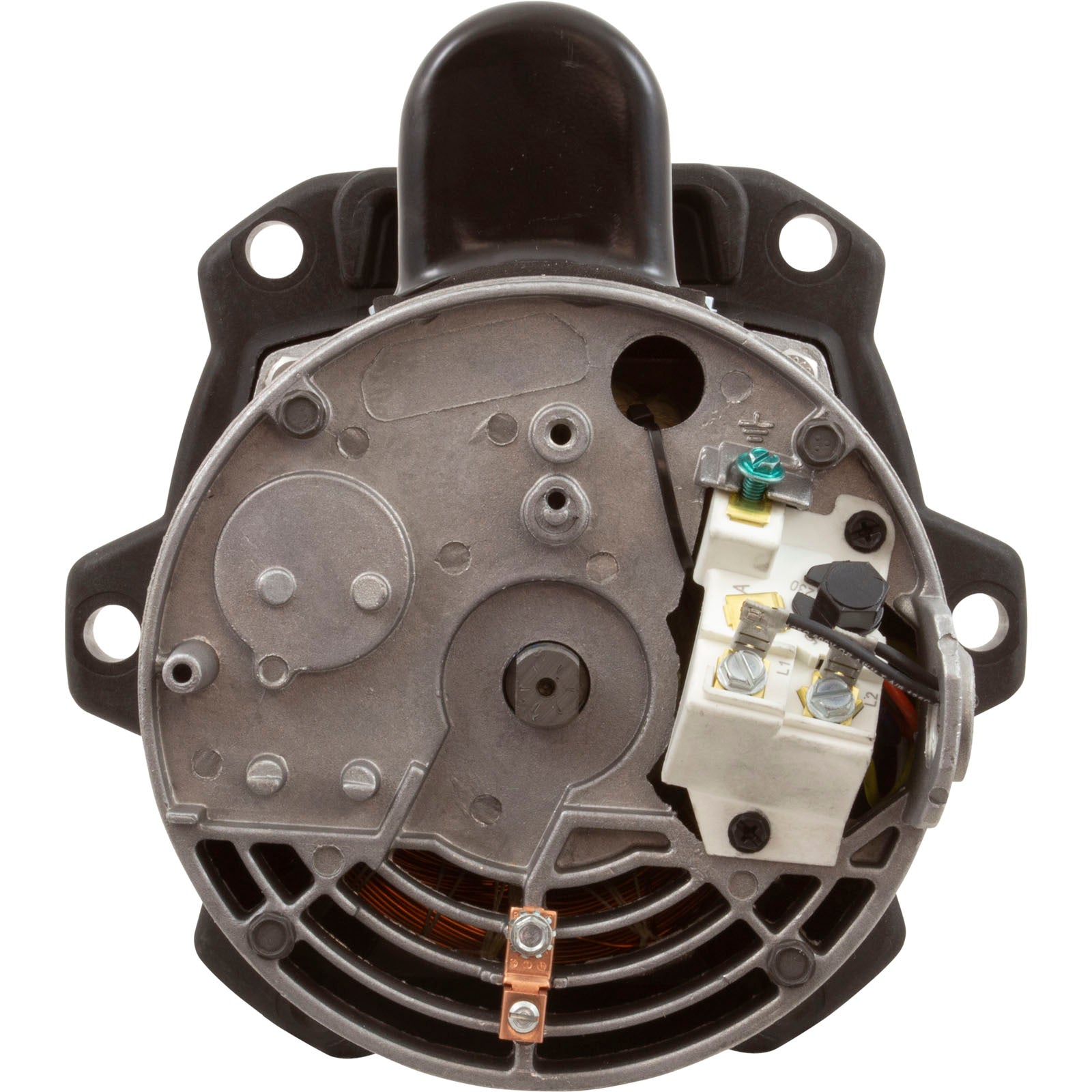

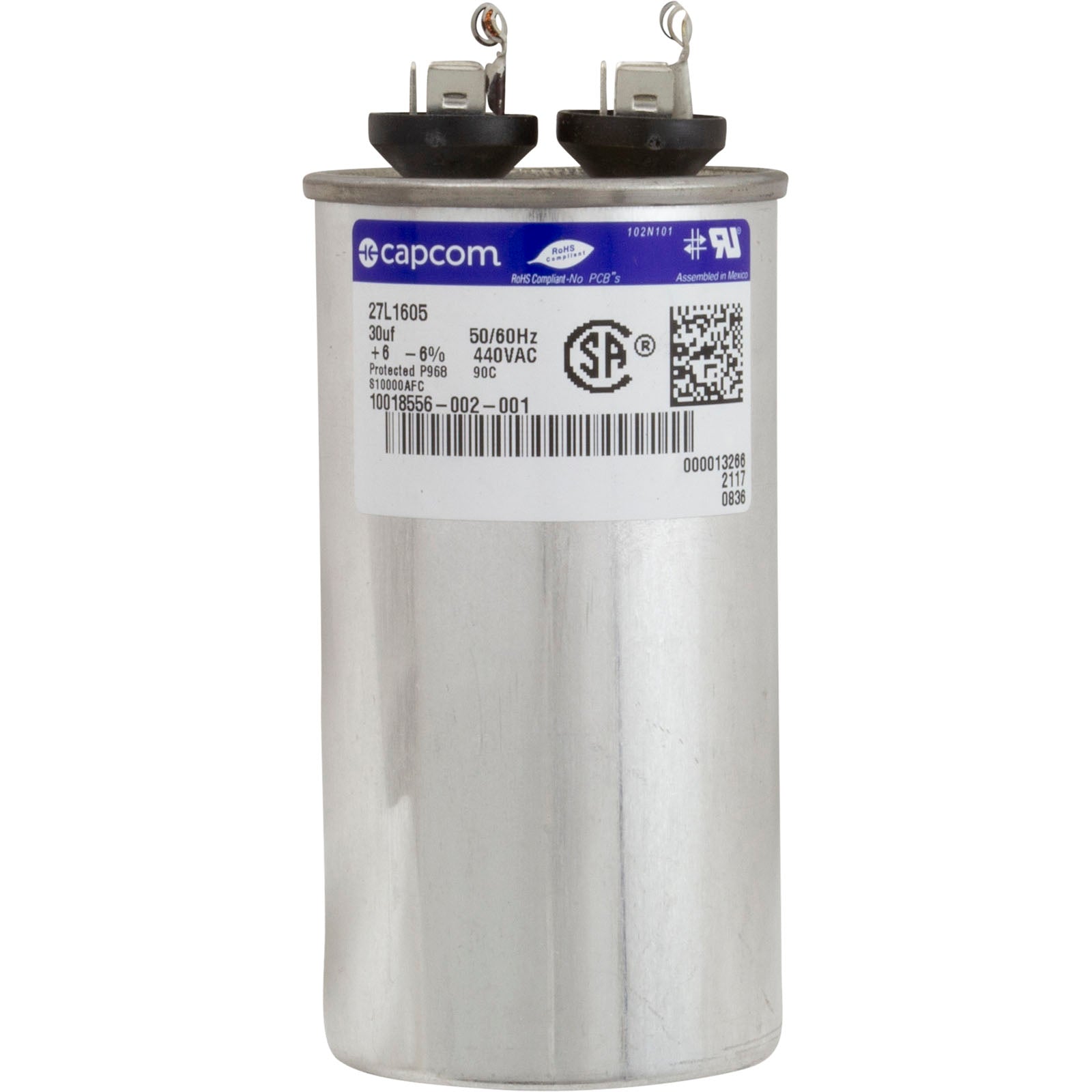

115/230 V Motor

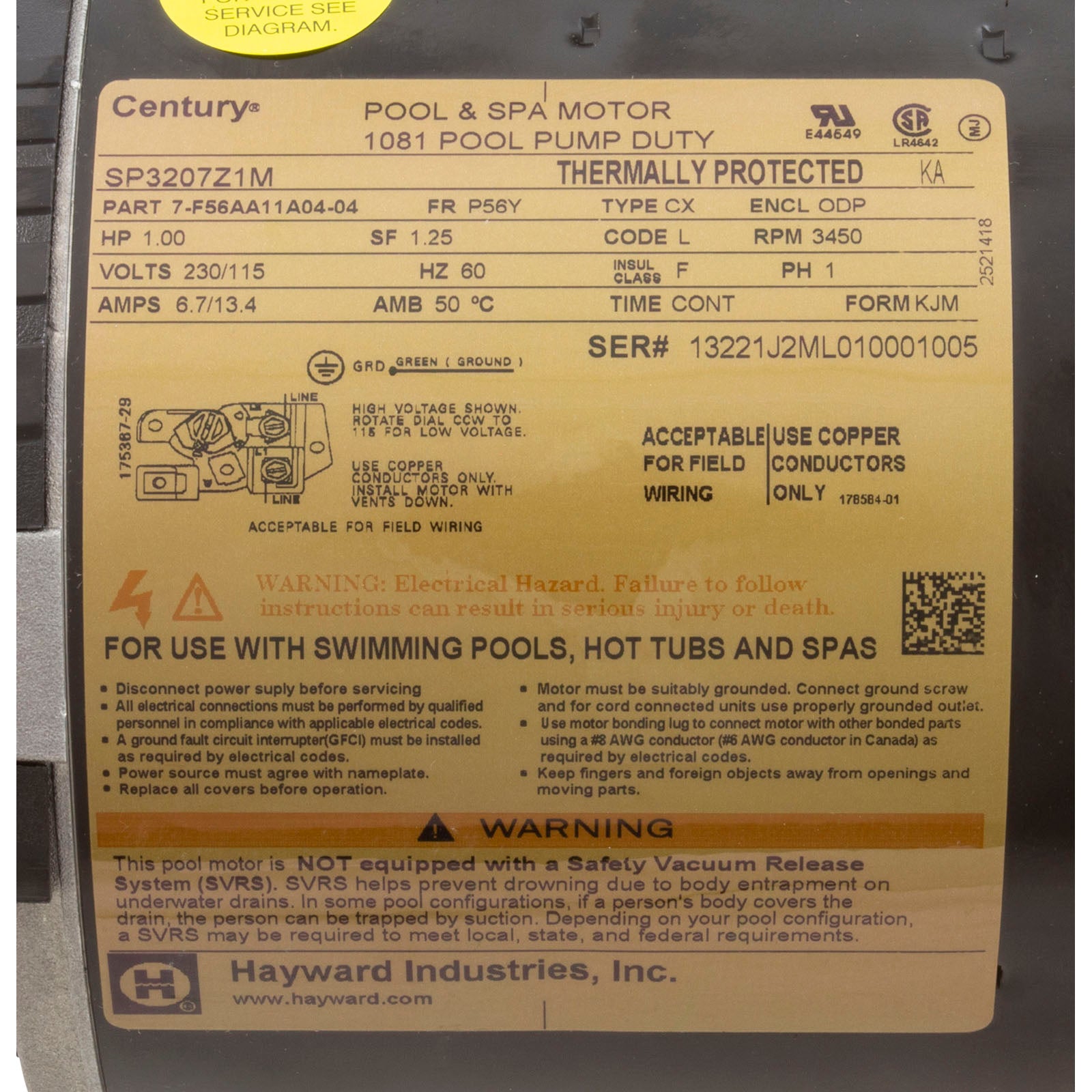

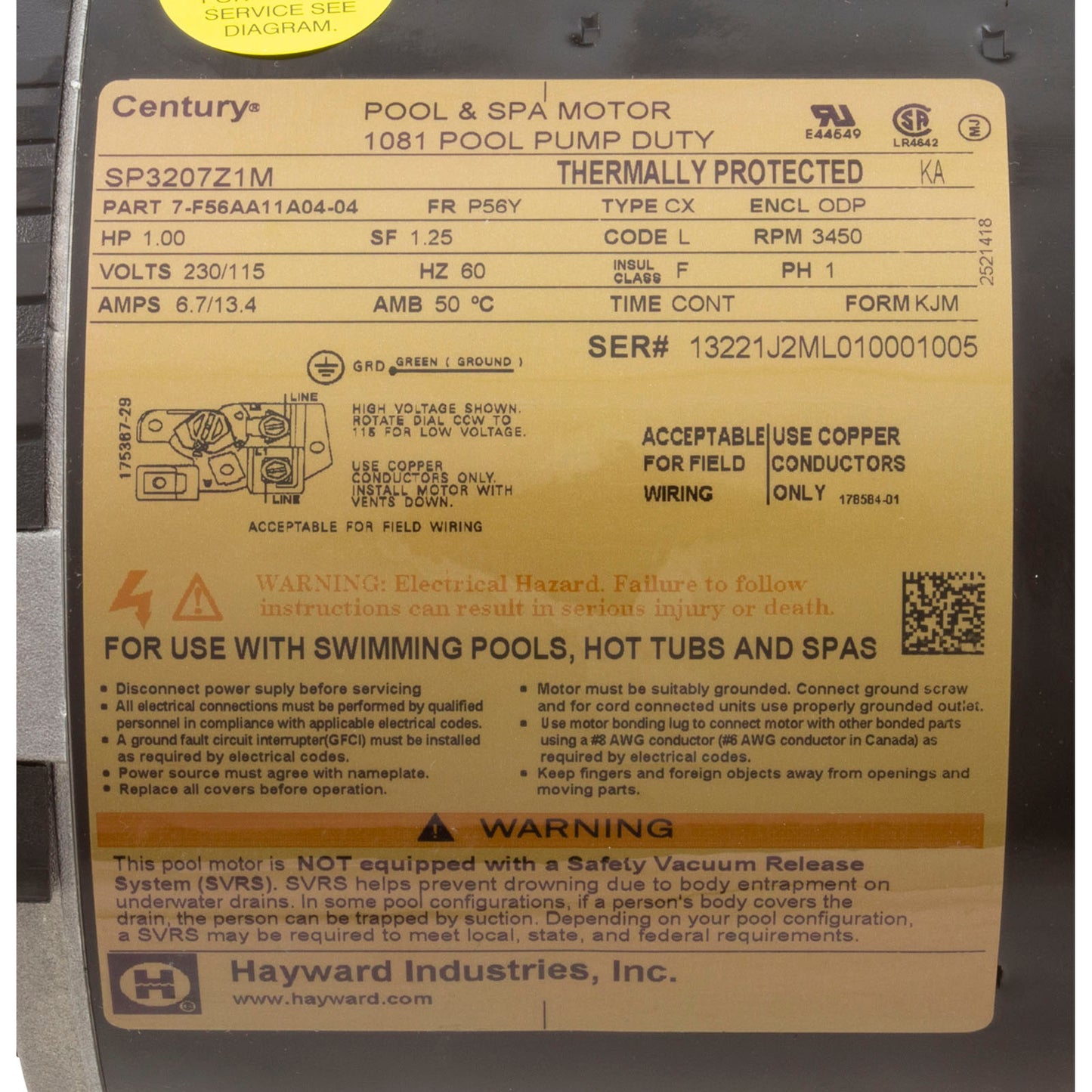

Hayward rates the 1 HP TriStar MaxRate motor at 1.00 rated HP and 1.25 brake HP, 115/230 V, 13.4/6.7 A.
Six Housing Bolts
The motor assembly comes off the strainer housing by removing six 5/16 in x 2 in hex head bolts with a 1/2 in wrench or socket and sliding it out.
185 Inch-Pound Torque
On reinstall, Hayward calls for the housing gasket to be in place and lubricated, then the six bolts tightened alternately and evenly to 185 inch-pounds.
Electrical Notice
Hayward calls for disconnecting all electrical power to the pump before this service, and says only qualified personnel should attempt rotary seal replacement. All wiring must conform to local codes and the National Electrical Code (NEC), the motor must be grounded and bonded, and supply voltage must match the motor nameplate voltage.
Specifications
| Identification | |
|---|---|
| Manufacturer | Hayward |
| Hayward Part Number | SPX3207X10Z1PE |
| Hayward Description | Power end, TriStar, 1 HP max |
| GTIN / UPC | 610377013420 |
| SKU | PST-_SPX3207X10Z1PE |
| Part Type | Pump part |
| Fitment | |
| Pump Model | Hayward TriStar SP3207X10 (1 HP MaxRate) |
| Matching Motor | SPX3207Z1MR |
| Matching Impeller | SPX3207CM, 1 HP MaxRate |
| Motor Rating | |
| Rated HP | 1.00 (0.75 kW) |
| Brake HP | 1.25 (0.93 kW) |
| Voltage | 115/230 V |
| Amperage | 13.4/6.7 A |
| Assembly | |
| Included | Motor plus TriStar parts list items 7 through 18 |
| Not Included | Union kit, strainer housing, cover kit, cover O-ring and basket (items 1 to 6), drain plug, motor support bracket, base |
| Housing Bolts | Six 5/16 in x 2 in hex head |
| Housing Bolt Torque | 185 inch-pounds |
| Warranty & Status | |
| Replacement Part Warranty | 1 year (Hayward) |
| Hayward Replacement SKU | VSX32810PE (TriStar VS 810 power end) |
Frequently Asked Questions
Will this fit a full-rate TriStar like the SP3210EE?
No. Hayward's parts table lists SPX3210Z1PE as the power end for the 1 HP full-rate SP3210EE. The SPX3207X10Z1PE is the power end for the SP3207X10 MaxRate pump.
Does it include the strainer housing or basket?
No. Hayward's TriStar manual says the power end assembly includes parts 7 through 18 and the motor. The union kit, strainer housing, cover kit, cover O-ring and basket (items 1 to 6), the drain plug, the motor support bracket and the base are separate parts.
Does Hayward list a newer replacement?
Yes. Hayward's page for this part lists the TriStar VS 810 power end, 1.25 HP (VSX32810PE) as its replacement SKU.
What is the warranty?
Hayward lists a 1-year warranty on this replacement part.
Order the SPX3207X10Z1PE From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- 1-Year Hayward Warranty
- Authorized Hayward Dealer
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-_SPX3207X10Z1PE |
| MPN | SPX3207X10Z1PE |
| Manufacturer | Hayward |
| Weight | 30.75 lb |
