Product Information
Description
- Pentair LA01N
- Hose and adapters included
- Dual voltage

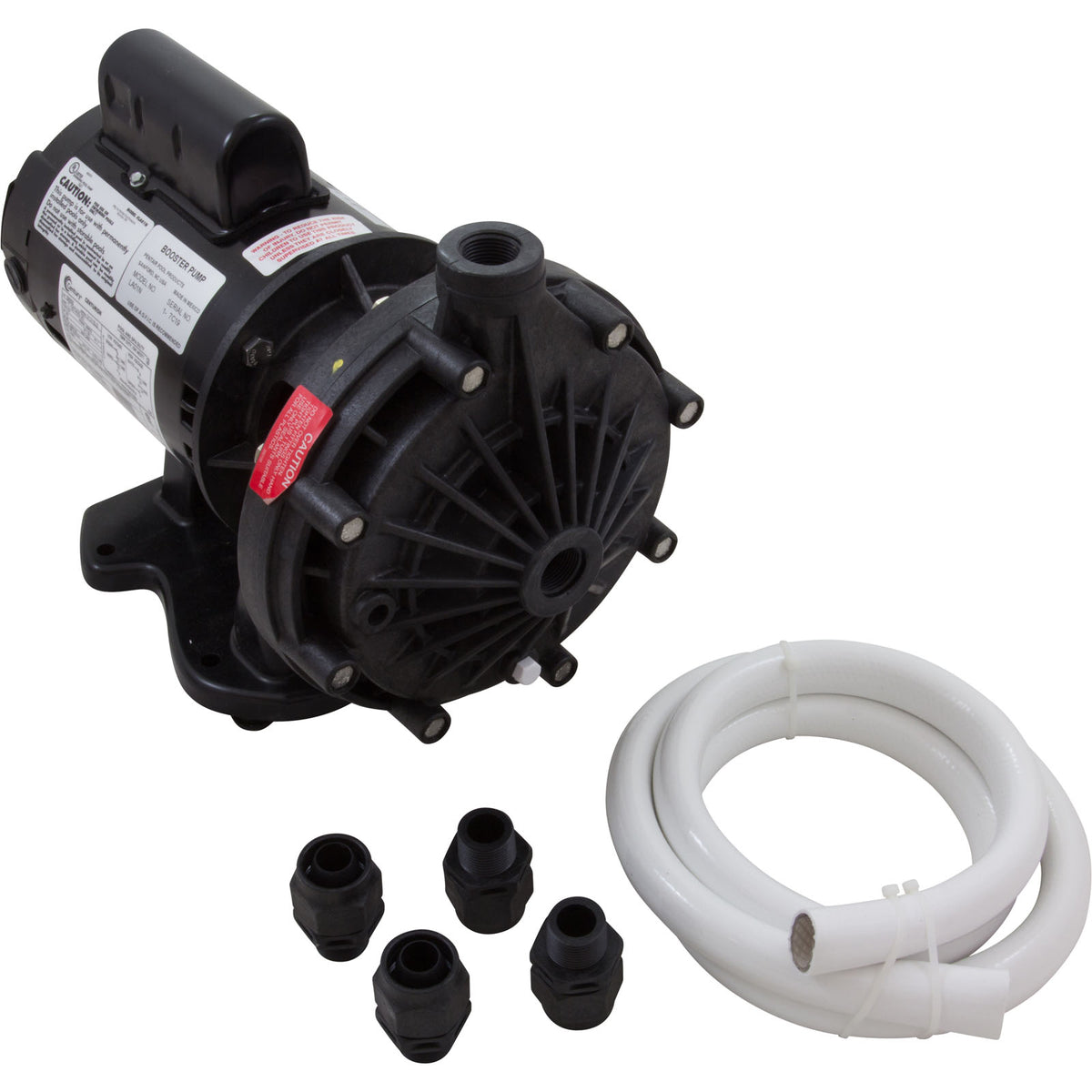

Pentair Letro LA01N Booster Pump, 3/4 HP, 115/230V
Dedicated pressure for your pool cleaner.
Pentair Letro LA01N supplies the pressure your compatible pressure-side pool cleaner needs. This 3/4 HP booster pump delivers 50 psi at 12 GPM and works with Legend, Legend Platinum and Legend Platinum Truck Series cleaners. PST SKU: PST-34-104-1000.
Supply Your Cleaner With Pressure
A pressure-side cleaner needs a dedicated water supply to do its job. The LA01N provides 50 psi at 12 GPM, feeding compatible cleaners from the filtered return line. Run the booster only while the filtration pump is operating.
Match Your Existing Electrical Supply
The motor supports 115V or 230V service. A qualified installer must verify the supply voltage and set the motor connections correctly before operation. Full-load current is 13.0 amps at 115V and 6.5 amps at 230V.
Connect With Included Hardware
The pump includes a hose and adapters for its cleaner booster application. Its inlet and outlet each use 3/4-inch NPT connections. Check your existing plumbing and cleaner requirements before ordering.
Who It's For
Legend Cleaners
For compatible Pentair Legend pressure-side automatic pool cleaners.
Legend Platinum
Supplies booster pressure for compatible Legend Platinum cleaners.
Booster Replacement
Match the existing electrical supply, connections and cleaner requirements before replacing a booster pump.
Why PST Customers Pick This
Single-Speed Operation
One operating speed for dedicated cleaner booster duty.
Dual Voltage
Supports 115V or 230V with the correct motor configuration.
Included Connections
Hose and adapters are included with the pump.
Corrosion-Proof Materials
Pentair specifies corrosion-proof materials for this booster pump.
Threaded Ports
3/4-inch NPT inlet and outlet connections.
Part Number Match
Order LA01N when that is the exact manufacturer part you need.
Installation and Operation
Have a qualified professional verify wiring, grounding, bonding and plumbing. Connect to the filtered return line and operate only while the filtration pump runs. Never run the booster dry.
Full Specifications
| Identification | |
|---|---|
| Manufacturer | Pentair |
| Model / MPN | LA01N |
| PST SKU | PST-34-104-1000 |
| Pump type | Pressure-side cleaner booster |
| Electrical and Performance | |
| Rated horsepower | 3/4 HP |
| Voltage | 115/230V |
| Full-load amps | 13.0/6.5A |
| Speed | Single speed |
| Service factor | 1.50 |
| Service-factor horsepower | 1.13 |
| Performance point | 50 psi at 12 GPM |
| Connections and Contents | |
| Inlet / outlet | 3/4 inch NPT / 3/4 inch NPT |
| Included | Pump, hose and adapters |
Frequently Asked Questions
Is this a pool filtration pump?
No. It is a dedicated booster pump for compatible pressure-side cleaners and must run with the filtration system operating.
Which Pentair cleaners does it support?
Pentair lists Legend, Legend Platinum and Legend Platinum Truck Series automatic pool cleaners.
Can it use 115V or 230V?
Yes. The motor must be configured for the actual supply voltage by a qualified installer.
Are the hose and adapters included?
Yes. Pentair lists a hose and adapters as included.
Is LA01N the same ordering number as EC-LA01N?
No. This listing is LA01N. EC-LA01N is a separate Pentair ordering number; match the exact part number when ordering.
Match Your Booster Pump
Check your cleaner model, voltage and plumbing before ordering.
- Genuine Pentair pump
- Hose and adapters included
- Part-number support
- Pool equipment support
Additional Info
| Category | Pool Booster Pumps |
| SKU | PST-34-104-1000 |
| MPN | LA01N |
| Manufacturer | Pentair |
| Weight | 30.04 lb |
