Product Information
Description

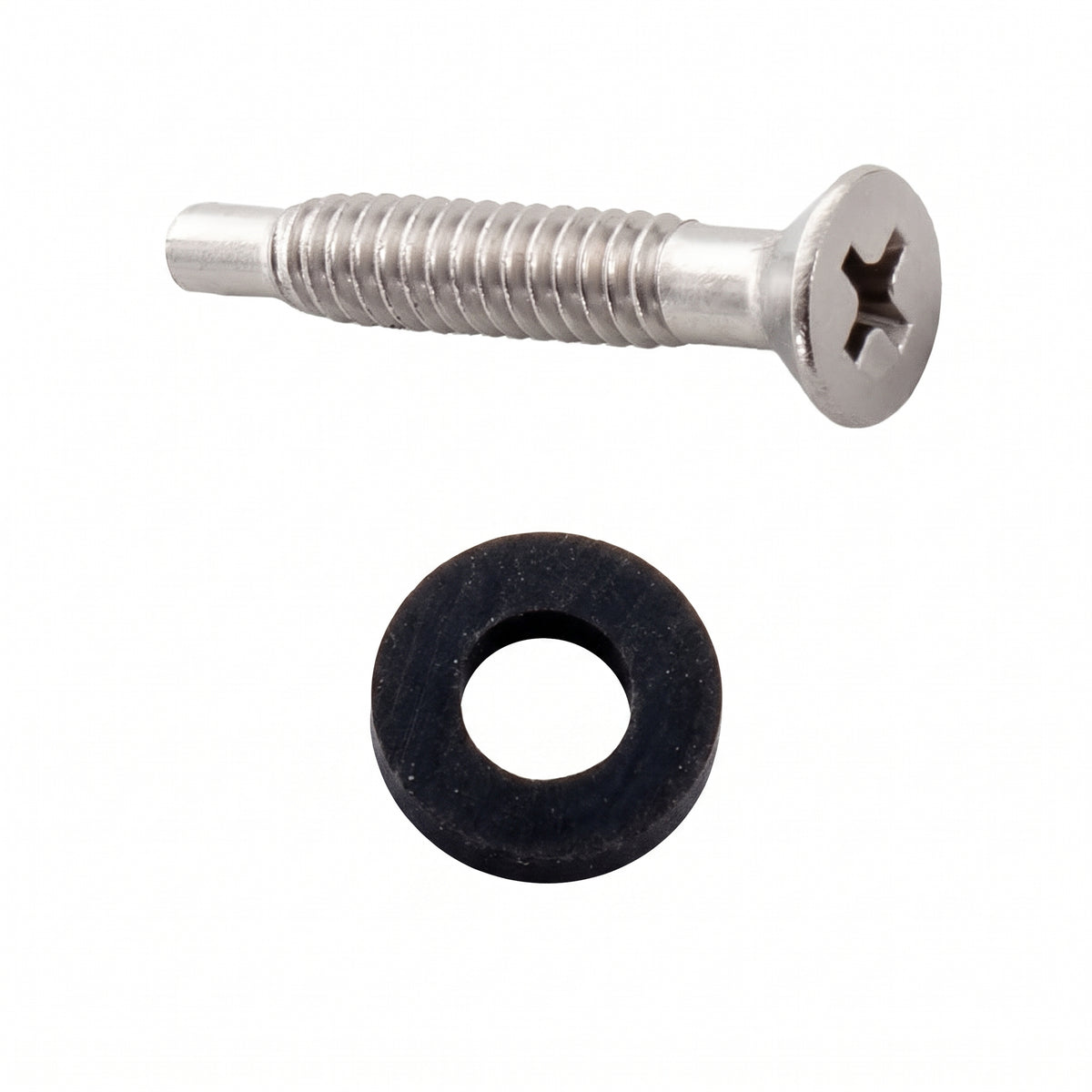

Pentair 619355Z Stainless Steel Pilot Screw with Captive Gum Washer
Sold individually: one OEM screw, one captive gum washer.
The Pentair 619355Z Stainless Steel Pilot Screw (SKU PST-619355Z) is the OEM fastener that clamps the light face ring, sometimes called the face plate, to a Pentair stainless steel niche. This listing is one screw with one captive gum washer, the way Pentair sells it. The washer stays attached to the screw so it cannot drop into the pool during a bulb change, and the stainless body shrugs off chlorinated water and salt cells. Reach for it any time you pull a pool light for a relamp, a gasket swap, or a cord replacement, and check how many pilot screws your fixture uses before you set the quantity.
| Manufacturer | Pentair Pool Products |
|---|---|
| Model / MPN | 619355Z |
| Supersedes | 619355 |
| SKU | PST-619355Z |
| Part Type | Pilot Screw with Captive Gum Washer |
| Package Contents | 1 screw + 1 captive gum washer |
| Material | Stainless Steel |
| Washer | Captive Gum (rubber), pre-attached |
| Head / Drive | Flat countersunk head, Phillips drive |
| Overall Length | 1 in |
| Shank Diameter | 0.16 in |
| Fits Niches | Pentair stainless steel face rings and niches |
| Commonly Used On | IntelliBrite 5G Color and White, IntelliBrite Architectural Series, Amerlite, AmerQuartz, SAm / SAL Spectrum Amerlite, SpaBrite, AquaLight, Sta-Rite SunBrite II and SunGlow II |
| Brass Equivalent | Pentair 79104800Z (same pilot screw in brass) |
How many screws come with this listing?
One. Each order is a single 619355Z pilot screw with its captive gum washer already attached. Count the pilot screws on your own fixture and set the quantity to match, and add one more if you want a spare in the truck.
What is the difference between 619355 and 619355Z?
The 619355Z is the current Pentair part number that replaced the original 619355. The screw is functionally identical, stainless steel with a captive gum washer. Orders for 619355 ship as 619355Z.
Which Pentair pool lights does this screw fit?
Pentair lists it for IntelliBrite 5G color and white LED lights, the IntelliBrite Architectural Series, Amerlite, SpaBrite and AquaLight. It is also the common pilot screw on AmerQuartz, SAm and SAL Spectrum Amerlite, and Sta-Rite SunBrite II and SunGlow II fixtures. It is not the faceplate screw for GloBrite lights.
Should I use the stainless screw or the brass one?
Pentair lists the stainless 619355Z and the brass 79104800Z under the same callout for these lights, so either will thread in. Match the hardware you pulled out of the niche rather than mixing metals.
Can I install this myself?
Yes. Replacing the pilot screw is a hand-tool job done at the deck with the light pulled out of the niche. Always shut off the breaker at the panel before touching a pool light, and never work on a light while anyone is in the pool.
Additional Info
| Category | Parts Pool Parts Pool Light Parts |
| SKU | PST-619355Z |
| MPN | 619355Z |
| Manufacturer | Pentair |
| Weight | 0.1 lb |
