Description

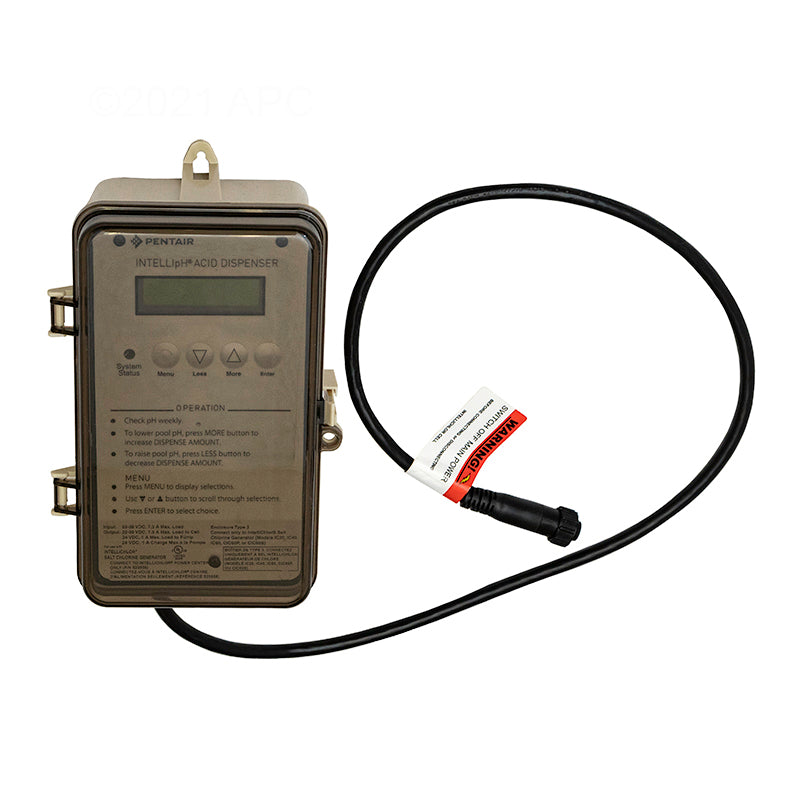

Pentair 522711 IntellipH pH Controller Unit for the IntellipH Acid Dispenser
Replacement controller for IntellipH systems paired with an IntelliChlor generator
The Pentair 522711 IntellipH Controller Unit is the controller Pentair lists in its IntellipH replacement parts. The IntellipH system adds muriatic acid to the pool every hour to help hold pH steady, and it works in series with an IntelliChlor salt chlorine generator. From the controller you set the hourly acid dose from 0 to 100%, and once the cell is connected, the IntelliChlor output as well.
| Manufacturer | Pentair |
|---|---|
| Part Number | 522711 |
| Pentair Description | IntellipH Controller Unit |
| SKU | PST-522711 |
| Used In | Pentair IntellipH acid dispenser system (521377 IntellipH controller with acid container) |
|---|---|
| Requires | IntelliChlor generator, Version 3 (2010 and newer) |
| Power Source | IntelliChlor Power Center, or EasyTouch / IntelliTouch automation with IntelliChlor support |

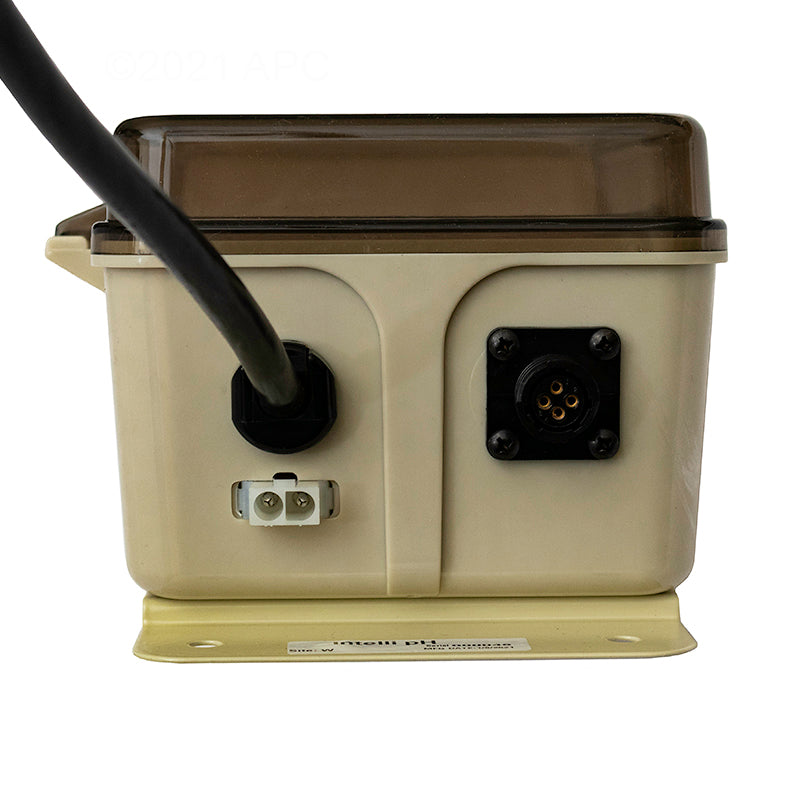

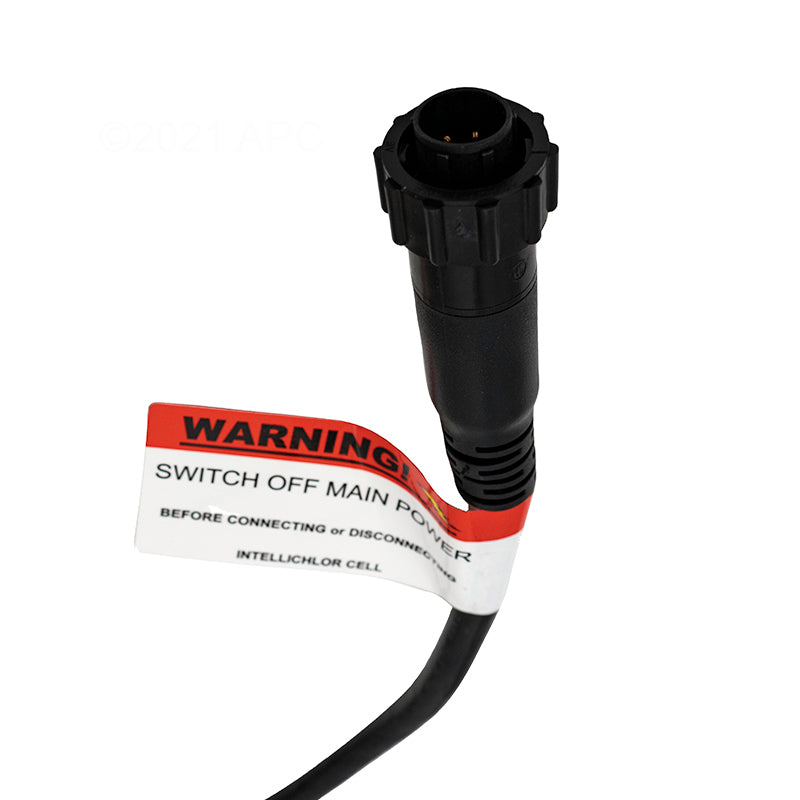

| Wiring | In series: the IntelliChlor cell cord plugs into the controller, and the controller plugs into the power center or load center |
| Mounting | Wall or vertical surface near the power center, three screws |
| Dosing Cycle | One acid dose every 60 minutes |
|---|---|
| Dispense Amount Setting | 0 to 100% in 1% steps, factory set at 50% |
| Manual Acid Dose | Pump runs 60 seconds, approx. 4 oz of acid |
| IntelliChlor Output Setting | 0 to 100%, factory set at 60% |
| Superchlor Mode | IntelliChlor output at 100% for 24 hours of pump time |

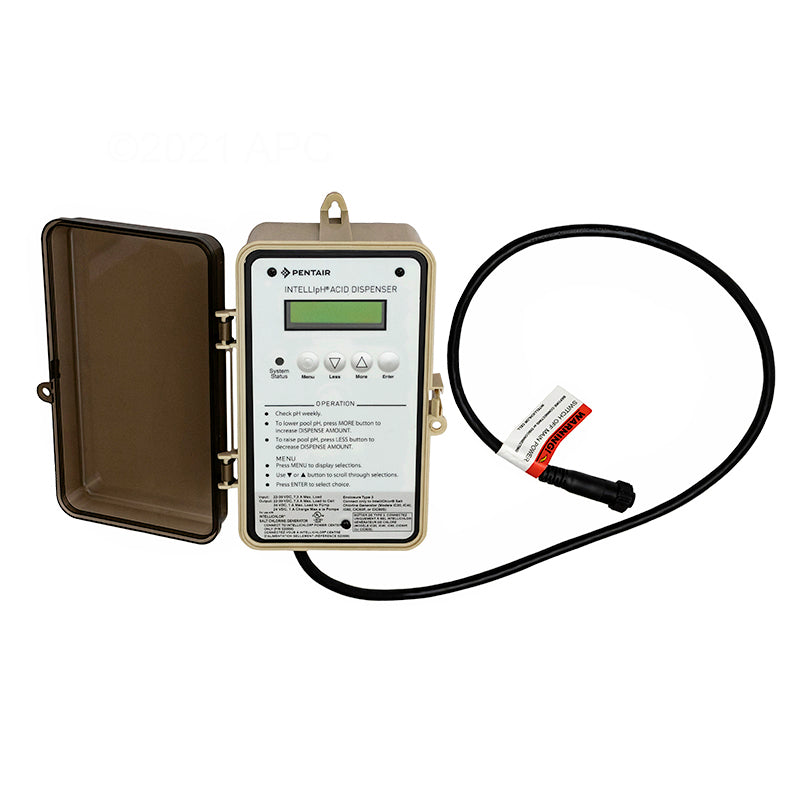

| Display | Backlit LCD with green / red system status LED |
| Memory | Settings retained when the controller is powered off |
| Skips a Dose When | Water below 52 F, no flow, no communication, low salt or clean cell |
| Listings | UL and cUL listed (IntellipH controller) |
|---|---|
| IntellipH Warranty | One-year limited warranty on electronics and metering pump |
- Pentair IntellipH controller with acid container, 521377
- Pentair IntelliChlor salt chlorine generators, Version 3 (2010 and newer)
- Pentair IntelliChlor Power Center
- Pentair EasyTouch and IntelliTouch control systems with IntelliChlor support
Does this include the acid container?
The acid container is a separate Pentair replacement part, the 522712 IntellipH Container. Pentair also lists the faceplate and PCBA (521513) and the controller door (521516) as their own part numbers.
Will it work without an IntelliChlor?
Pentair states that the IntellipH controller requires an IntelliChlor generator, Version 3 (2010 and newer). It installs in series with the IntelliChlor cell and skips a dose when it has no communication with the cell.
Why does it show SPA MODE, WILL NOT DISPENSE?
When the automation panel is in spa mode, or the IntelliChlor output is set to 1% to 5%, the IntellipH stops dispensing acid. Pentair describes this as a safety feature.
