Pentair EasyClean EC60 D.E. Filter Cartridge Element, 15 Sq Ft (178757Z)

Pentair EasyClean EC60 D.E. Filter Cartridge Element, 15 Sq Ft (178757Z)

Pentair • Part # 178757Z
SKU: SKU: PST-178757Z
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 9450.0 Website Price Number: 9450.0 All Metafields: {"discontinued":false,"mpn":"178757Z","saleprice":"0","websiteprice":"94.5"}
Regular price $110.80
Regular price $177.30 Sale price $110.80

Out of stock

Authorized dealer
Pentair

Genuine OEM product.

  1. Next day Shipping Mon–Fri
  2. 30 days ReturnsPolicy
View full details

Product Information

Description

  • Genuine Pentair Part
  • 15 Sq. Ft. Filter Area
  • Free Shipping

Pentair EasyClean EC60 D.E. Filter Cartridge Element, 15 Sq. Ft. (178757Z)

The replacement D.E. element for the EC60.

15 sq ft
EC60 Filter Area
60 GPM
EC60 Flow Rate
8 oz
Polyester Media
Item 10
Parts Sheet

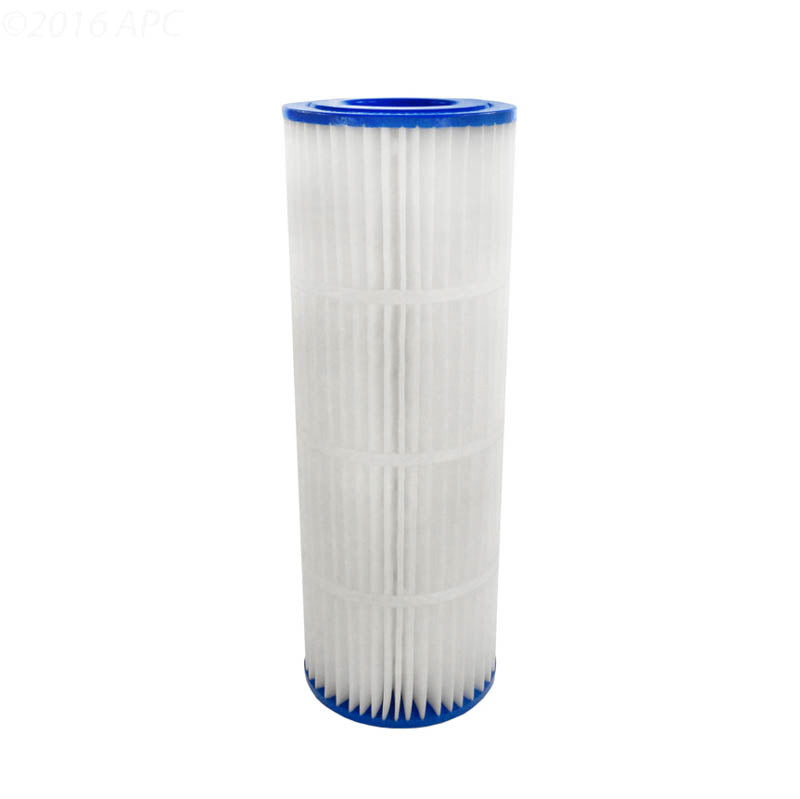

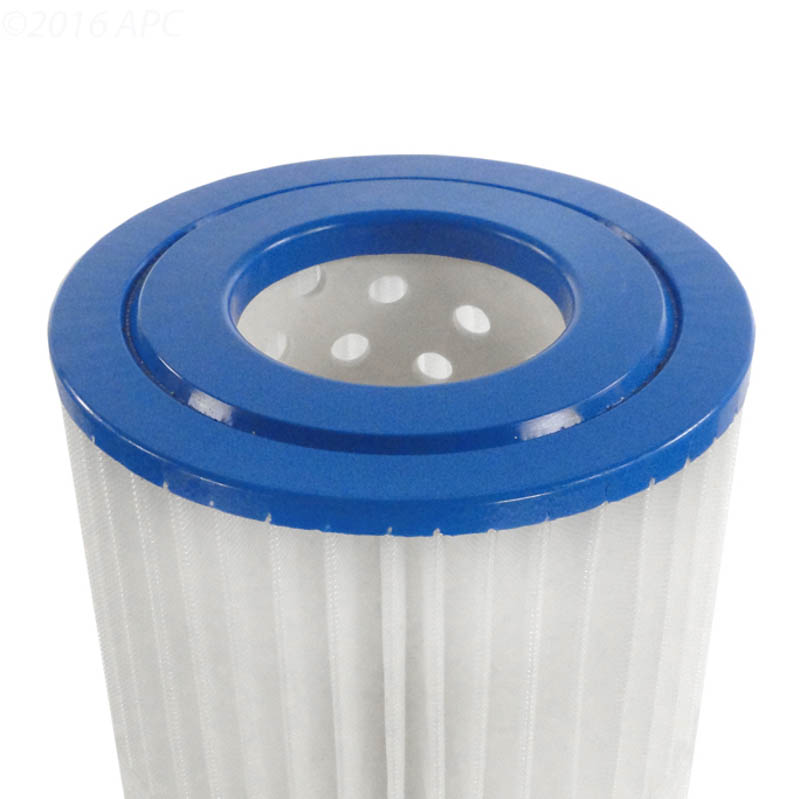

Pentair 178757Z is the cartridge element for the EasyClean EC60 D.E. filter, item 10 on Pentair's EasyClean D.E. filters replacement parts sheet, where it is printed as 178757. It is the cartridge-style element that carries the filter's D.E. coating, and Pentair rates the EC60 at 15 sq. ft. of filter area and 60 GPM.

Why PST Customers Pick This

Regenerates D.E. Between Cycles

When the pump shuts off, D.E. and trapped debris can fall from the coated element and settle in the housing. Pentair says much of that D.E. rises and re-coats the element when the pump restarts while the debris stays behind, so you don't clean the cartridge nearly as often.

Even D.E. Coverage

Pentair designs the D.E. element to keep water flow even and spread the D.E. uniformly across it, which Pentair says traps more dirt per cycle.

8-Ounce Polyester Media

The element uses durable 8-ounce polyester cartridge media with slick surfaces that Pentair says clean more easily than conventional cartridge filters.

Lifts Out by Its Handles

Pentair's EasyClean guide has you release the lock ring, lift off the lid, pull the element straight up by its lifting handles and hose it off with a nozzle. Reseat it fully with the arrow on the handle frame lined up with the filter inlet.

Sized for the EC60

Pentair rates the EasyClean EC60 at 15 sq. ft. and 60 GPM. The larger EC90 is a 30 sq. ft. filter that takes a different element, 178656.

Extra Care on Baquacil Pools

Pentair warns that on a Baquacil pool the element must be cleaned more thoroughly and more often than in a chlorine pool, and that using a TSP cleaner before stripping the gray film can leave residue that ruins the media.

Pressure Notice

Pentair rates the EasyClean filter for a maximum working pressure of 50 psi and warns that higher pressure, air in the filter or an improperly installed lock ring or lid can cause the lid to separate. Turn the pump off, open the High Flow manual air relief valve and wait until all pressure is relieved before you open the filter to change the element.

Specifications

Identification
Manufacturer Pentair
Part Number 178757Z
Parts Sheet Number 178757 (item 10)
Pentair Description Cartridge Element, EC60
SKU PST-178757Z
Fit
Filter Pentair EasyClean EC60 D.E. filter
EC60 Filter Area 15 sq. ft.
EC60 Flow Rate 60 GPM
EasyClean EC90 Element 178656 (separate part)
EC60 Filters Built Before 2014 Element Retro Kit 196060
Media and Service
Media Durable 8-ounce polyester
Element Type Cartridge-style D.E. element
Clean the Element At 8 to 10 psi above the clean starting pressure
Average Media Life About 3 years under normal conditions (Pentair)
Related EasyClean Parts, Separate Part Numbers
Center Core Top, EC 178626
Center Core Bottom, EC 178627
O-Ring, Center Core 071422
Air Bleeder Tube, EC60 U37-3/8P
Body O-Ring 87300400

Frequently Asked Questions

Will it fit an EasyClean EC90?

No. Pentair lists 178656 as the EC90 cartridge element. The EC90 is rated at 30 sq. ft., twice the EC60's 15 sq. ft.

My EasyClean EC60 was built before 2014. Which part do I need?

Pentair's parts sheet lists the Element Retro Kit 196060 for the EC60. It includes items 6 through 12 (compression spring, air bleeder, center core top, air bleeder tube, cartridge element, center core bottom and center core O-ring) and replaces the center core, cartridge element and air bleeder sock kit on filters manufactured before 2014.

How long does the element last?

Pentair says element life varies with pool conditions such as bather load, wind and dust, and that you can expect an average media life of three years under normal conditions. Clean it when the filter reads 8 to 10 psi above its clean starting pressure.

Order the 178757Z From PST

Backed by PST Pool Supplies' service team.

  • Free Shipping
  • 30-Day Returns
  • Genuine Pentair Part
  • Pool Techs on Support

Additional Info

Category Pool Products Pool Filters Replacement Filter Cartridge
SKU PST-178757Z
MPN 178757Z
Replaces 178757
Manufacturer Pentair
Weight 2.54 lb
