Product Information
Description

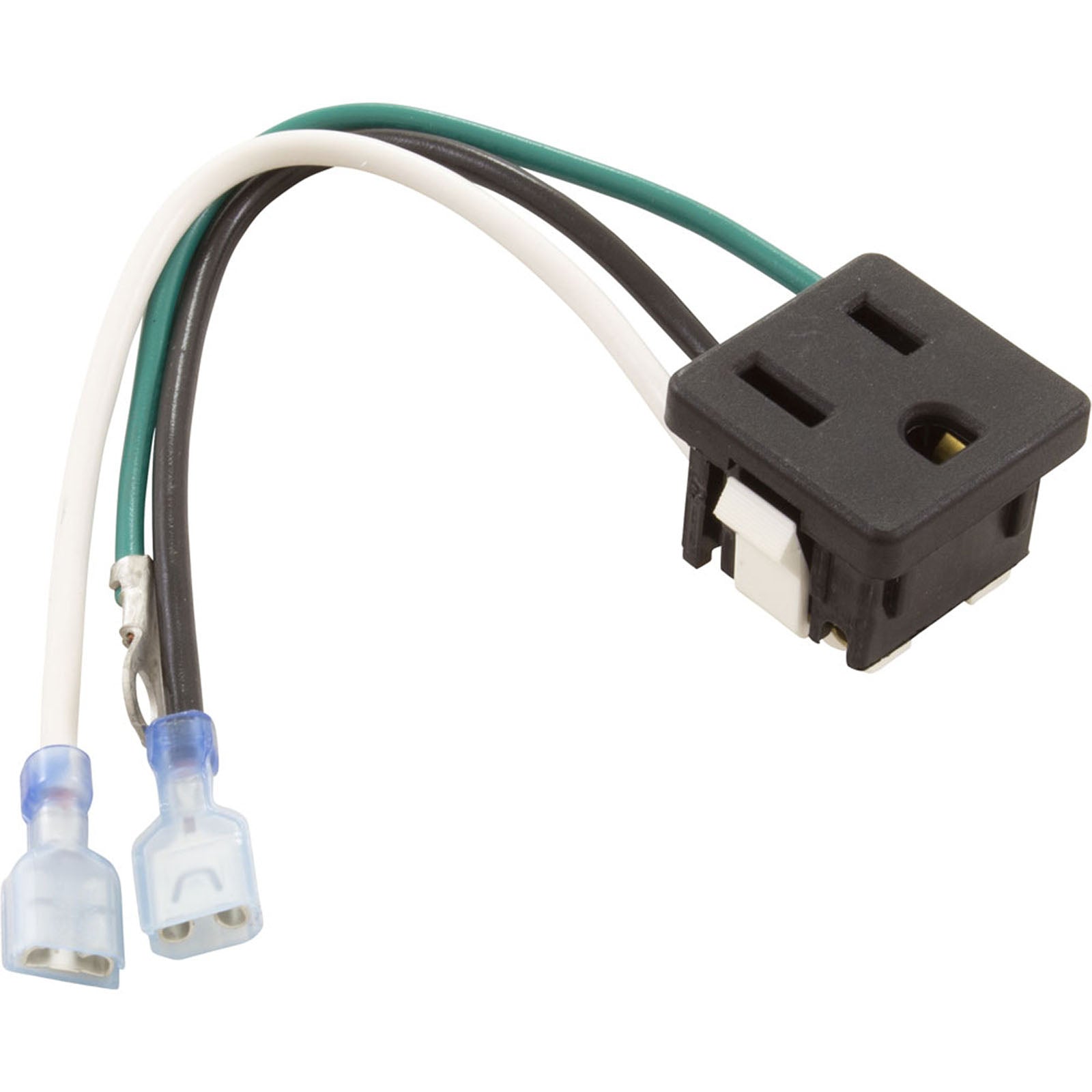

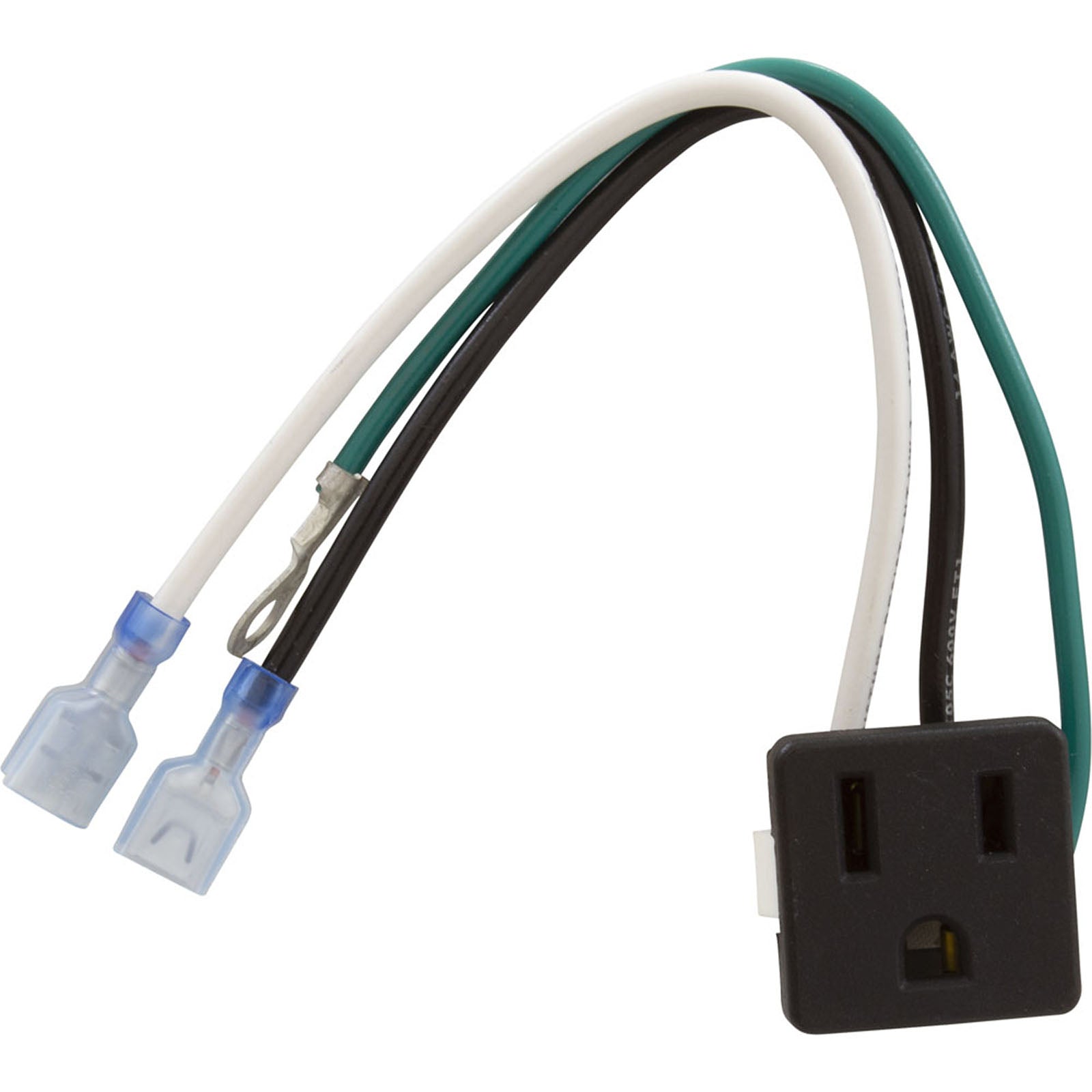

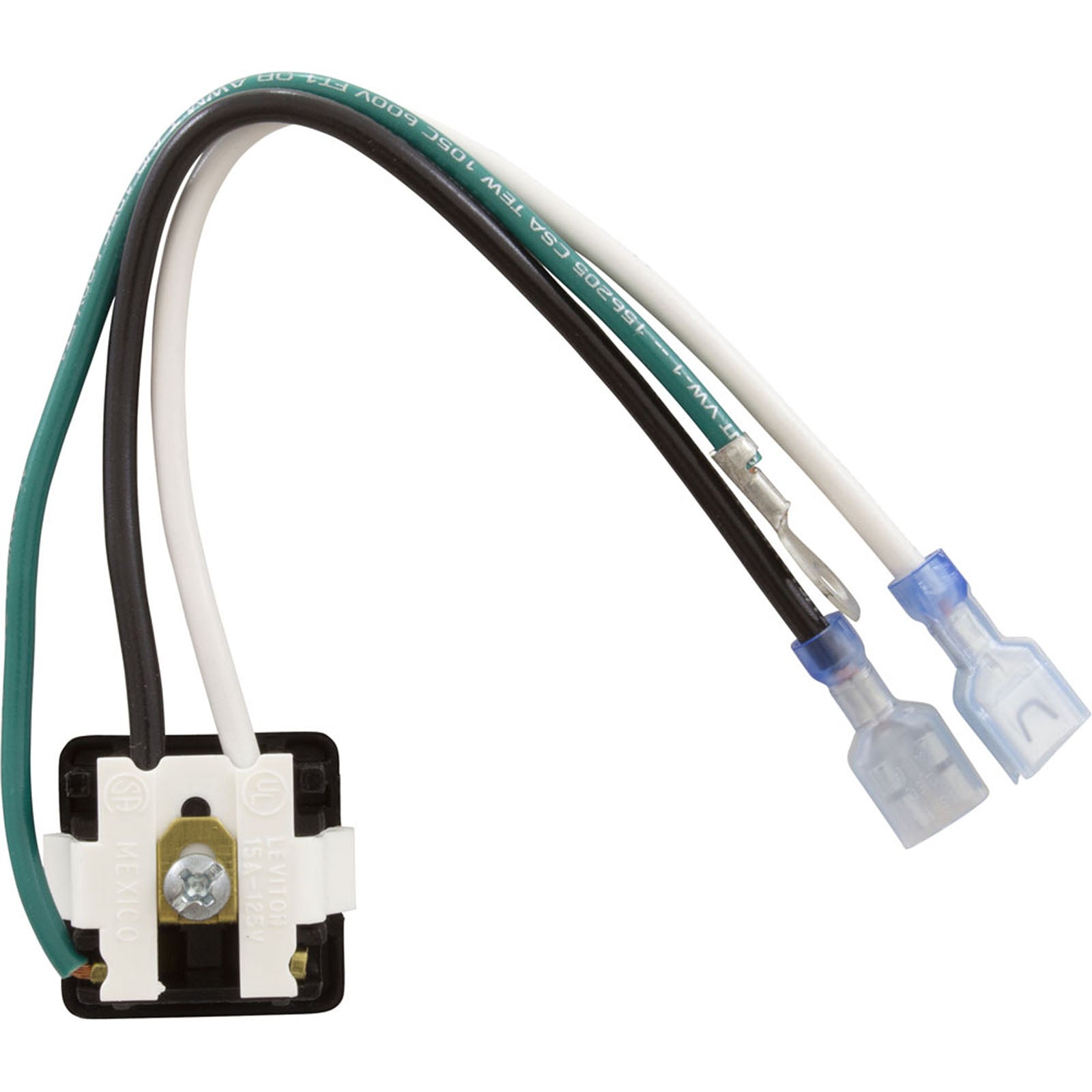

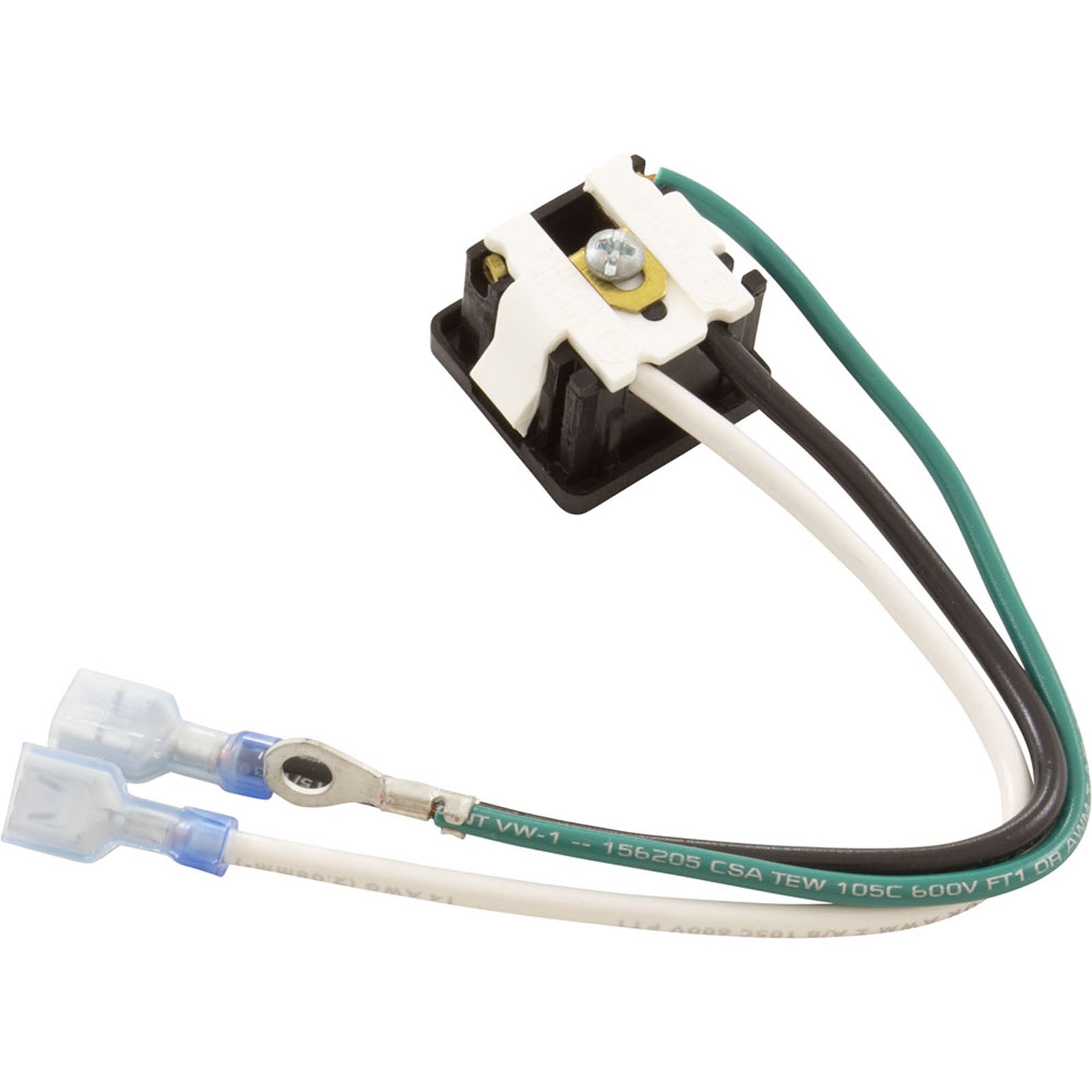

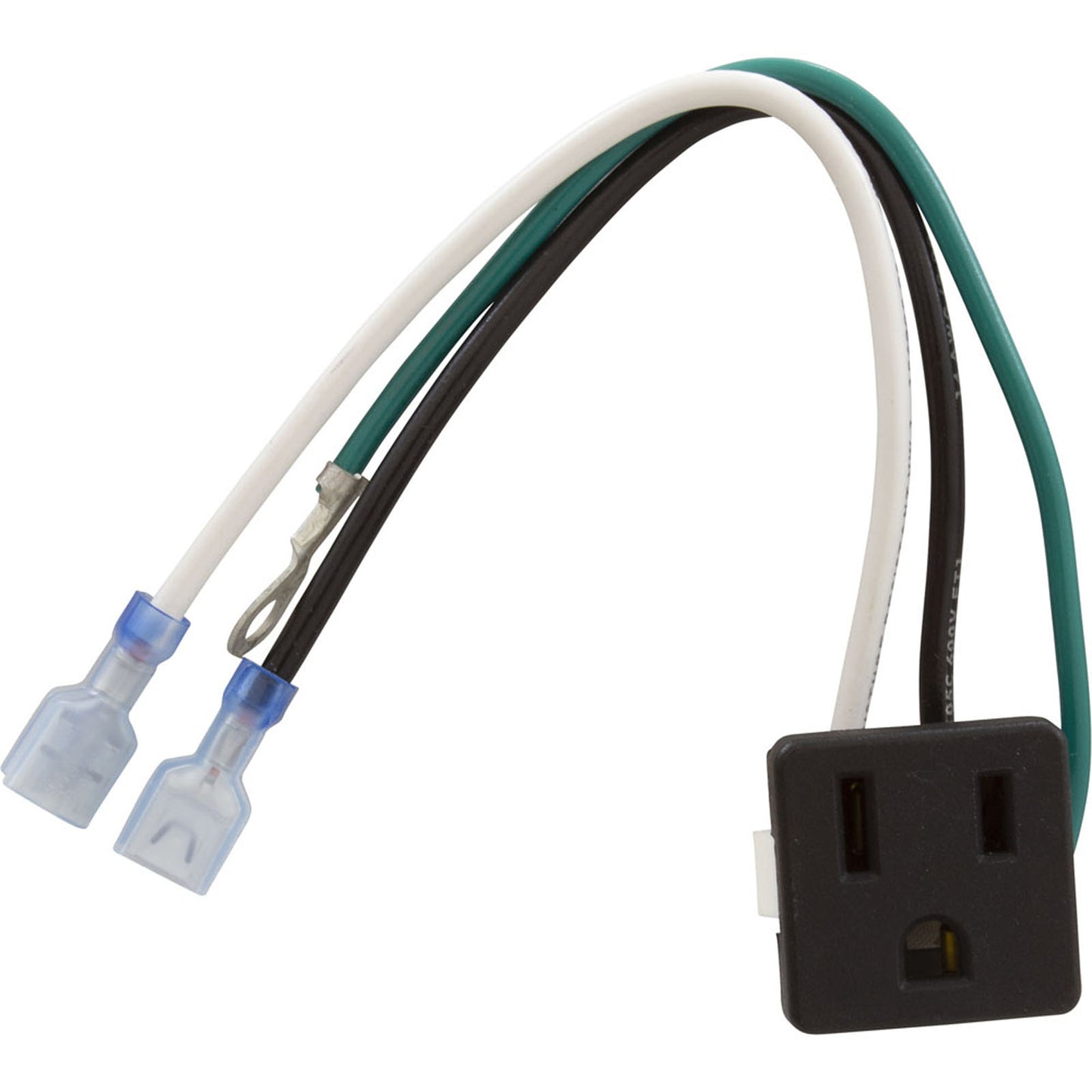

Hayward GLX-OUTLET-15A 120VAC/15A Snap-In Replacement Outlet
Genuine Hayward snap-in outlet, 120 VAC, 15 A.
The Hayward GLX-OUTLET-15A is Hayward's 120 VAC, 15 A snap-in outlet replacement. Hayward's replacement guide 092398A shows the swap: unscrew the ground lug from the can with a 5/16 in bit, unplug the black and white wires from the PCBA display board and press the old outlet out. To install, feed the new outlet's wires through the can, snap it in, plug the black and white wires into the board by its color code and screw the ground wire back to the can with the green ground lug.
| Manufacturer | Hayward |
|---|---|
| Hayward Part Number | GLX-OUTLET-15A |
| Hayward Description | Outlet, 120VAC/15A, snap-in |
| Rating | 120 VAC, 15 A |
| Mounting | Snap-in |
| Type | Receptacle |
| Receptacle Style | NEMA |
| Lead Ends | Ring terminal and 1/4 in female slide connectors |
| GTIN | 761418010868 |
| SKU | PST-_GLX-OUTLET-15A |
| Hayward Part Type | Water quality part |
| Replacement Guide | Hayward 092398A Rev B |
| Warranty | 1 year replacement part (Hayward) |
What tools does the swap take?
Hayward's guide calls for a 5/16 in bit to remove and reinstall the ground lug. If a screwdriver will not fit, the guide says to press the side of the outlet that sits under the board with your finger.
What is the warranty?
Hayward lists a 1-year warranty on this replacement part.
Additional Info
| Category | Parts Pool Parts Salt Generator Parts |
| SKU | PST-_GLX-OUTLET-15A |
| MPN | GLX-OUTLET-15A |
| Replaces | 2807-161, 322698 |
| Manufacturer | Hayward |
| Weight | 0.14 lb |
