Product Information
Description
- Genuine Hayward Part
- 1-Year Part Warranty
- Powers OmniLogic Chlorination
- Free Shipping

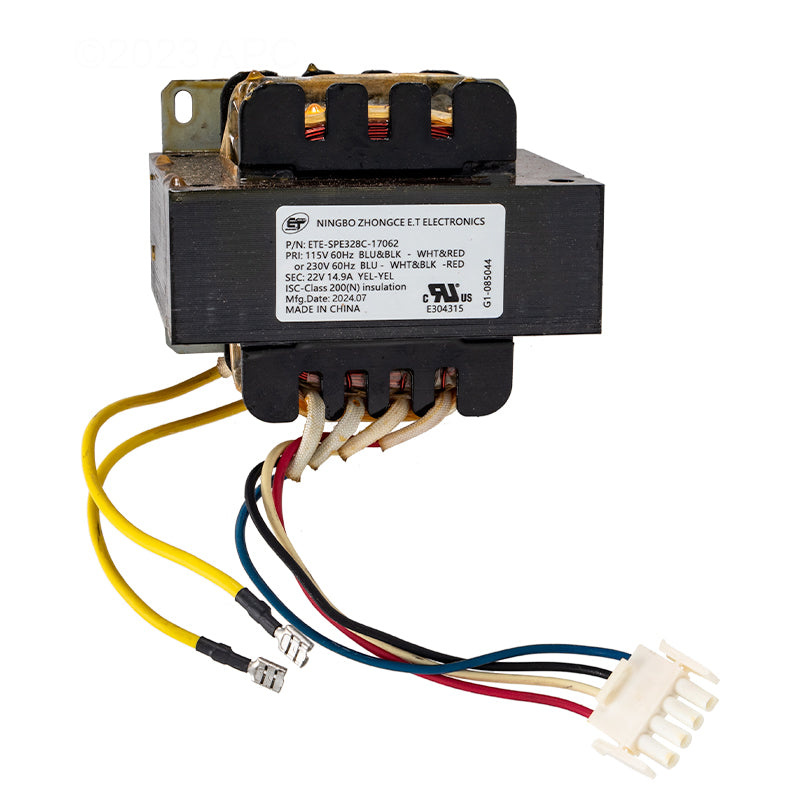

Hayward HLX-TRNSFMR Replacement Transformer for the OmniLogic Pool Control
Genuine Hayward transformer for your OmniLogic panel.
The Hayward HLX-TRNSFMR is Hayward's replacement transformer for the OmniLogic pool control. Hayward states that this component powers the chlorinator function in the OmniLogic, and lists a 1-year warranty on the part.
Why PST Customers Pick This
Powers the Chlorinator Function
Hayward's installation manual says this component powers the chlorinator function in the OmniLogic.
Mounts Beneath the Dead Front
The transformer connects to the OmniLogic panel beneath the dead front, and Hayward's steps remove and refit it with four corner screws.
Reconnects to the Main Board
Hayward's steps disconnect the 4-wire connector labeled "primary" and two yellow wires from the Main Board, then reconnect them to the new transformer.
Easy to Verify
Hayward's manual says to enable chlorination after installation and check voltage and current on the chlorinator diagnostic screen.
Genuine Hayward Part
Hayward lists the HLX-TRNSFMR as its own replacement part, and each page of its installation manual carries the notice "Use only Hayward genuine replacement parts."
Shut Off Power
Hayward warns of danger of death, injury or property damage if the procedure is not followed. Power to the OmniLogic panel must be shut off before the dead front is removed, which means a complete shutdown of power to the entire OmniLogic panel.
Specifications
| Identification | |
|---|---|
| Manufacturer | Hayward |
| Hayward Part Number | HLX-TRNSFMR |
| Hayward Description | Transformer, replacement, OmniLogic |
| GTIN / UPC | 610377257718 |
| SKU | PST-HLXTRNSFMR |
| Part Type | Automation Parts |
| Application | Aftermarket |
| Fitment and Function | |
| Works With | Hayward OmniLogic pool control |
| Function | Powers the chlorinator function in the OmniLogic |
| Location | Beneath the dead front of the OmniLogic panel |
| Pool Type | In Ground |
| Installation | |
| Mounting | Four corner screws |
| Connections | 4-wire connector labeled "primary" and two yellow wires, to the Main Board |
| Hayward Install Manual | 092559 Rev A |
| Warranty | |
| Replacement Part Warranty | 1 year (Hayward) |
Frequently Asked Questions
What does the HLX-TRNSFMR do?
Hayward lists it as a replacement transformer for the OmniLogic pool control, and says it powers the chlorinator function in the OmniLogic.
Do I need to shut off power to replace it?
Yes. Hayward's installation manual says power to the OmniLogic panel must be shut off before the dead front is removed, and that this means a complete shutdown of power to the entire panel.
How do I check that the new transformer works?
Hayward's manual says to power up the OmniLogic, enable chlorination, and verify voltage and current at the chlorinator diagnostic screen. It refers you to the OmniLogic Operation Manual for that screen.
What warranty does it carry?
Hayward lists a 1-year replacement part warranty on the HLX-TRNSFMR.
Order the HLX-TRNSFMR From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- 1-Year Hayward Warranty
- Authorized Hayward Dealer
Additional Info
| Category | Parts Pool Parts Automation Parts |
| SKU | PST-HLXTRNSFMR |
| MPN | HLX-TRNSFMR |
| Manufacturer | Hayward |
| Weight | 8.7 lb |
