US Motors 5 HP 230V 1-Phase 184JMZ Pentair EQ Series Replacement Motor (EEQ500)

US Motors 5 HP 230V 1-Phase 184JMZ Pentair EQ Series Replacement Motor (EEQ500)

US Motors • Part # EEQ500
SKU: SKU: PST-35-184-1000
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110448607297","mpn":"EEQ500","warehouselocations":"Tucson, AZ | Bloomfield, CT","warranty":"12 Months"}
Regular price $1,220.60
Regular price $1,953.00 Sale price $1,220.60

17 in stock

Ships from: Tucson, AZ | Bloomfield, CT

Authorized dealer
US Motors

Genuine OEM product, sold with full manufacturer warranty support.

  1. Today Shipping 1 hrs 50 mins left
  2. 30 days ReturnsPolicy
  3. 12 Months Warranty Manufacturer

Frequently Bought Together

Tool,  Seal Setting
Tool, Seal Setting
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110799290433","discontinued":false,"mpn":"SS2136","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months"}
Regular price $84.90
Regular price $135.90 Sale price $84.90
Tool, Pool Tool, Armature Holding
Tool, Pool Tool, Armature Holding
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110797684801","discontinued":false,"mpn":"128","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ | Bloomfield, CT","warranty":"12 Months"}
Regular price $27.40
Regular price $43.90 Sale price $27.40
Tool,  Pool Tool,  Impeller Wrench,  Closed
Tool, Pool Tool, Impeller Wrench, Closed
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110797652033","discontinued":false,"mpn":"127","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months"}
Regular price $40.50
Regular price $64.80 Sale price $40.50
View full details

Product Information

Description

  • Pentair EQ Series Replacement
  • 5 HP, 230 V, 1 Phase
  • Premium Efficient
  • Free Shipping

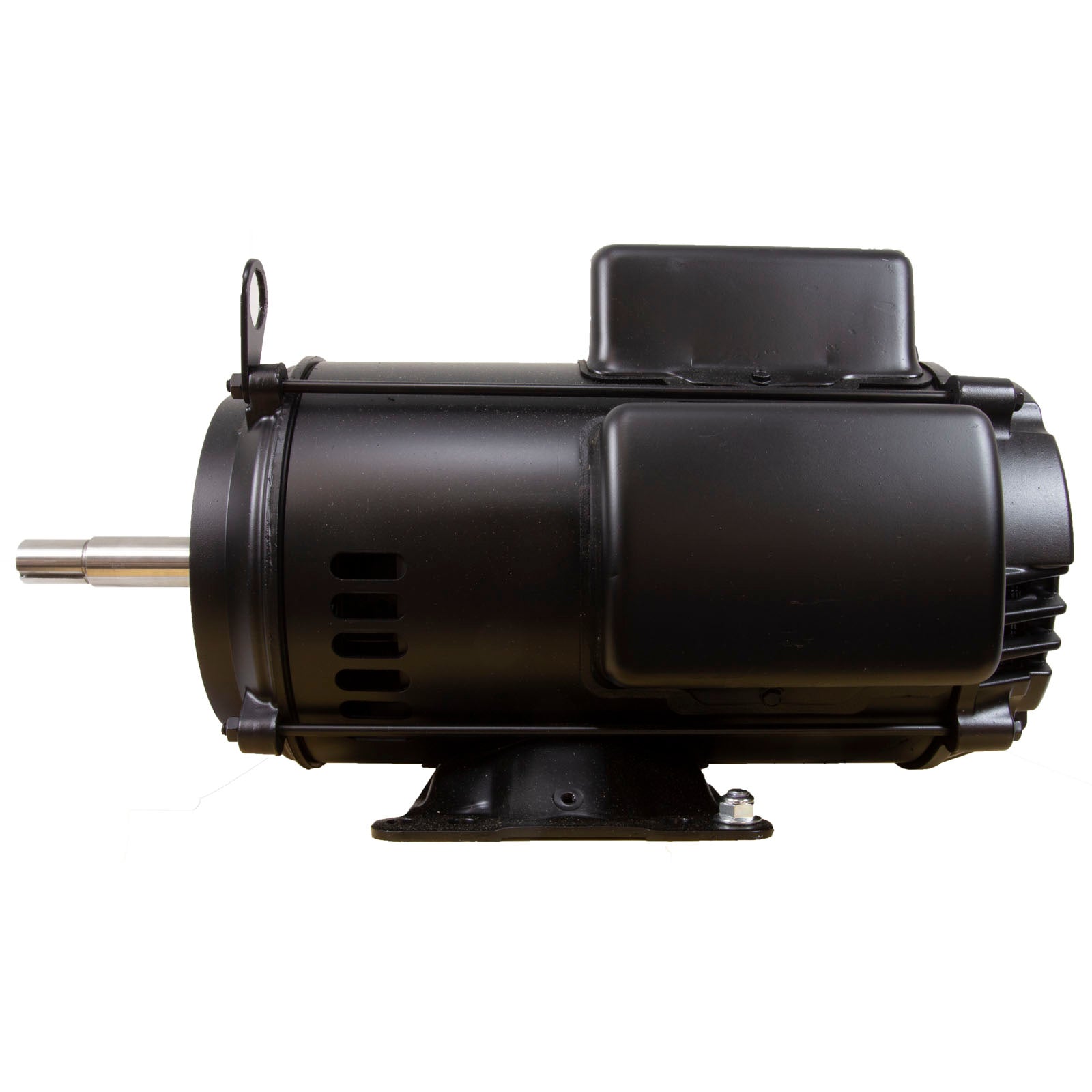

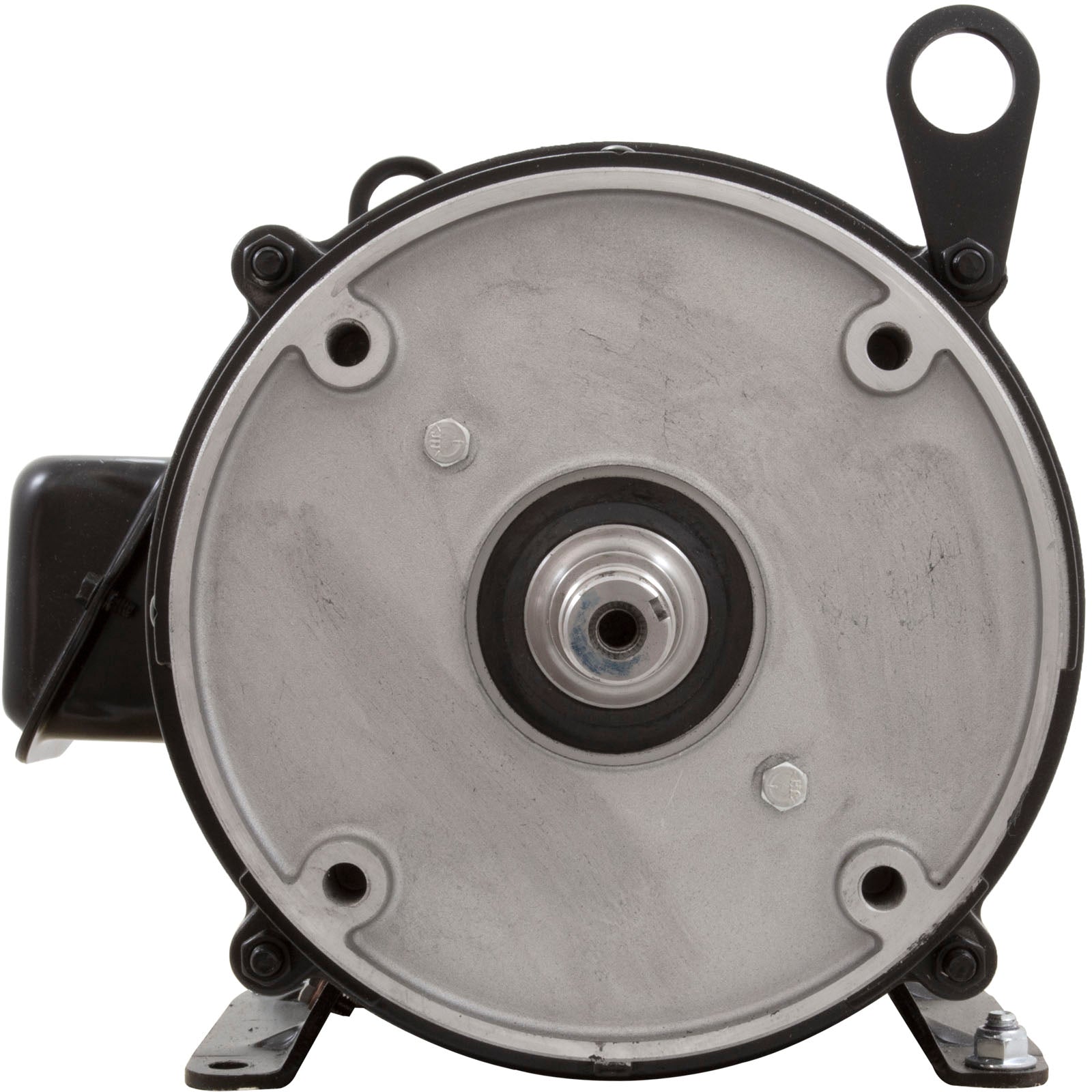

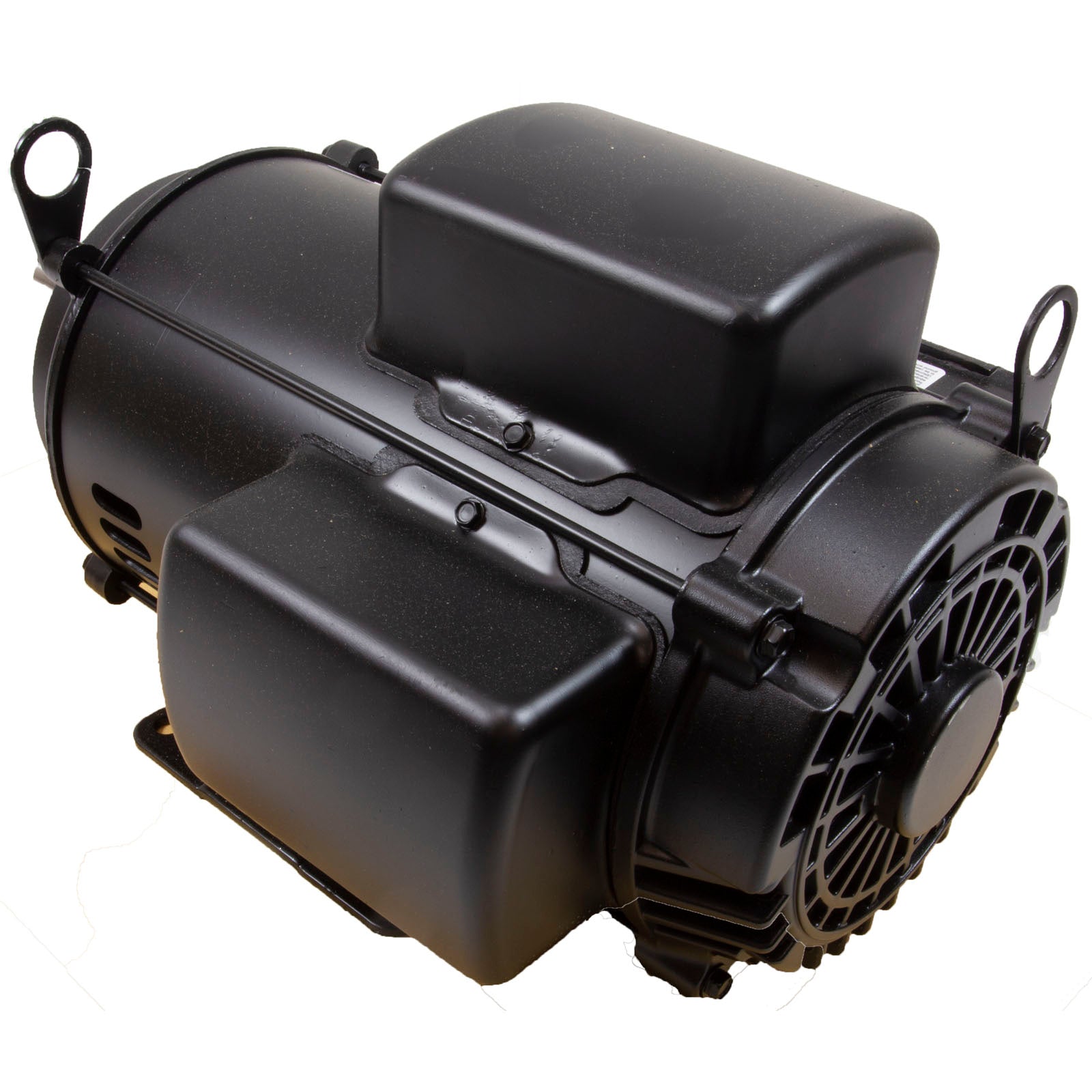

US Motors EEQ500 5 HP Single Phase Pool Motor for Pentair EQ Series Pumps

Premium efficient 184JMZ close coupled pump motor.

5 HP
Horsepower
230 V
Single Phase
184JMZ
Frame
88.0%
Full Load Efficiency
1.15
Service Factor

The U.S. MOTORS EEQ500 is a 5 HP, single phase, 230 V pool motor from Nidec's U.S. MOTORS line of Pentair EQ Series replacement motors for close coupled pumps. It is the open drip proof, premium efficient, full service factor version, on a special 184JMZ mounting, rated 3600 RPM with a 1.15 service factor.

Why PST Customers Pick This

Pentair EQ Series Replacement

Nidec lists the EEQ500 among its U.S. MOTORS replacement pool motors for Pentair EQ Series close coupled pumps, built with the special JMZ mounting that line uses.

Premium Efficient, Full Rated

Rated 88.0% full load efficiency and 94.0% power factor. Nidec describes the line as premium efficient, full service factor and full rated, with lower heat output and vibration.

Open Drip Proof, IP22

This is the open drip proof model, marked IP22 in Nidec's catalog, built for continuous duty at a 40°C ambient.

Class F Insulation

Class F insulated with permanently lubricated ball bearings, which Nidec credits for long insulation and bearing lives.

Stainless Shaft, Ground Lug

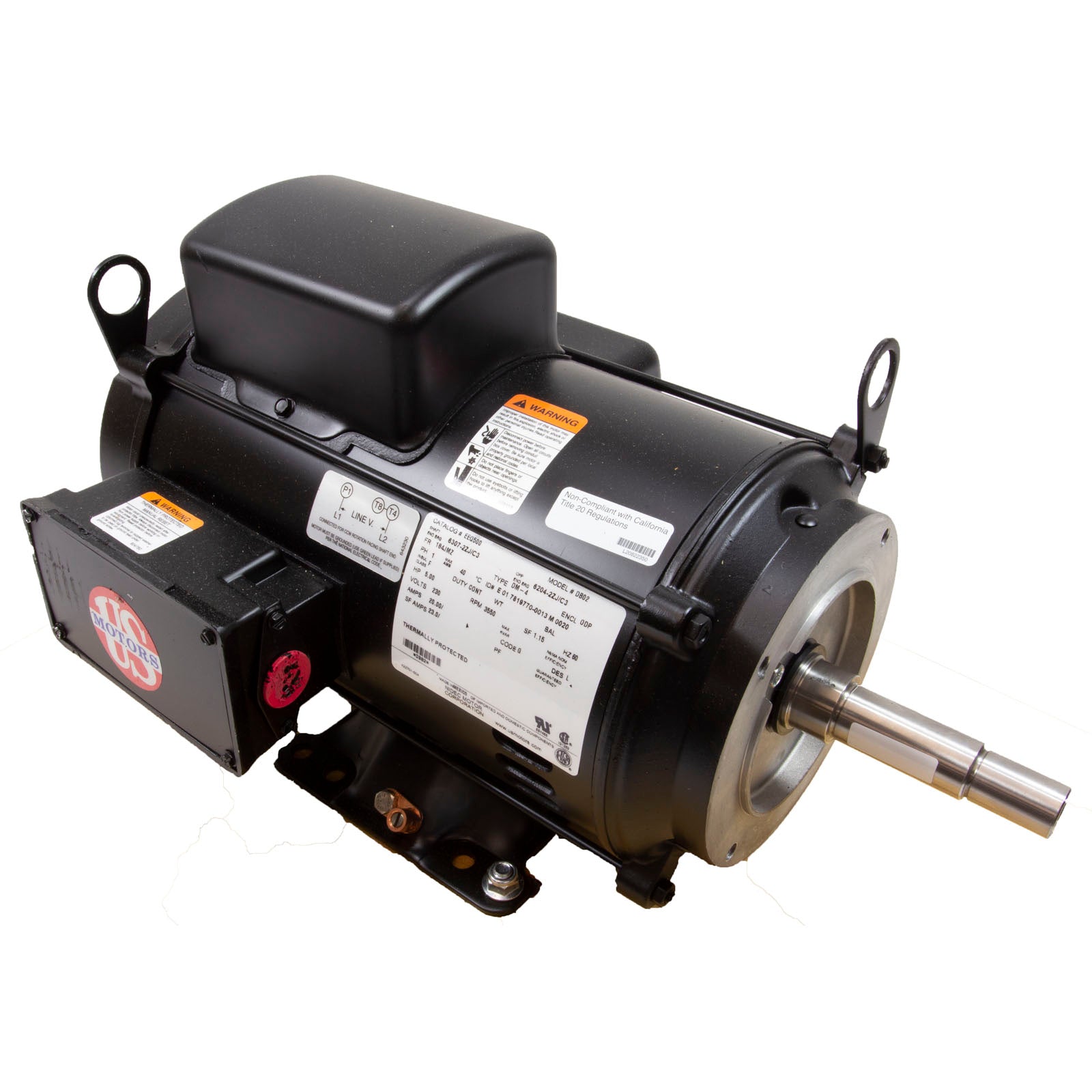

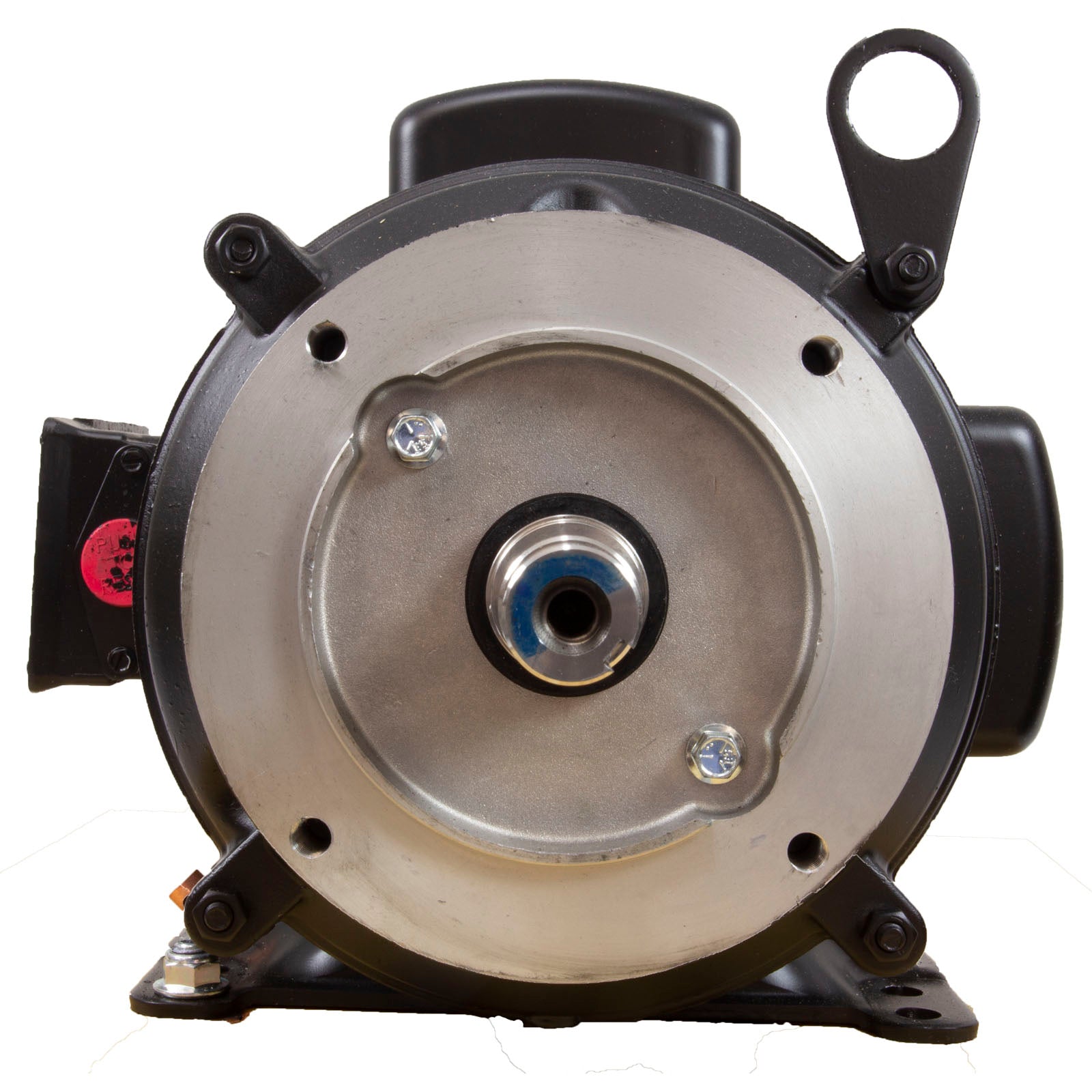

A keyed 300 series stainless steel shaft, a special ground lug and a rigid base finished in black paint.

Single Phase 230 V Supply

Single phase 230 V with a 20.0 A rating. For a three phase supply, Nidec's 5 HP motor in the same line is the EEQK500 on a 182JMZ frame.

Specifications

Identification

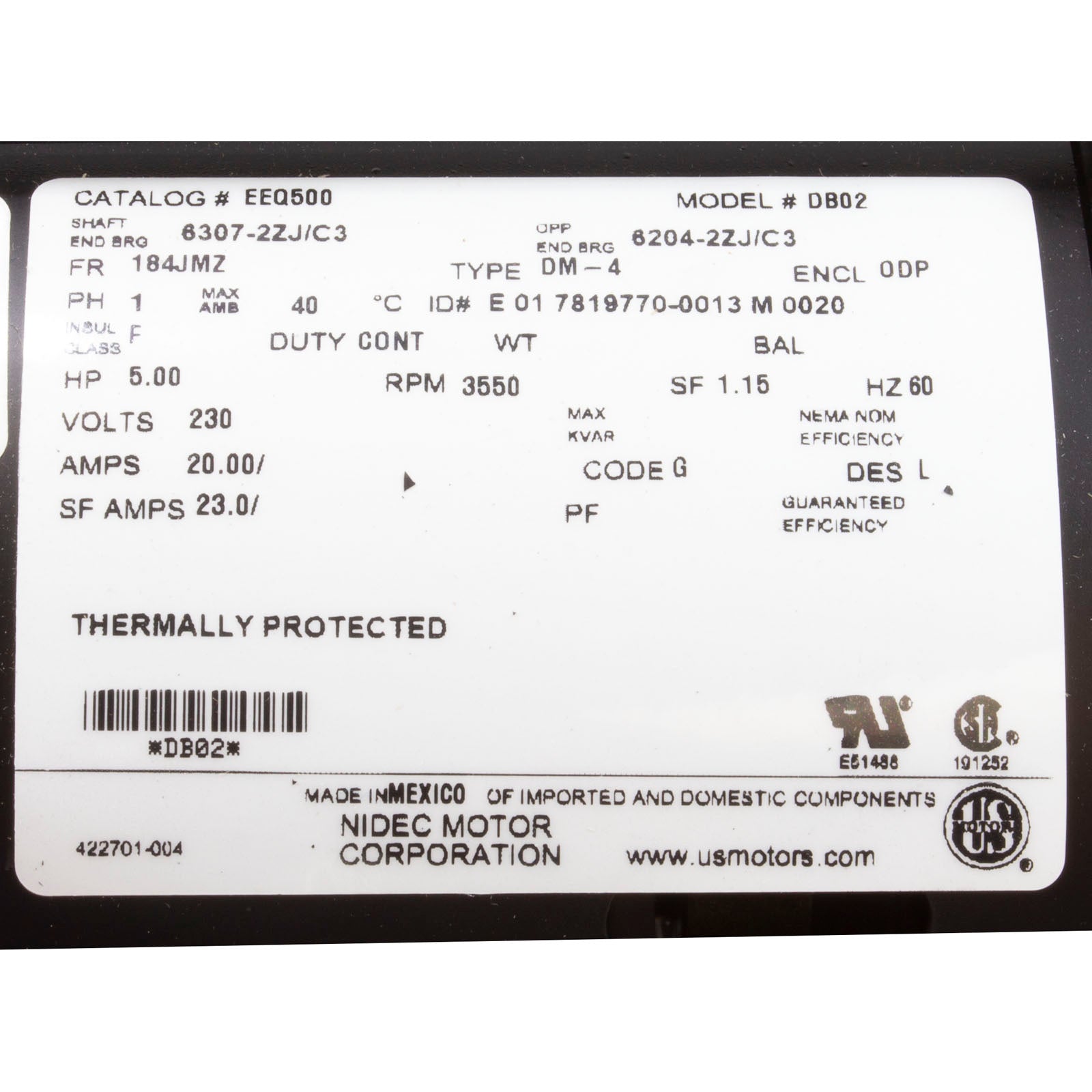

Brand U.S. MOTORS (Nidec Motor Corporation)
Catalog Number EEQ500
Product Line Pentair EQ Series replacement pool motors, close coupled pumps
Cross Reference (Nidec) Regal Rexnord CEQ500
SKU PST-35-184-1000
Electrical
Horsepower 5 HP
Total Horsepower 5.75 THP
Phase Single phase
Voltage 230 V
Amperage 20.0 A
RPM 3600
Speed Single speed
Service Factor 1.15
Full Load Efficiency 88.0%
Full Load Power Factor 94.0%
Mechanical
Frame 184JMZ, special JMZ mounting
Enclosure Open drip proof (IP22)
Shaft Keyed, 300 series stainless steel
Bearings Permanently lubricated ball bearings
Insulation Class F
Ambient / Duty 40°C ambient, continuous duty
Warranty
Nidec Pool and Spa Motor Warranty Limited 12 months from purchase from an NMC dealer or retailer, or 24 months from manufacture, whichever comes first

Frequently Asked Questions

Is the EEQ500 single phase or three phase?

Single phase. Nidec lists the EEQ500 at 5 HP, 1 phase, 230 V on a 184JMZ frame. The three phase 5 HP motor in the same line is the EEQK500, 208-230/460 V on a 182JMZ frame.

Which pumps is it for?

Nidec lists the EEQ500 in its U.S. MOTORS Pentair EQ Series replacement pool motors, under close coupled pump motors.

Is there a totally enclosed (TEFC) version?

Nidec's TEFC Pentair EQ Series replacement motors are three phase, starting with the 5 HP EEQKT500. The EEQ500 is the open drip proof, single phase model.

What is the warranty?

Nidec covers its pool and spa motors with a limited 12 month warranty from the date of purchase from an NMC dealer or retailer, or 24 months from the date of manufacture, whichever comes first.

Order the EEQ500 From PST

Backed by PST Pool Supplies' service team.

  • Free Shipping
  • 30-Day Returns
  • 12-Month Nidec Warranty
  • Authorized US Motors Dealer

Additional Info

Category Parts Pool Parts Pool Pump Parts
SKU PST-35-184-1000
MPN EEQ500
Replaces 318258, 5071-44, PAC-101-7165
Manufacturer US Motors
Weight 96.95 lb
