Product Information
Description

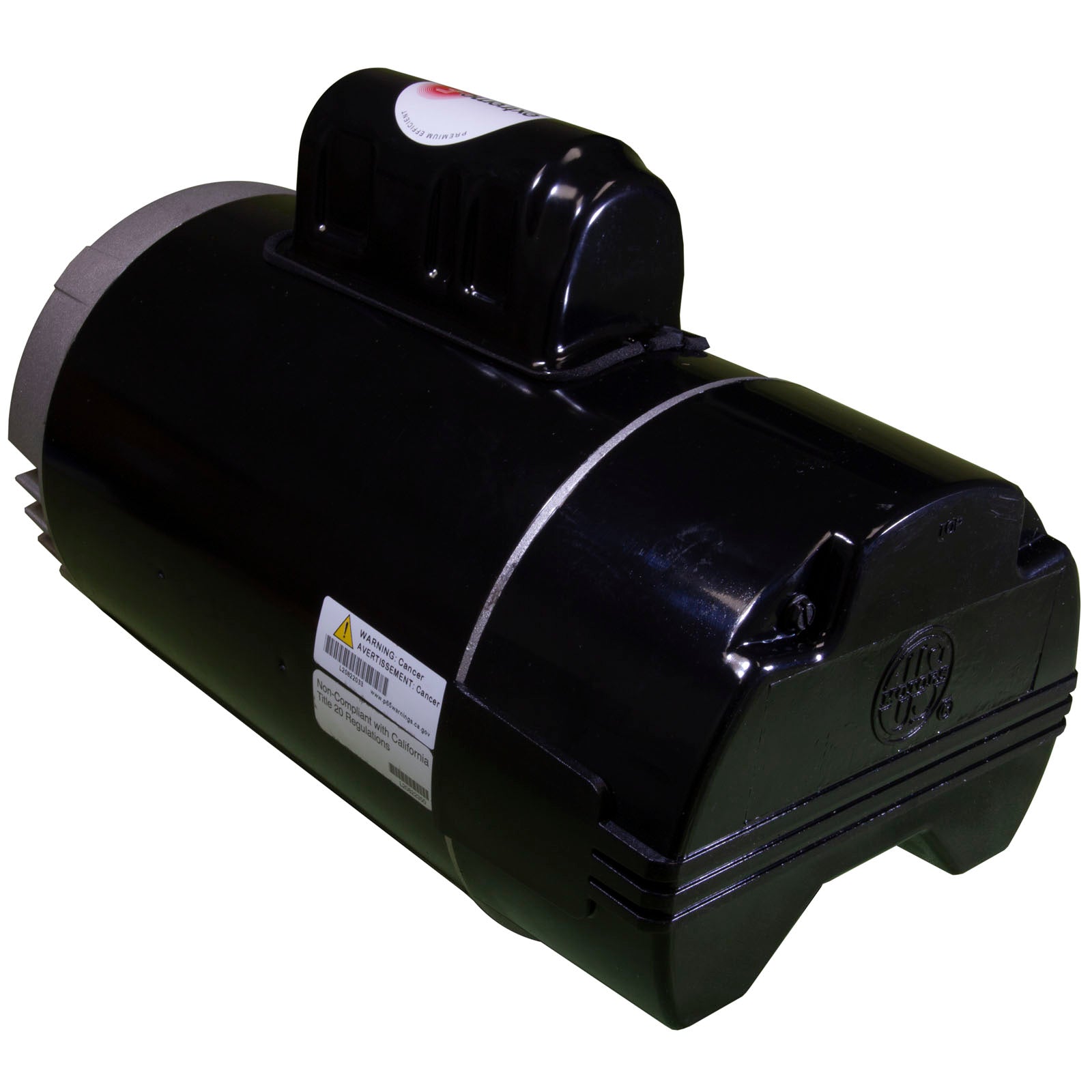

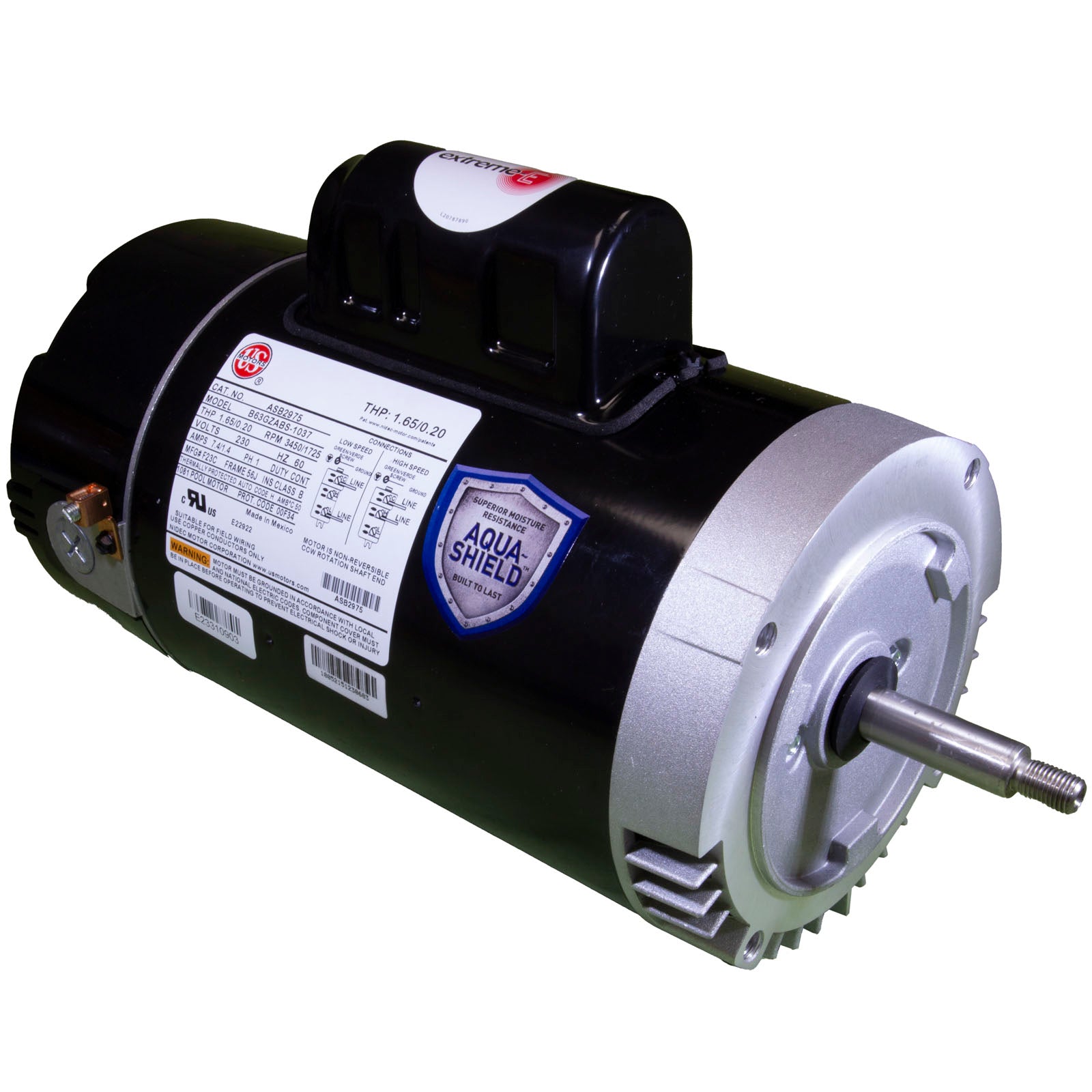

Motor, US Motor, 1.0hp, 2-Spd, 230v, 56JFr, C-Face, Full Rated, PE56 Frame C-Face Pool & Spa Motor - Full Rated, Premium Efficiency
Switchless Design, 6.5" Frame Diameter, Category "S" & "J"
FEATURES:
- Two Compartment
- Shaft Threads - 7/16-20 UNF-2A
- 50°C Ambient
- Triple Bearing Protection
- 1081 Design
- Continuous Duty
- Class B Insulated
- Open Dripproof
- Sealed Ball Bearings
- 303 Stainless Steel Shaft
- Switchless Design
- Thermally Protected
- Discount Symbol: DS-FPS
*Meets California Energy Commission Appliance Regulations 200
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-35-184-1536 |
| MPN | ASB2975 |
| Replaces | 38636 |
| Manufacturer | US Motors |
| Weight | 32.0 lb |
