Hayward 1 HP MaxRate Pump Motor for MaxFlo II/XL, 115/208-230V (SPX2707Z1M)
Hayward 1 HP MaxRate Pump Motor for MaxFlo II/XL, 115/208-230V (SPX2707Z1M)
55 in stock
Ships from: Tucson, AZ | Bloomfield, CT | Murray, UT
Genuine OEM product, sold with full manufacturer warranty support.
- Today Shipping 7 hrs 51 mins left
- 30 days ReturnsPolicy
- 12 Months Warranty Manufacturer
Frequently Bought Together
Product Information
Description
- Genuine Hayward Part
- 1-Year Part Warranty
- 115/208-230V Motor
- Free Shipping
Hayward SPX2707Z1M 1 HP MaxRate Pump Motor for MaxFlo II and MaxFlo XL Pumps
Single-speed, dual-voltage threaded-shaft motor.
The Hayward SPX2707Z1M is a 1 HP single-speed replacement motor with a threaded shaft, rated for single-phase, 60 Hz power at 115/208-230V. Hayward's MaxFlo XL manual lists it as the 1 HP motor for that pump series, and it is also listed for the Max-Flo II (SP2700X).
Why PST Customers Pick This
Threaded-Shaft Motor

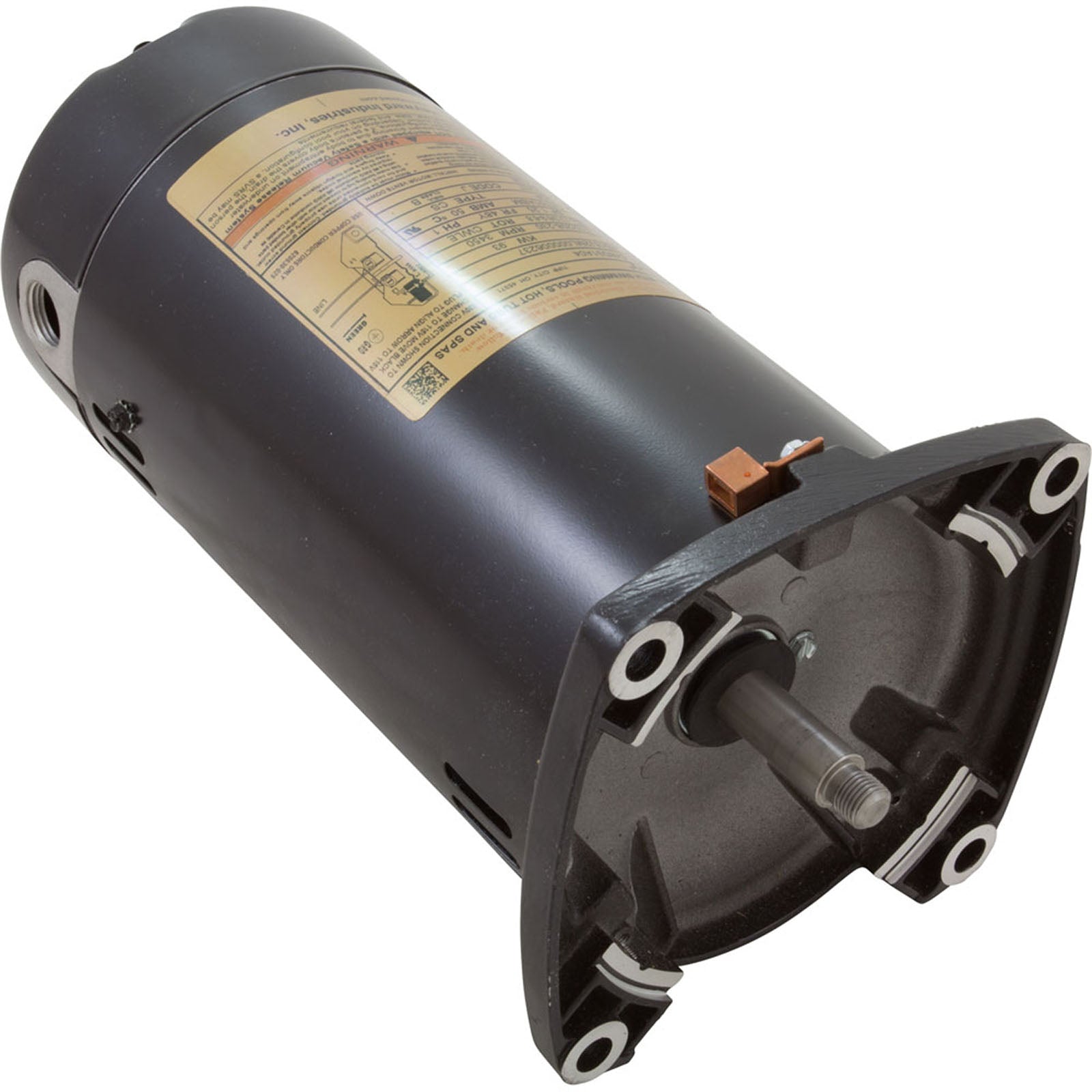

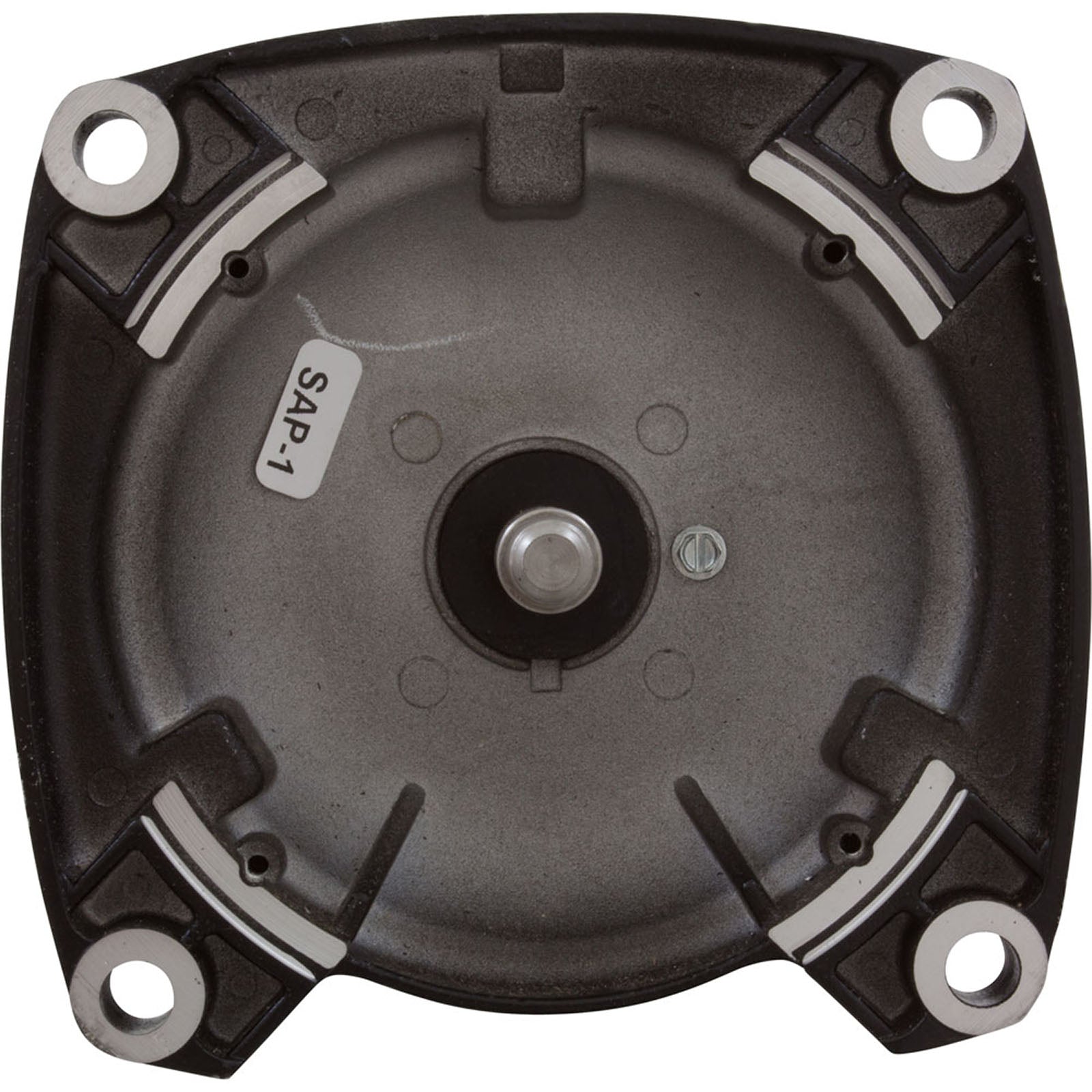

Hayward's MaxFlo XL parts list names the SPX2707Z1M as the 1 HP threaded-shaft motor. It is a 48Y frame, square-flange motor with the capacitor not on top.
Runs on 115 or 208-230V

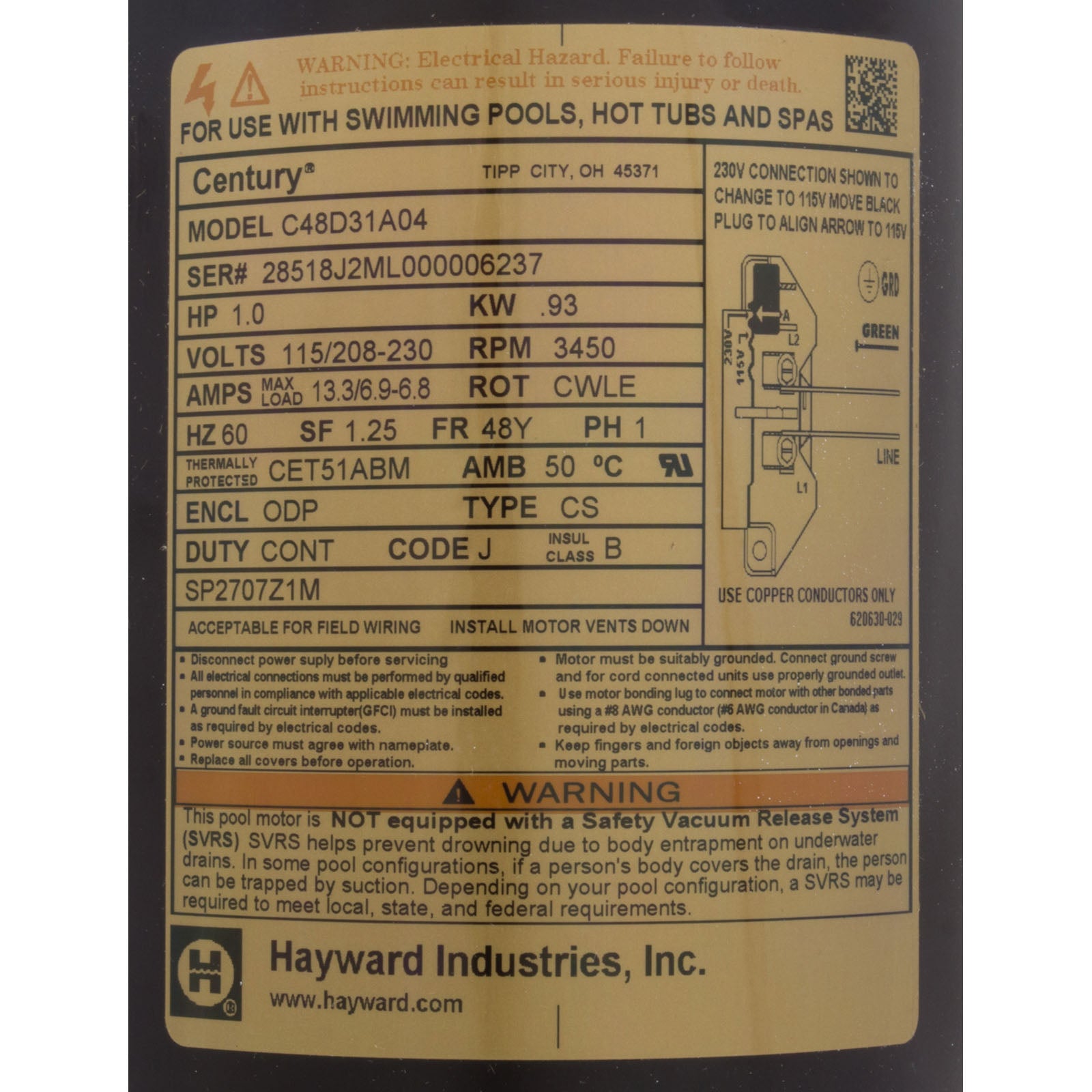

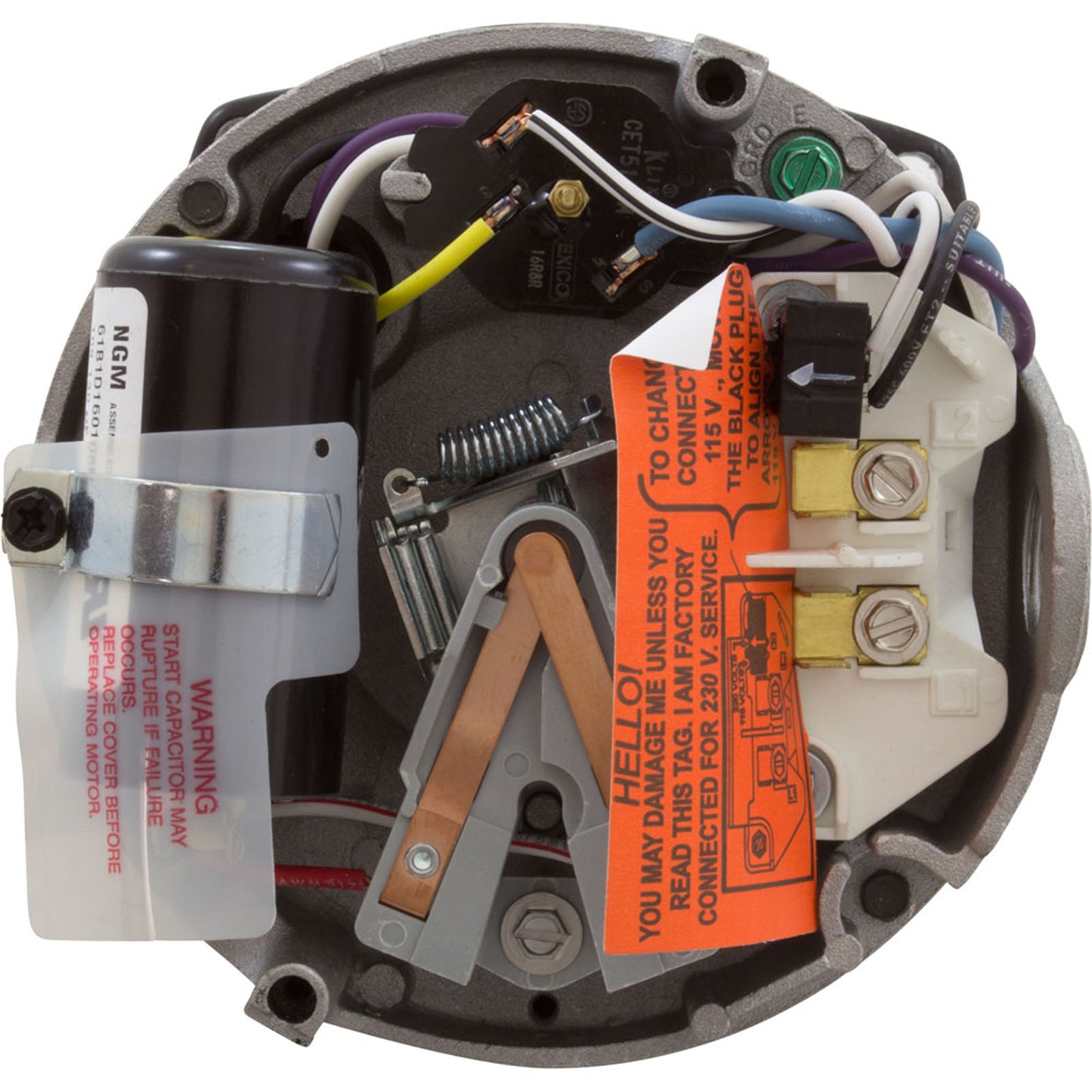

The motor is rated 115/208-230V. Hayward's manual says dual-voltage motors are set to 230V at the factory and have a plug you move to switch to 115V.
MaxFlo II and MaxFlo XL
Listed for Hayward MaxFlo XL pumps in Hayward's manual and for the Max-Flo II SP2700X (Max Rated). Single speed, one phase.
Ground and Bond It
Hayward's manual calls for the pump to be grounded and bonded before it is connected to power, on a GFCI-protected circuit, using copper conductors only.
Stay Within 10% of Nameplate
Hayward says voltage at the pump must not run more than 10% above or below the nameplate rating, or components may overheat and trip on overload.
Electrical Notice
Hayward's manual says all wiring must follow local codes and the National Electrical Code, power must be off before working on the electrical connections, and the pump must be grounded, bonded and connected to a GFCI-protected circuit. It also says the pump should be installed and serviced only by a qualified professional.
Specifications
| Identification | |
|---|---|
| Manufacturer | Hayward |
| Hayward Part Number | SPX2707Z1M |
| Hayward Description | MOTOR - 1.0HP, MAXRATE, A.O.SMITH |
| GTIN / UPC | 610377073202 |
| SKU | PST-35-150-3070 |
| Part Type | Pump part |
| Motor | |
| Rated Horsepower | 1.0 HP |
| Total Horsepower | 1.25 THP |
| Voltage | 115/208-230V |
| Phase / Frequency | Single phase, 60 Hz |
| Speed | Single speed |
| Frame | 48Y |
| Shaft | Threaded |
| Mounting Style | Square flange |
| Capacitor On Top | No |
| Amperage at 208-230V | 6.9 to 6.8 A |
| Fitment | |
| Pump Series | Hayward MaxFlo XL |
| Also Listed For | Hayward Max-Flo II SP2700X (Max Rated) |
| Warranty | |
| Replacement Part Warranty | 1 year, parts only (Hayward) |
Frequently Asked Questions
Which pumps does the SPX2707Z1M fit?
Hayward's MaxFlo XL manual lists it as the 1 HP threaded-shaft motor for the MaxFlo XL series, and it is also listed for the Max-Flo II SP2700X (Max Rated).
Can I wire it for 115V or 230V?
Yes, the motor is rated 115/208-230V. Hayward's manual says dual-voltage motors are set to 230V at the factory, and a plug is moved to change to 115V.
Is there a two-speed version?
Yes, as a separate part. Hayward's MaxFlo XL parts list shows SPX2707Z2M, a 1 HP two-speed threaded-shaft motor rated 230V. The SPX2707Z1M here is the single-speed motor.
Are there restrictions in California?
Single-speed pumps and replacement motors of one total HP or greater cannot be sold, offered for sale or installed in a residential pool for filtration use in California (Title 20 CCR sections 1601-1609). This motor is rated 1.25 total HP.
Order the SPX2707Z1M From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- 1-Year Hayward Warranty
- Authorized Hayward Dealer
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-35-150-3070 |
| MPN | SPX2707Z1M |
| Replaces | 3260-108, 626399, HAY-101-2731 |
| Manufacturer | Hayward |
| Weight | 23.3 lb |
