Product Information
Description
- Genuine Hayward Part
- 1-Year Part Warranty
- Single Speed PSC Motor
- Free Shipping

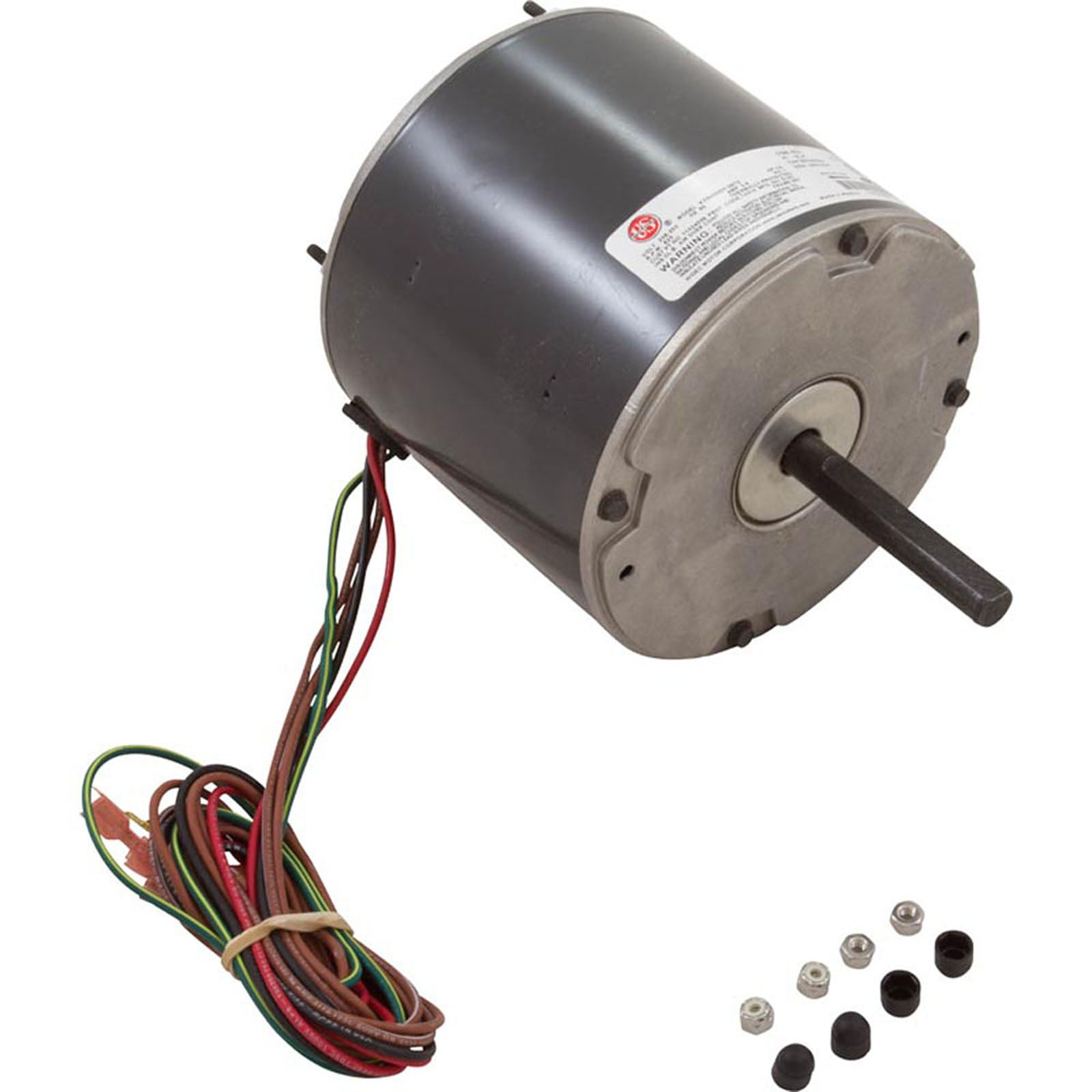

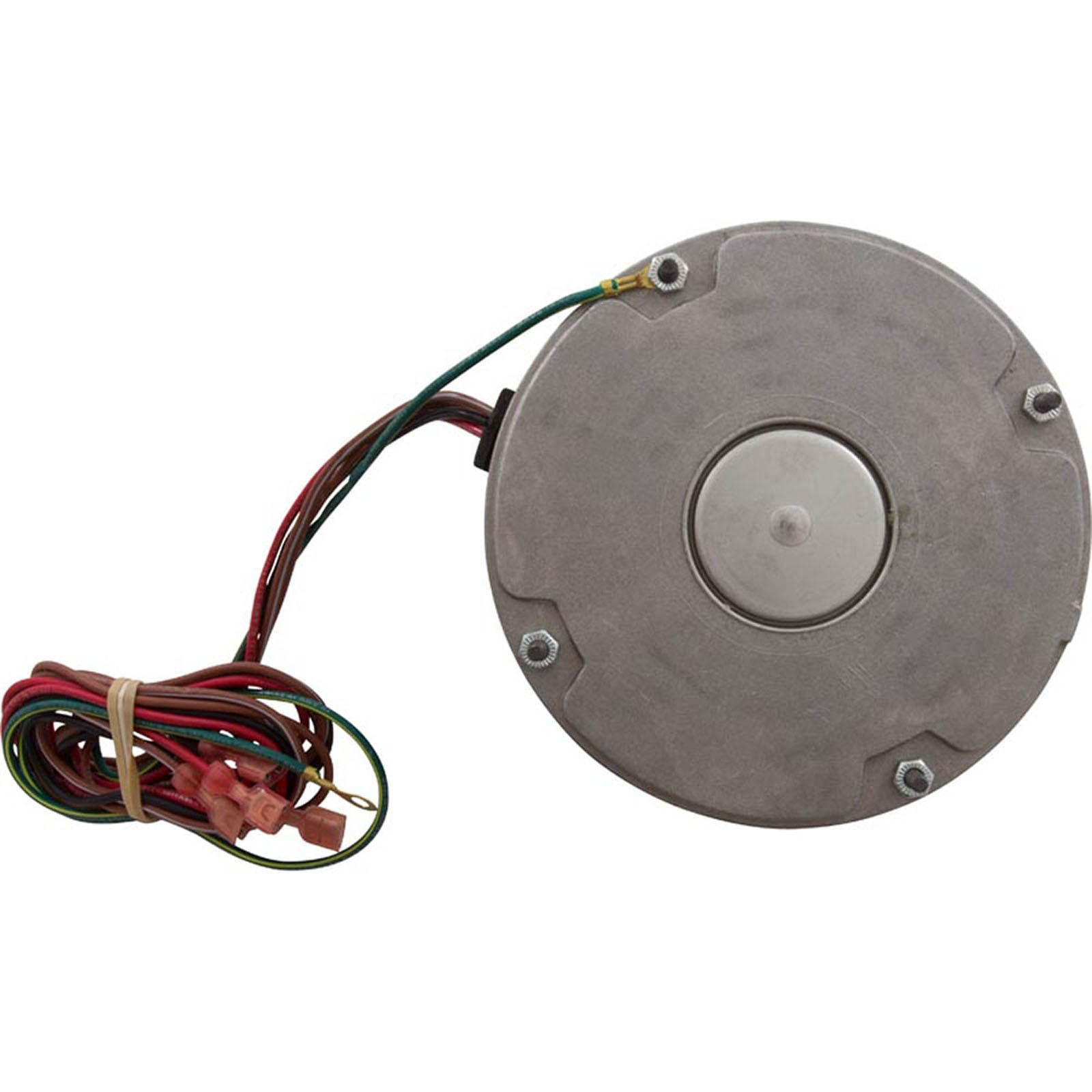

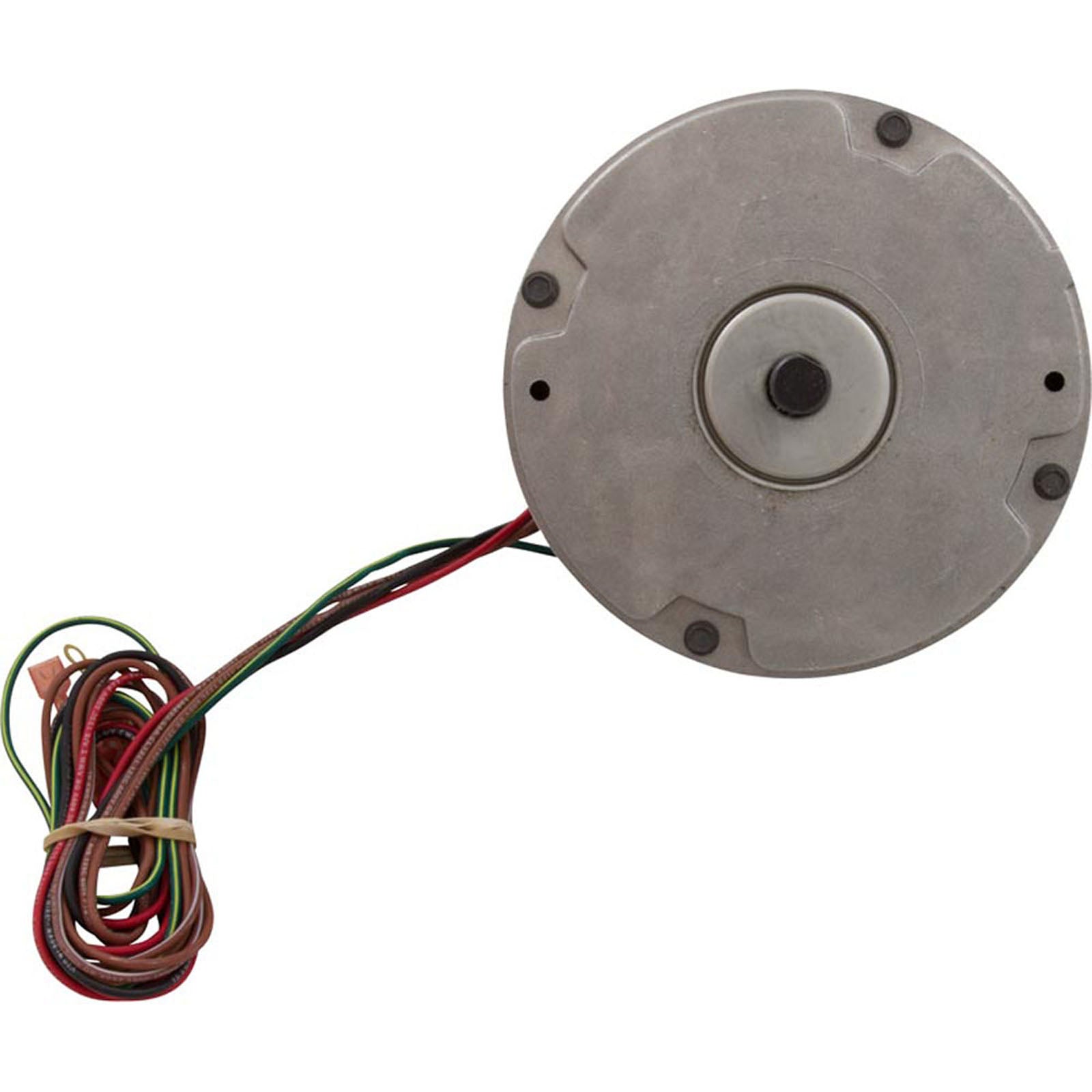

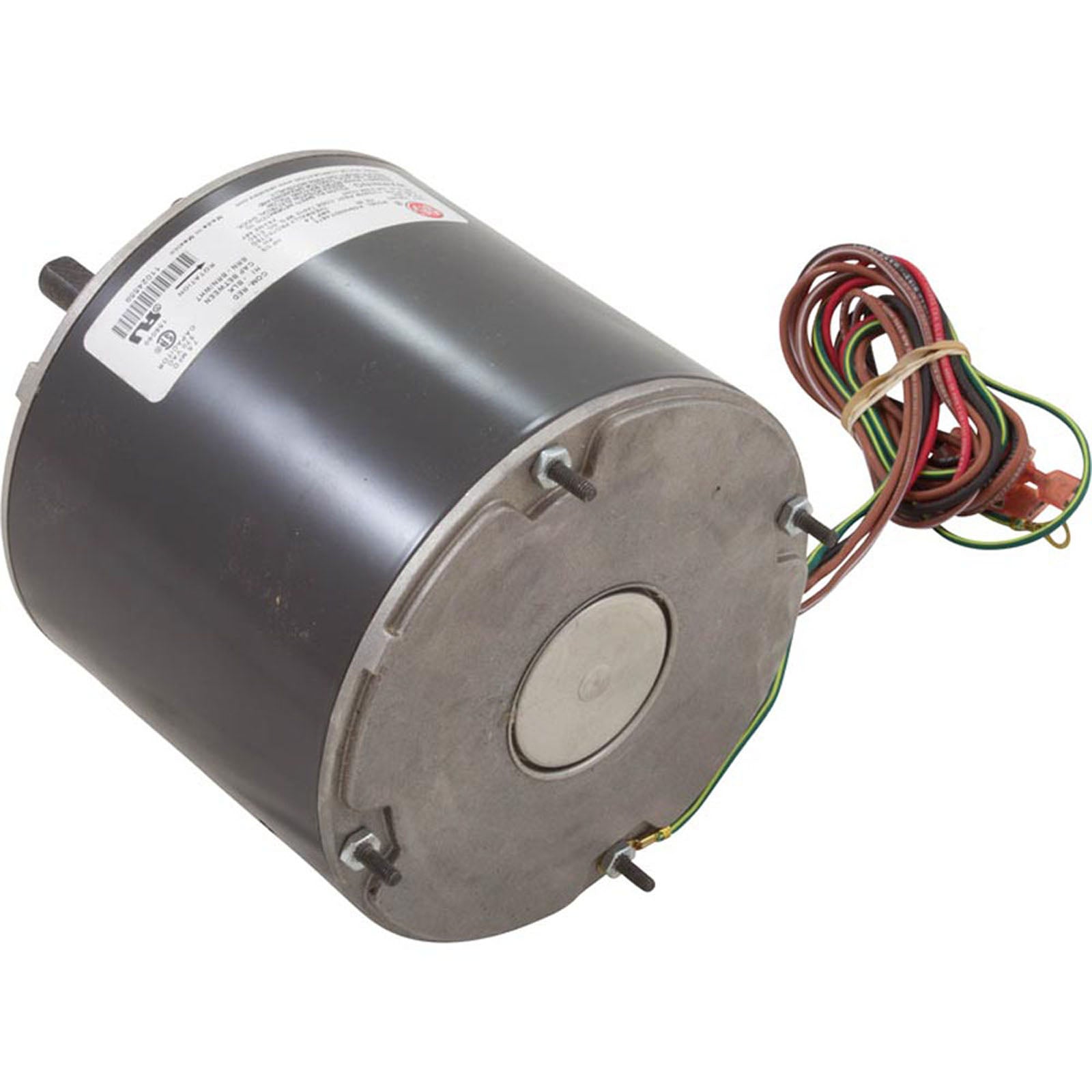

Hayward SMX300055036 HeatPro Heat Pump Fan Motor, 1/3 HP, 825 RPM
Hayward's listed fan motor for HeatPro heat pumps.
The Hayward SMX300055036 is the 1/3 HP, 825 RPM fan motor that Hayward's service parts list calls for on all six HeatPro MCHX heat pumps, the HP21105T, HP21205T and HP21405T heat-only models and the HP31105T, HP31205T and HP31405T heat/chill models. Hayward's earlier heat pump manual lists the same motor across its 90,000 to 140,000 BTU sizes, and Hayward covers the part with a 1-year replacement part warranty.
Why PST Customers Pick This
Listed for Every MCHX Model
Hayward's HeatPro MCHX service parts list names SMX300055036 as the fan motor (item 6) for the HP21105T, HP21205T, HP21405T, HP31105T, HP31205T and HP31405T.
Earlier HeatPro Sizes Too
Hayward's heat pump manual 51300102101, linked from the HeatPro HP21404T page, lists this fan motor for every size it covers: 90,000, 110,000, 125,000 and 140,000 BTU heat-only, plus 120,000 and 140,000 BTU heat/cool.
Moves Air Across the Coil
Hayward describes the MCHX fan motor as an 825 RPM, single speed, 1/3 HP motor whose job is to move air across the air-side microchannel coil.

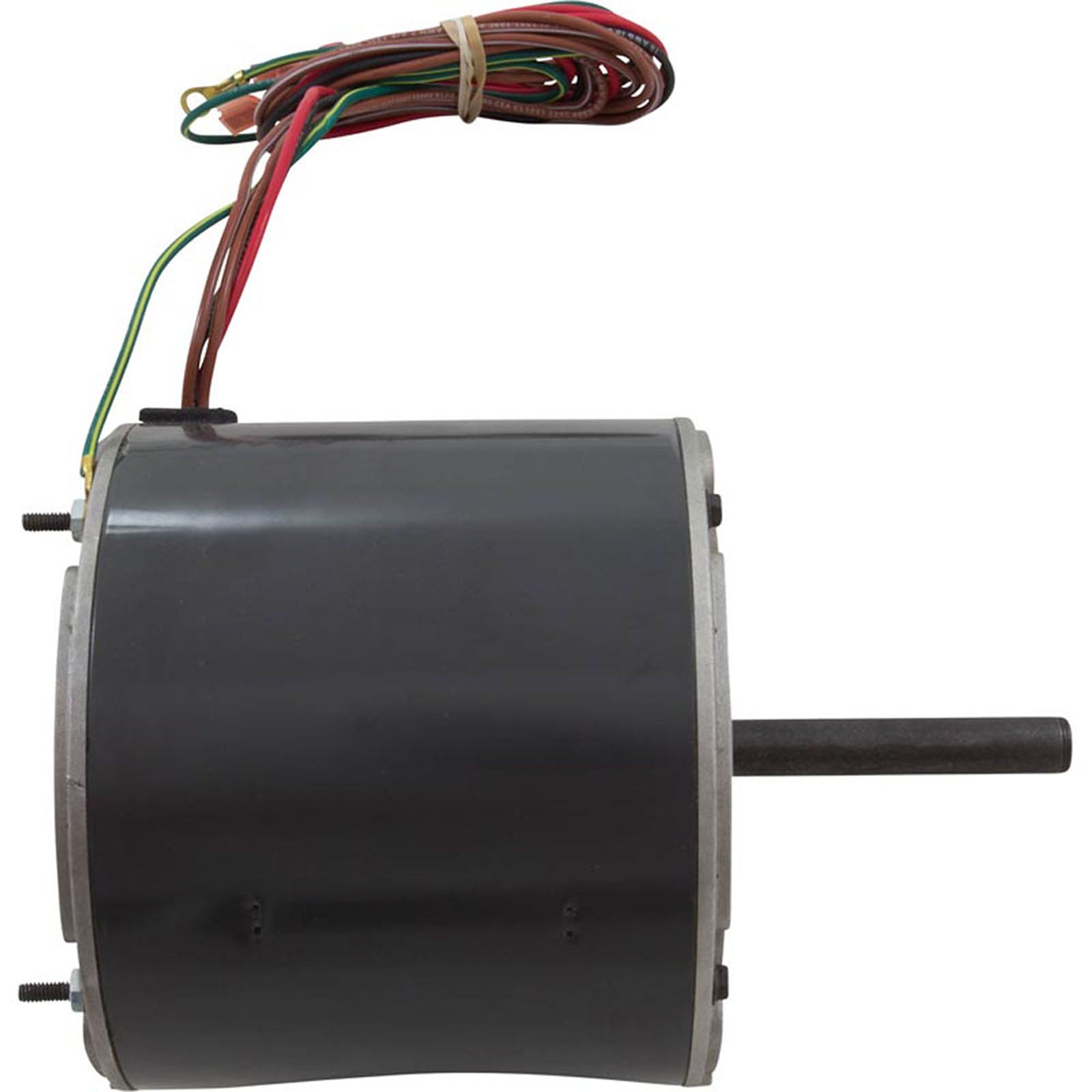

1/2 Inch Motor Shaft
The fan blade mounts on the 1/2 in motor shaft. On MCHX units Hayward pairs it with a 22 in 3-blade fan on the 110K models and a 22 in 4-blade fan on the 120K and 140K models.
2.4 A PSC Fan Motor
Hayward's specification tables list the fan motor at 2.4 A RLA, and Hayward's HeatPro pages list the fan motor type as PSC.
Starts Before the Compressor
In Hayward's MCHX operating sequence the fan powers on first, followed by a timed delay before the compressor turns on.
Service Notice
Hayward states its MCHX heat pumps are to be serviced only by EPA 608 licensees with HVAC/R training or technicians who have completed Hayward technical training, and that the units run on a 230/240 VAC supply. Hayward recommends turning the breaker off and discharging the fan and compressor capacitors before measuring capacitance, and grounding and bonding the unit per local codes or the National Electrical Code (NFPA 70).
Specifications
| Identification | |
|---|---|
| Manufacturer | Hayward |
| Hayward Part Number | SMX300055036 |
| Hayward Description | Motor-Fan, 1/3 HP, 825 RPM |
| GTIN / UPC | 859127001434 |
| SKU | PST-_SMX300055036 |
| Part Type | Heat pump fan motor (heater part) |

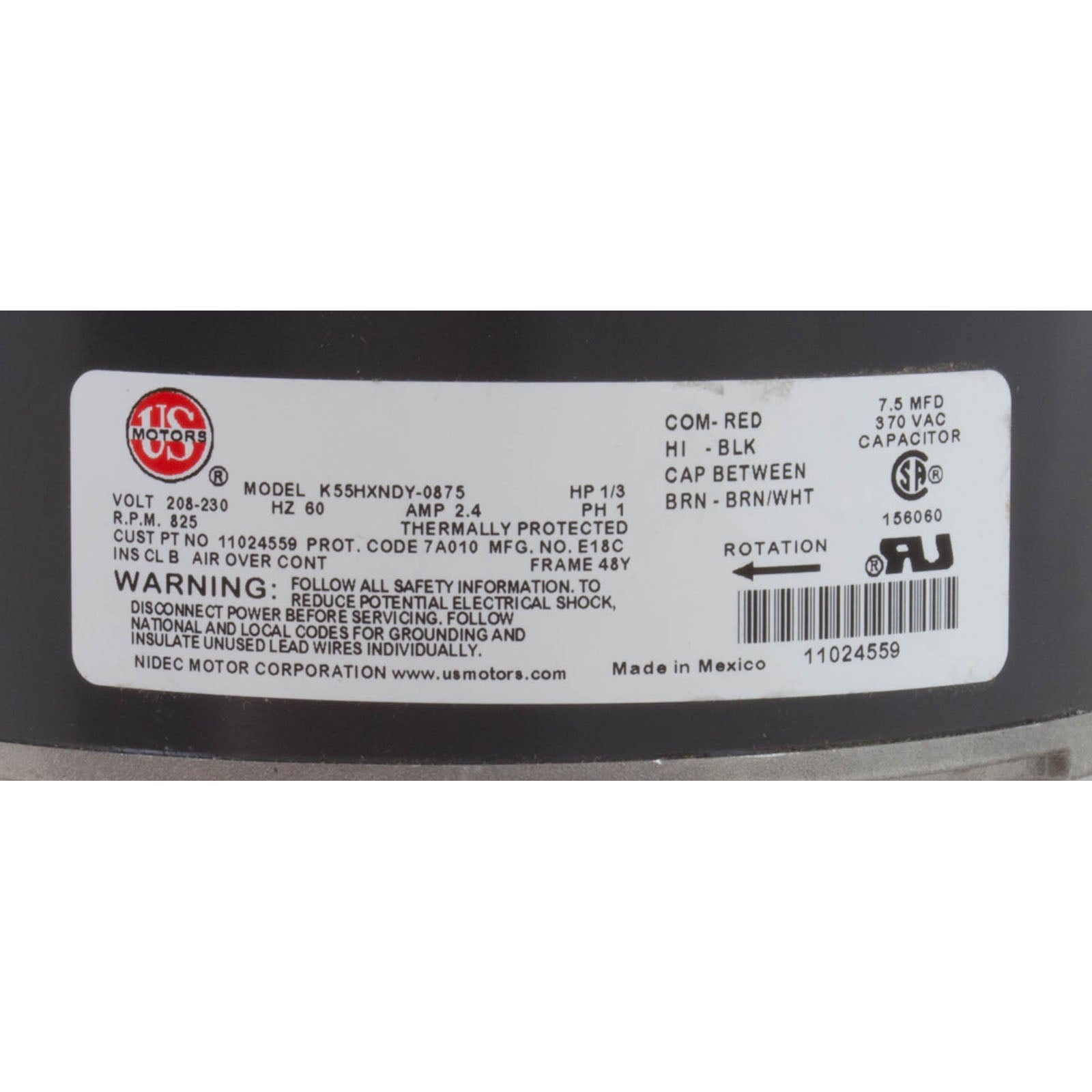

| Motor Maker | Nidec Motor Corp. (US Motors) |
| Motor | |
| Horsepower | 1/3 HP |
| Speed | 825 RPM, single speed |
| Motor Type | PSC |
| Shaft Diameter | 1/2 in |
| Frame | 48Y |
| Voltage / Phase | 208-230 V, single phase |
| Fan Motor RLA | 2.4 A |
| Fan Motor LRA | 4.3 A (earlier HeatPro sizes) |
| Fan Capacitor | Separate part: HPX51401591801 (MCHX), HPX11024151 (earlier models) |
| Fitment | |
| HeatPro MCHX Heat Only | HP21105T, HP21205T, HP21405T |
| HeatPro MCHX Heat/Chill | HP31105T, HP31205T, HP31405T |
| Earlier Hayward Heat Pumps | Manual 51300102101 sizes 100, 112, 125 and 140 heat only, 120 and 140 H/C (incl. HP21404T) |
| MCHX Fan Blade | 22 in 3-blade (110K), 22 in 4-blade (120K, 140K) |
| Warranty | |
| Replacement Part Warranty | 1 year (Hayward) |
Frequently Asked Questions
Which Hayward heat pumps use the SMX300055036 fan motor?
Hayward's MCHX service parts list names it for the HP21105T, HP21205T, HP21405T, HP31105T, HP31205T and HP31405T. Hayward's earlier heat pump manual 51300102101 lists it for all of its sizes (90,000 to 140,000 BTU heat-only and 120,000 / 140,000 BTU heat/cool), the manual Hayward links from the HP21404T page.
My heat pump has a W3 model number. Is it the same unit?
Hayward's MCHX installation manual lists the W3HP21105T, W3HP21205T and W3HP21405T in the same specification columns as the HP21105T, HP21205T and HP21405T, each with a 1/3 HP, 2.4 A fan motor.
Does the motor come with the fan blade or capacitor?
Hayward lists both as separate parts. On MCHX units the fan blade is SMX303140003 (110K) or HPX51700116101 (120K and 140K), and the fan capacitor is HPX51401591801. Hayward's earlier manual lists fan capacitor HPX11024151.
What are the electrical ratings?
Hayward lists the fan motor at 2.4 A RLA, with 4.3 A LRA in its earlier manual. The motor is rated 208-230 V, single phase, and Hayward's MCHX heat pumps run on a 230/240 VAC supply.
Who should replace the fan motor?
Hayward says its MCHX heat pumps should be serviced only by EPA 608 licensees with HVAC/R training or technicians who have completed Hayward technical training, and its manuals call for installation and service by qualified personnel.
