Product Information
Description
Specifications

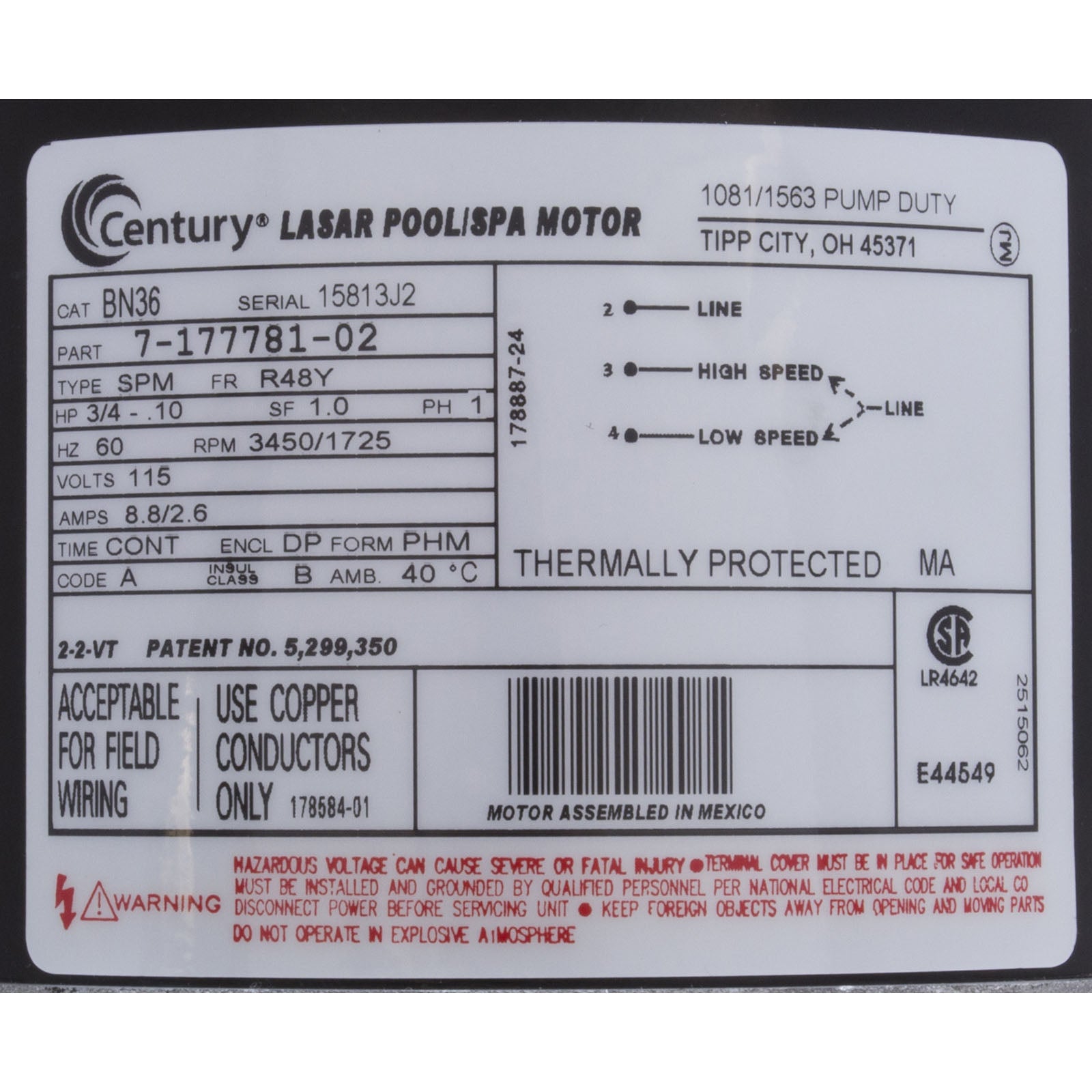

| Motor Type | Spa |
| Motor Amperage | 8.8A/2.6A |
| Voltage | 115v |
| Phase | 1 Phase (1ph) |
| Frame Type | 48Y |
| Speed | 2 Speed (2-Spd) |
| Horsepower | 0.75hp |
| Total Horsepower | 0.75thp |
| Motor Shaft Type | Threaded |
| Motor Style | Thru Bolt |
| Capacitor On Top | No |
| Manufacturer | Century |

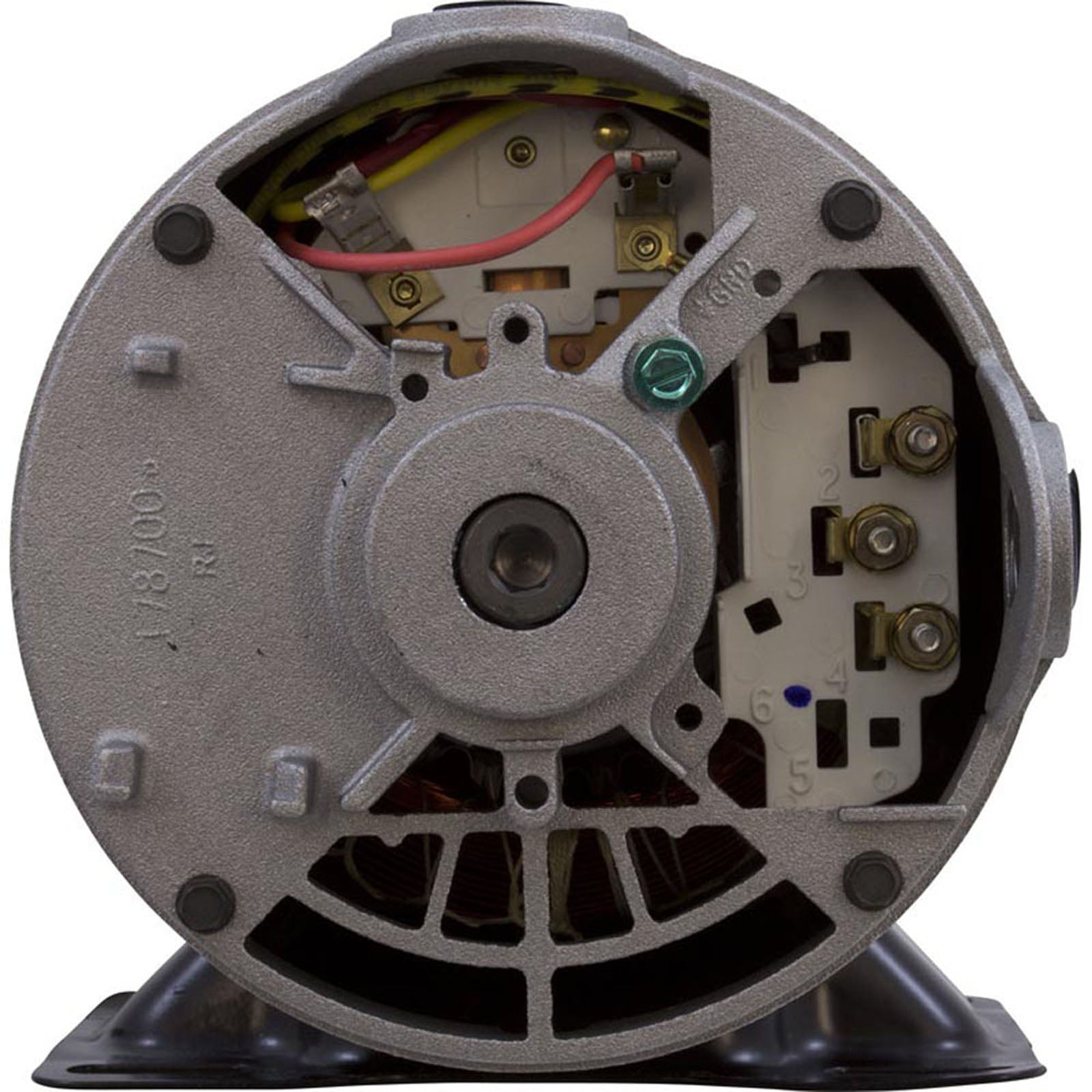

- 12 & 3 O’clock Conduit Entries
- 40°C Ambient • Class B Insulation
- Rotation: CCW Pump End
- Through Bolt Mount
- 48/56 Base Mounting
- 3-1/2” Shaft Height
- Four Thru Bolts on a 5.146 Bolt Circle
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-35-126-1105 |
| MPN | BN36 |
| Replaces | 1-20-0001, 12562, 177781, 22315105126, 22315105140, 305715, 3420310, 3J20310, 5266X, 611041, 611396, 786674014399, 815996300, A800DL, A800DLL-Y, AGL75FL2, AOSBN36, BN-36, C1902, CBS2072, EZBN36 |
| Manufacturer | AO Smith |
| Weight | 21.45 lb |
