Description

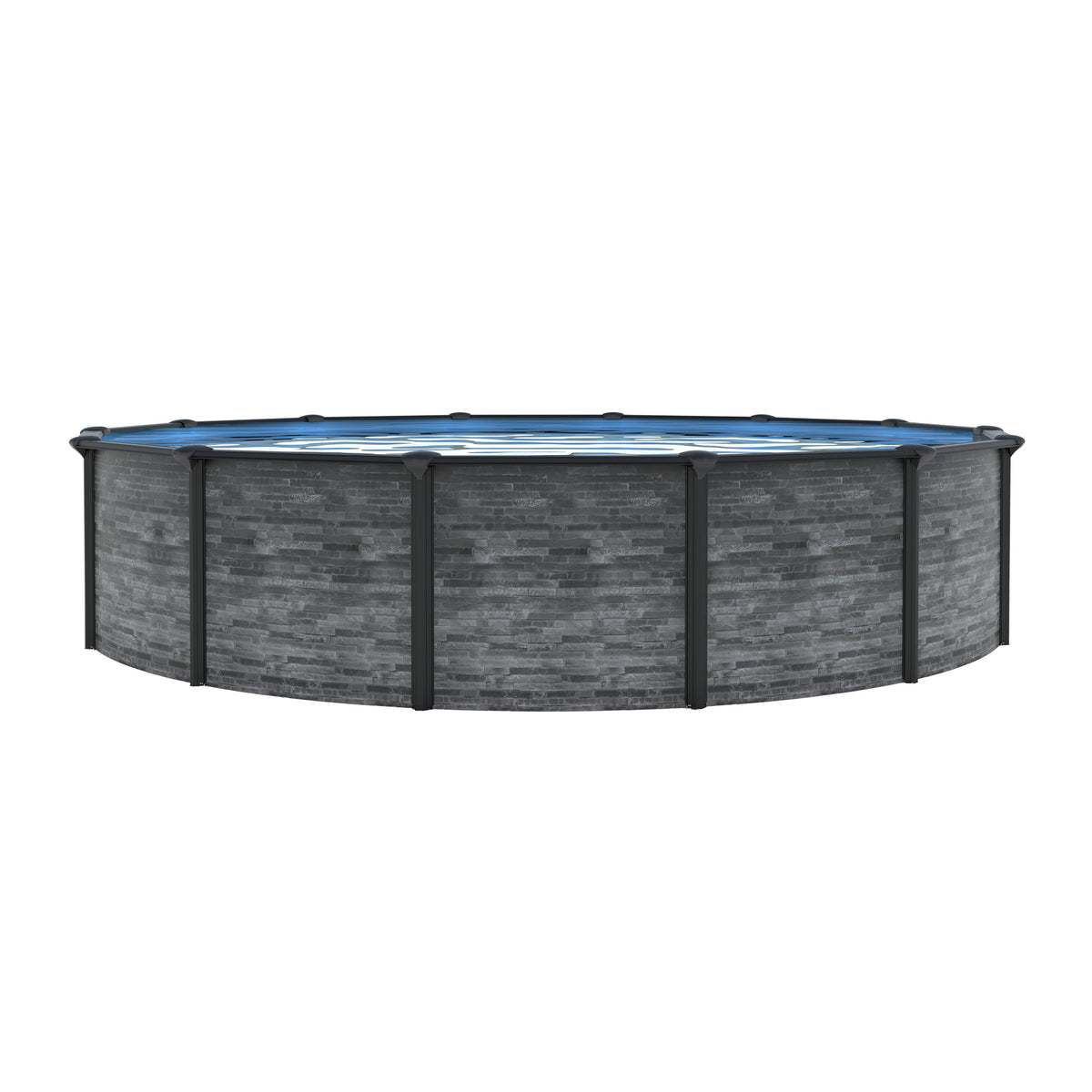

Blue Wave Marbella 24' Round Above-Ground Pool
Dark grey steel, built for the backyard.
The Blue Wave Marbella 24' round above-ground pool (model NB19860, SKU PST-NB19860) sets a 52" steel wall inside a steel frame of 6" steel top seats, 5" steel verticals and resin top and bottom joints. The wall, frame, hardware, plastic coping strips and a wide mouth skimmer with return come in the box, so you choose the overlap liner, filter system and ladder that suit your yard.
Why PST Customers Pick This
Dark Grey Steel Frame

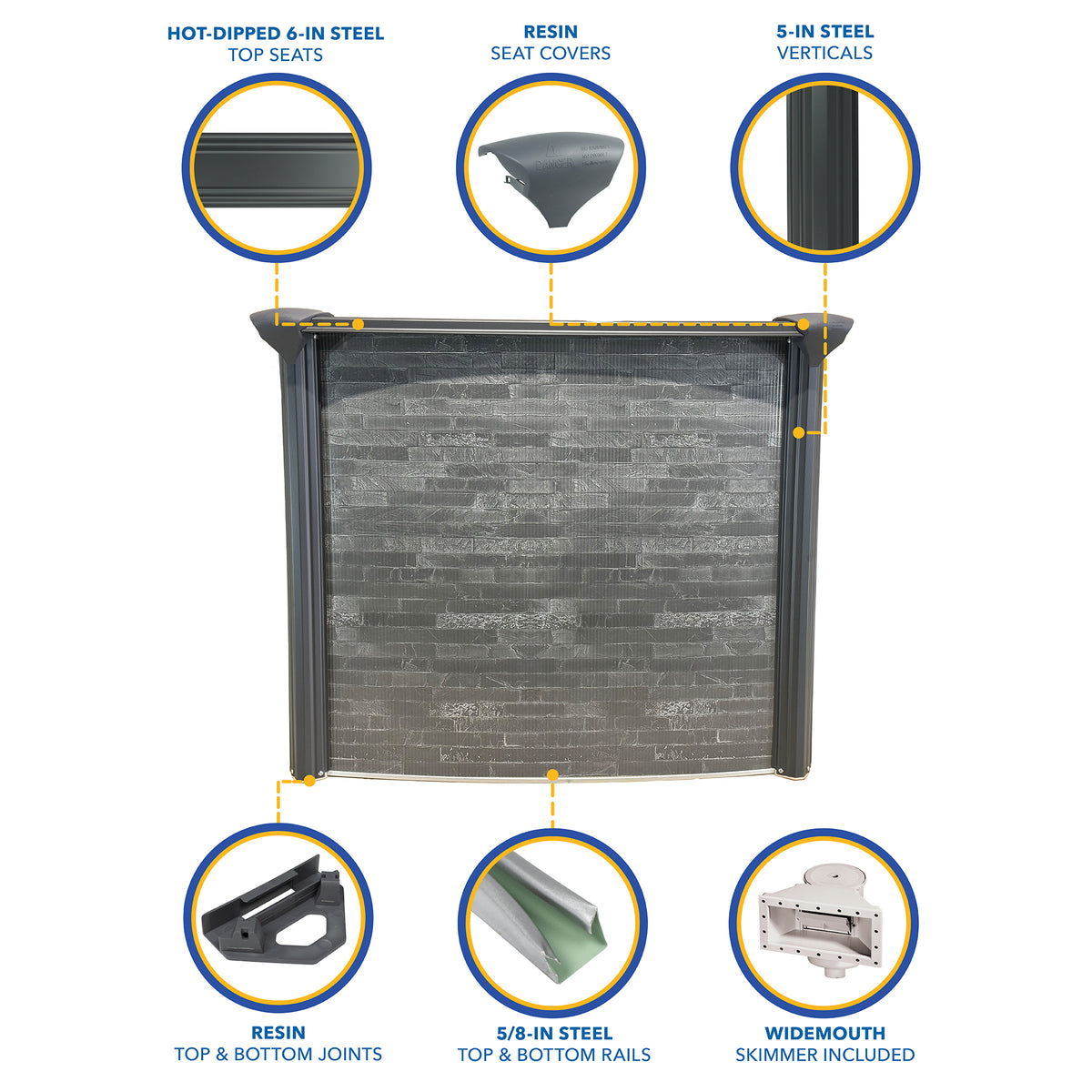

6" steel top seats and 5" steel verticals in a dark grey finish, with matching seat covers, injection-molded resin top caps, resin joints and 5/8" steel top and bottom rails.
Zinc-Aluminum Coated Wall

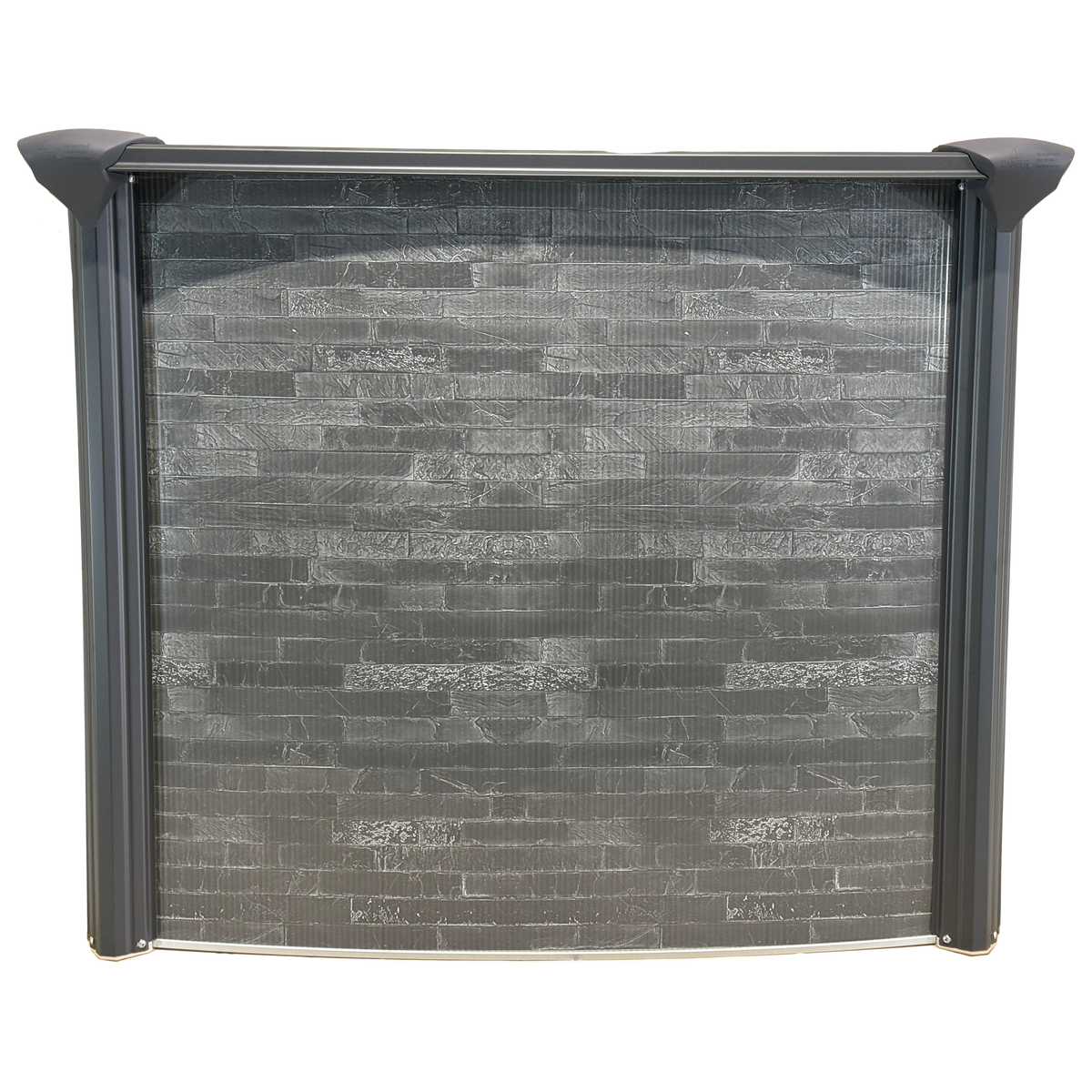

The galvanized 52" steel wall (0.39 mm) carries a zinc-aluminum coating with 3-layer exterior and 2-layer interior protection, and holds roughly 13,594 gallons at a normal fill level.
Overlap Liner Ready
Drape an overlap liner over the top of the wall, slide the included plastic coping strips over it, and the top rails fasten down on top.
Skimmer In The Box
A wide mouth skimmer and return come with the pool, ready for the filter system you choose.
Plan The Site First
Pick firm, level ground within reach of a water supply and a grounded outlet with GFCI protection for your filter pump. All sod under the pool area has to come out before you start.
Do It Yourself Setup
The instruction manual walks you from site prep to a finished frame. Plan one full, calm day and bring a few friends to help.
Specifications
Frequently Asked Questions
What comes in the box?
The 52" steel wall, the steel frame with its resin joints, seat covers and caps, all assembly hardware, plastic coping strips and a wide mouth skimmer with return. The liner, filter system and ladder are sold separately. The manual recommends wall foam and a floor pad, and calls for a pool cove around the inside of the wall, either packed from sand or made with peel and stick foam cove.
Which liner fits this pool?

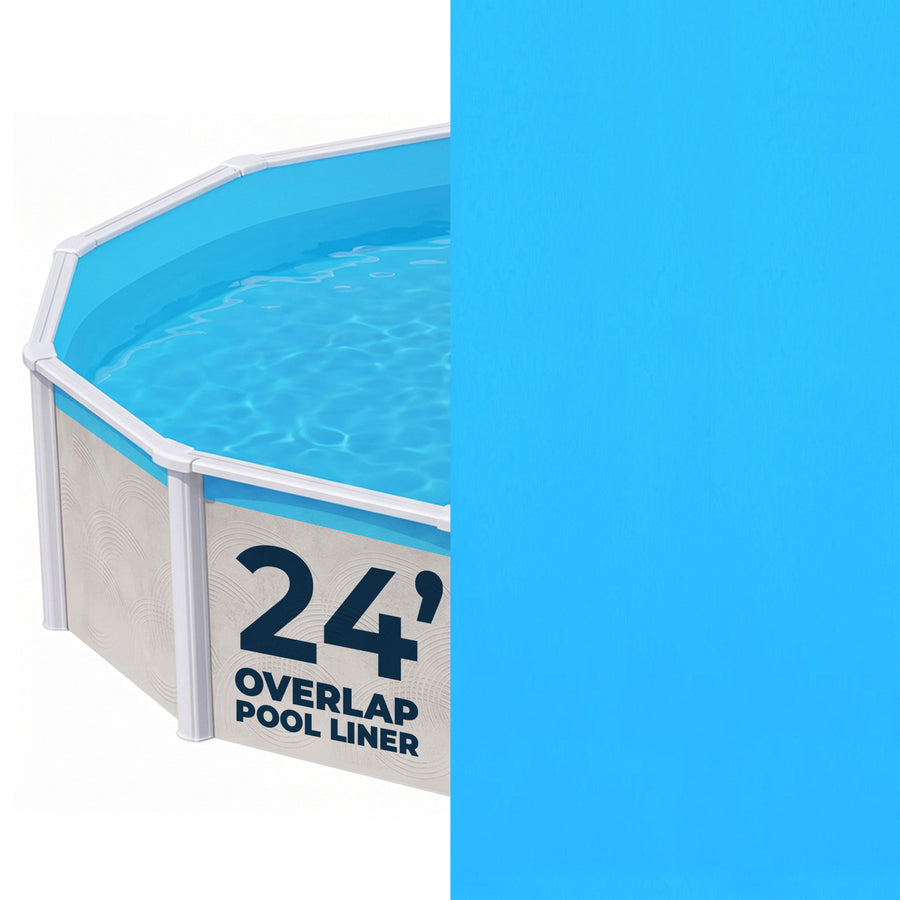

Choose an overlap liner sized for this 24' round pool. It drapes over the top of the wall and the included plastic coping strips hold it in place under the top rails.
Can I install it myself?
Yes, with helpers. The manual covers removing the sod, leveling the ground, setting patio blocks under the frame, spreading a 1 to 2 in sand base, building the pool cove and assembling the frame. Start early on a calm day, because the wall is hard to handle in wind.
What does the warranty cover?
The 15-year limited warranty covers the pool wall and frame components. The liner, filter, pump, ladder and skimmer are not covered by the pool warranty, and the pool must be set up above ground on level ground, following the instructions.
Do I keep water in the pool over winter?
Yes. Keep the pool filled through the winter. In areas that freeze, lower the water to about 6 in below the lowest skimmer opening, then hold that level steady. Snow and ice on a winter cover need the water underneath for support, and the pool should never be left standing empty.
Build Your Marbella Pool With PST
Real pool people on support, fast answers before and after you buy.
Shipping & Returns
Free shipping on this pool. See our Shipping Policy for full details.
Enjoy peace of mind with a 30-day Return Policy.
Backed by Blue Wave against manufacturing defects.
How your pool ships
A pool kit is far too large and heavy to go out by UPS or FedEx, so it ships strapped to a pallet on a freight (LTL) truck. Shipping is free anywhere in the contiguous United States. We ship Monday through Friday, excluding holidays.
Scheduling your delivery
Freight does not work like a parcel delivery that simply turns up. Once your pool reaches the freight terminal nearest you, the carrier will normally call to arrange a delivery appointment, so please make sure the phone number on your order is one you actually answer. Deliveries to commercial addresses are often made without a call ahead.
On delivery day
An adult needs to be there to receive the shipment and sign for it. Freight delivery is curbside: the driver brings the pallet down to the end of your driveway and is not able to carry it into a yard, garage or back deck, so plan on a couple of people to move everything from there. If your road is narrow, unpaved, or has weight limits, the carrier may ask to meet you somewhere nearby that a full-size truck can reach.
Check the shipment before you sign
This is the one step worth slowing down for. Before you sign the delivery receipt, walk the pallet and count the cartons against the paperwork, looking for crushed corners, tears or packaging that has shifted in transit. If anything looks off, write it on the delivery receipt before you sign and photograph it.
Please still accept the shipment even if you find damage. Noting it on the receipt is what protects your claim, whereas refusing the delivery outright makes it considerably slower to put right. Then contact us within 48 hours with your order number and the photos, and we will take it from there.
Returns
Pools can be returned within 30 days of delivery provided they are unused, undamaged and still in the original packaging. A $5 return charge applies where the return is for a change of mind. Do note that several items commonly added to a pool kit — liners, winter covers and solar covers among them — cannot be returned once shipped, so it is worth double-checking those choices before ordering.
