Pentair 2 in. Top Mount 6-Position Valve Top Assembly, 263085/262525 (272568Z)
Pentair 2 in. Top Mount 6-Position Valve Top Assembly, 263085/262525 (272568Z)
1024 in stock
Ships from: Newnan, GA | Bloomfield, CT | Murray, UT
Genuine OEM product, sold with full manufacturer warranty support.
- Today Shipping 0 hrs 49 mins left
- 30 days ReturnsPolicy
- 12 Months Warranty Manufacturer
Frequently Bought Together
Product Information
Description
- Genuine Pentair Part
- Handle and Label Included
- Free Shipping

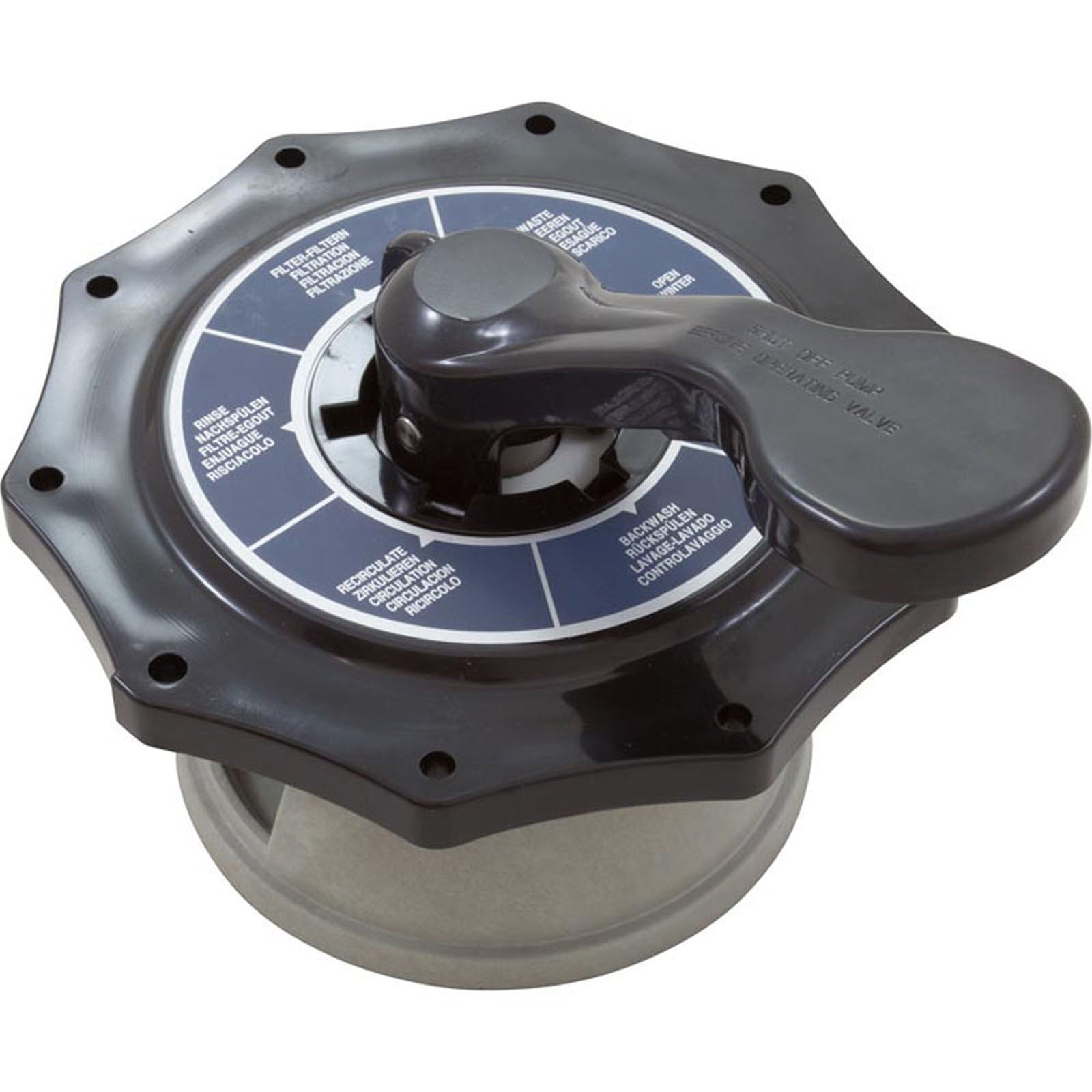

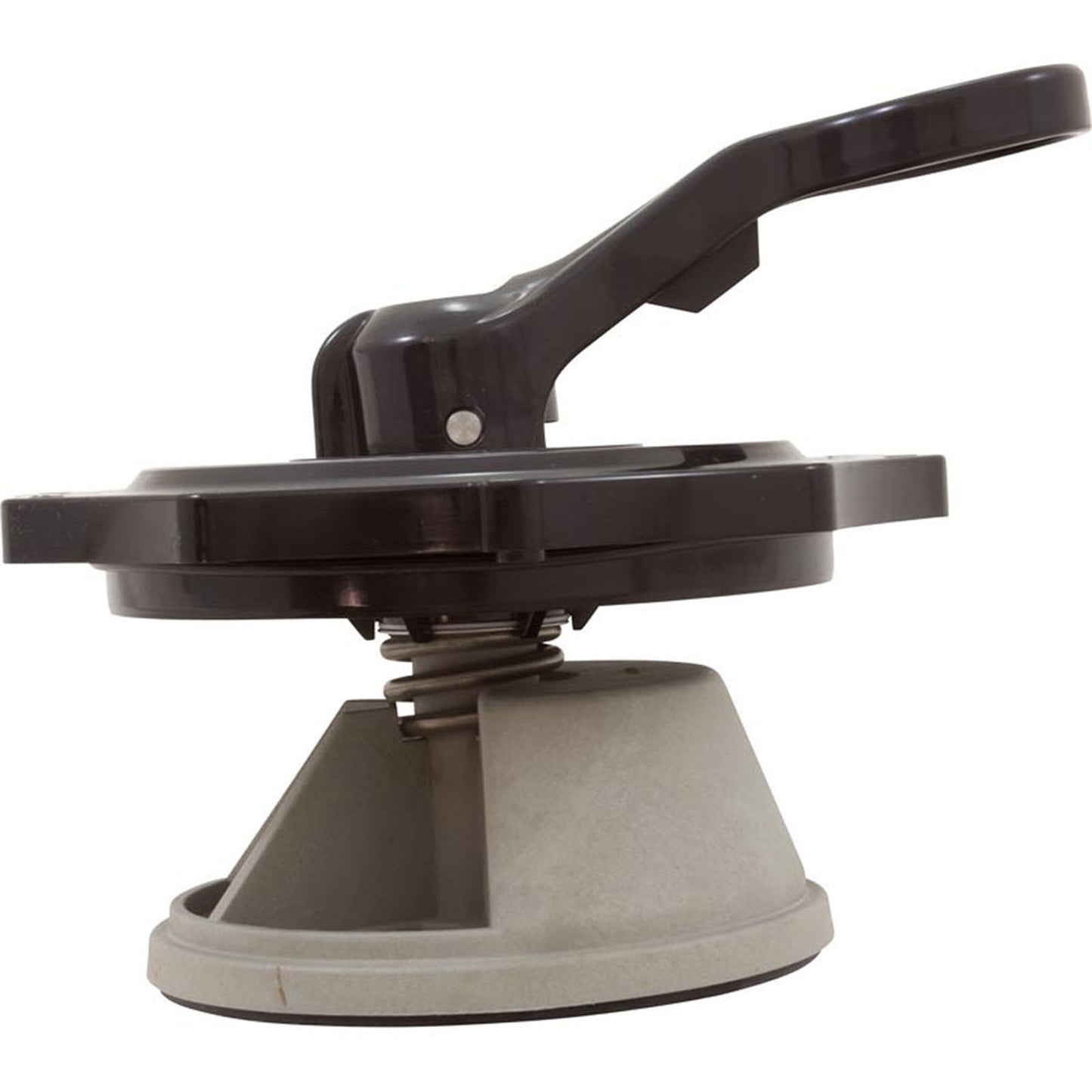

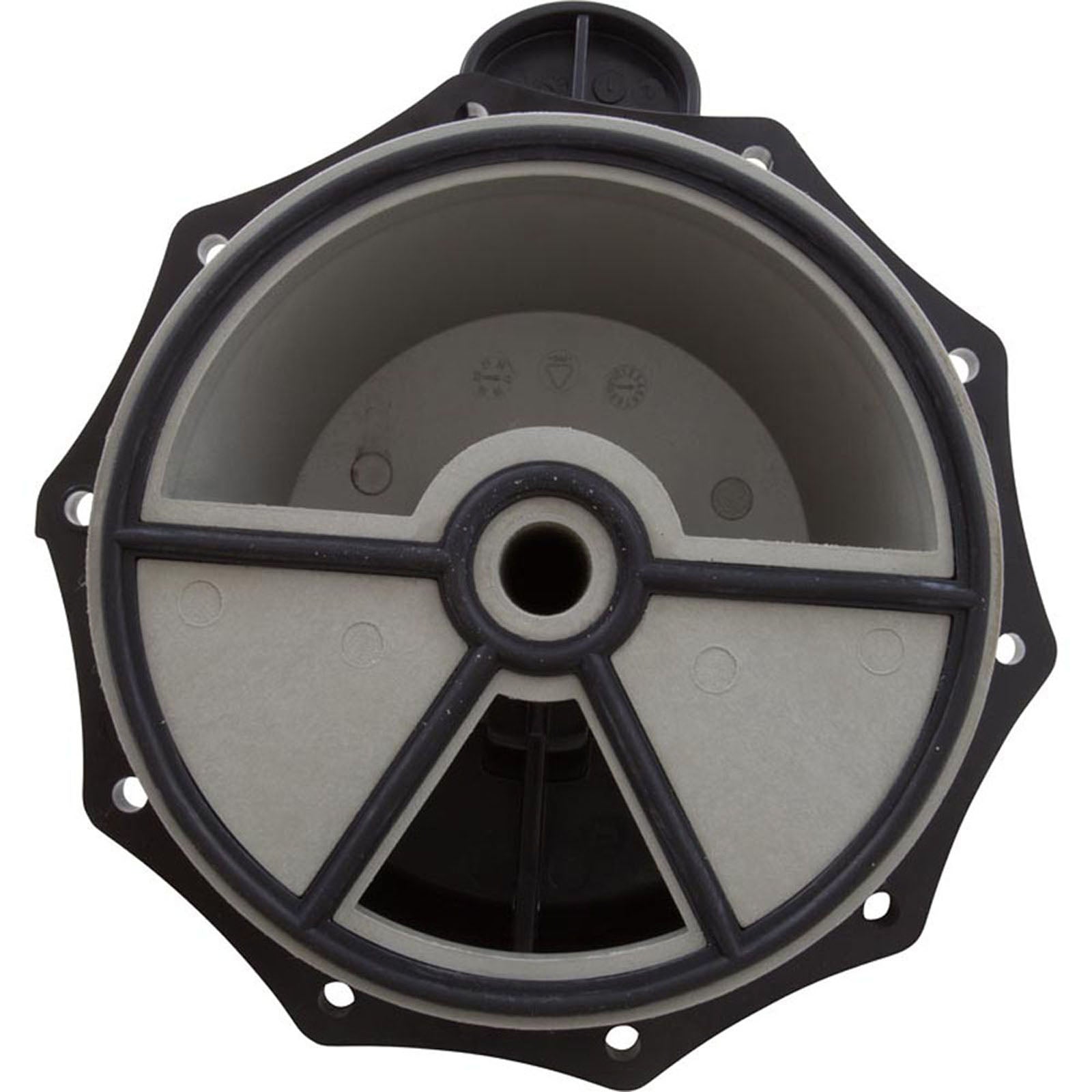

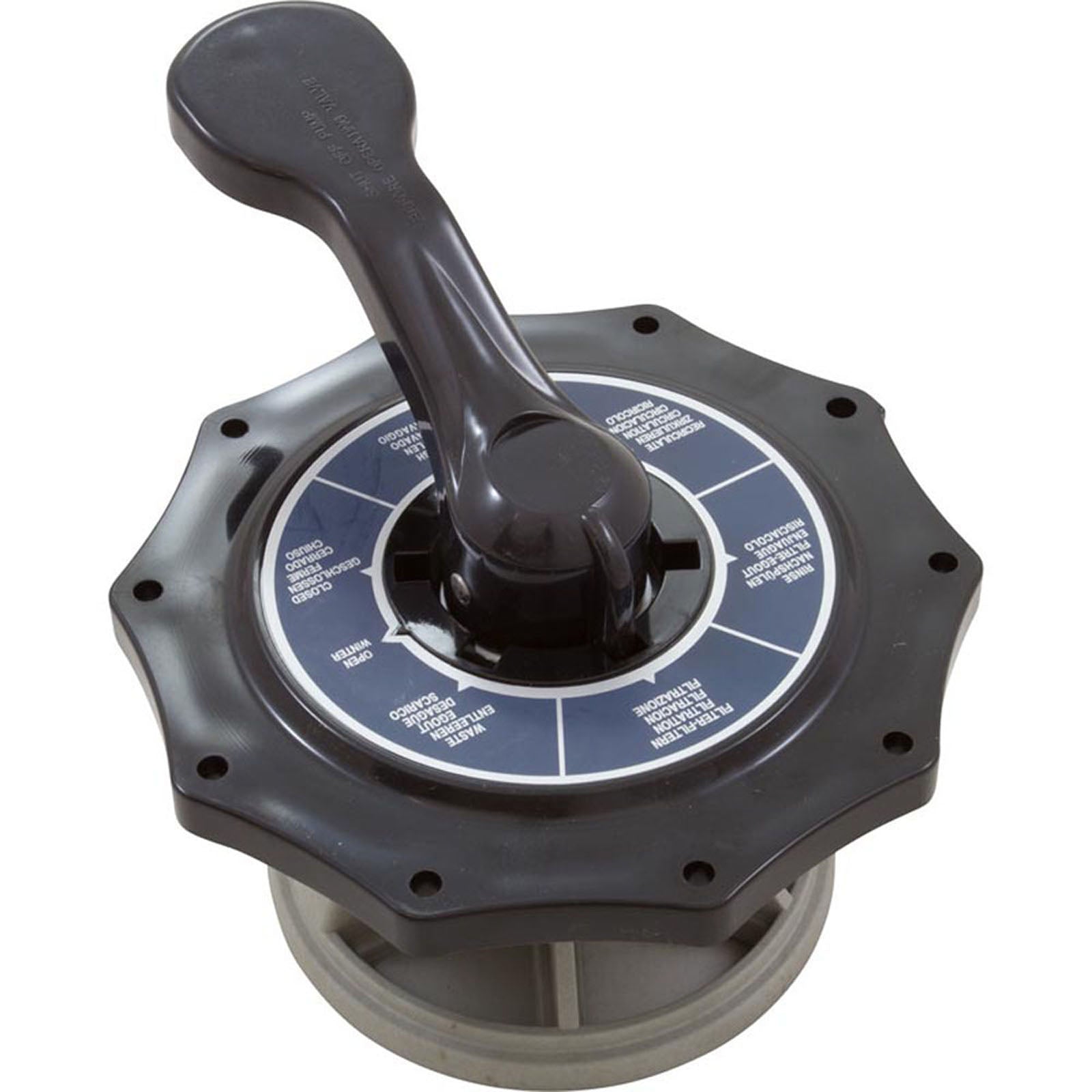

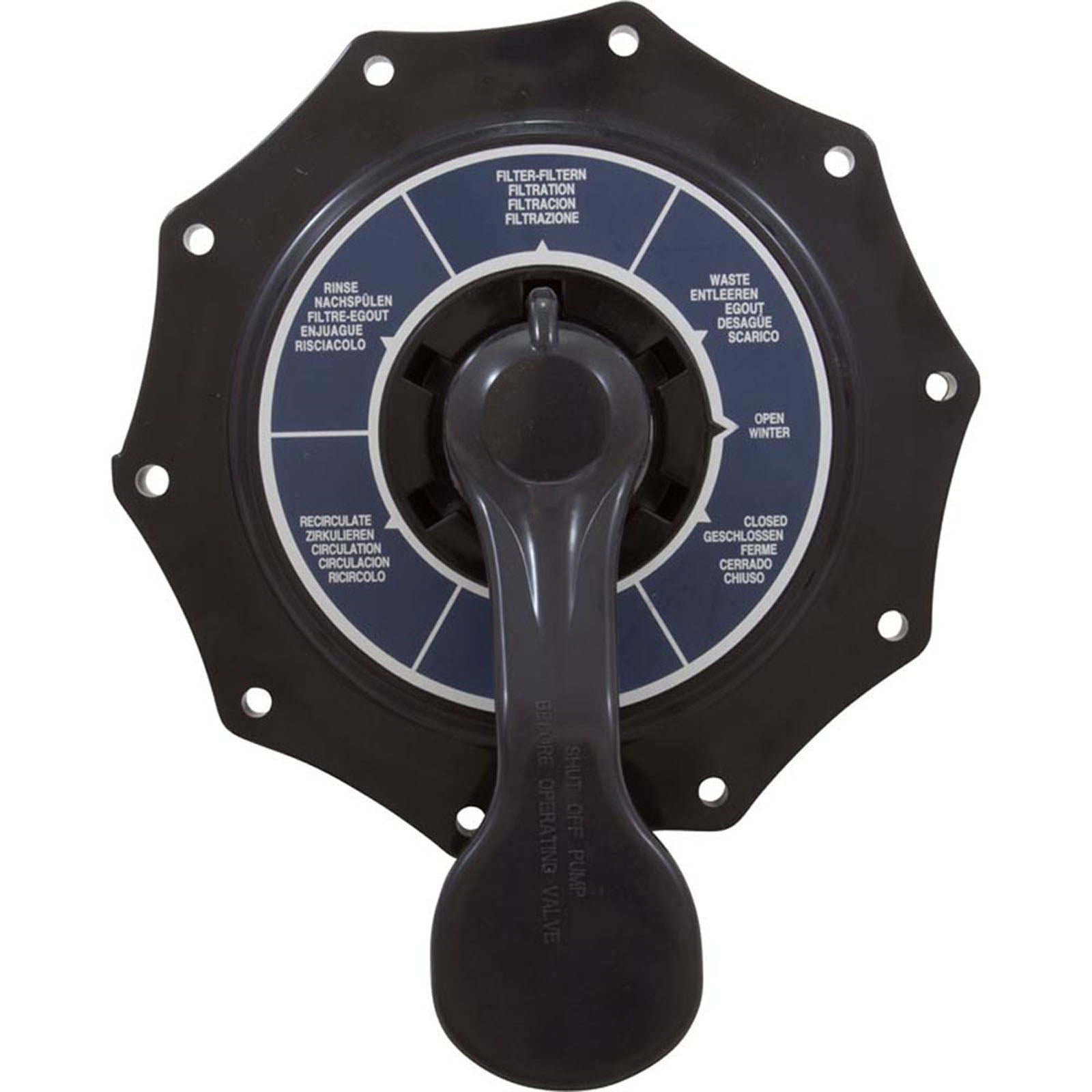

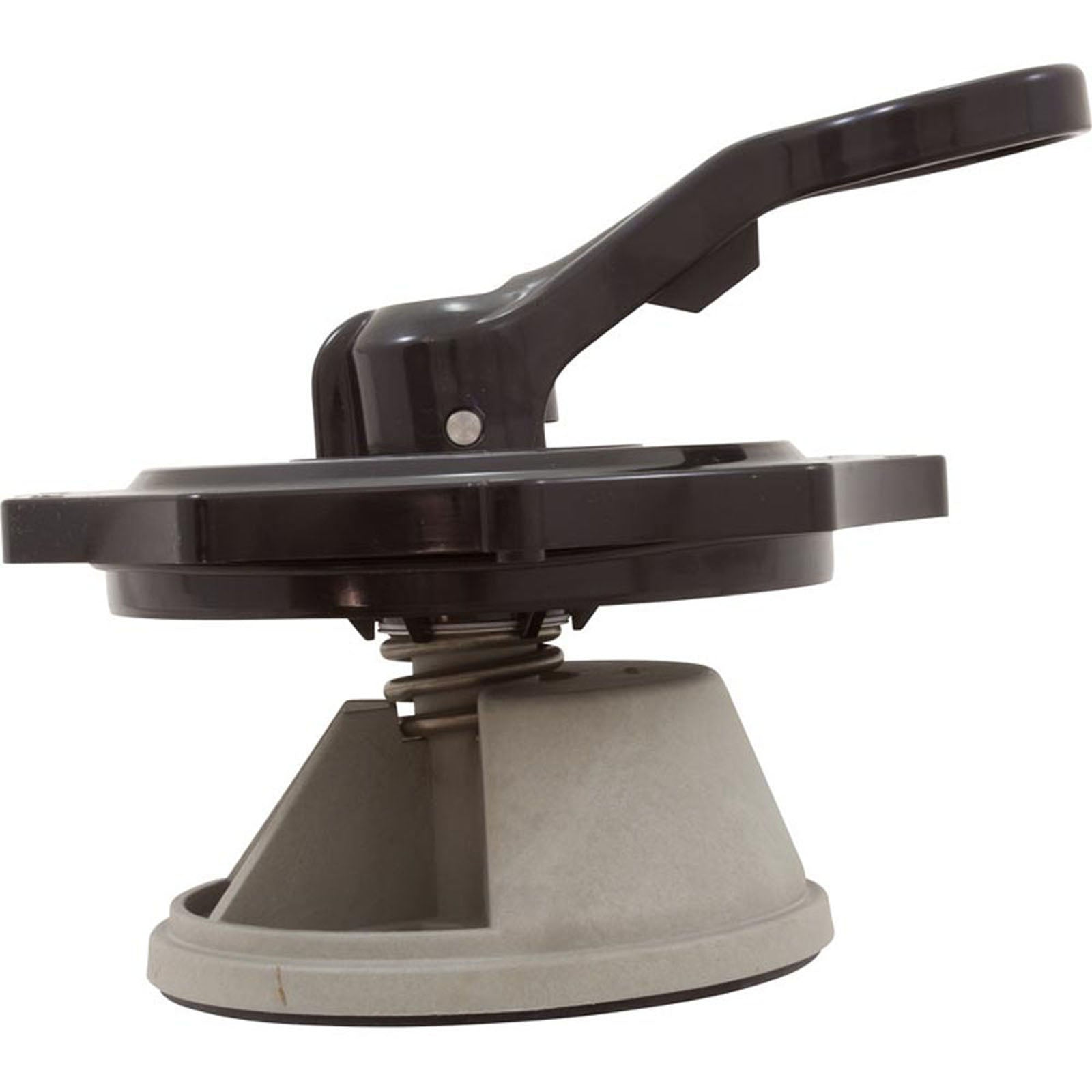

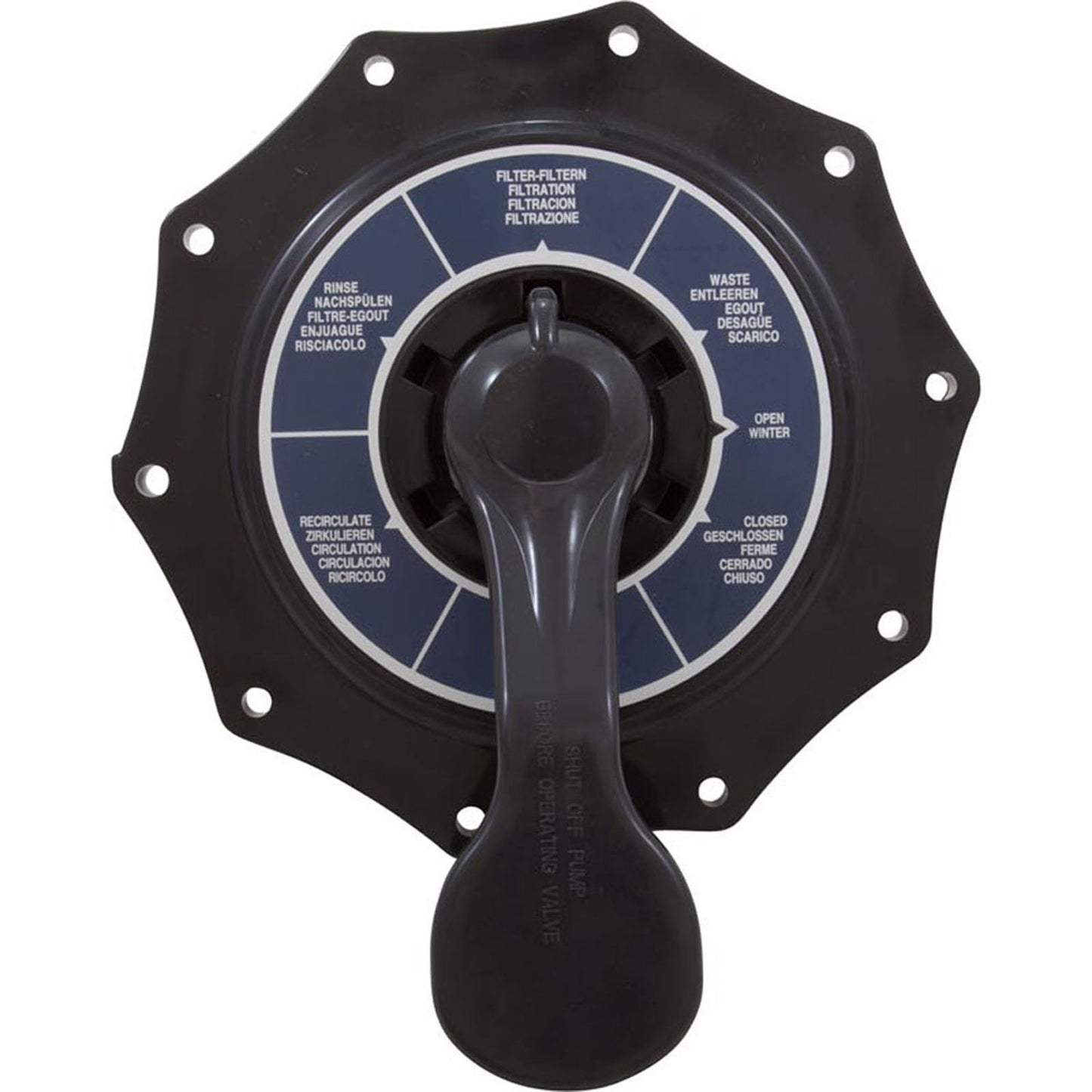

Pentair 2 in. Top Mount 6-Position Valve Top Assembly, 263085/262525 (272568Z)
Valve top assembly for Pentair's 2 in. top mount valve.
Pentair 272568Z is the valve top assembly, item 8 in Pentair's parts list, for the 2 in. 6-position top mount clamp-on multiport valve, P/N 263085 and 262525. It is the lid assembly for the 2 in. top mount Hybrid valve, and Pentair's parts list says it consists of the handle and valve position label. PST SKU PST-27-102-1010.
Why PST Customers Pick This
Made for the 2 in. Valve
Pentair lists 272568Z as the valve top assembly, item 8, on its 6-position top mount clamp-on multiport valve, P/N 263085 and 262525.
Handle and Label Included
Pentair's 2 in. valve parts list says the top assembly consists of the handle (272558Z) and the valve position label (272576Z). Pentair's catalog notes it does not include screws.
Sand Dollar and Cristal-Flo II
Pentair's Sand Dollar and Cristal-Flo II top mount sand filter guide lists the 2 in. valve as 263085, along with an SD/CFII 80 piping assembly for filters with the Hybrid 2 in. valve.
Pump Off Before Turning
Pentair says to always turn the pump off before changing valve position, to prevent equipment damage and possible injury.
Rest of the Valve Listed
The same Pentair parts list covers the valve body O-ring (272541), union kit (272590Z), diffuser (274402Z), sight glass (272556Z) and drain plug (272557Z) for this valve.
Pressure Warning
Pentair warns that the filter is a pressure vessel and must never be serviced while under pressure. Relieve tank pressure and open the air bleeder before servicing the filter, and stand clear of the filter when you restart the pump.
Specifications
| Identification | |
|---|---|
| Manufacturer | Pentair |
| Pentair Part Number | 272568Z |
| Pentair Description | Valve top assembly (item 8) |
| SKU | PST-27-102-1010 |
| Valve Fitment | |
| Valve Type | 6-position top mount clamp-on multiport valve |
| Valve Size | 2 in. |
| Fits Valve P/N | 263085, 262525 |
| Filters (Pentair guide) | Sand Dollar and Cristal-Flo II top mount sand filters with the 2 in. valve 263085 |
| Not For | 1-1/2 in. top mount valve 262506 (uses top assembly 272531) |
| What's Included | |
| Includes | Handle 272558Z and valve position label 272576Z |
| Not Included | Screws |
| Related Valve Parts | |
| Valve Body O-Ring | 272541 |
| Union Kit | 272590Z |
| Diffuser | 274402Z |
| Pressure Gauge | 190059Z |
Frequently Asked Questions
Does the top assembly come with screws?
No. Pentair's catalog notes that the valve top assembly, item 8, does not include screws.
Which valves does it fit?
Pentair lists it for the 2 in. 6-position top mount clamp-on multiport valve, P/N 263085 and 262525. The 1-1/2 in. top mount valve, 262506, uses a different top assembly, 272531.
Is the handle included?
Yes. Pentair's 2 in. valve parts list says the valve top assembly consists of the handle (272558Z) and the valve position label (272576Z).
Does it include the valve body O-ring?
Pentair lists the valve body O-ring as its own part, 272541.
Order the 272568Z From PST
Backed by PST Pool Supplies' service team.
- Free Shipping
- 30-Day Returns
- Warranty Backed
- Authorized Pentair Dealer
Additional Info
| Category | Parts Pool Parts Filter Parts |
| SKU | PST-27-102-1010 |
| MPN | 272568Z |
| Replaces | 901231 |
| Manufacturer | Pentair |
| Weight | 2.82 lb |
