Product Information
Description

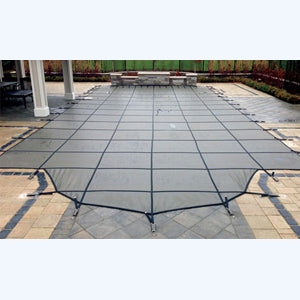

Latham 5000M Standard Mesh 16' x 32' Rectangle w/ Center Step Pool Safety Cover
Lock the pool down until spring.
The Latham 5000M Standard Mesh Safety Cover for 16' x 32' Rectangle w/ Center Step pools (SKU PST-CSGM16321) stretches drum-tight over your pool on stainless steel springs and brass deck anchors, giving you a true barrier that helps keep children and pets out of the water all winter. The 5 oz micro weave fabric blocks 91% of sunlight and filters out debris while rain and snowmelt drain straight through, so there is never standing water to pump. Latham builds it with interlocked, double overlapped seams and backs it with a 15-year limited warranty.
Built to Outlast Winter
The 5000M's micro weave fabric carries the highest abrasion resistance and tear strength in its class, so wind flap, ice and season after season of spring tension do not wear it thin. Every seam is interlocked and double overlapped, the perimeter is hemmed and sandwiched between double layers of webbing, and each strap gets box tack stitching with thread made to resist UV and pool chemicals. That construction is why Latham puts 15 years behind a standard mesh cover.
Drains Itself, No Pump Needed
Rain and melting snow pass straight through the mesh while the weave filters out leaves, dirt and debris. You never haul a cover pump out in January, and there is no sagging pocket of water for a child or pet to reach. The 91% sun block starves most algae of light through the off-season, so the water you uncover in spring is far cleaner than anything a loose tarp and water bags leave behind.
Hardware That Holds
Each strap ends in a metal end cap that stops raveling and slips easily into the D-ring of a heavy duty stainless steel spring. The springs ride low so the cover lays flat and fits tight, and they tension against brass deck anchors set into your concrete or wood deck. The cover ships with an installation rod and a storage bag, so seasonal removal and install stay a quick two-person job.
Who It's For
Homes With Kids & Pets
An anchored, tensioned barrier over the water all winter, engineered to the ASTM F1346 safety cover standard, instead of a floating tarp that anything can slip under.
In-Ground Winter Closings
The straightforward choice for standard seasonal closings on in-ground pools with a concrete or wood deck to anchor into.
Snow and Rain Country
Snowmelt and rain drain through the mesh instead of ponding on top, so the cover stays flat and tight through freeze and thaw.
Second Homes and Rentals
Set it in the fall and forget it. No cover pump to babysit and no water bags to refill while the property sits empty.
Why PST Customers Pick This
Real Safety Barrier
Spring tension and deck anchors hold the cover taut over the water, helping keep children and pets out, something water-bag winter tarps cannot do.
No Standing Water
The micro weave drains rain and snowmelt straight through while filtering out debris, so you never need a cover pump.
Box Tacked Straps
Every perimeter strap is box tack stitched with UV and chemical resistant thread, then finished with a metal end cap that will not ravel.
Hardware In the Box
Stainless steel springs with D-rings, brass deck anchors, an installation rod and a storage bag come with the cover.
Step Shapes Available
The 5000M line covers standard rectangles and rectangles with a center step, so the cover follows your pool's outline instead of draping over it.
15-Year Warranty
Latham backs the 5000M with a 15-year limited warranty, 3 years full and 12 years prorated, against manufacturer defects.
Safety Notice
A safety cover only performs as a barrier when every anchor is set in sound concrete or decking and the cover is tensioned to Latham's instructions. This cover is designed to the ASTM F1346 safety cover standard; keep it fully latched whenever the pool is unattended, and do not allow anyone to walk on the cover.
Full Specifications
Frequently Asked Questions
What is the difference between the 5000M, the 7000MS and the HD 1000V?
The 5000M is Latham's standard mesh: 5 oz fabric, 91% sun block, 15-year warranty, and the lowest price of the three. The 7000MS steps up to a 7 oz ultra-fine mesh that blocks 99% of sunlight and filters to 40 microns, with a 20-year warranty. The HD 1000V is a 12 oz solid vinyl cover that blocks 100% of light and debris and drains through a mesh center panel. All three anchor and tension the same way.
What size cover should I order?
Order by your pool's water dimensions, a 16' x 32' cover fits a 16' x 32' pool, and the finished fabric is made larger so it can reach the deck anchors. If your pool has a step section, order the matching step shape; those covers include a built-in 4 ft x 8 ft step extension rather than forcing a rectangle over the step.
Can I install this myself?
Most owners do. The first install means laying out the cover, drilling the brass anchors into a concrete deck with a hammer drill and masonry bit (wood deck anchor hardware is also available, and Latham offers 18 inch aluminum lawn tubes where there is no deck), then tensioning the springs. Every season after that, the included installation rod makes removal and reinstall a quick two-person job.
Do I need a cover pump with this cover?
No. Rain and snowmelt drain straight through the mesh, so water never accumulates on top. That is one of the main reasons owners choose mesh over a pump-style solid cover.
Will it keep algae out of the pool?
The 91% sun block sharply limits the light algae needs, and proper winterization chemistry handles the rest. Latham does note that in certain high-sun installations the 5000M can be less effective at minimizing algae than its 99% shade covers, so if you close early and open late in a strong sun climate, consider the 7000MS High Shade Mesh.
Is green the only color?
This listing is the green cover, which is the color we stock for fast shipment. Latham manufactures the 5000M line in green, blue, grey and tan.
Can anyone walk on the cover?
The cover is engineered as a barrier and designed to the ASTM F1346 safety cover standard, but Latham recommends that covers not be walked on for any reason. Keep it fully latched and treat it as protection, not a walking surface.
Close the Pool With Real Protection
Authorized Latham dealer. In-stock green 5000M covers ship fast from PST Pool Supplies.
Additional Info
| Category | Seasonal Pool Winterizing Pool Safety Covers |
| SKU | PST-CSGM16321 |
| MPN | CSGM16321 |
| Manufacturer | Latham |
| Weight | 46.7 lb |
