Product Information
Description

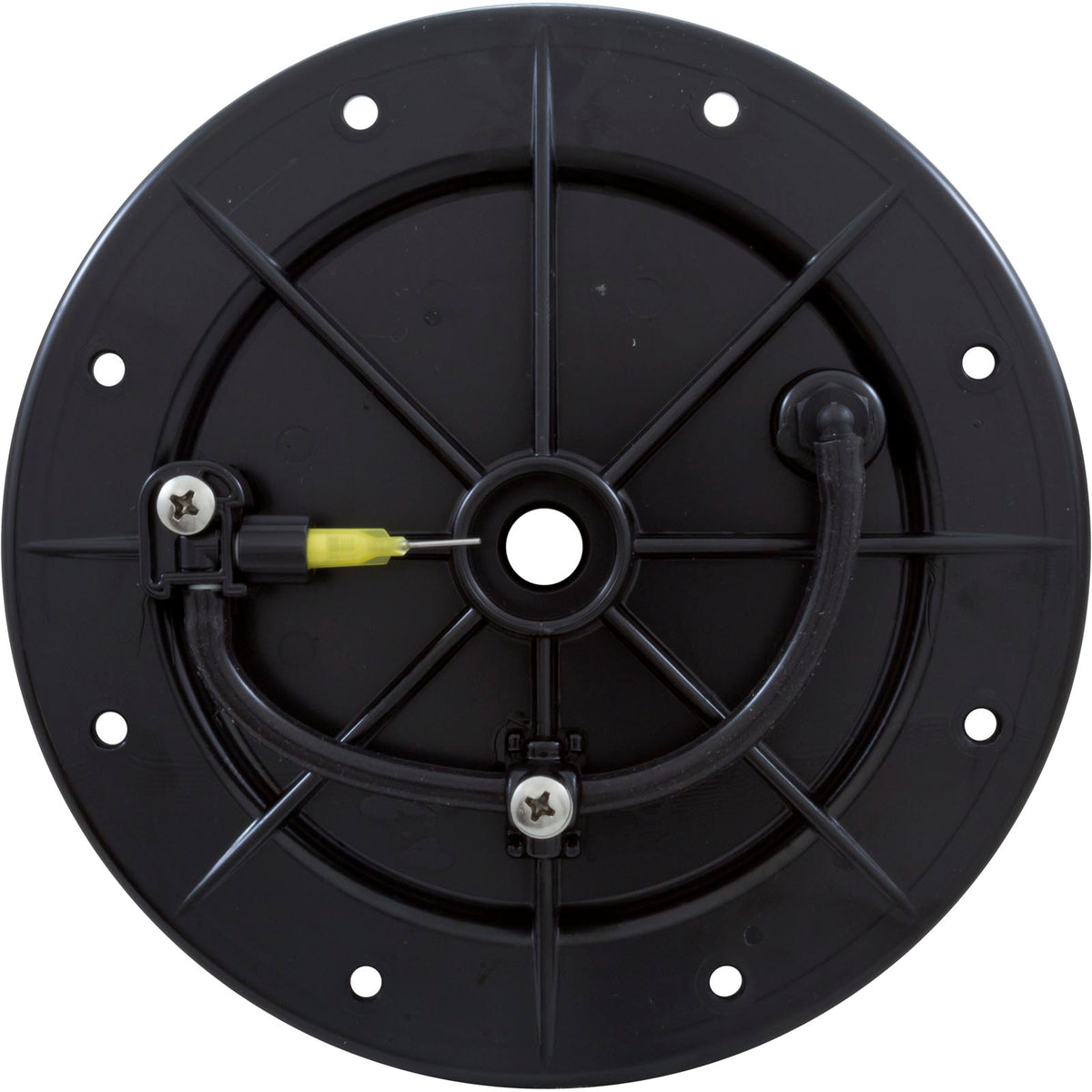

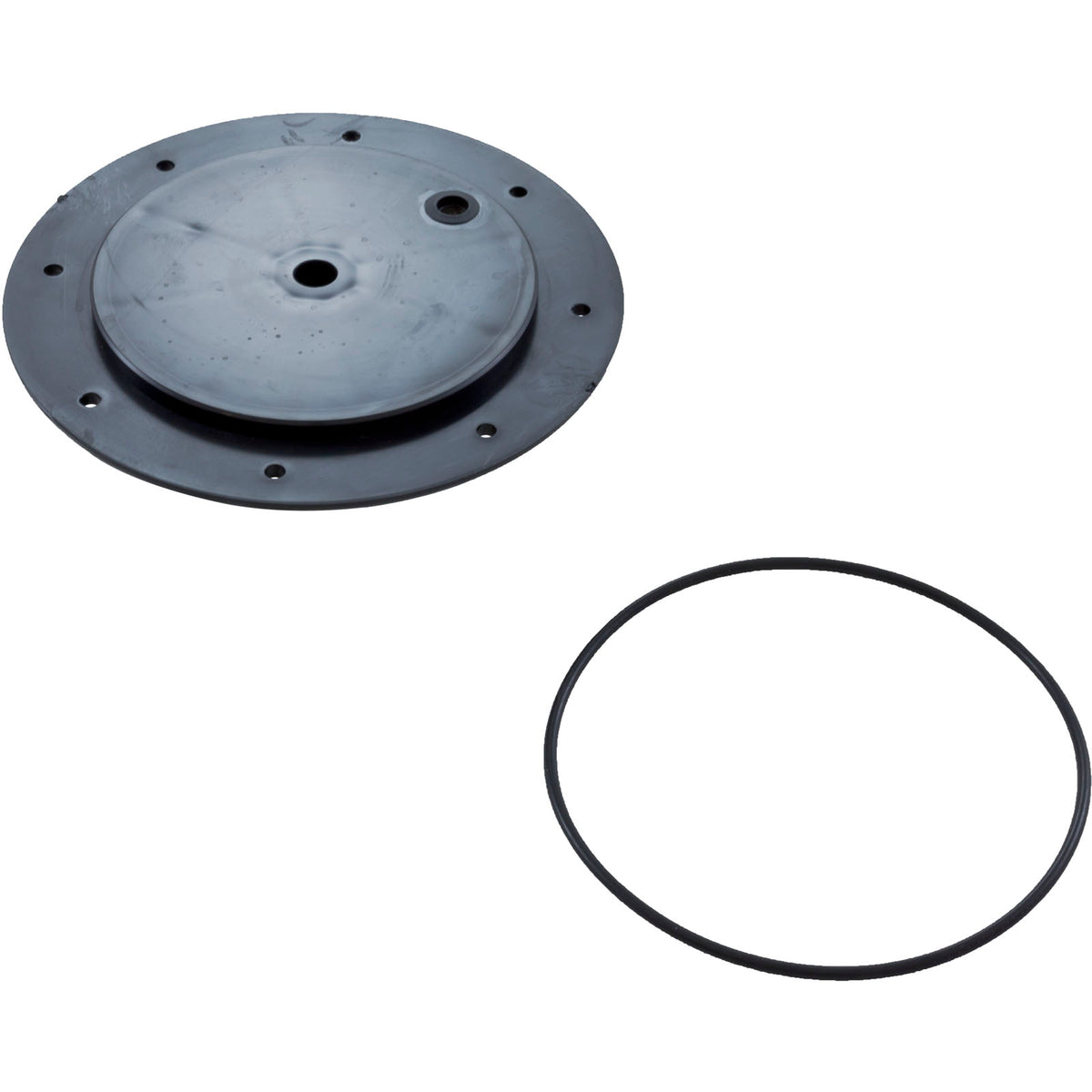

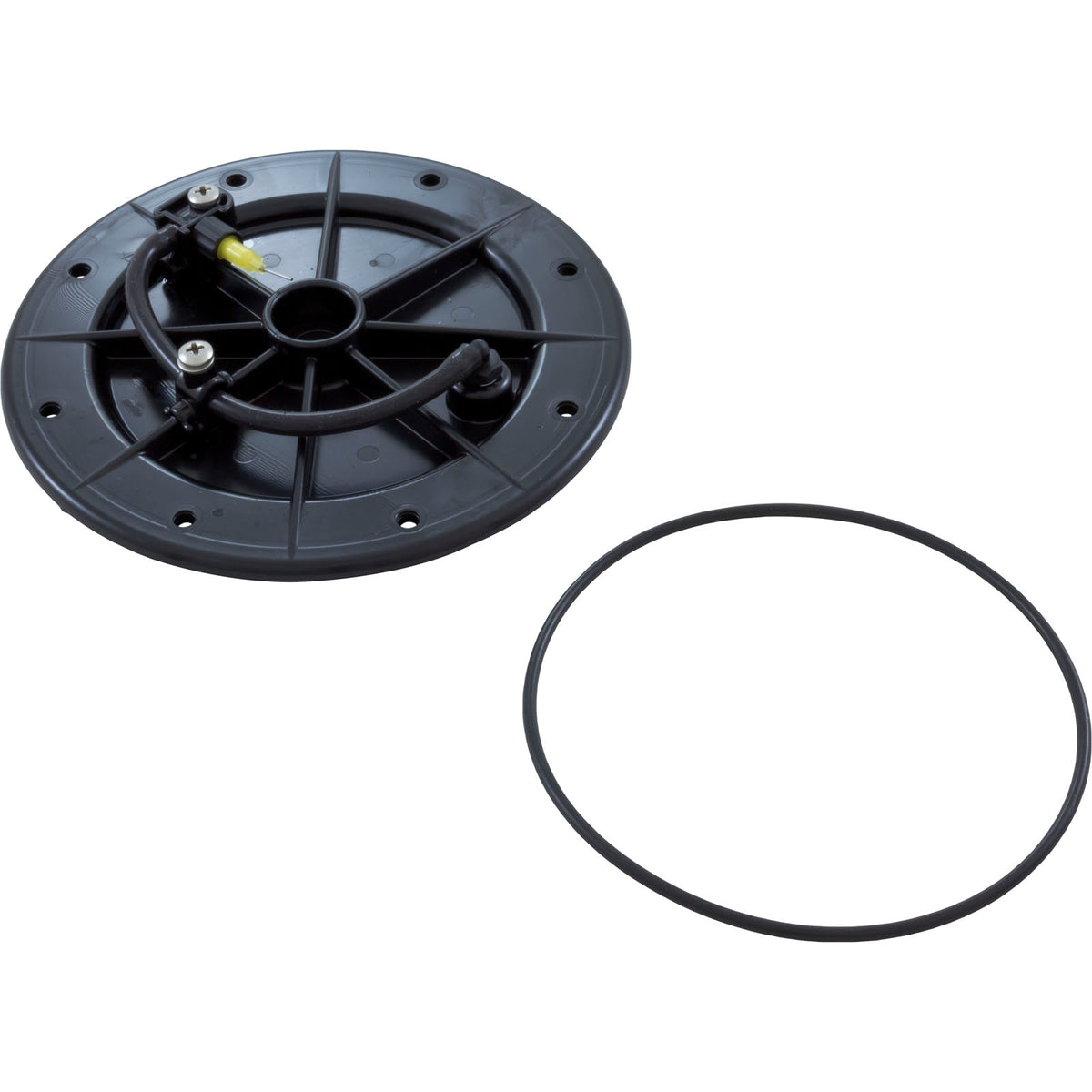

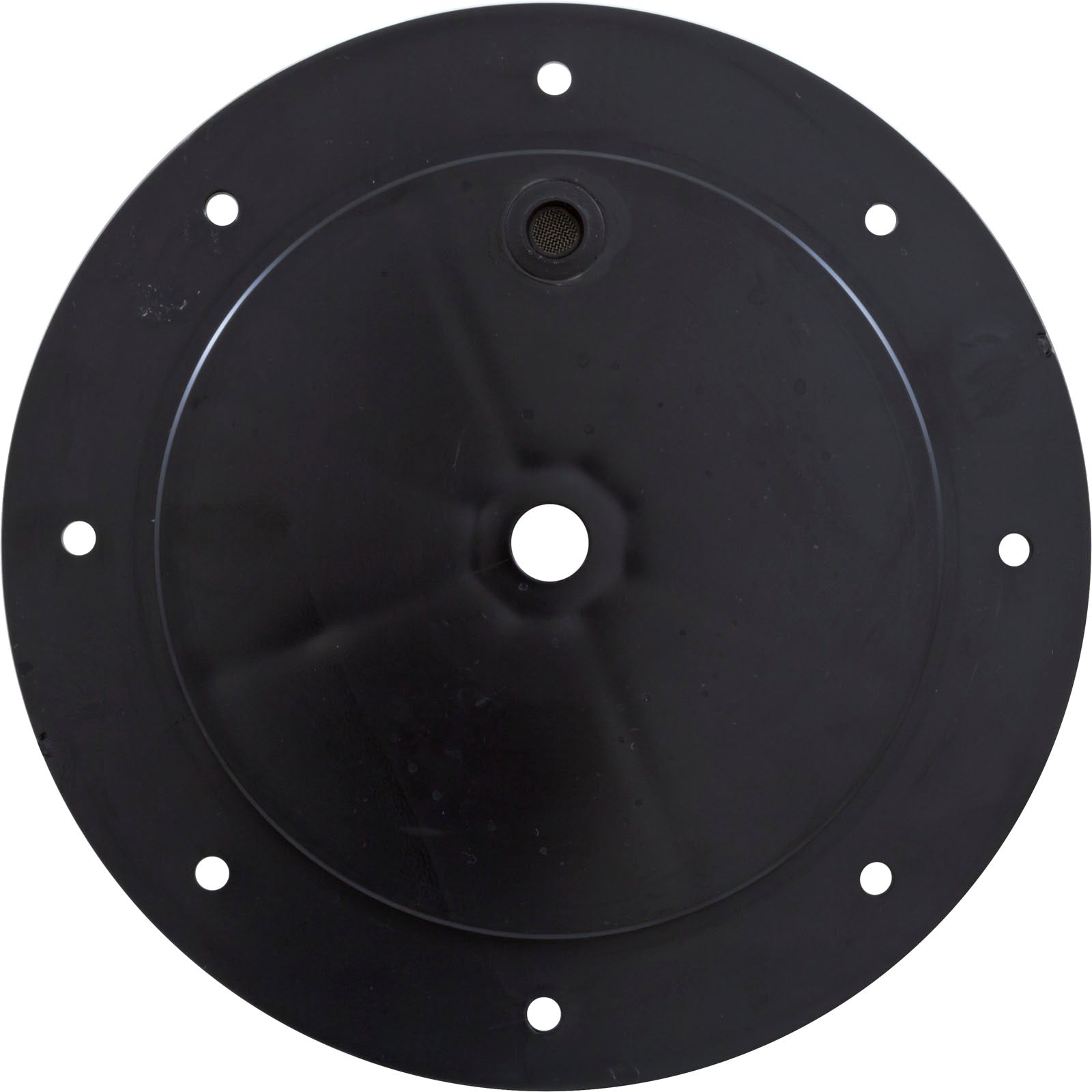

Pentair MagicStream Laminar Orifice Kit (590032)
Replacement orifice kit, item 12 in the MagicStream Laminar parts list
The Pentair 590032 is the orifice kit for MagicStream Laminars, item 12 in the laminar's illustrated parts list, one per laminar. The orifice is where the laminar's stream of water leaves the unit: Pentair's service instructions have you position the laminar so the orifice shows through the slot in the deck cover, then adjust flow, elevation and direction once water flows from it.
| Manufacturer | Pentair |
|---|---|
| Part Number | 590032 |
| Pentair Description | Laminar Orifice Kit |
| Diagram Item | 12 |
| Quantity per Laminar | 1 |
| Parts List | MagicStream Laminar Installation and User's Guide, P/N 590033 |
| SKU | PST-_590032 |
| Laminar Housing, No Cover (Item 4) | 590024 |
|---|---|
| Laminar Screen Kit (Item 8) | 590028 |
| Laminar Union Nut Kit (Item 9) | 590029 |
| Laminar Bracket Kit (Item 10) | 590030 |
| Laminar Hardware Kit, All Screws and O-Rings | 590031 |
| Laminar Water Line Union Kit | 590100 |
- Pentair MagicStream Laminars
How do I set the stream after servicing the laminar?
Pentair's instructions: position the laminar so the orifice is visible through the slot in the deck cover, set the laminar throttling valve to 1/4 open, turn on the supply pump and let the laminar fill. When a stream of water begins to flow from the orifice, adjust the flow, elevation and direction as desired.
What safety steps does Pentair call for?
Switch AC power off at the circuit breaker before servicing the MagicStream Laminar. Pentair says the laminar must be installed by a licensed or certified electrician or a qualified pool serviceman, in accordance with the National Electrical Code and all applicable codes.
Additional Info
| Category | Waterfalls |
| SKU | PST-_590032 |
| MPN | 590032 |
| Replaces | 313826, 3741-212 |
| Manufacturer | Pentair |
| Weight | 0.33 lb |
