Hayward GLX-DRK Dual Rectifier Retrofit Kit for Older Aqua Rite and Aqua Plus

Two rectifiers where older units had one.

2
Rectifiers
2
Wire Harnesses
20A
Fuses (2)
9807
Datecode Cutoff

The Hayward GLX-DRK dual rectifier retrofit kit brings the two-rectifier design to older Aqua Rite and Aqua Plus units. The rectifier turns the AC voltage from the transformer into the DC voltage that runs the electronics and the cell, and it gets hot doing it. Hayward moved every unit with datecode 9807 and later to two rectifiers to improve reliability, especially in hot weather, and this kit retrofits that design to earlier units.

Why PST Customers Pick This

AC to DC for the Cell

Every Aqua Rite and Aqua Plus uses a rectifier to convert the transformer's AC output to the DC voltage used by the electronics and the cell.

Built for Hot Weather

Hayward notes that the rectifier dissipates power and can get quite hot. Splitting the load across two rectifiers is the change Hayward made to improve reliability, especially in hot weather.

Everything in One Kit

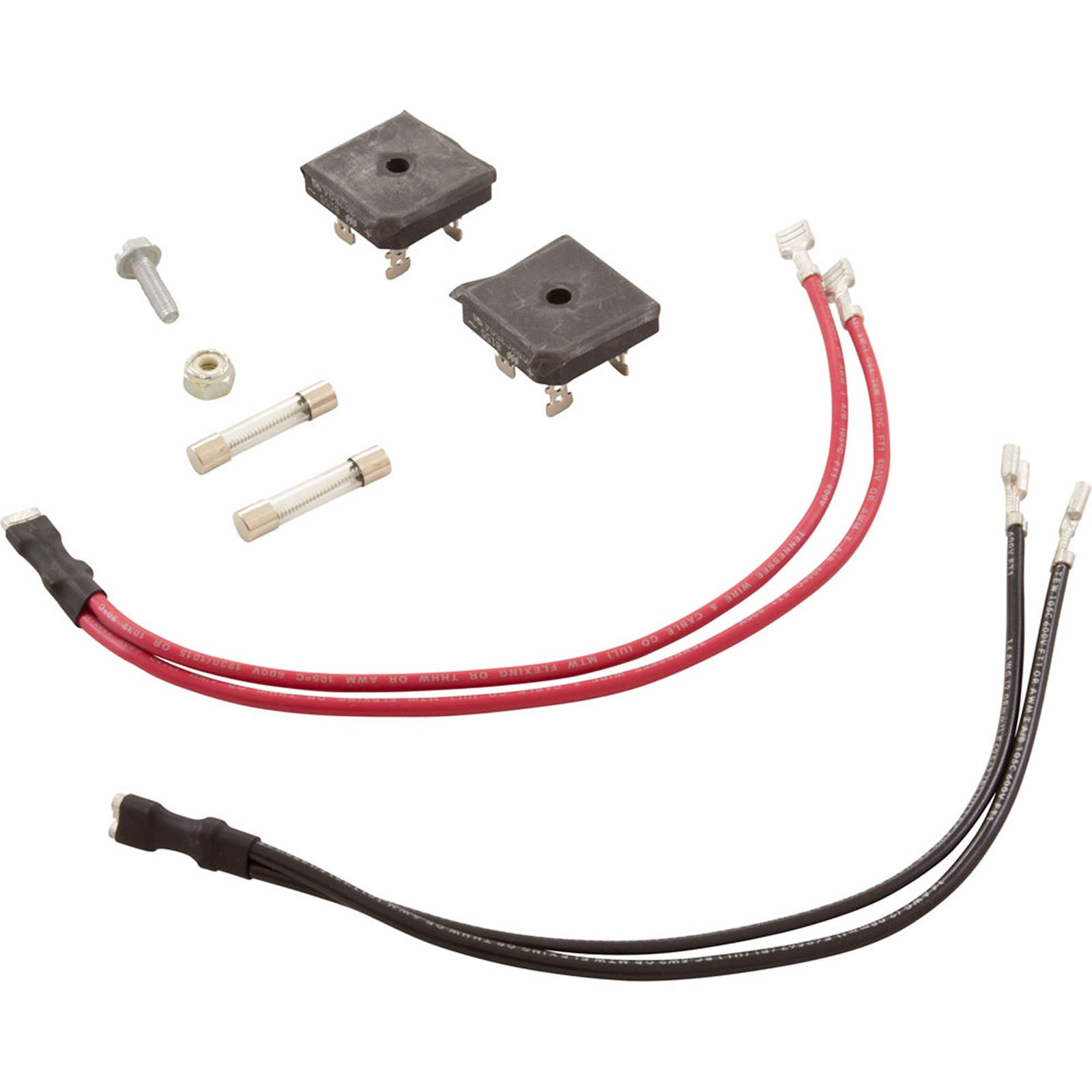

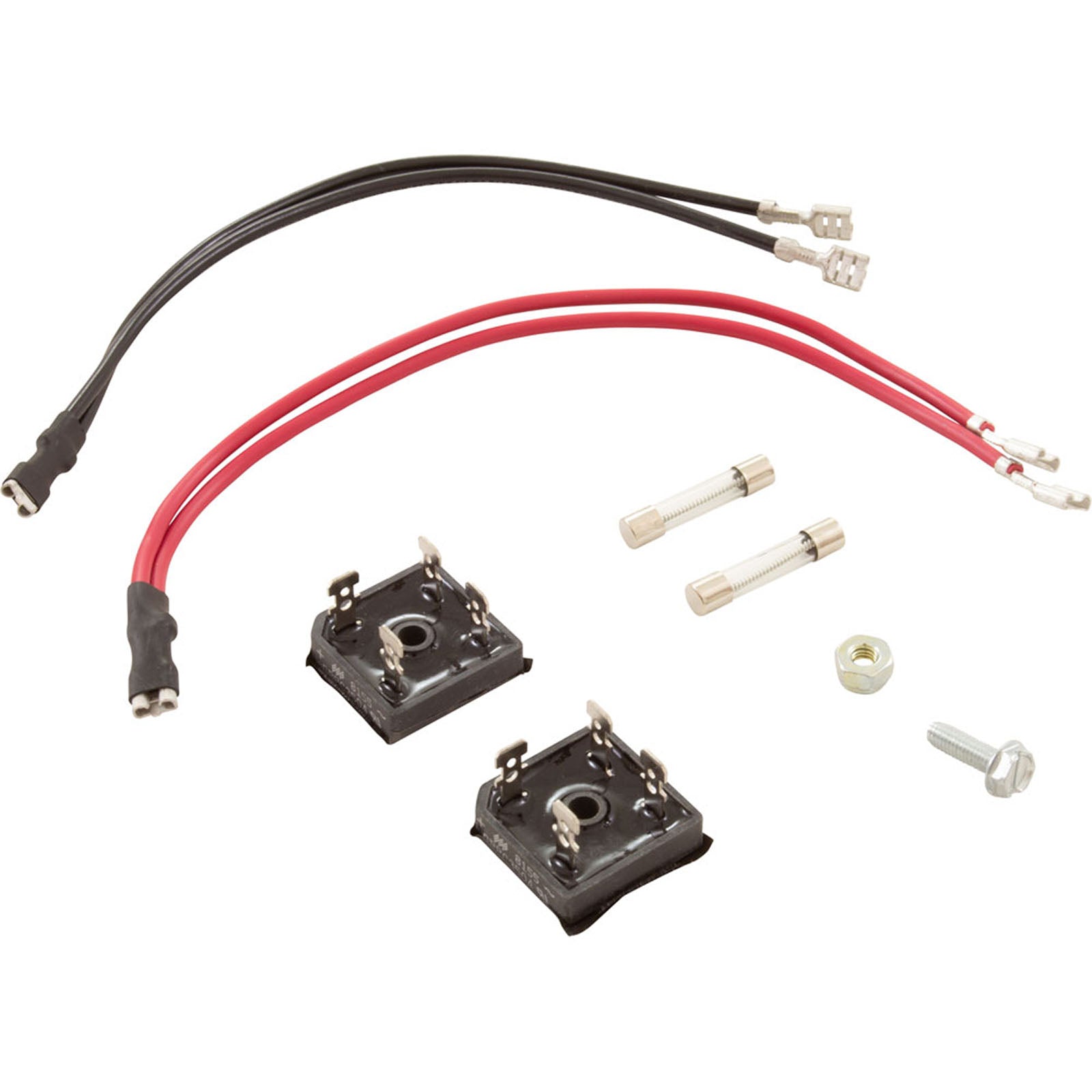

The kit holds 2 rectifiers with thermally conductive mounting pads, 2 wire harnesses (one red, one black), 2 fuses (20A), and the screw and nut for mounting the second rectifier.

Mounts in the Existing Box

One rectifier replaces the old one in place. The second mounts through a 7/32 in hole drilled in the side or bottom of the box, and Hayward says the side is usually better because the box can stay on the wall.

Wiring for Both Units

Hayward's instruction sheet carries separate wiring diagrams for the Aqua Rite and the Aqua Plus, and notes that one terminal on each rectifier has no connection.

Service Notes

Hayward's instructions say to tighten each rectifier screw for good thermal contact with the box, but not to overtighten, since the threads will strip. Deburr the drilled hole, make sure the wire harnesses reach from the first rectifier, and check the fuse and replace it if it is blown.

Specifications

Identification
Manufacturer Hayward
Hayward Part Number GLX-DRK
Hayward Description Kit-Dual Rectifier, Old Style Aqua Rite
GTIN / UPC 761418005871
SKU PST-_GLX-DRK
Part Type Salt chlorinator rectifier kit
Fitment
Fits Hayward Aqua Rite and Aqua Plus units built before datecode 9807
Factory Dual Rectifier Units with datecode 9807 and later already use two rectifiers
Kit Contents
Rectifiers 2, with thermally conductive mounting pads
Wire Harnesses 2 (1 red, 1 black)
Fuses 2 (20A)
Hardware Screw and nut for mounting the 2nd rectifier
Installation
Mounting Hole for 2nd Rectifier 7/32 in diameter, side or bottom of the box
Instructions Hayward 092066B Rev B, with Aqua Rite and Aqua Plus wiring diagrams

Frequently Asked Questions

Does my Aqua Rite need this kit?

Hayward says all units with datecode 9807 and later already use two rectifiers. The kit is for retrofitting the dual-rectifier design to older units.

What comes in the kit?

Two rectifiers with thermally conductive mounting pads, two wire harnesses (one red, one black), two 20A fuses, and the screw and nut for mounting the second rectifier.

Will it work on an Aqua Plus?

Yes. Hayward's GLX-DRK instructions cover both units and include a wiring diagram for the Aqua Rite and one for the Aqua Plus.

Do I have to drill the control box?

Yes. Hayward's procedure calls for a 7/32 in hole in the side or bottom of the box for the second rectifier, with all burrs removed. Hayward says the side is usually preferable because the box does not need to come off the wall.

Order the GLX-DRK From PST

Backed by PST Pool Supplies' service team.

  • Free Shipping
  • 30-Day Returns
  • Warranty Backed
  • Authorized Hayward Dealer

Additional Info

Category Parts Pool Parts Salt Generator Parts
SKU PST-_GLX-DRK
MPN GLX-DRK
Replaces 2804-18, 2807-18, 623950, GLD-451-1040, GLXDRK
Manufacturer Hayward
Weight 0.17 lb
