Jandy Pro Series Levolor PCB with Time-Out System for K-1100 (LEVBRD)

Jandy Pro Series Levolor PCB with Time-Out System for K-1100 (LEVBRD)

Jandy • Part # LEVBRD
SKU: SKU: PST-_LEVBRD
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110267662401","discontinued":false,"mpn":"LEVBRD","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months"}
Regular price $473.90
Regular price $758.20 Sale price $473.90

Low stock: 5 left

Ships from: Memphis, TN | Tucson, AZ

Authorized dealer
Jandy

Genuine OEM product, sold with full manufacturer warranty support.

  1. Today Shipping 2 hrs 18 mins left
  2. Final sale No returnsPolicy
  3. 12 Months Warranty Manufacturer

Final sale. This item cannot be returned or exchanged. All warranty claims must be made with the manufacturer directly.

Frequently Bought Together

Jandy Pro Series Levolor Solenoid Kit for Gray Valve Before 1/10 (SOLASSEM)
Jandy Pro Series Levolor Solenoid Kit for Gray Valve Before 1/10 (SOLASSEM)
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110270742593","discontinued":false,"mpn":"SOLASSEM","saleprice":"0","warehouselocations":"Bloomfield, CT","warranty":"12 Months"}
Regular price $75.60
Regular price $121.00 Sale price $75.60
View full details

Product Information

Description

  • Genuine Jandy Part
  • Fits Levolor K-1100
  • Time-Out Lockout
  • Free Shipping

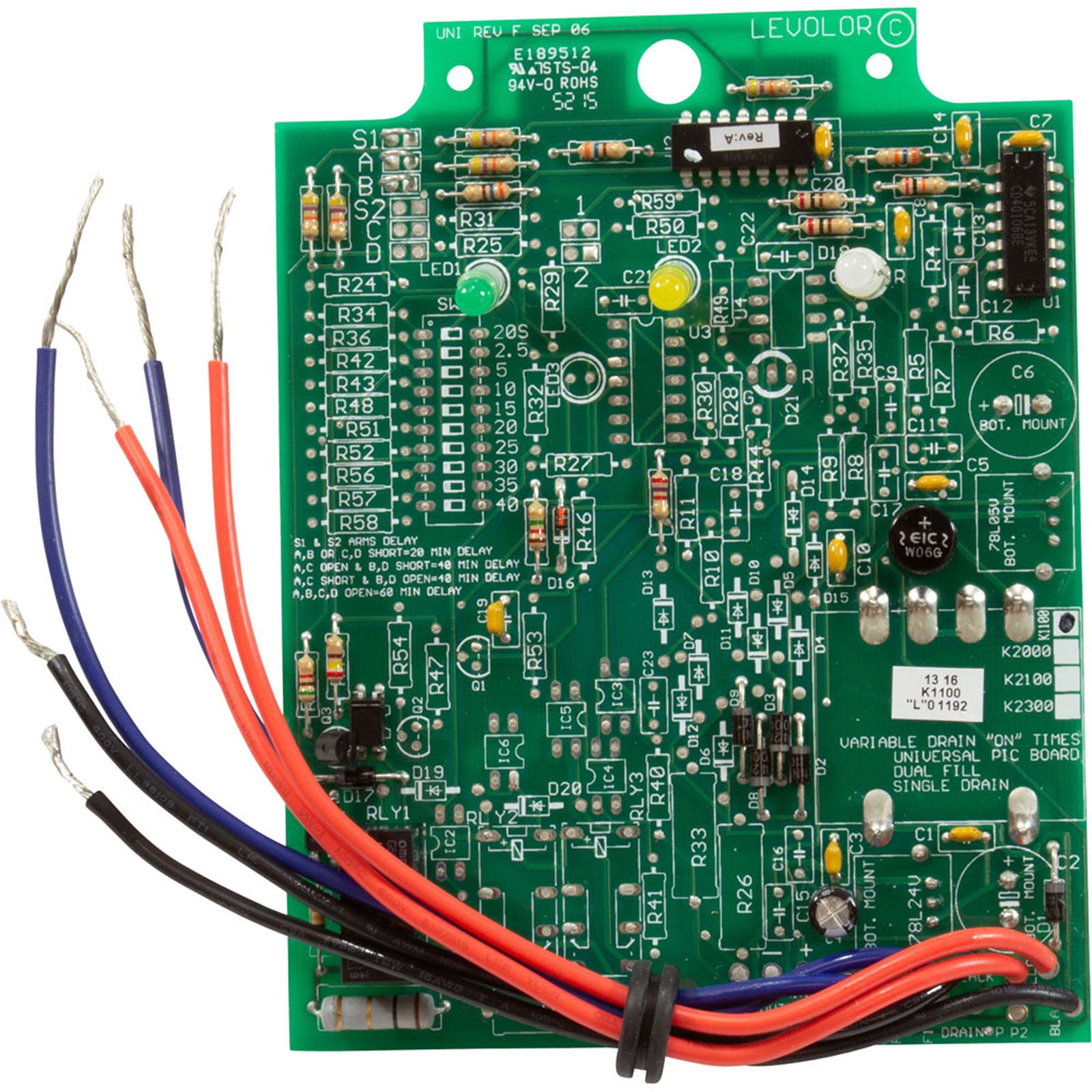

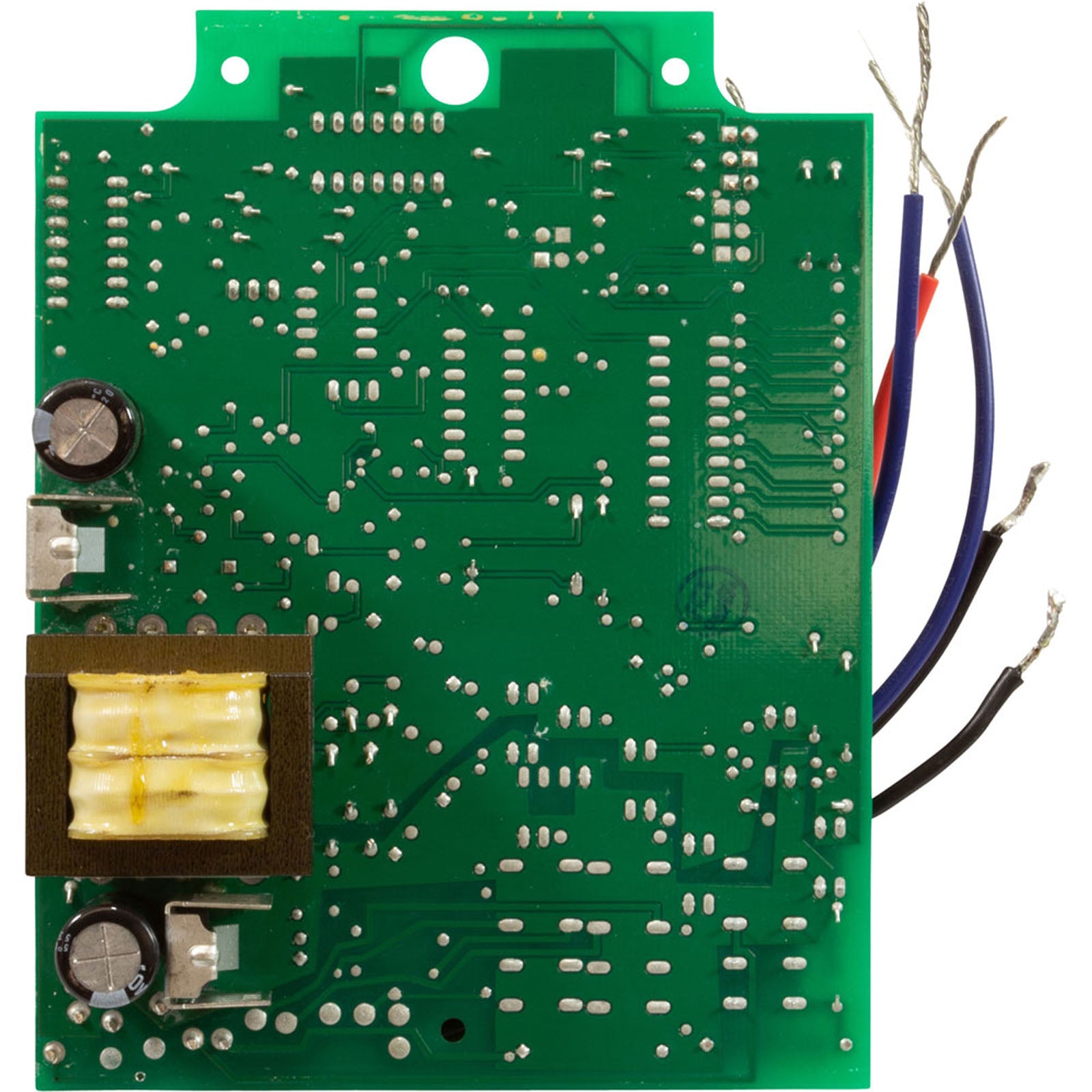

Jandy Pro Series Levolor PCB with Time-Out System for the K-1100 Water Leveler (LEVBRD)

Replacement circuit board for the Levolor K-1100.

K-1100
Fits Model
20 min
Factory Fill Time
24 hr
Safety Lockout
24 VAC
Valve Output

The Jandy LEVBRD is the Levolor PCB with time-out system, the circuit board Jandy lists for the Levolor K-1100 electronic water leveler. The K-1100 detects a low-water condition and refills the pool or spa to a preset level, and the time-out system shuts the fill valve off when the water does not reach the sensor within the set fill time.

Why PST Customers Pick This

Time-Out Safety Lockout

If the Levolor sensor is not touched by water within the preset fill time, the controller turns the valve off for 24 hours and the Filling light changes from green to red. Jandy says the time-out sequence guards against overfilling and hiding leaks.

Adjustable Fill Time

The K-1100 ships with a 20 minute fill time before lockout. Cutting jumper A or B sets 40 minutes, cutting both sets 60 minutes, and cutting jumper S-1 disables the lockout.

Three Status Lights

The K-1100 control box shows three LEDs, Power, Sensor and Filling, so you can see whether the unit has power, whether the sensor is out of the water and whether the valve is filling.

Drives a 24 VAC Valve

Twenty seconds after the Sensor light turns on, the Filling light turns green and the control sends 24 VAC to the fill valve on the blue wires. The sensor connects on the orange wires.

Jandy's Bench Test

Jandy's manual walks through testing the control with the sensor and valve disconnected, then gives troubleshooting charts for fill that will not turn on or off, with a bad PCB as one of the outcomes.

Electrical Notice

Jandy states the Levolor must be installed and serviced by a professional service technician qualified in pool/spa installation, and that improper installation can create an electrical hazard and void the warranty. Install the control box at least 5 feet from the inside wall of the pool or spa, and ground it with a copper conductor no smaller than 12 AWG.

Specifications

Identification
Manufacturer Jandy (Zodiac Pool Systems)
Product Line Jandy Pro Series Levolor electronic water leveler
Jandy Part Number LEVBRD
Jandy Description Levolor PCB with time-out system
SKU PST-_LEVBRD
Fits Model Levolor K-1100
Time-Out System
Factory Fill Time Before Lockout 20 minutes
Optional Fill Times 40 minutes (cut jumper A or B), 60 minutes (cut both)
Lockout Period 24 hours, or until the unit is powered down and back up
Disable Lockout Cut jumper S-1
K-1100 Electrical
Input 110 VAC or 220 VAC, 50/60 Hz, 0.5 A
Output to Valve 24 VAC at 1 A
Factory Wiring 220 VAC, field rewired for 110 VAC
Status LEDs Power, Sensor, Filling
Sensor / Valve Wires Orange (sensor), blue (valve)

Frequently Asked Questions

Which Levolor model does the LEVBRD fit?

Jandy's parts list shows the LEVBRD for the Levolor K-1100. The LX2 and K-2300 have their own boards in the same list (LX2Board and K2300220BDT).

Does the LEVBRD include the transformer?

Jandy lists the LEVBRD as the PCB with time-out system. A PCB with transformer (LEV220BDw/TRANS) and a complete controller (LEV220Control) appear as separate K-1100 parts in the same list.

Can I change how long it fills before locking out?

Yes. The factory setting is 20 minutes. Cut jumper A or B for 40 minutes, both for 60 minutes, or cut jumper S-1 to disable the lockout.

How do I tell whether the board is the problem?

Jandy's test: shut power off, disconnect the sensor (orange) and valve (blue) wires, then restore power. The Power light should turn green, the Sensor light yellow, and about 20 seconds later the Filling light green with 24 VAC at the blue wires. The manual's flow charts then point to the sensor, the valve or the PCB.

Order the LEVBRD From PST

Backed by PST Pool Supplies' service team.

  • Free Shipping
  • Genuine Jandy Part
  • Authorized Jandy Dealer

Additional Info

Category Parts Pool Parts Pool Plumbing Parts
SKU PST-_LEVBRD
MPN LEVBRD
Manufacturer Jandy
Weight 0.94 lb
