Product Information
Description
- 600W Capacity
- UL Pool Transformer
- Type 3R Enclosure

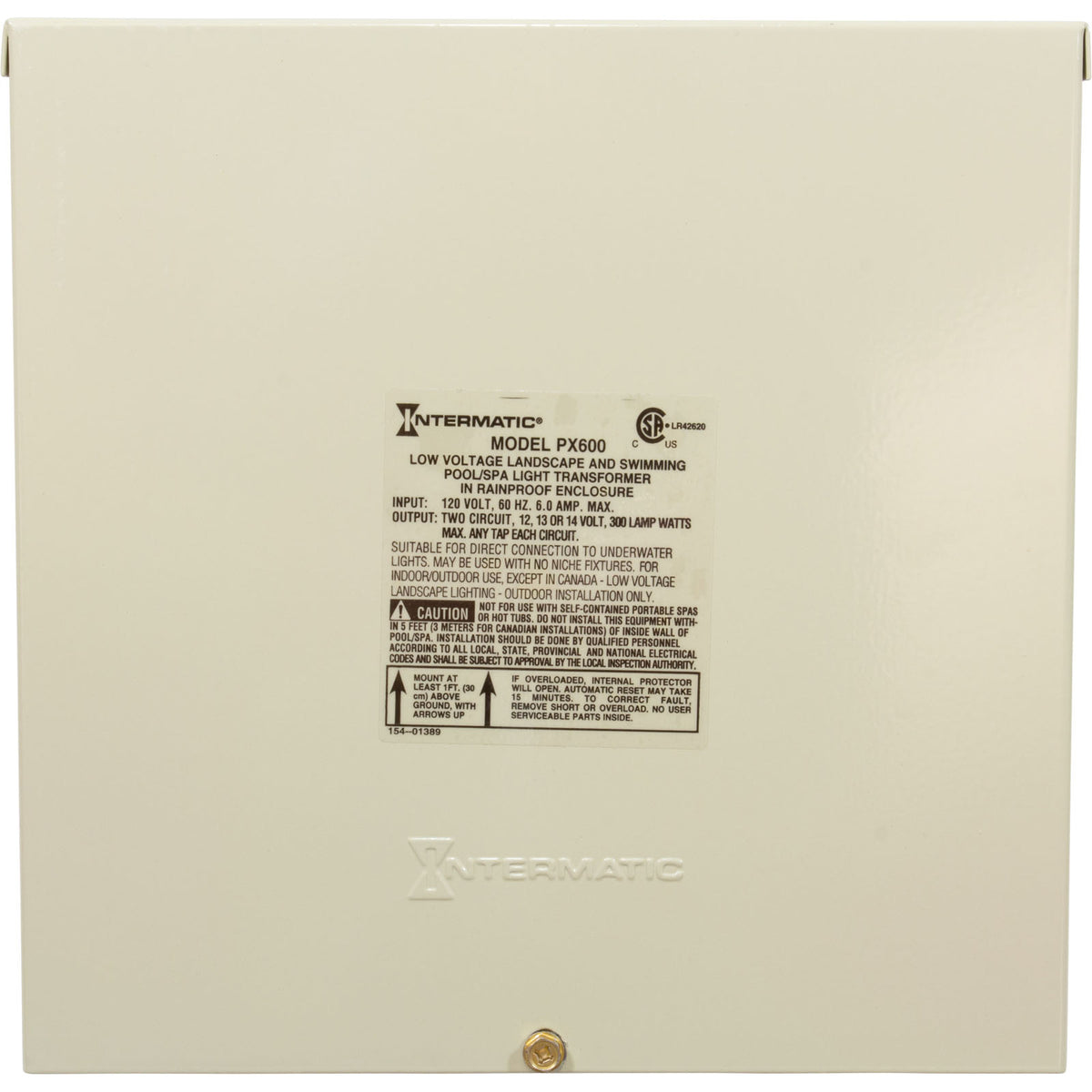

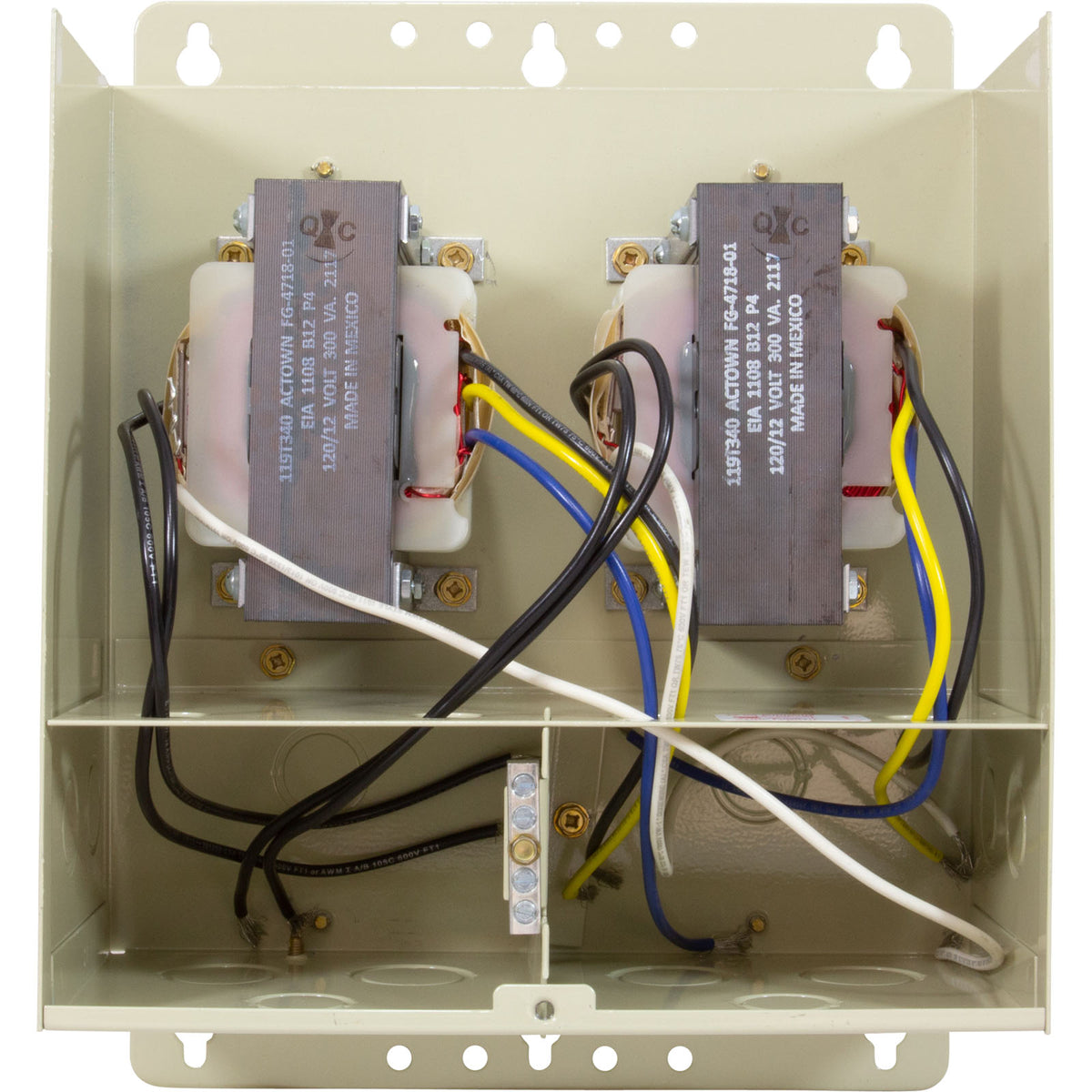

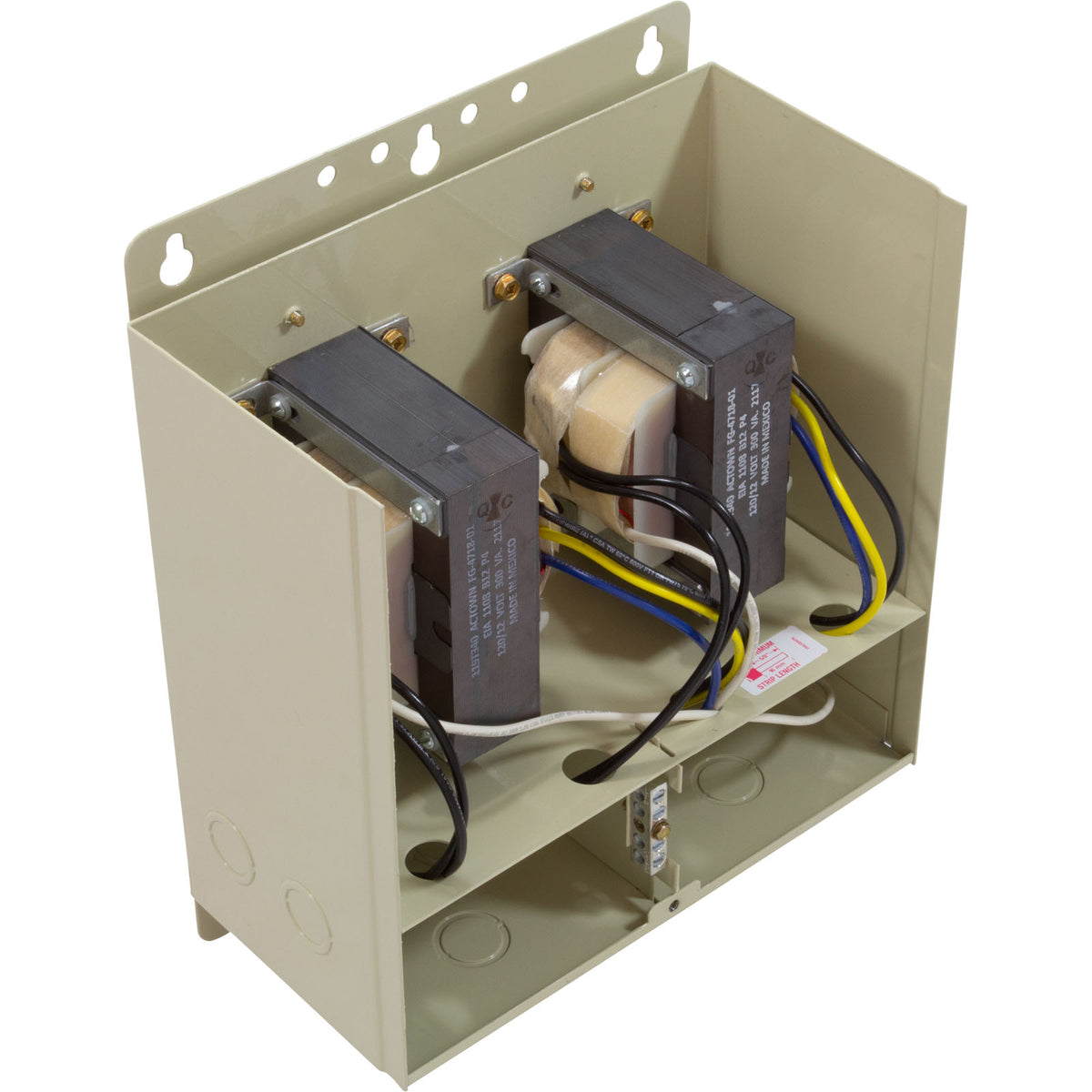

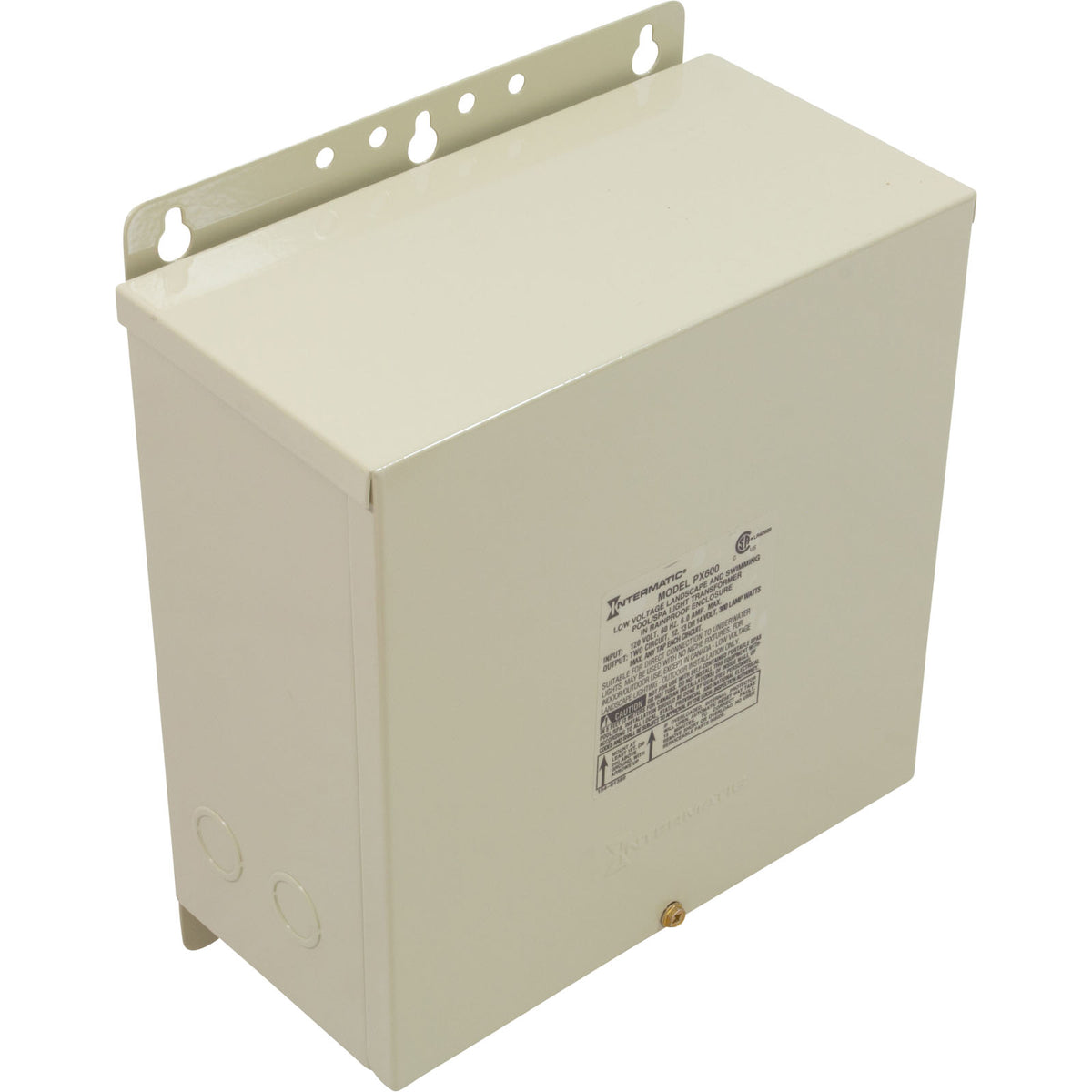

Intermatic PX600 Pool Light Transformer, 600W
Low-voltage power for your pool lighting.
Intermatic PX600 Pool Light Transformer, SKU PST-57-155-1004, supplies low-voltage AC power to compatible pool and spa lighting. Its 12, 13 and 14 VAC taps let your installer select the specified output for your lighting circuit.
Why PST Customers Pick This
Three Output Taps
Choose the tap specified for your lighting installation.
Overload Circuit Protection
Built-in protection temporarily interrupts power during an overload.

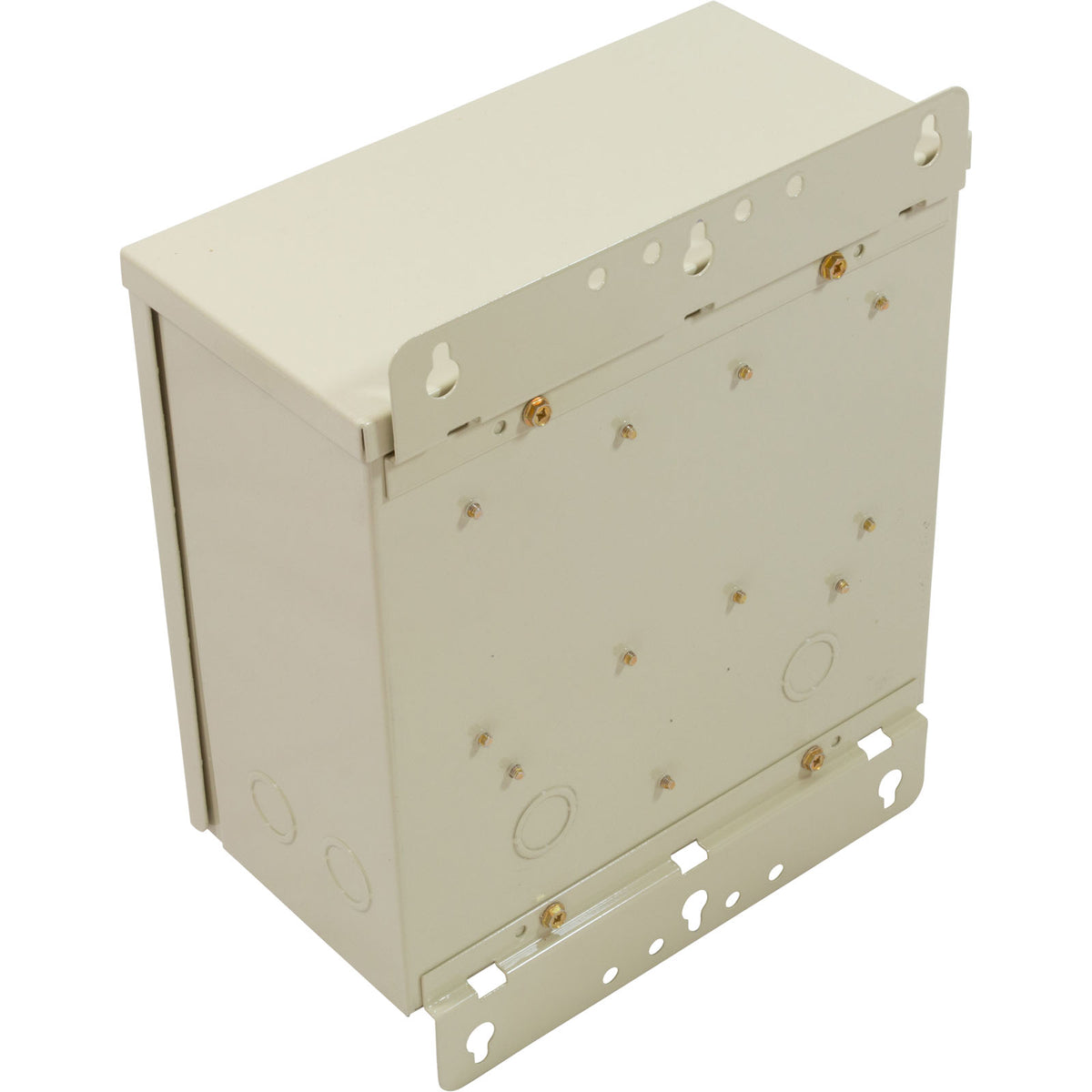

Mounting Brackets Included
Top and bottom brackets support mounting the enclosure.
Electrical Installation

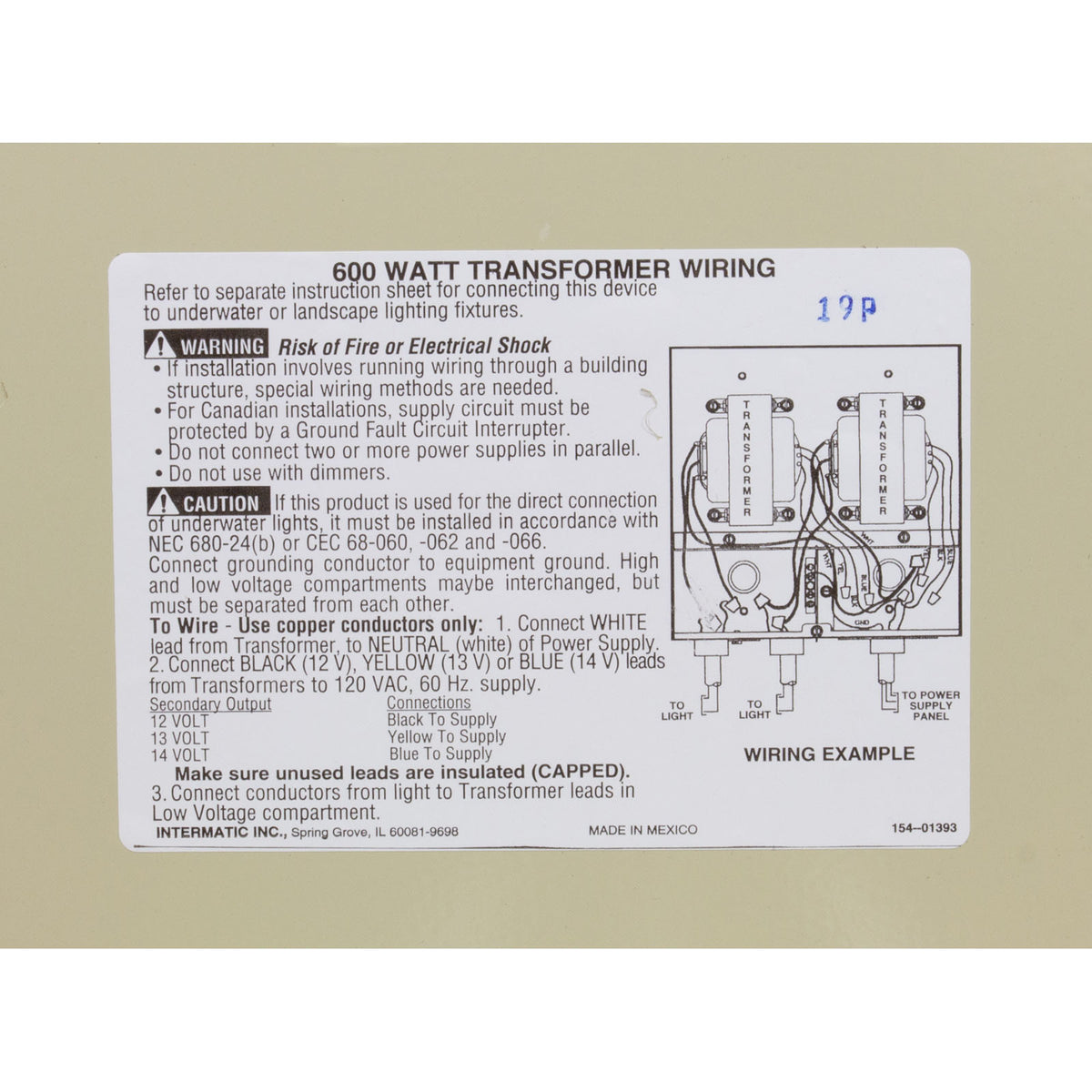

Use a qualified installer and follow the PX600 instructions and NEC 680.23. Match the connected lights, circuit load and voltage tap before energizing.
Specifications
| Identification | |
|---|---|
| Manufacturer | Intermatic |
| Model / MPN | PX600 |
| SKU | PST-57-155-1004 |
| Electrical and Construction | |
| Capacity | 600 W |
| Input | 120 VAC, 60 Hz, 6 A |
| Output taps | 12, 13, 14 VAC |
| Enclosure | Type 3R, beige metal |
| Dimensions (H x W x D) | 10 x 10 x 5.375 in |
| Certification | UL Swimming Pool Transformer |
| Code | NEC 680.23 |
| Warranty | 1-year limited manufacturer warranty |
Frequently Asked Questions
Is this the same as PX300?
No. PX600 is rated at 600W; PX300 is rated at 300W.
Does it provide DC output?
No. The outputs are AC. Check your light requirements before ordering.
Can I install it myself?
Have a qualified installer handle mounting, wiring and circuit verification.
Match Your Lighting Circuit
Confirm the model and electrical requirements before ordering.
- Free Shipping
- 30-Day Returns
- 1-Year Limited Warranty
- Authorized Intermatic Dealer
Additional Info
| Category | Parts Pool Parts Pool Light Parts |
| SKU | PST-57-155-1004 |
| MPN | PX600 |
| Manufacturer | Intermatic |
| Weight | 22.76 lb |
