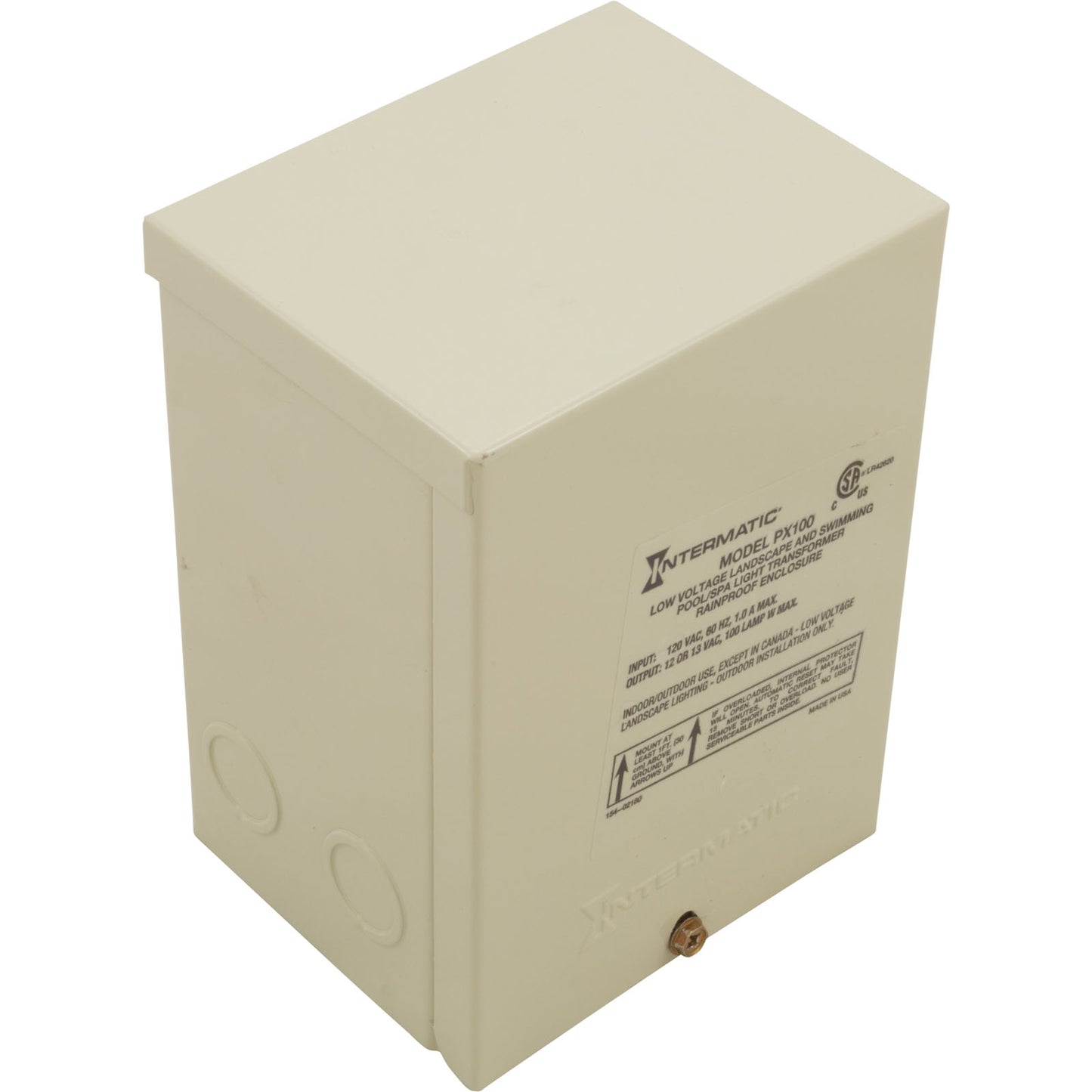

Intermatic PX100 100-Watt Pool & Spa Light Transformer
Safely power your low-voltage pool or spa lights with the Intermatic PX100 transformer (PST-57-155-1000, MPN: PX100). This 100-watt unit provides reliable, stepped-down voltage for underwater luminaires and landscape lighting. Its NEMA 3R weather-resistant steel enclosure ensures durability and safety for outdoor installations. Enjoy peace of mind with built-in circuit protection and a grounded shield for safe operation. š”
| Manufacturer | Intermatic Incorporated |
|---|---|
| Model / MPN | PX100 |
| SKU | PST-57-155-1000 |
| Product Type | Pool & Spa Safety Transformer |
| Input Voltage | 120 VAC, 60 Hz |
| Output Voltage | 12 VAC, 13 VAC, 14 VAC (Selectable Taps) |
| Wattage / Capacity | 100 Watts (Max Lamp Watts) |
| Primary Input Current | 1 Amp Max |
| Enclosure Material | Corrosion-resistant steel, beige finish |
| Enclosure Type | Type 3R / NEMA 3R (Weather-resistant) |
| Enclosure Dimensions (H x W x D) | 7.25" x 5.25" x 4.5" |
| Knockouts | Ten 1/2"-3/4" combination (bottom, sides, back) |
| Internal Protection | Automatic-reset circuit protector, grounded shield |

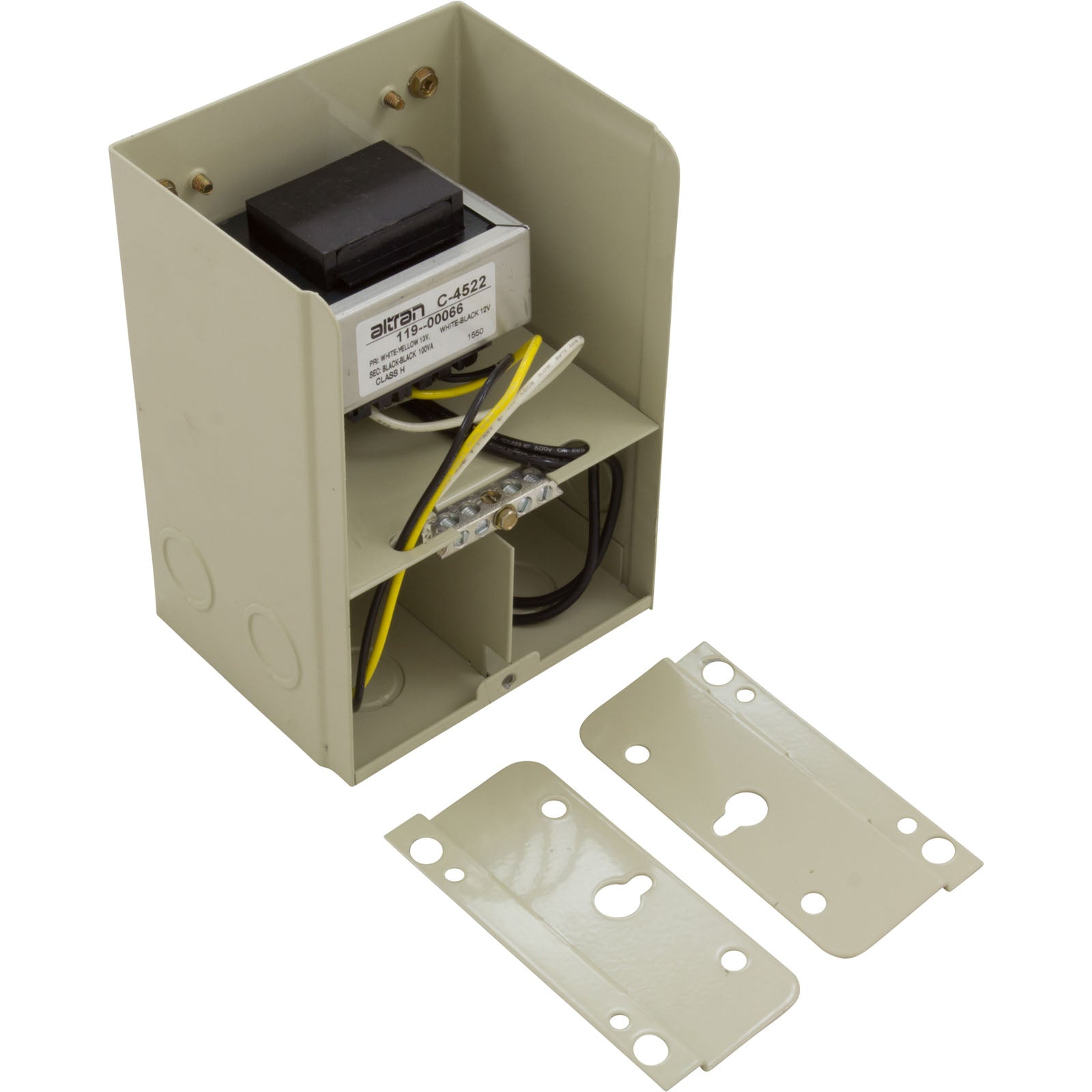

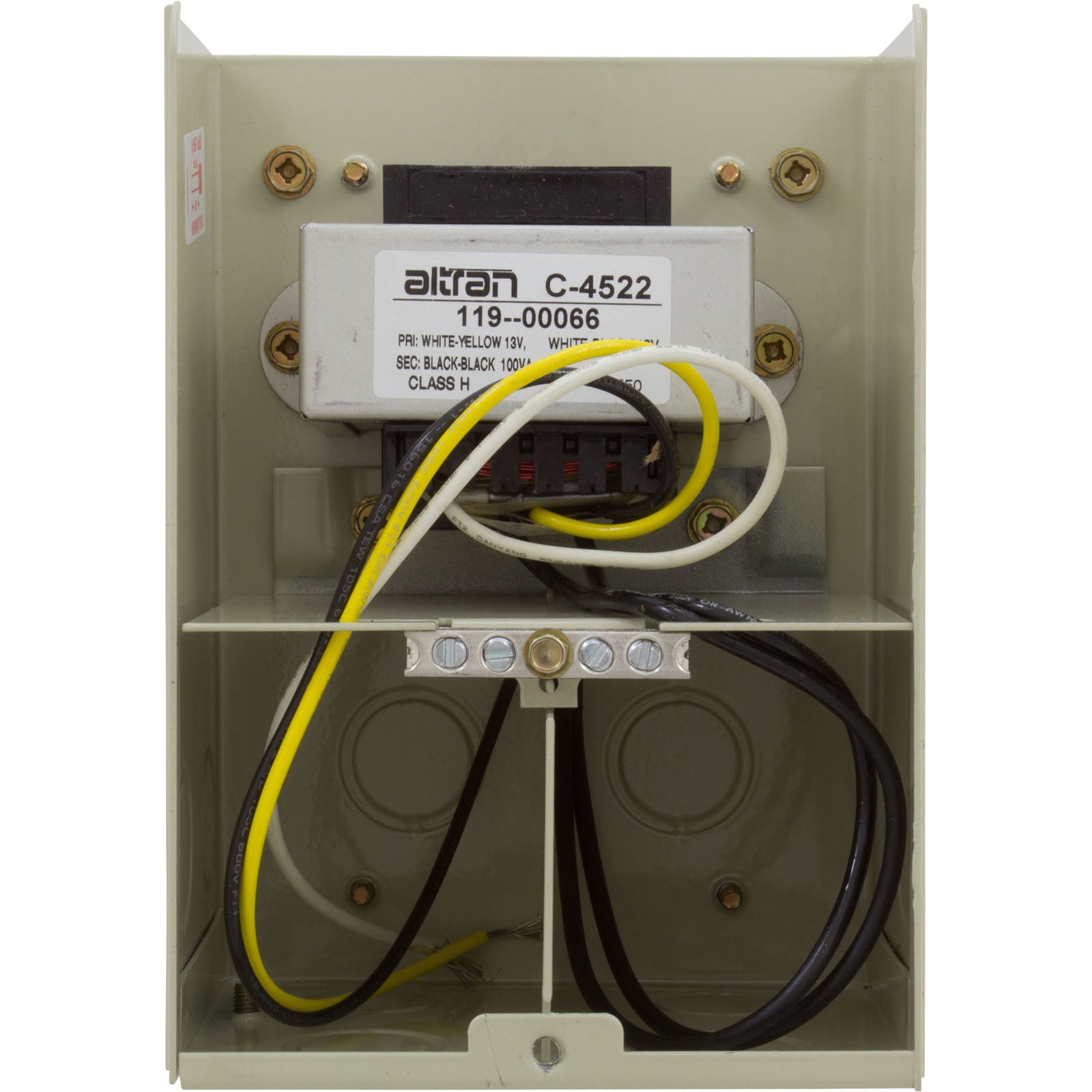

| Transformer Process | Vacuum impregnated two-bobbin |
| Certifications | UL Swimming Pool Transformer, cCSAus Certified, NEC Code 680.23 Compliant |
| Warranty | 1-year limited |
What are the differences between the PX100 and other Intermatic PX models?
The PX100 is a 100-watt unit featuring a corrosion-resistant beige steel enclosure and a 1-year limited warranty. For a 100-watt unit with a stainless steel enclosure and a 10-year warranty, consider the PX100S. Other models like the PX50, PX300, and PX600 offer varying wattage capacities.
Can I install this transformer myself?
No, this electrical equipment must be installed by a qualified electrician. Installation must strictly adhere to the National Electrical Code (NEC, Article 680, specifically 680.21(b) and 680-24(b)), Canadian Electrical Code (CEC, Section 68), and all local code requirements. Improper installation poses a significant risk of electrical shock or fire. ā ļø
Additional Info
| Category | Parts Pool Parts Pool Light Parts |
| SKU | PST-57-155-1000 |
| MPN | PX100 |
| Manufacturer | Intermatic |
| Weight | 6.5 lb |
