Product Information
Description

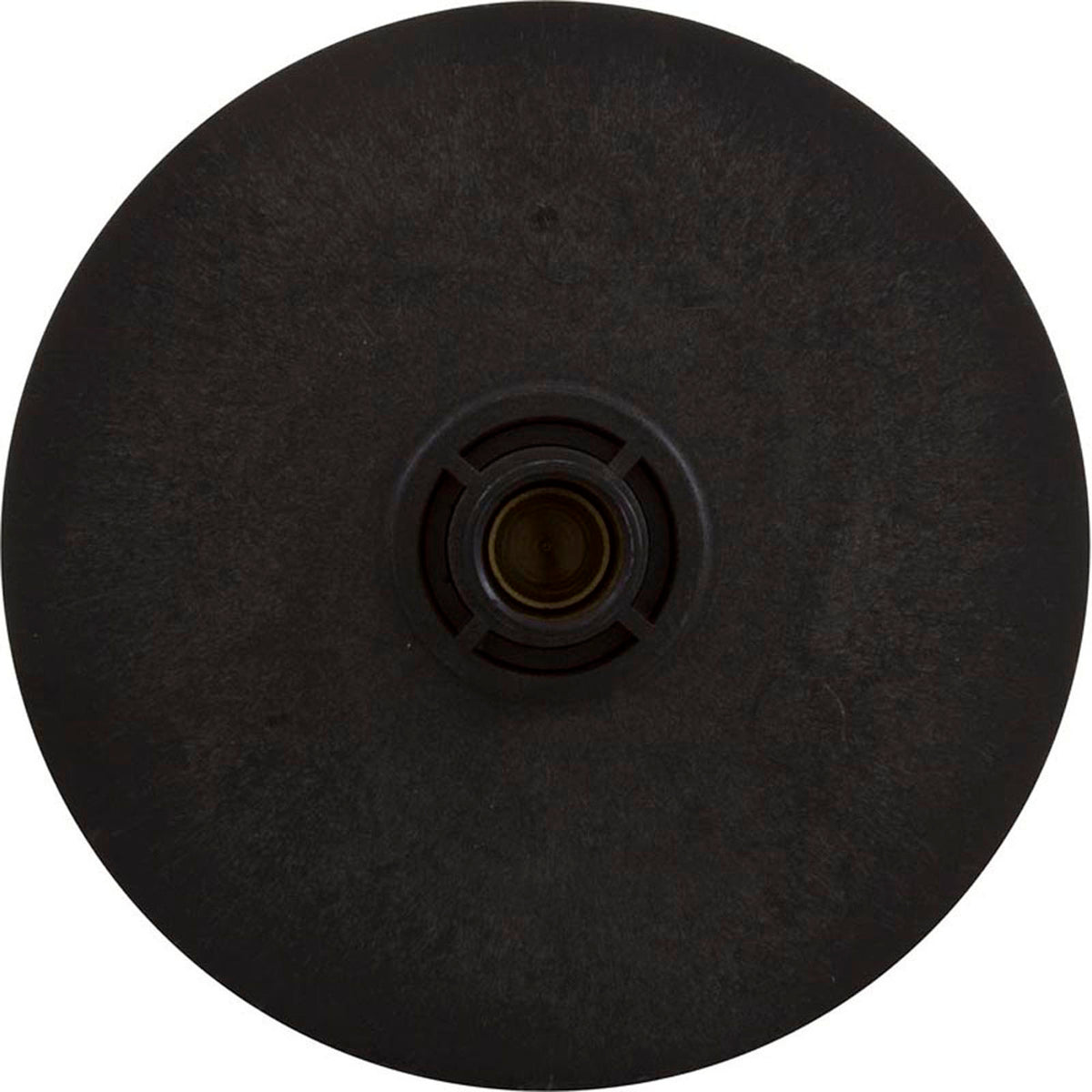

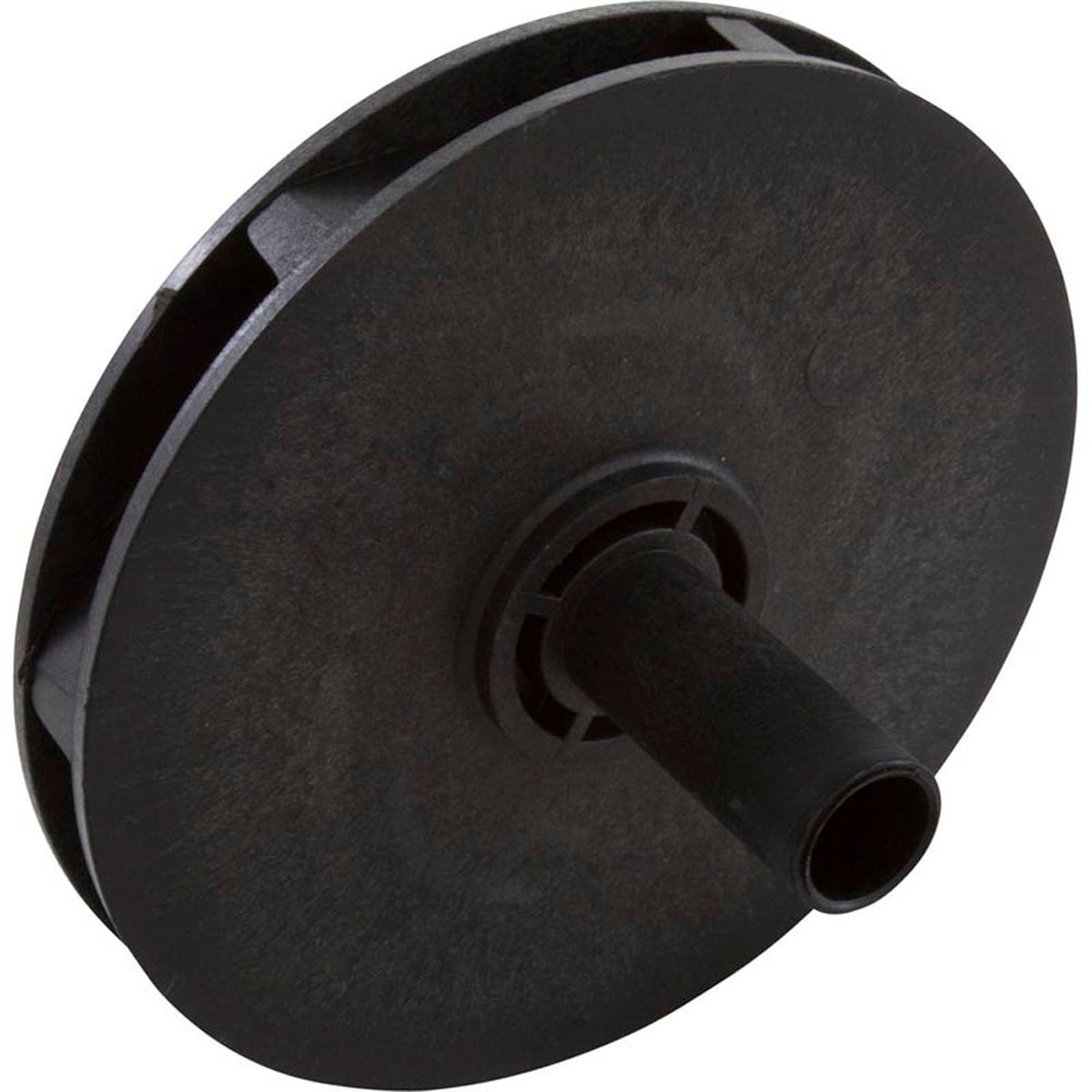

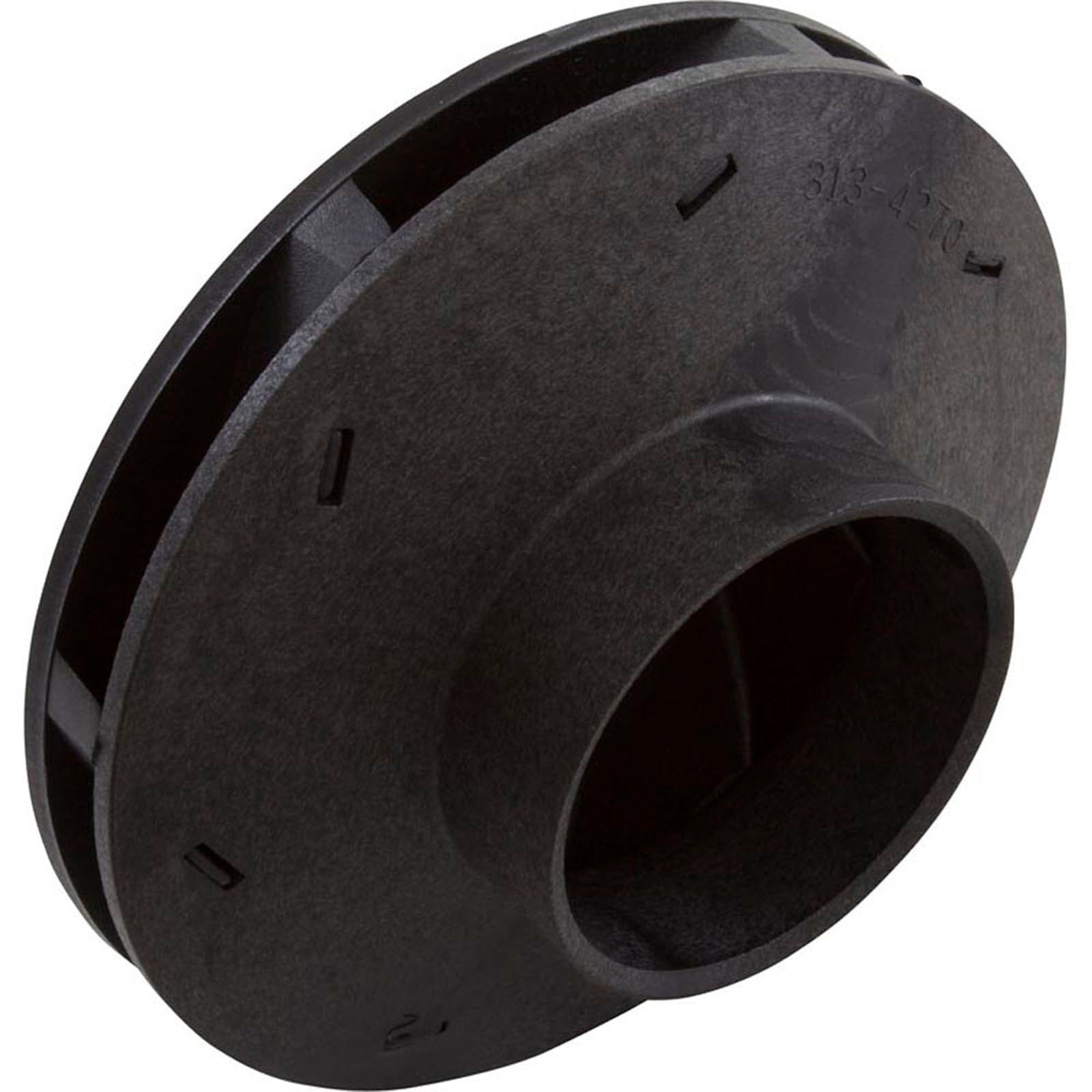

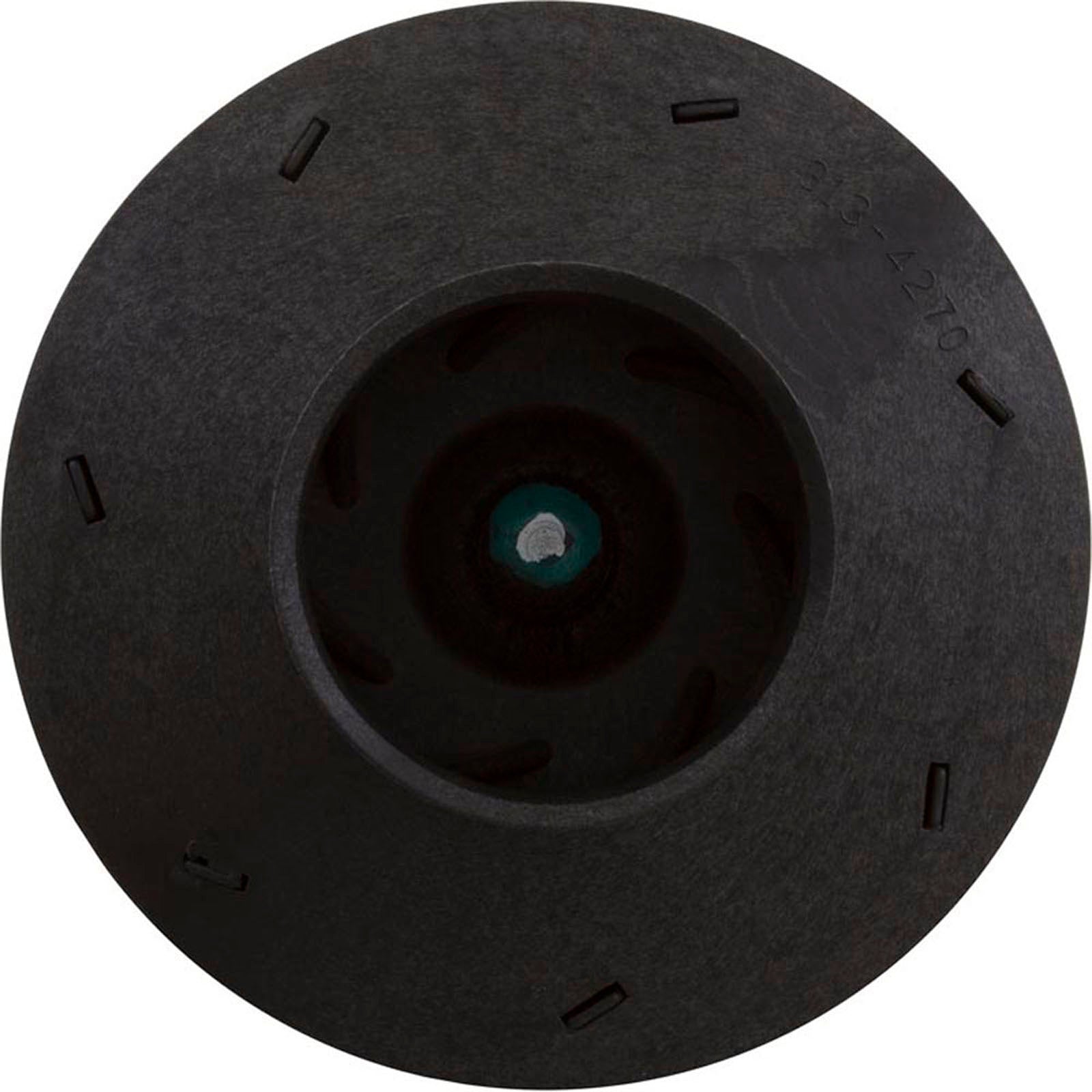

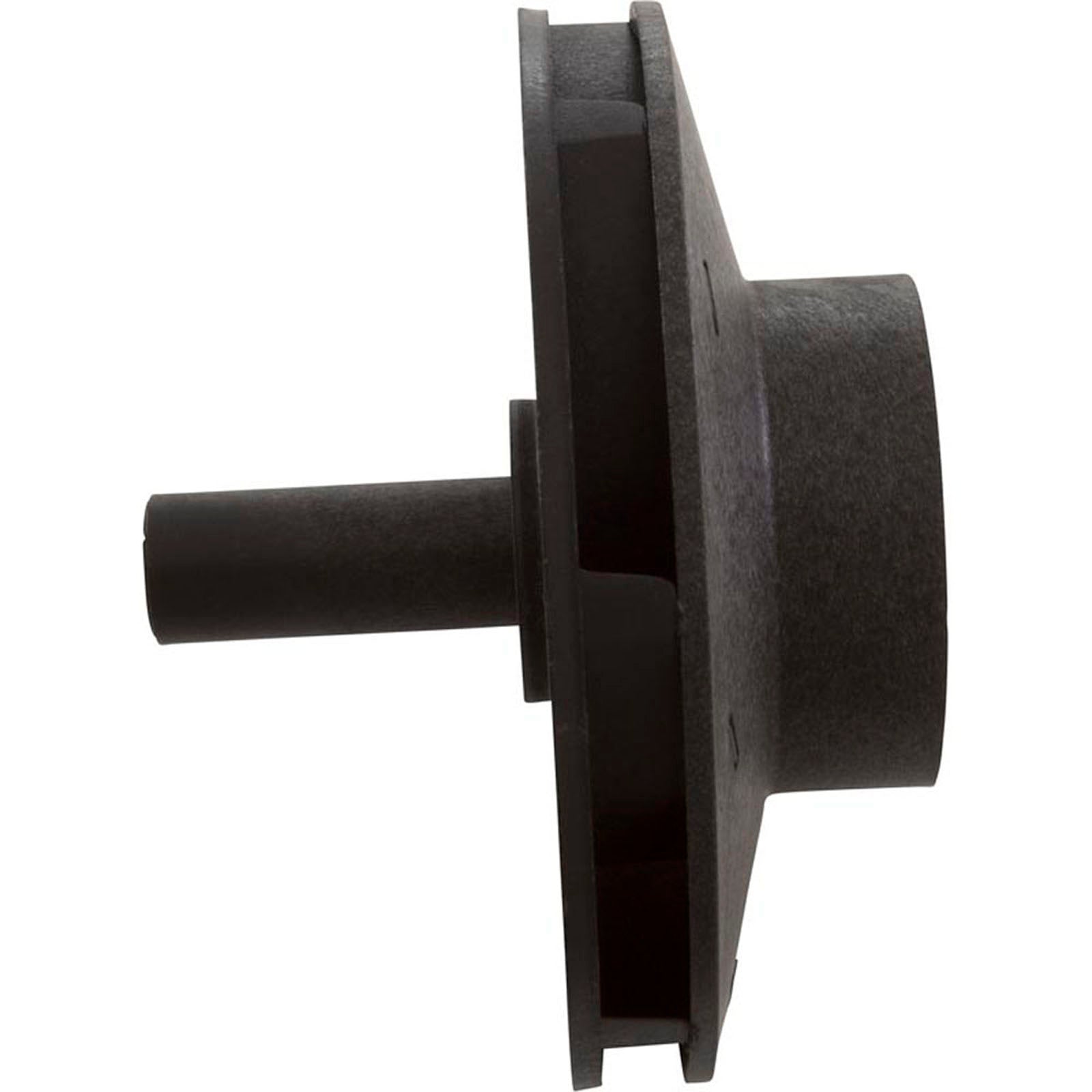

Waterway EX2 Pump ImpellerClosed face impeller made for the EX2 pump by Waterway Plastics. Rated at 2.5hp, it is used in a Waterway EX2 pump wetend, and must be installed on a 2.5hp (or greater) thru bolt motor. Shaft seal sold separately.
Product Specifications:
Impeller Type
Closed Face
Impeller Diameter OD
4-3/8"
Vane Width ID
5/16"
Eye Diameter OD
2-1/8"
Eye Length
11/16"
Impeller Width OD
9/16"
Seal Seat Depth
1/8"
Shaft Length
1-1/2"
Shaft Diameter OD
5/8"
Seal Seat Diameter OD
1-1/4"
Pump Application
EX2
Additional Info
| Category | Parts Pool Parts Pool Pump Parts |
| SKU | PST-35-270-1760 |
| MPN | 310-2300 |
| Replaces | 3102300, 313-4270, 370042, 5175-506, 806105355874 |
| Manufacturer | Waterway Plastics |
| Weight | 0.1 lb |
