Pentair Sta-Rite CSPH/CCSPH 20 HP Commercial Pump Impeller (16830-0212)

Pentair Sta-Rite CSPH/CCSPH 20 HP Commercial Pump Impeller (16830-0212)

Pentair • Part # 16830-0212
SKU: SKU: PST-35-102-3016
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110421016641","mpn":"16830-0212","prop65":"This product can expose you to chemicals which is known to the State of California to cause cancer and reproductive harm.","saleprice":"0","warehouselocations":"Bloomfield, CT","warranty":"12 Months"}
Regular price $1,619.40
Regular price $2,591.10 Sale price $1,619.40

Low stock: 3 left

Ships from: Bloomfield, CT

Authorized dealer
Pentair

Genuine OEM product, sold with full manufacturer warranty support.

  1. Today Shipping 0 hrs 21 mins left
  2. 30 days ReturnsPolicy
  3. 12 Months Warranty Manufacturer

Frequently Bought Together

Shaft Seal, Pentair CSPH/CCSPH Series, Buna
Shaft Seal, Pentair CSPH/CCSPH Series, Buna
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110420787265","discontinued":false,"mpn":"S32014","prop65":"This product can expose you to chemicals which is known to the State of California to cause cancer and reproductive harm.","saleprice":"0","warehouselocations":"Newnan, GA | Bloomfield, CT | Murray, UT","warranty":"12 Months"}
Regular price $159.00
Regular price $254.40 Sale price $159.00
Tool,  Seal Setting
Tool, Seal Setting
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110799290433","discontinued":false,"mpn":"SS2136","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months"}
Regular price $84.90
Regular price $135.90 Sale price $84.90
Tool, Pool Tool, Armature Holding
Tool, Pool Tool, Armature Holding
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110797684801","discontinued":false,"mpn":"128","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ | Bloomfield, CT","warranty":"12 Months"}
Regular price $27.40
Regular price $43.90 Sale price $27.40
Tool,  Pool Tool,  Impeller Wrench,  Closed
Tool, Pool Tool, Impeller Wrench, Closed
Sale Price Value: 0 Sale Price Number: 0 Website Price Value: 0 Website Price Number: 0 All Metafields: {"bundle":"gid:\/\/shopify\/Metaobject\/110797652033","discontinued":false,"mpn":"127","saleprice":"0","warehouselocations":"Memphis, TN | Tucson, AZ","warranty":"12 Months"}
Regular price $40.50
Regular price $64.80 Sale price $40.50
View full details

Product Information

Description

  • Genuine Pentair Part
  • Bronze Enclosed Design
  • Free Shipping

Pentair Sta-Rite CSPH/CCSPH 20 HP Commercial Pump Impeller (16830-0212)

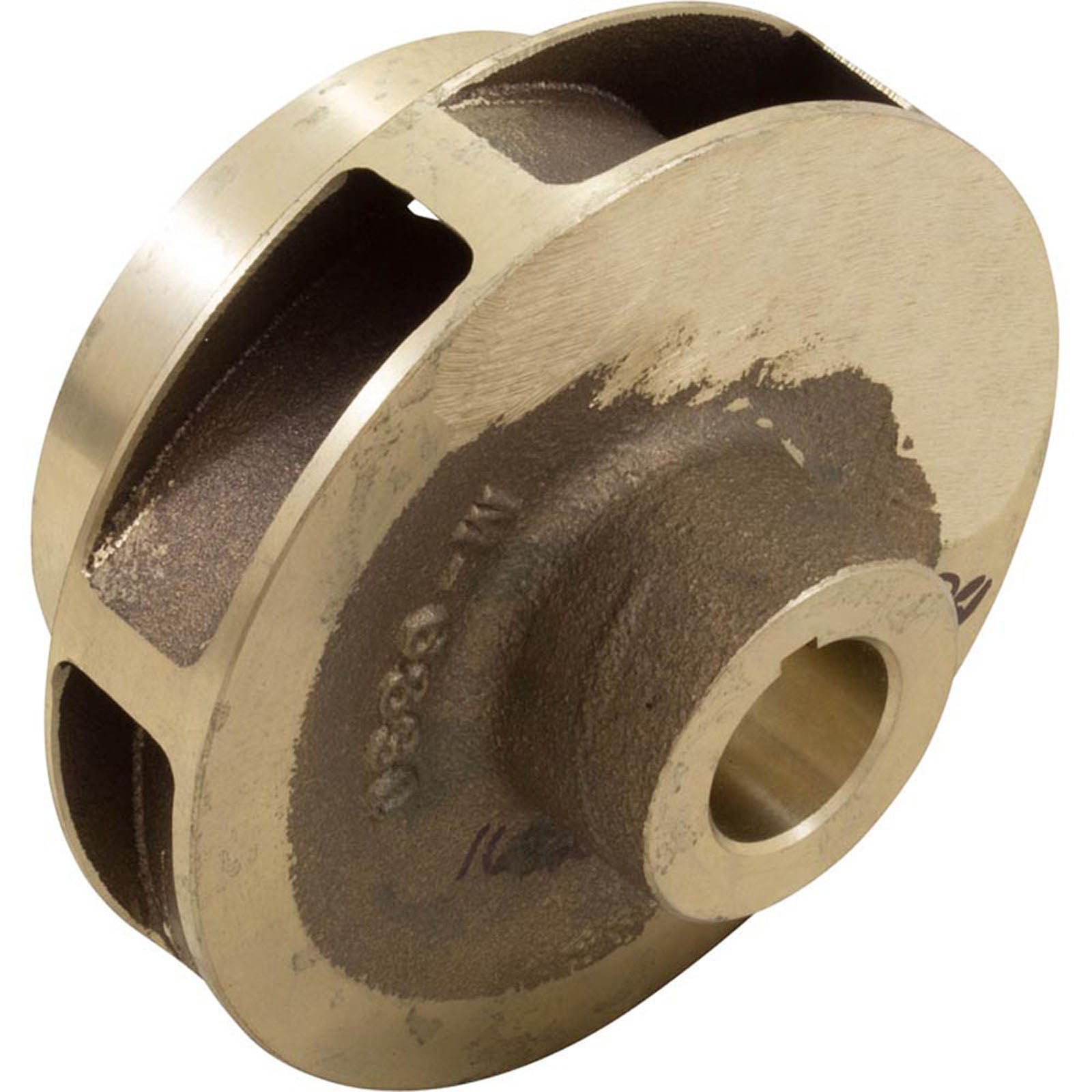

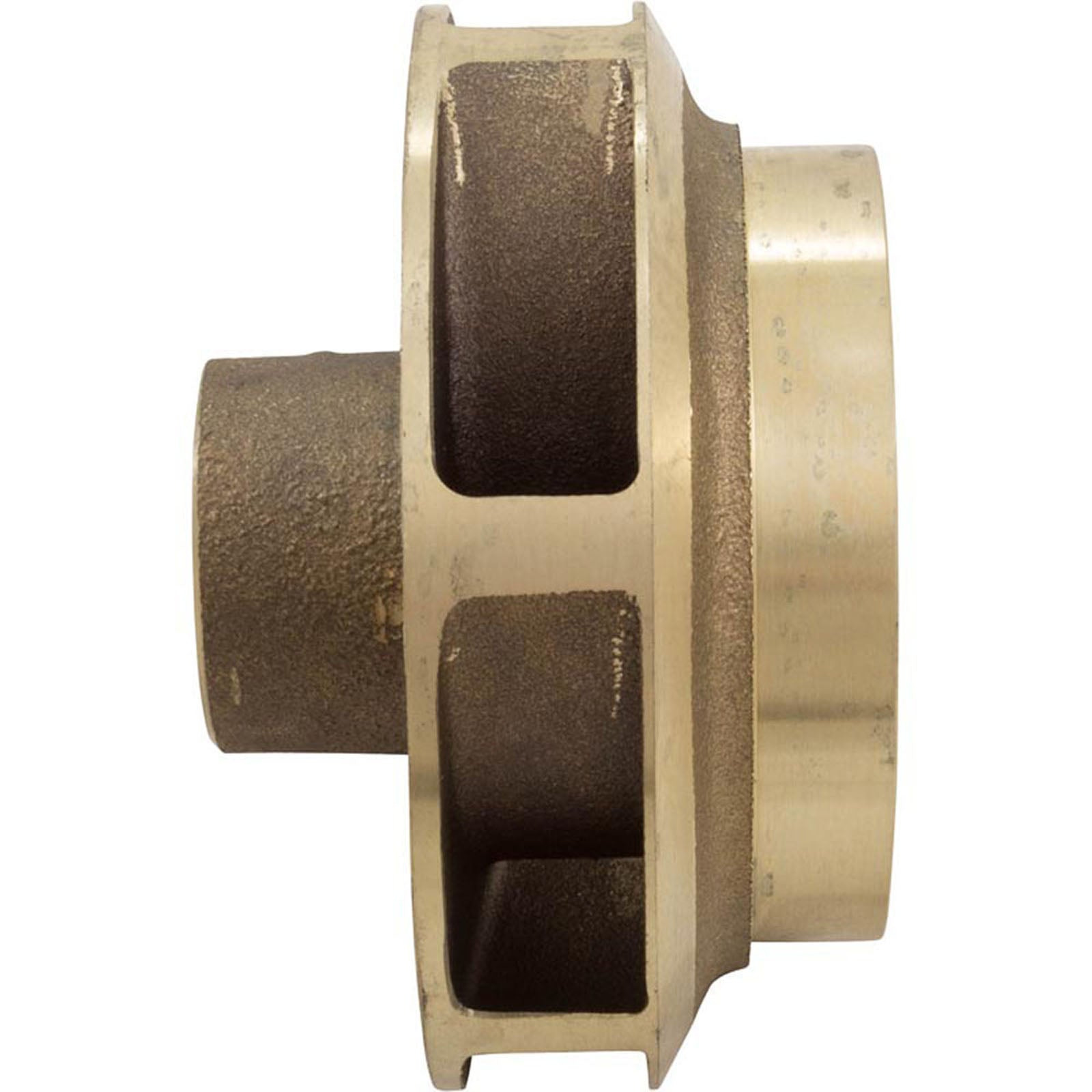

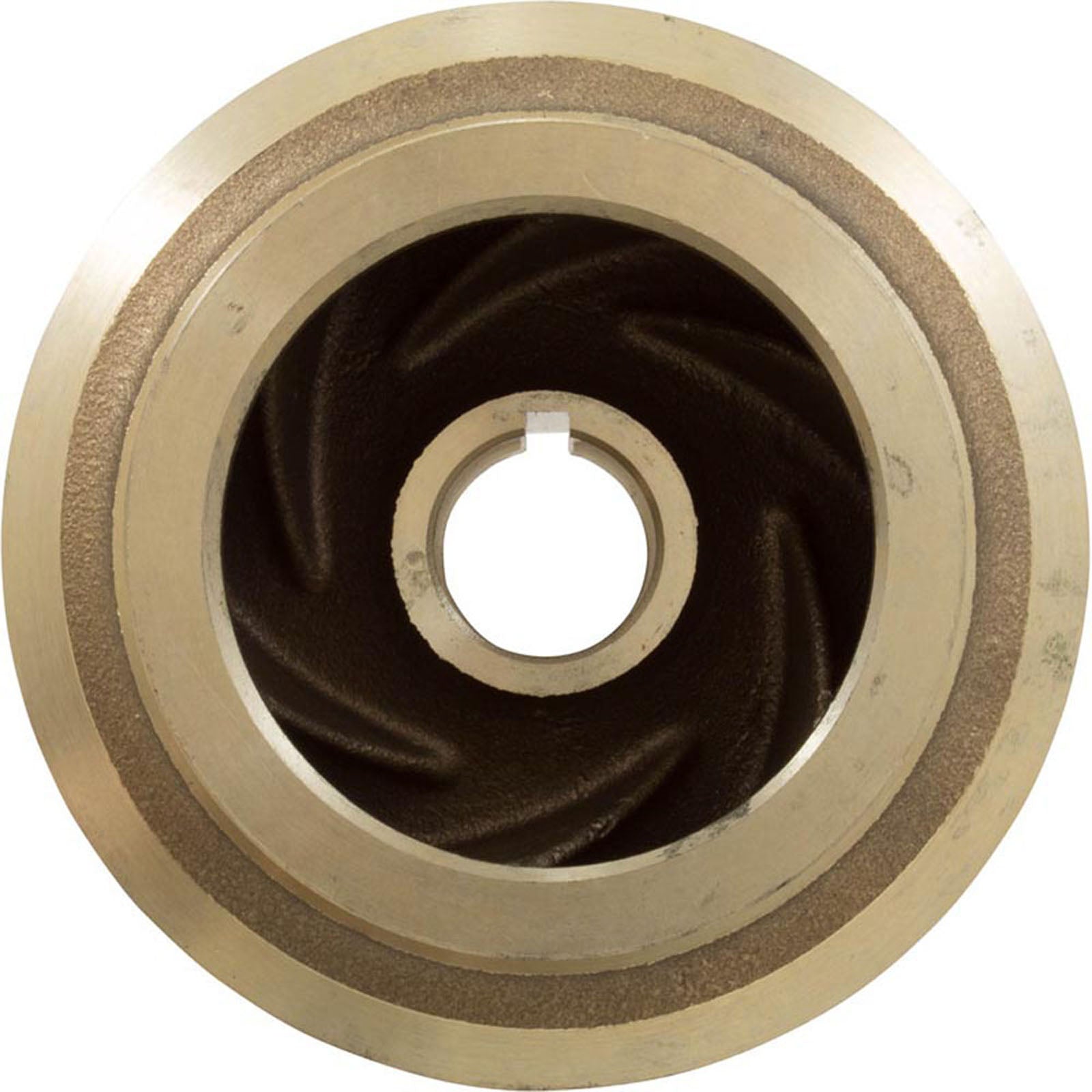

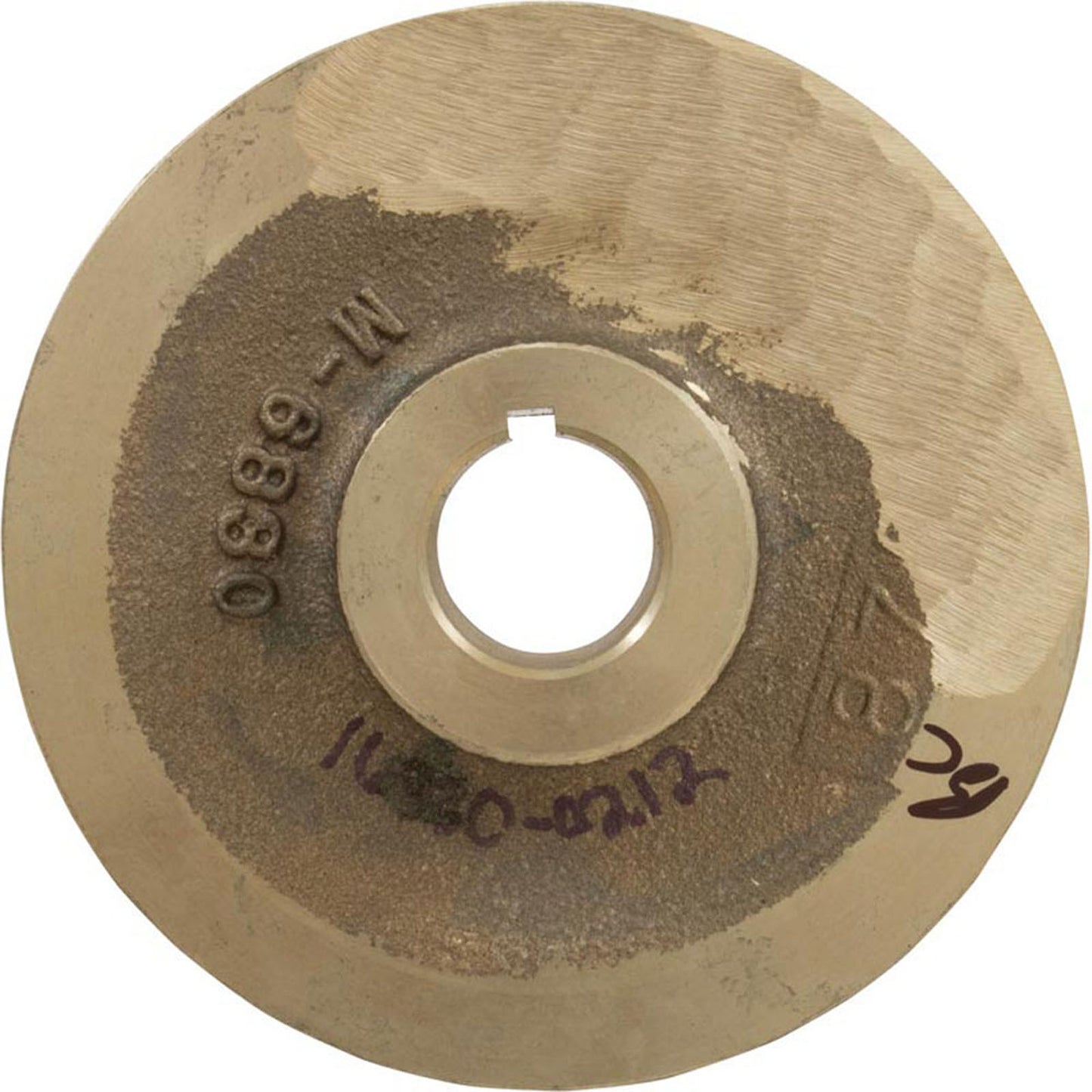

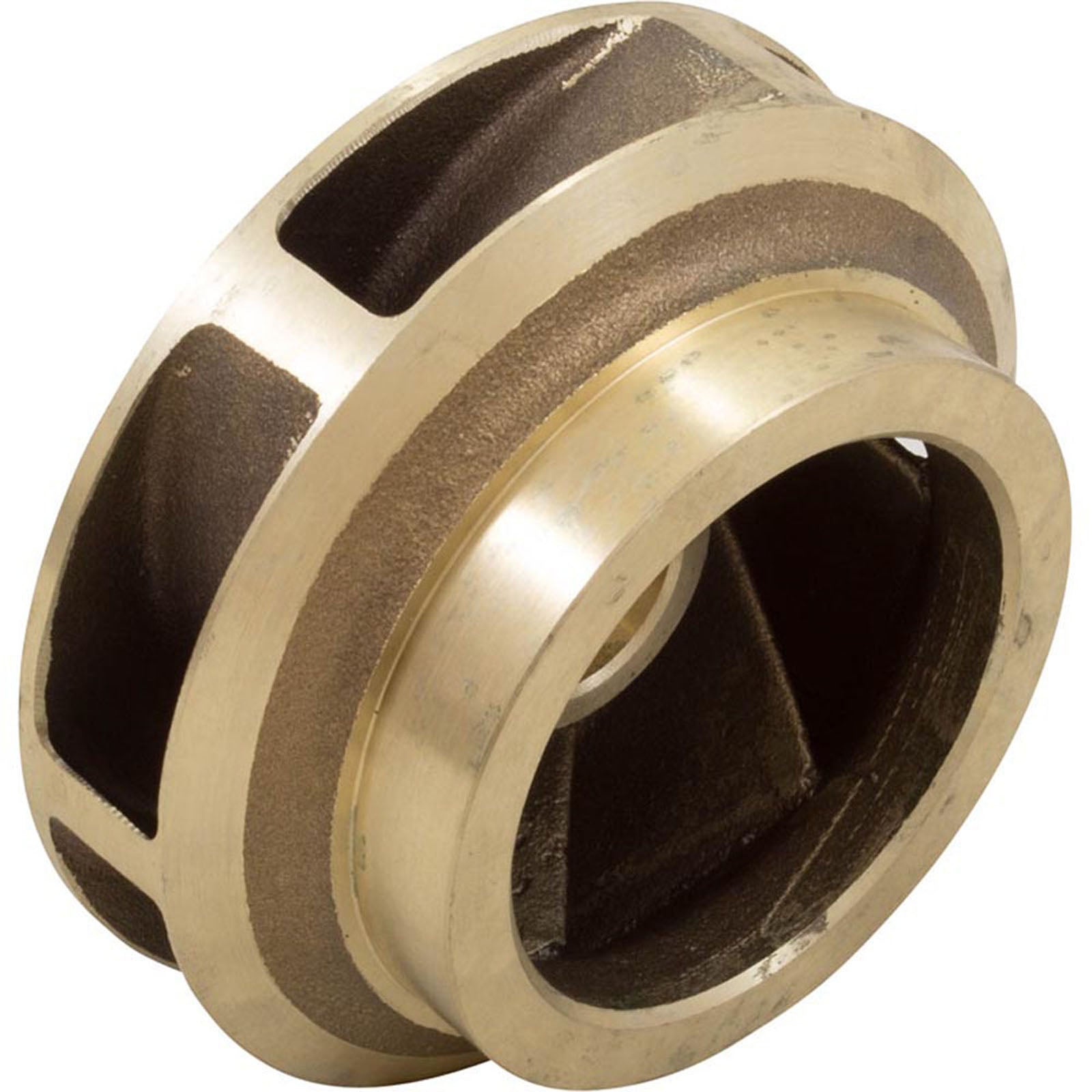

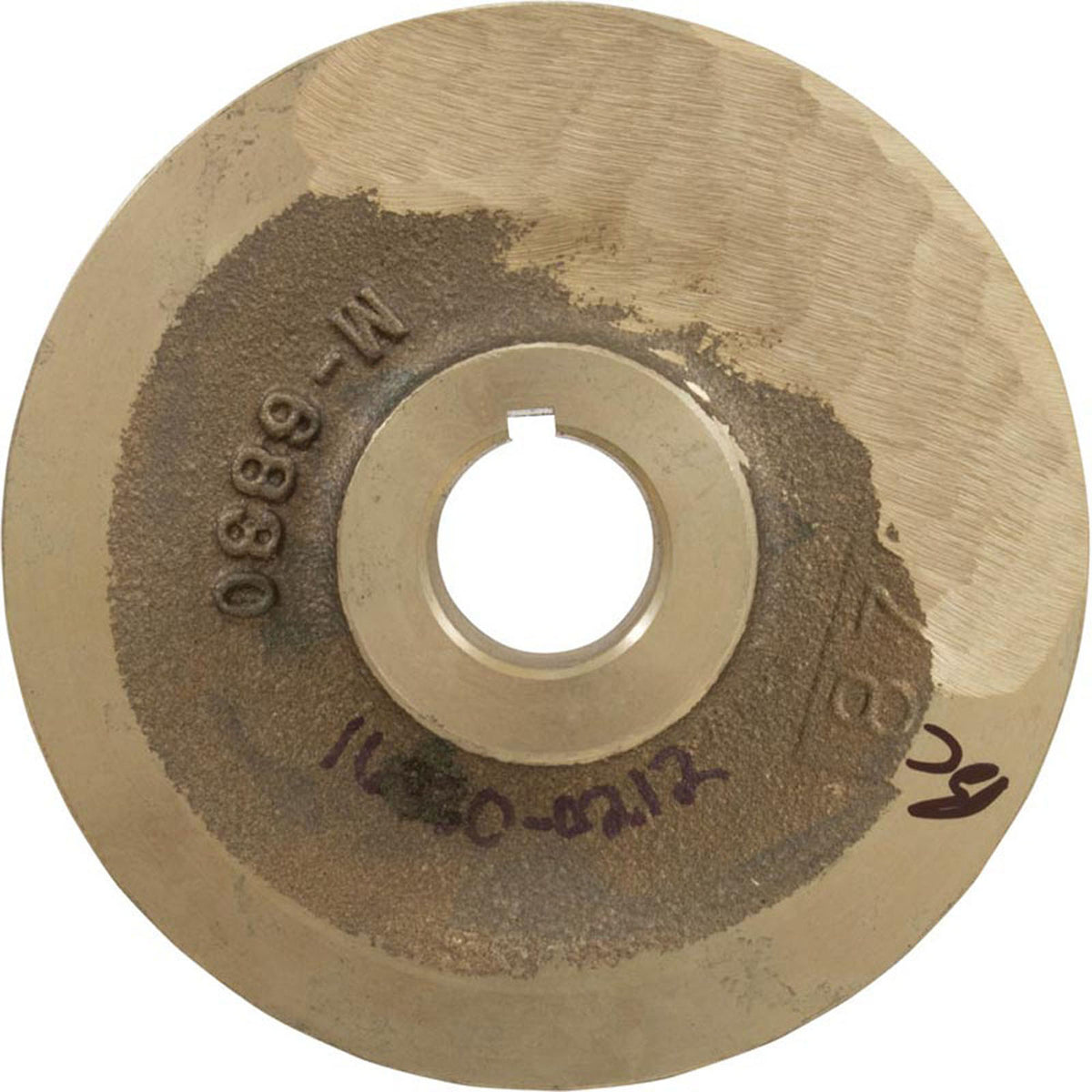

Bronze enclosed impeller for 20 HP CSPH pumps.

16830-0212
Pentair Part
20 HP
Pump Rating
Bronze
Enclosed Impeller
Key No. 11
Parts List
450 in-lb
Screw Torque

Pentair 16830-0212 is the impeller, Key No. 11 in Pentair's repair parts lists, for the 20 HP Sta-Rite CSPH and CCSPH self-priming commercial pool pumps, models CSPHN3-145 and CCSPHN3-145. Pentair builds the CSP series with an enclosed bronze impeller that runs in a bronze wear ring, and the CC models carry a fusion bonded epoxy coating on all wetted cast iron surfaces. PST SKU PST-35-102-3016.

Why PST Customers Pick This

Matched to the 20 HP Pumps

Pentair lists 16830-0212 as the impeller for the 20 HP CSPHN3-145 and epoxy-lined CCSPHN3-145 pumps, and for the 200 V CSPH2N3-145 and CCSPH2N3-145 versions.

Bronze With a Bronze Wear Ring

Pentair specifies a bronze enclosed impeller that runs inside a bronze wear ring on CSP series commercial pumps. The wear ring for this pump is listed as 16830-0120.

Back Pull-Out Service

The CSP series uses a back pull-out design. Pentair's procedure unbolts the bracket from the volute and slides the bracket, impeller and motor out as one unit, without disconnecting the piping.

Published Torque Spec

Pentair calls for Loctite Primer T and Loctite #271 on the impeller screw, and 450 inch-lbs on the 1/2 in. screw (S23619) used on the 20 HP pump.

Check It for Wear

Pentair's troubleshooting guide lists internal leakage as a mechanical cause and says to check the impeller for wear of its controlled clearances.

Keep the Strainer Clean

Pentair warns that a clogged strainer basket causes cavitation that damages the basket, impeller and pump, and says to clean it weekly or each time you vacuum the pool.

Service Notice

Pentair says to disconnect all power to the pump and close valves to isolate it before service, then drain the pump and trap and vent the strainer. These motors have no internal thermal protection, so thermal protection must be provided by the installer.

Specifications

Identification
Manufacturer Pentair (Sta-Rite)
Pentair Part Number 16830-0212
Parts List Key No. 11 (Impeller)
SKU PST-35-102-3016
Impeller Type Closed face, bronze enclosed
Fitment
20 HP, 60 Hz CSPHN3-145, CCSPHN3-145 (3 phase)
20 HP, 200 V 60 Hz CSPH2N3-145, CCSPH2N3-145
15 HP, 50 Hz 5CSPHM3-145, 5CCSPHM3-145
Pump Series Sta-Rite CSPH and CCSPH (epoxy lined) self-priming commercial pumps
Companion Parts, 20 HP 60 Hz List
Wear Ring 16830-0120
Mechanical Shaft Seal S32015
Impeller Screw S23619, 1/2-13 x 1 in.
Impeller Washer 38917-0204
Impeller Gaskets 33455-8046 (to shaft sleeve), 33455-8045 (to washer)
Shaft Sleeve 37447-0002L
Installation
Thread Locker Loctite Primer T, then Loctite #271
Impeller Screw Torque 450 inch-lbs (5.2 kg-m)

Frequently Asked Questions

Does this impeller fit a 15 HP CSPH pump?

Not on 60 Hz pumps. Pentair lists 16830-0211 for the 15 HP CSPHM3-144 and 16830-0212 for the 20 HP CSPHN3-145. On the 50 Hz 5CSPH and 5CCSPH series, Pentair lists 16830-0212 for the 15 HP 5CSPHM3-145 and 5CCSPHM3-145.

Does it fit the epoxy-lined CCSPH pump?

Yes. Pentair lists the same 16830-0212 impeller for the CSPHN3-145 and the epoxy-lined CCSPHN3-145.

What does Pentair check when the impeller comes out?

Pentair's procedure says to inspect the impeller skirt and the wear ring for damage, pitting or wear and replace them if needed, remove the old gaskets and clean all gasket surfaces, and install a new impeller gasket before refitting the impeller.

How is the impeller removed?

Disconnect power, isolate and drain the pump and trap, unbolt the bracket from the volute and slide the bracket, impeller and motor out together. Then remove the impeller screw, stat-o-washer and impeller washer and pull the impeller with a wheel puller.

Order the 16830-0212 From PST

Backed by PST Pool Supplies' service team.

  • Free Shipping
  • 30-Day Returns
  • Warranty Backed
  • Authorized Pentair Dealer
California Prop 65 Warning:
This product can expose you to chemicals which is known to the State of California to cause cancer and reproductive harm.

Additional Info

Category Parts Pool Parts Pool Pump Parts
SKU PST-35-102-3016
MPN 16830-0212
Manufacturer Pentair
Weight 7.22 lb
